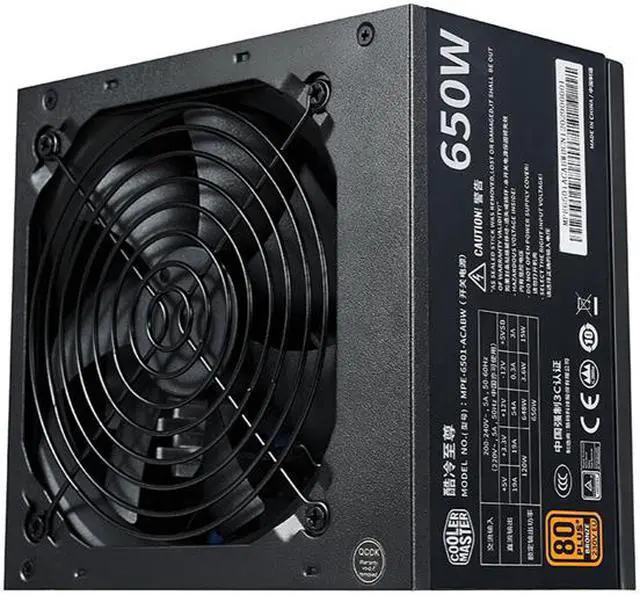

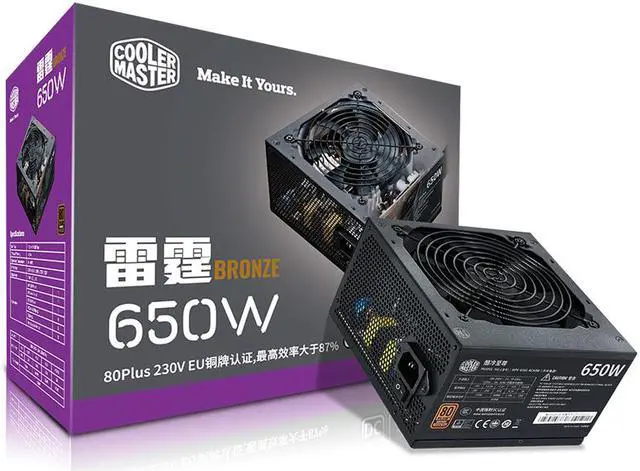

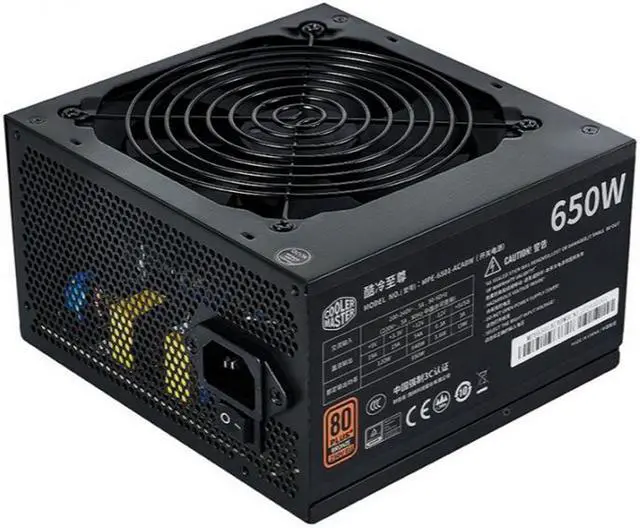

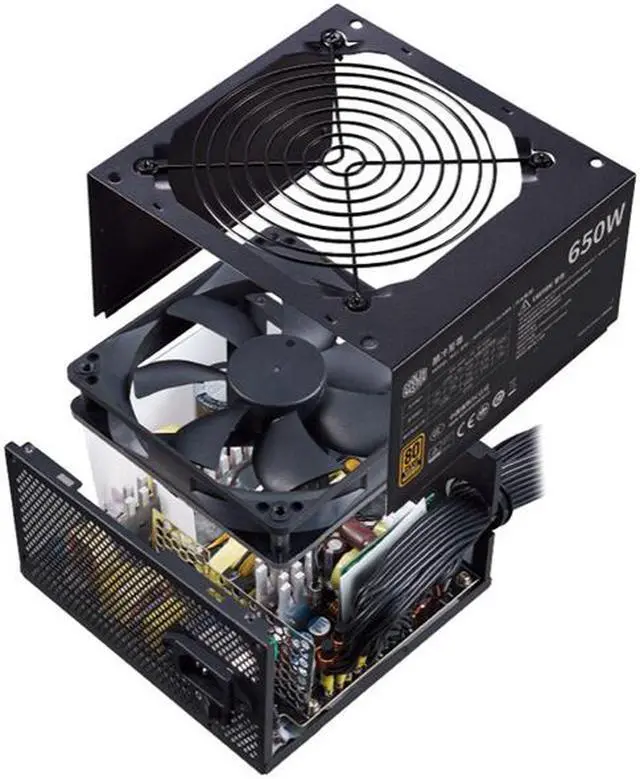

Cooler Master Thunder 650W Power Supply, 80PLUS Bronze Certification, 120mm Temperature-Controlled Silent Fan, Multiple Protections, High Temperature Resistance
- Power structure: active PFC+LLC+synchronous rectification+DC/DC design
- Dimensions (L × B × H): 140 × 150 × 86mm
- Fan size: 120mm
- Bearing: HDB
- Hold time: >14ms
- PG signal: in line with Intel ATX12V 2.52 specification requirements
- Efficiency: Passed 80Plus 230EU bronze certification, greater than 87%
- Input voltage: standard voltage (nameplate) 200V~240V, maximum voltage range 180V~264V
- MTBF: >100,000 hours, long fan life and 40,000 hours
- Working temperature: 0~40?
- Protection: OVP / OPP / OTP / SCP
- Safety certification: CE, TUV, CCC, EAC, RCM, KCC
- Wire: black flat wire
+
+
Overview
Specs
Reviews
Basic parameters:
Power supply type Desktop power supply
Scope of application: Supports all series of Intel and AMD CPUs
Power supply version ATX 12V 2.52
Outlet type non-module power supply
Rated power 650W
Fan description 12cm
Power supply size 150×140×86mm
Power supply weight 1.54kg
Power connector:
Motherboard interface 20+4pin
CPU interface (4+4pin) 1
Graphics interface (6+2Pin) 2
Hard disk interface 6
Power supply interface (large 4pin) 3
Performance parameter:
AC input 200-240V (wide), 5A, 50-60Hz
3.3V output current 16A
5V output current 16A
5Vsb output current 3A
12V output current 41A
-12V output current 0.3A
Other parameters:
PFC type active
Conversion efficiency >87%
80PLUS certification
Safety certification 3C
Other features LLC+SR+DC/DC architecture
packing list:
Power x1
Power cord x1
Manual x1
Screw installation package x1
Shelf life 3 years
Power supply type Desktop power supply
Scope of application: Supports all series of Intel and AMD CPUs
Power supply version ATX 12V 2.52
Outlet type non-module power supply
Rated power 650W
Fan description 12cm
Power supply size 150×140×86mm
Power supply weight 1.54kg
Power connector:
Motherboard interface 20+4pin
CPU interface (4+4pin) 1
Graphics interface (6+2Pin) 2
Hard disk interface 6
Power supply interface (large 4pin) 3
Performance parameter:
AC input 200-240V (wide), 5A, 50-60Hz
3.3V output current 16A
5V output current 16A
5Vsb output current 3A
12V output current 41A
-12V output current 0.3A
Other parameters:
PFC type active
Conversion efficiency >87%
80PLUS certification
Safety certification 3C
Other features LLC+SR+DC/DC architecture
packing list:
Power x1
Power cord x1
Manual x1
Screw installation package x1
Shelf life 3 years
