The MasterCase H500 Mesh White case is designed to house performance components in a clean and cool way. It performs to let you accomplish more and shines to make a unique statement. If you have a flashy graphics card, you can better show it off by installing it vertically.
Mind-Blowing Design
The MasterCase H500P Mesh White will blow you away with its looks and performance!

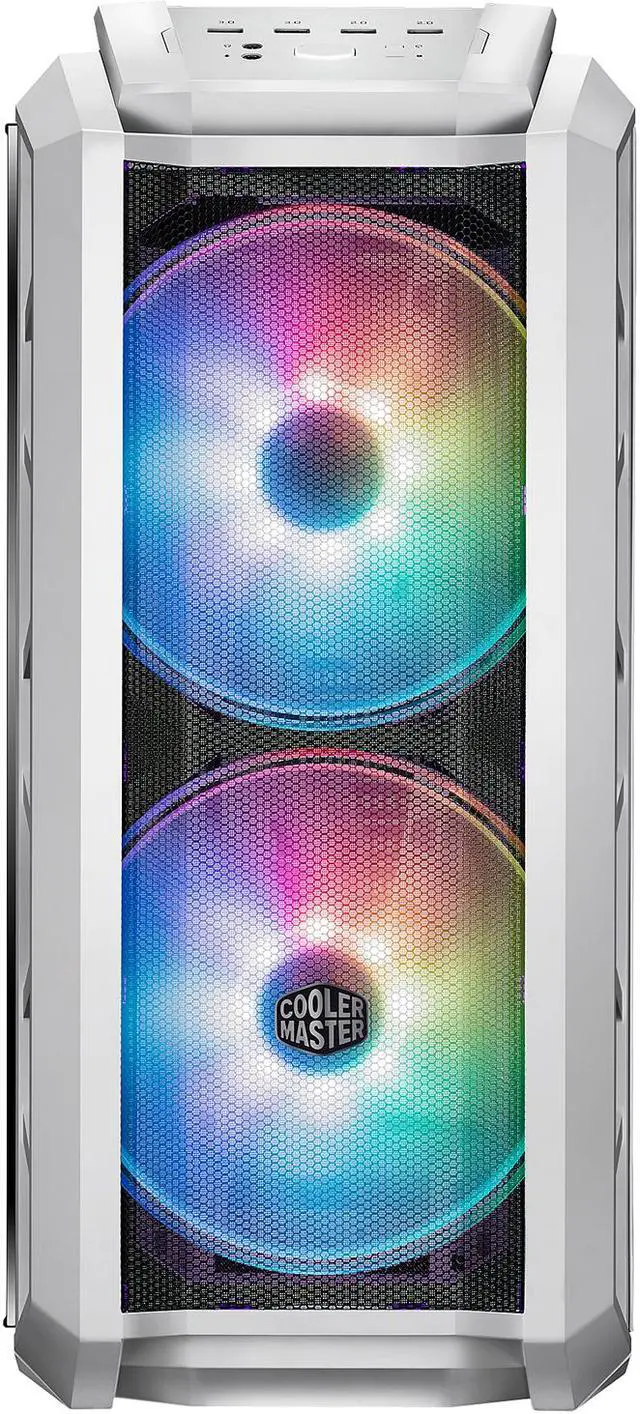

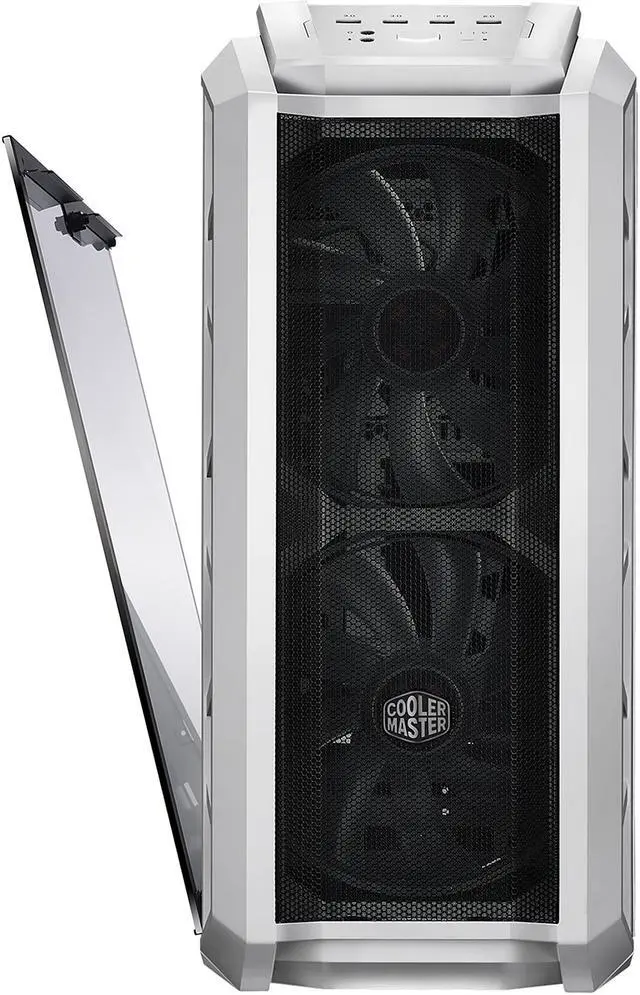

A Completely Mesh Front Panel
Optimized airflow is guaranteed behind a completely mesh front panel—designed with apertures that allow your PC to breathe all while filtering out dust.

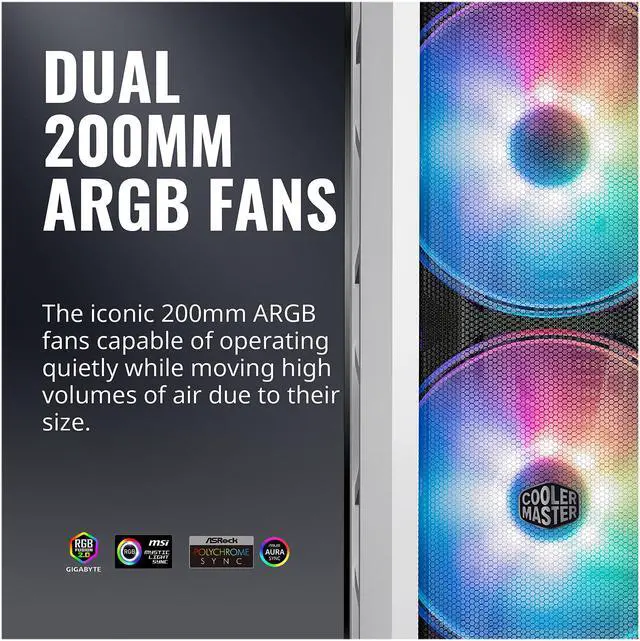

Two 200mm RGB Fans
Two pre-installed 200mm RGB fans are on full display behind the mesh front panel.

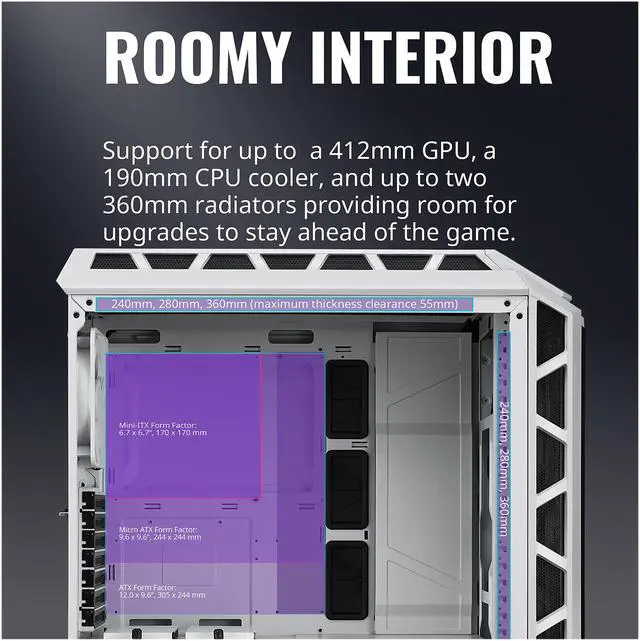

Liquid Cooling Ready
Up to 360mm radiator support, on the top and front of the case.

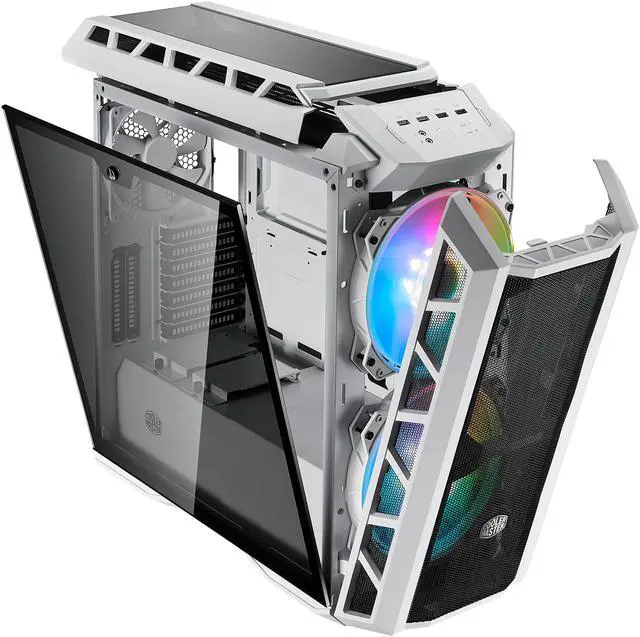

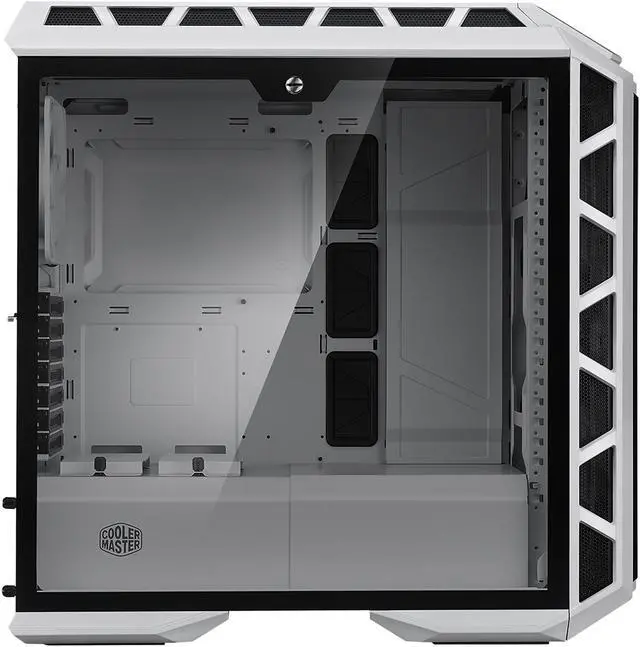

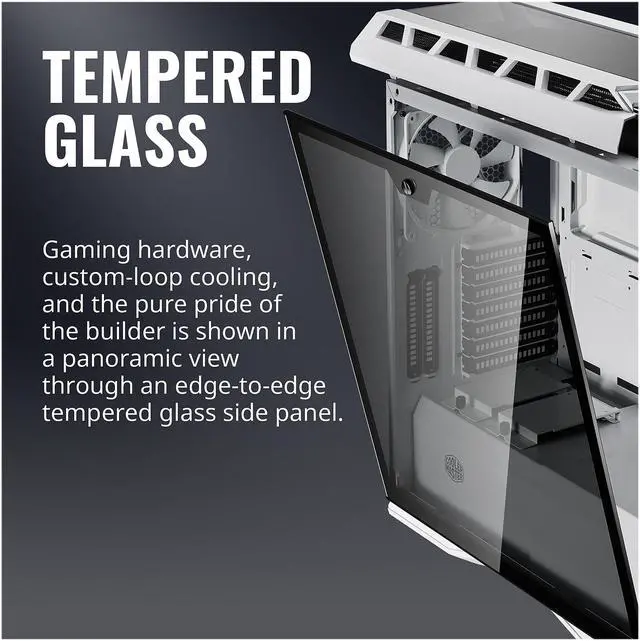

Edge-to-Edge Tempered Glass Side Panel
Show off your build through the edge-to-edge light grey-tinted tempered glass side panel.
RGB Controller and 1-to-3 Splitter Cable for RGB LED Fans
The included RGB controller can be connected to the Reset Switch to manage the case's two 200mm RGB fans. The RGB splitter and 4-pin male-to-male adapters are included.

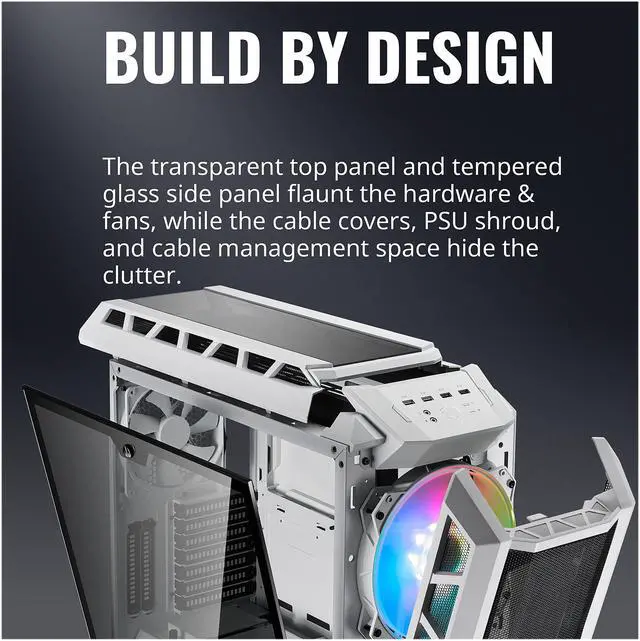

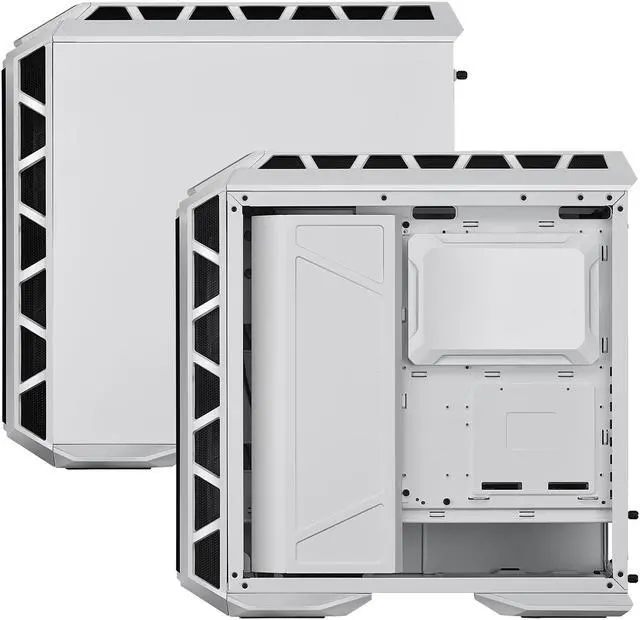

Covers for Clean Building
Cable covers1, a CPU cutout cover2, and PSU shroud3 take cable management to the next level. Assemble clean builds like a pro!

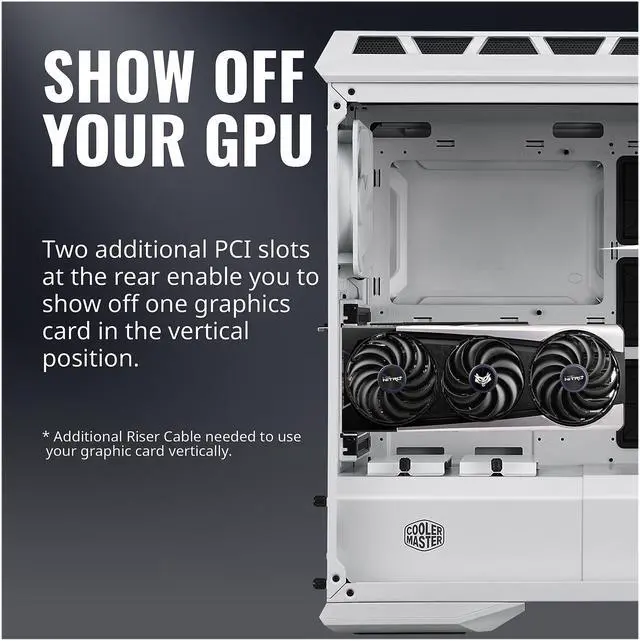

Show Off Your Graphics Card

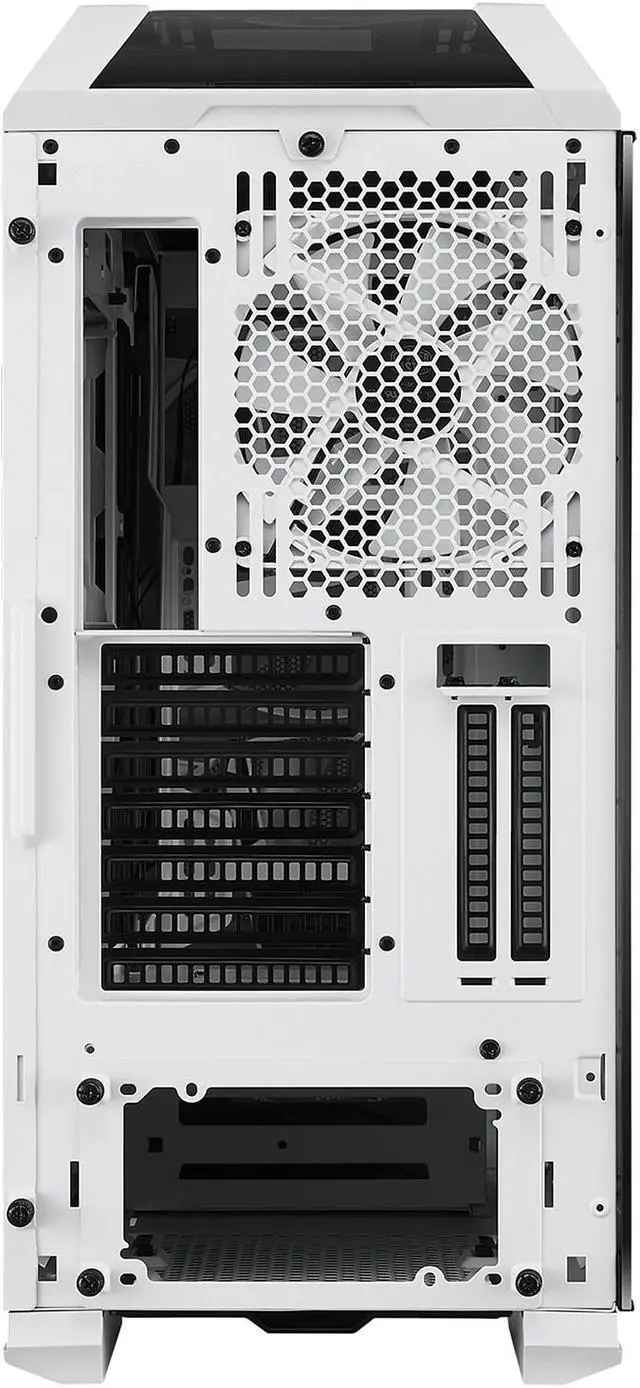

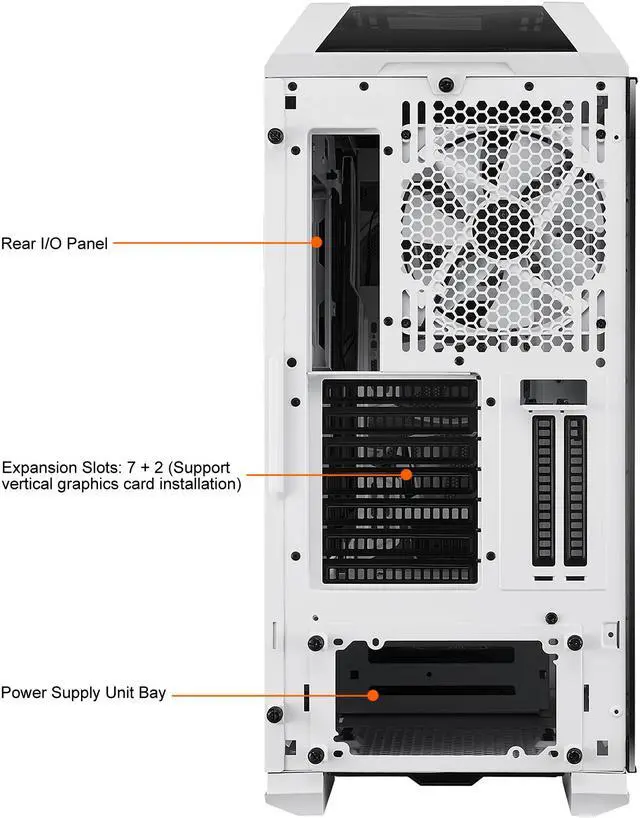

Two additional PCI slots at the rear enable you to show off one graphics card in the vertical position (riser cable sold seperately).
Compare
|
|
|
||
| MasterCase H500P Mesh White |
MasterBox Pro 5 RGB | MasterBox Q300P | ||
| Product Number | MCM-H500P-WGNN-S00 | MCY-B5P2-KWGN-01, or MCY-B5P2-KWGN-02 w/ RGB Controller |
MCB-Q300P-KANN-S02 | |
| Available Color | White | Black | Black | |
| Materials | Exterior | Plastic, Steel Mesh | Plastic, Mesh Bezel | Plastic |
| Body | Steel | Steel | Steel | |
| Side Panel | Tempered Glass, Steel | Tempered Glass | Tempered Glass | |

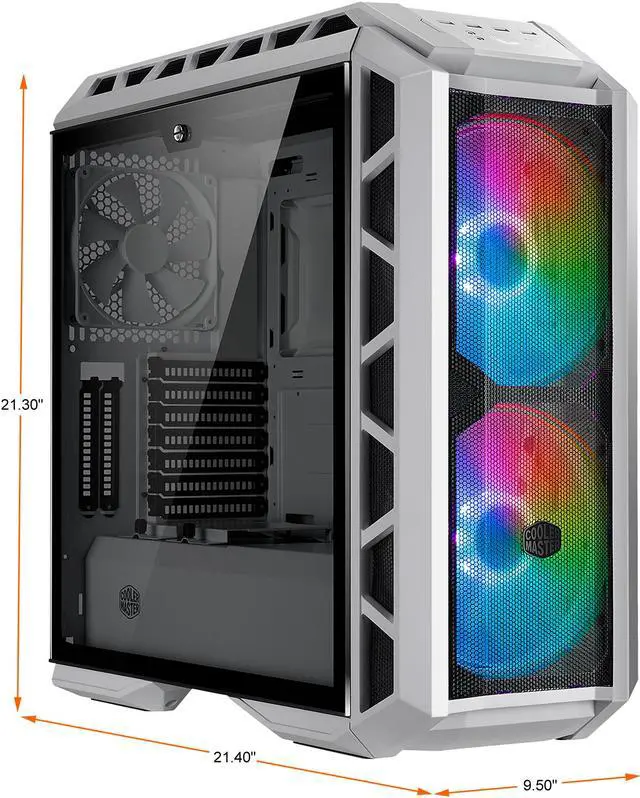

| Dimensions, L x W x H | 544 x 242 x 542mm | 500 x 223 x 475mm | 450 x 230 x 450mm | |

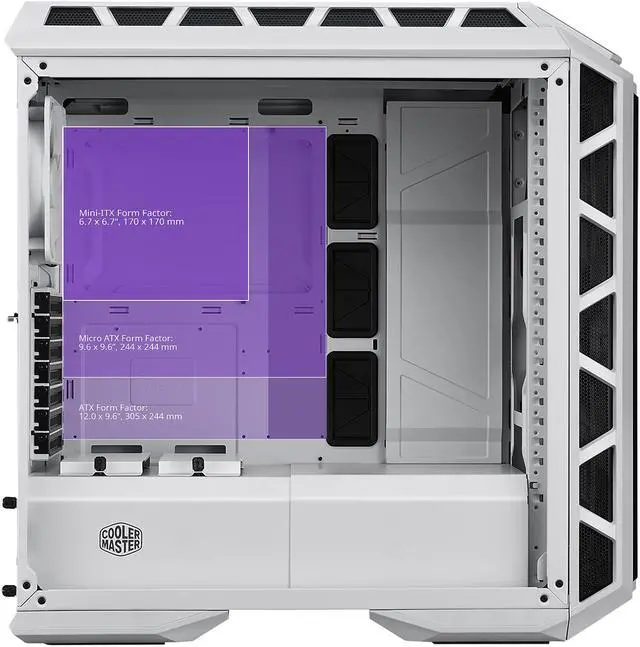

| Motherboard Suport | E-ATX up to 12" x 10.7", ATX, Micro-ATX, Mini-ITX |
E-ATX, ATX, Micro-ATX, Mini-ITX | Micro-ATX, Mini-ITX | |
| Expansion Slots | 7 + 2 with support for vertical GPUs |
7 | 4 | |
| Drive Bays | 5.25" | 0 | 0 | 0 |
| 2.5"/3.5" | 2 | 2 | 1, 3.5" only | |
| 2.5" SSD | 2, or 5 w/Drive Bay | 2 | 2 | |

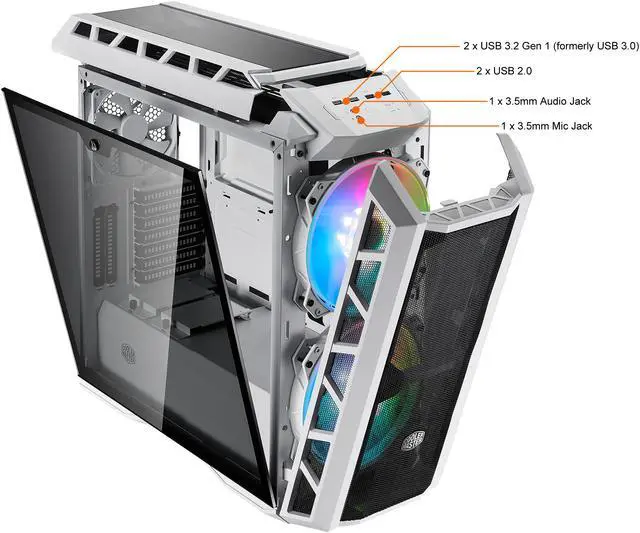

| I/O Port | USB 3.0 x 2, USB 2.0 x 2, HD Audio In/Out |
USB 3.0 x2, Audio In/Out | USB 3.0 x2, Audio In/Out | |
| Installed Fan(s) | Front | 200 x 25mm RGB x2, 800 RPM | 120mm RGB x3* | 120mm RGB LED x2 |
| Rear | 140 x 25mm x1, 1200 RPM | 120mm Black x1 | 120mm x1 | |
| Fan Support | Front | 120 / 140mm x3, or 200mm x2 | 120mm x3 / 140mm x2 | 120 / 140mm x2 |
| Top | 120 / 140mm x3, or 200mm x2 | n/a | 120mm x2 | |
| Rear | 120 / 140mm x1 | 120mm x1 | 120mm x1 | |
| Bottom | n/a | n/a | 120mm x1 | |
| Radiator Support | Top | 120 / 140 / 240 / 280 / 360mm** | n/a | n/a |
| Front | 120 / 140 / 240 / 280 / 360mm | 240 / 280 / 360mm | 120mm x1 / 240mm x1 | |
| Rear | 120 / 140mm | 120mm x1 | 120mm x1 | |
| Clearances | GPU | 412mm | 410mm | 360mm |
| CPU Cooler | 190mm | 167mm | 157mm | |
| Cable Routing | Behind MB Tray | 17.9mm | 25–35mm | 28mm |
| Dust Filters | Front, Top, Bottom | Front, Bottom | Front, Top, Bottom | |
| Power Supply Support | Bottom Mount, ATX PS2 | Bottom Mount, ATX | Bottom Mount, ATX PS2 | |
| EAN Code | 4719512068526 | 4719512063941, 4719512068939 |
4719512065518 | |
| UPC Code | 884102041037 | 884102036613, 884102041440 |
884102038037 | |
| Net Weight | 11.3 kg | 8.66 kg | 5.2 kg | |
| Gross Weight | 14.7 kg | 10.42 kg | 6.4 kg | |
| Carton Dimensions, L x W x H | 640 x 345 x 650mm | 580 x 280 x 565mm | 510 x 277 x 527mm | |
* Additional controller or compatible motherboard required for RGB functionality
** Maximum thickness clearance of 55mm
