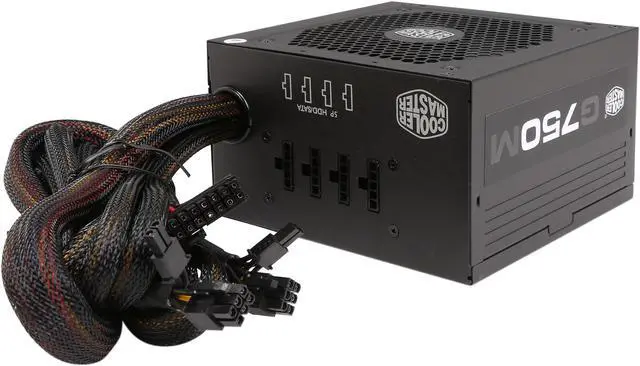

Cooler Master GM Series G750M - Compact 750W 80 PLUS Bronze Modular PSU (6th Generation Skylake Compatible)

Specs

Reviews

Learn more about the Cooler Master G750M (RS750-AMAAB1-US)

General
Brand	Cooler Master
Model	G750M (RS750-AMAAB1-US)

Details
Type	ATX 12V V2.31
Maximum Power	750 W
PFC	Active
Main Connector	20+4Pin
+12V Rails	Single
PCI-Express Connector	4 x 6+2-Pin
SATA Power Connector	8
Modular	Modular
Power Good Signal	100-500ms
Hold-up Time	16ms min.
Efficiency	85% Typ.
Energy-Efficient	80 PLUS BRONZE Certified
Over Voltage Protection	Yes
Input Voltage	100 - 240 V
Input Frequency Range	50/60 Hz
Input Current	12 - 6A

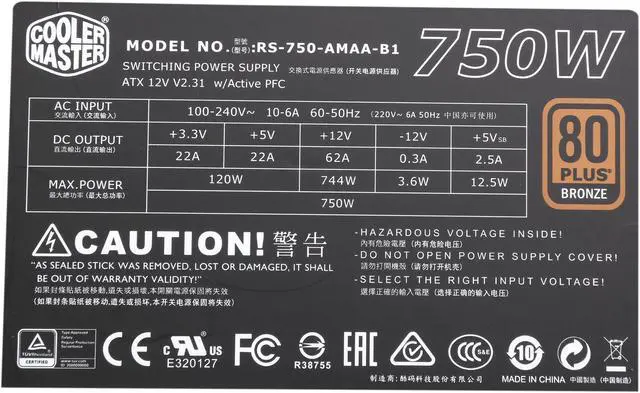

Output	+3.3V@22A, +5V@22A, +12V@62A, [email protected], [email protected]
MTBF	>100,000 Hours
Approvals	CE / FCC / UL / TUV / RCM / EAC / BSMI / CCC
Connectors	1 x 20+4-Pin MB 1 x 4+4-Pin CPU12V 4 x 6+2-Pin PCI-e 8 x SATA 6 x 4-Pin Peripheral 1 x 4-Pin Floppy

Features
Features	80 Plus Bronze Certified with up to 85% efficiency Engineered to support 6th generation & Skylake C6/C7 sleep states Modular cable design saves space 5.5" (140mm) depth provides more room in compact cases Protection: OVP / UVP / OPP / OTP / SCP / OCP

Dimension & Weight
Dimensions	3.40" x 5.50" x 5.90"
Weight	4.45 lbs.

Additional Information
First Listed on Newegg	July 03, 2017

Return for refund within: Non-refundable

Return for replacement within: 30 days
