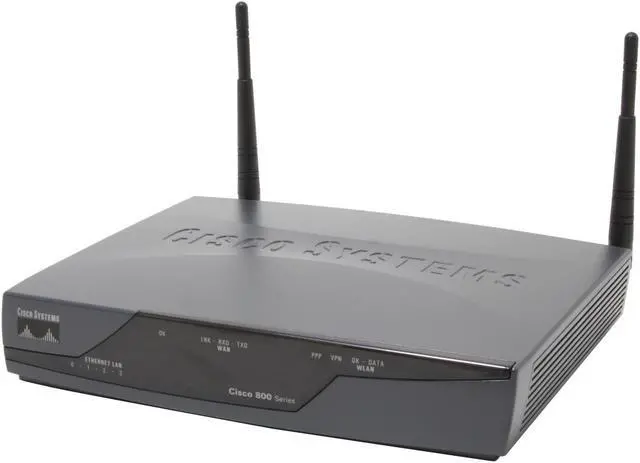

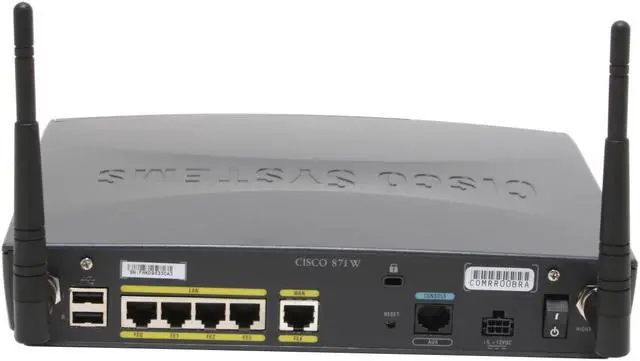

CISCO CISCO871W-G-A-K9 Integrated Services Routers for Small Offices IEEE 802.3/3u, IEEE 802.11b/g
- IEEE 802.3/3u, IEEE 802.11b/g
- Up to 54Mbps Wireless Data Rates
Specs
Reviews (12)
Learn more about the Cisco Systems, Inc. CISCO871W-G-A-K9
| Brand | CISCO |
|---|---|
| Model | CISCO871W-G-A-K9 |
| Standards | IEEE 802.3/3u, IEEE 802.11b/g |
|---|---|
| Device Management | Web-based tools and CISCO IOS Software CISCO SDM Management of LAN switch ports CISCO Configuration Express CISCO CNS 2100 Intelligence Engine support DSL firmware update from Flash CISCO Service Assurance Agent (SAA) Telnet, Simple Network Management Protocol (SNMP), CLI, and HTTP management RADIUS and TACACS+ |
| Security | 802.1X 802.11i (software-upgradeable in future software release) Wi-Fi Protected Access (WPA) CISCO LEAP PEAP EAP-TLS Static and dynamic Wired Equivalent Privacy (WEP) Temporal Key Integrity Protocol (TKIP)/SSN [Temporal Key Integrity Protocol/Simple Security Network encryption MAC authentication/filter User database for survivable local authentication using LEAP Configurable limit to the number of wireless clients Configurable RADIUS accounting for wireless clients PSK (Pre Shared Keys) (WPA-SOHO) Stateful Inspection Firewall Bridging firewall NAT transparency Firewall support for skinny clients Hardware-accelerated 3DES for IPSec Hardware-accelerated AES for IPSec CISCO Easy VPN Client and Server IPSec 3DES termination/initiation IPSec passthrough Point-to-Point Tunneling Protocol (PPTP) passthrough L2TP passthrough Secure HTTP (HTTPS), FTP, and Telnet authentication proxies Advanced Application Inspection and Control E-mail Inspection Engine No Service Password Recovery HTTP Inspection Engine System Logging–EAL4 Certification Enhancements |
| WPA | WPA |
| WAN Ports | 1 x 10/100M |
| LAN Ports | 4 x 10/100M |
| LEDs | PPP, VPN, ADSL, G.SHDSL, WLAN, LAN |
| Wireless Data Rates | Up to 54Mbps |
| Operating Range | Indoor range: 1 Mbps at 320 ft |
| Antenna | Dipole Antenna |
| Transmitted Power | 802.11b Average: 80mW (19dBm), Peak: (FCC) 245mW (23.9dBm) 802.11g Average: 50mW (17dBm) |
| Receiver Sensitivity | 802.11b -94dBm @ 1 Mbps -93dBm @ 2 Mbps -92dBm @ 5.5 Mbps -90dBm @ 11 Mbps 802.11g -92dBm @ 6 Mbps -90dBm @ 9 Mbps -89dBm @ 12 Mbps -87dBm @ 18 Mbps -85dBm @ 24 Mbps -81dBm @ 36 Mbps -76dBm @ 48 Mbps -73dBm @ 54 Mbps |
| Interface | Ethernet Port |
| VPN support | IPSec and PPTP Pass |
| Power Supply | 100 to 240 VAC 50 to 60 Hz Maximum output power: 26W |
| Wireless Adapter included | No |
| Dimensions | 10.3" x 9.1" x 2.0" |
| Weight | 2.1 lbs. |
| Temperature | 0°C - 40°C (32°F - 104°F) |
| Humidity | 10% - 85%, Non-Condensing |
| Features | High performance for broadband access in small offices Intrusion prevention system (IPS) Antivirus support through Network Admission Control (NAC) and enforcement of secure access policies Recommended Number of Users: 20 Wireless VLANs: 10 2 USB 2.0 ports |
|---|

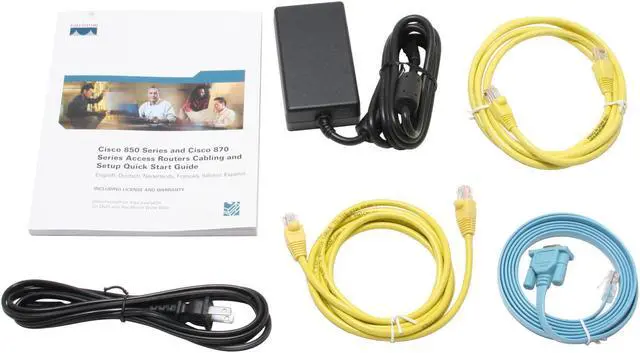

| Package Contents | CISCO871W-G-A-K9 Quick Start Guide Resource Disk 2 x RJ45 Cable Power Cord Cable Power Adapter |
|---|
| Disclaimer | For most updated manufacturer warranty, please go to www.cisco.com. |
|---|---|
| Registration Phone | 1-800-Go-Cisco |
| First Listed on Newegg | February 17, 2006 |
|---|
