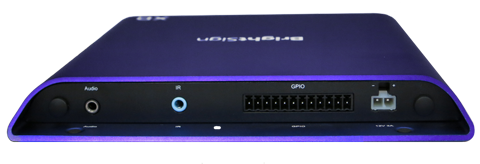

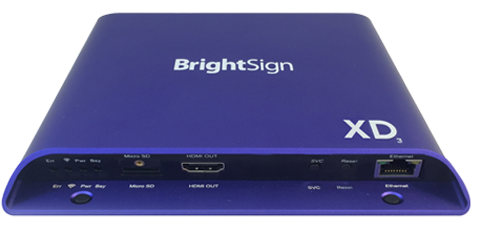

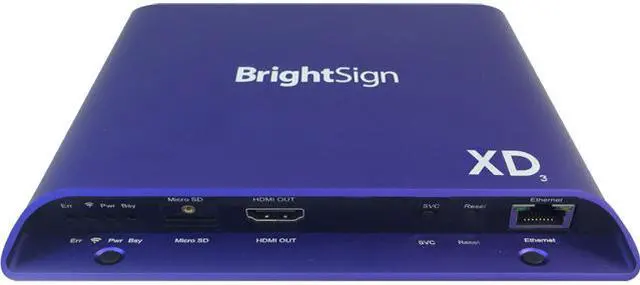

BrightSign XD233 XD Series Standard I/O Digital Signage Network Media Player

H.265 Technology

Get more efficient, stellar quality playback by using H.265 technology.

• Play both 4K and Full HD content encoded with H.265
• Get half the file size and double the bandwidth and memory savings
• Achieve better video quality with H.265 vs. H.264 at the same bit rate
• Only H.265 supports 10-bit color and high dynamic range of color

Powerful 4K Video Engine

Enjoy native 4K, dual decoding & superior scaling

• Native 4K CEA HDR10, H.265 decoding via HDMI 2.0a at 60fps

- High Dynamic Range (HDR) for vibrant colors in highlights and detail in shadows

• Dual video decoding:

- one 4K (3840x2160p60) video & one Full HD (1080p60) video simultaneously

• Superior scaling technology delivering pristine video quality for any screen or zone size including upscaling of Full HD video to 4K
• Simultaneous playback of content from local, streaming and live content sources
• Accelerated JPEG decompression for instant image display and high-speed transitions

Full HD

Enjoy exceptionally smooth 1080p playback.

• BrightSign XD players support 1920x1080 Full HD video at 60 frames per second, providing a flawlessly smooth and crisp viewing experience.
• BrightSign XD players support two Full HD 1080p60 videos simultaneously.
• BrightSign XD players support Full HD content encoded with H.265, H.264, MPEG-1, MPEG-2 & WMV.
• BrightSign XD players offer highly reliable and flawless playback.

4K Up-Scaling

Upscale 1080p content to sharp 4K resolution.

• Use the exceptionally powerful video engine on BrightSign XD players to upscale 1080p content to sharp 4K resolution.
• Display manufacturers can demonstrate the same 1080p content on a Full HD display and a 4K display side-by-side to clearly showcase the superior picture quality of the new 4K screens.
• BrightSign upscaling offers far better quality than the upscaling built in to screens.

HTML5

Hardware-accelerated Chromium HTML5 rendering engine brings powerful content development tools to your fingertips. Play industry standard HTML5 content including JavaScript, CCS animations, transitions, WebGL and more.

• Play highly complex and memory intensive HTML5 content such as swipe/pinch/zoom interactive, streaming social media & multiple modular HTML5 assets layered with live TV and video.

IP Streaming

Full HD video and audio IP streaming available on all BrightSign players.

• The BrightSign XD233 supports Full HD video, Mjpeg and audio streaming, including these formats:

- HLS (the standard for public internet streaming: i.e. YouTube, etc.)

- UDP/RTP/RTSP streaming from head-end real-time encoders

- HTTP including SHOUTcast

• Customize buffering and latency to improve media streaming performance.
• Play streaming media in HTML5 assets or in BrightAuthor video, audio or MJPEG stream states.
• Stream, buffer and play content from IP cameras supporting the RTSP unicast streaming protocol.
• Play multiple video streams simultaneously with the BrightSign XD233.

Remote View

Watch the video playback of your remote signage.

• The BrightSign XD233 player can real-time encode and stream content back to a remote location.
• View video streams using:

- Local networking via the BrightSign App and Diagnostic Web Server

- BrightSign Network via BrightAuthor or the Web UI

Networking

The BrightSign XD233 offers a wide range of networking solutions to update content and easily manage your digital signs remotely.

• Local Network Publishing

- Free solution designed for small networks. Distribute presentations and updates to BrightSign units within a single building using a LAN (local area network).

• Simple File Networking

- Free solution designed for small networks. Distribute presentations to BrightSign units through a web folder.

• BrightPlates

- Use this browser-based application to create signs using professional templates. Includes a cloud-publishing service for turnkey deployment of signage presentations.

• BrightSign Network

Secure, scalable and affordable cloud-based digital signage network service:

- Delivers the complete infrastructure to serve, manage and support your digital signage network

- Scalable to any size network, allowing you to manage an unlimited number of BrightSign players on a single account.

- Frees you from the complexities of hosting and maintaining your own network.

- PCI-compliant service, offering a complete set of tools to easily manage your network

- Access the networking using the free PC-based BrightAuthor software or browser-based WebUI (accessible from any PC or Mac).

- Includes BrightPlates.

• BrightSign Network Enterprise Edition

- Installable software version of the BrightSign Network. Allows you to host a network instance on your own servers, with access to all BrightSign Network features.

Interactivity

Engage your audience with interactive devices and controls.

• Trigger playback from virtually any type of interactive device you can dream up using Interactive Playlists in BrightAuthor or HTML5:

- Touch screens, barcode scans, motion sensors, RFID, UDP controls, GPIO and USB button controls, IR remote controls, serial devices, keyboards, mice and much more

• Grab attention, demo product operations, deliver coupons & pricing on demand
• Control the show with UDP or serial controls to power and manage media playback, control AV devices such as projectors, lighting, audio systems and integrate with other show controllers (AMX, Crestron, Alcorn, etc.)

Digital Sound

• Play back high-quality digital audio.
• Easily add audio playlists to your presentations.
• Synchronize audio with video playback.
• Create and play interactive retail audio product demonstrations.
