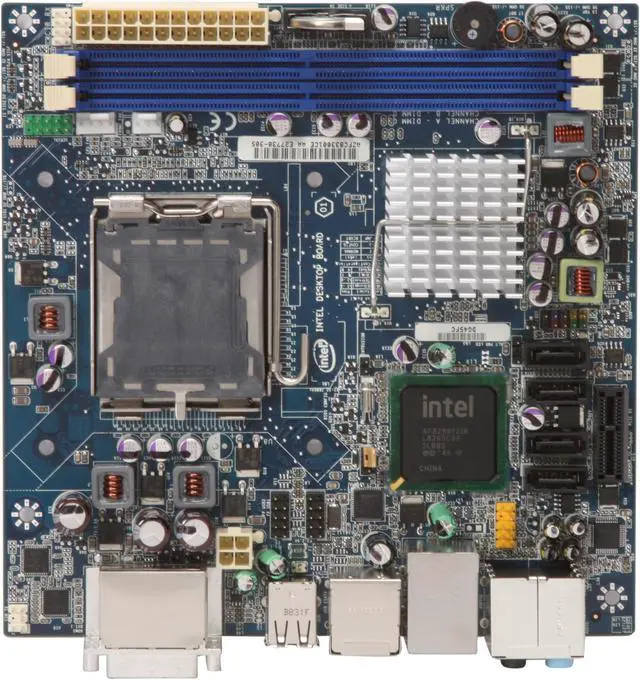

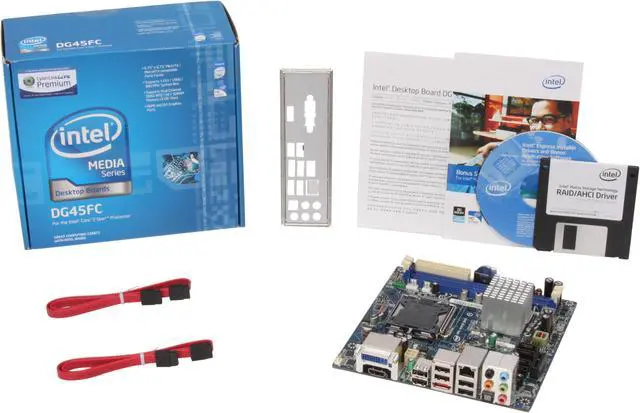

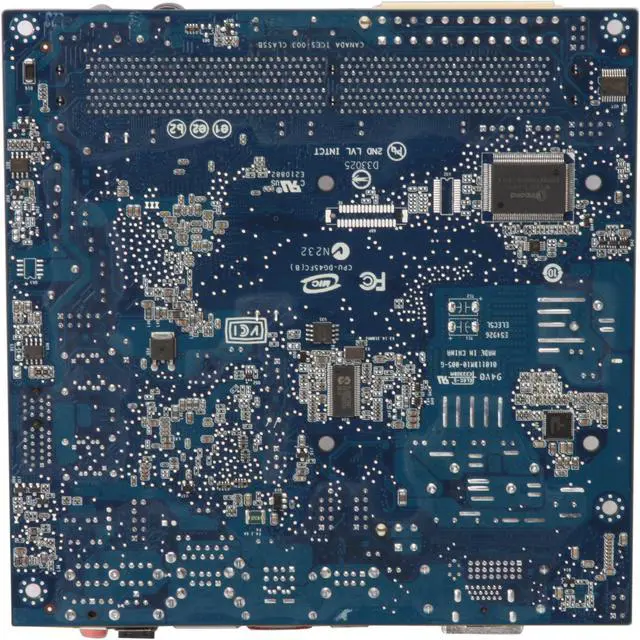

Intel BOXDG45FC LGA 775 Intel G45 Mini ITX Intel Motherboard

Be the first to review this product...
  • Intel G45
  • Core 2 Duo / Celeron D
  • DDR2 800
Specs
Reviews

Learn more about the Intel BOXDG45FC

Model
Brand Intel
Model BOXDG45FC
Supported CPU
CPU Socket Type LGA 775
CPU Type Core 2 Duo / Celeron D
Chipsets
Chipset Intel G45
Onboard Video
Onboard Video Chipset Intel GMA X4500HD
Memory
Number of Memory Slots 2x240pin
Memory Standard DDR2 800
Maximum Memory Supported 4GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x1 1 x PCI Express x1
Storage Devices
SATA RAID 0/1/5/10
Onboard Audio
Audio Chipset IDT 92HD73E
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Intel 82567LF
Max LAN Speed 1Gbps
Rear Panel Ports
USB 1.1/2.0 6 x USB 2.0
S/PDIF Out 1 x Optical
Audio Ports 5 Ports
Physical Spec
Form Factor Mini ITX
Dimensions (W x L) 6.7" x 6.7"
Power Pin 24 Pin
Additional Information
First Listed on Newegg March 26, 2009
