The Suppressor F31 Tempered Glass Edition mid-tower chassis features a durable 4mm thick tempered glass window, a preinstalled 140mm Riing Blue fan, leading-edge sound reduction panels on all sides, and its outstanding system ventilation. With the unparalleled expandability for high-end configurations and liquid cooling system, the Suppressor F31 supports the latest PC hardware, and all high-end GPU solutions. Thermaltake Suppressor F31 demonstrates the perfect balance in silent operation and cooling performance.
Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

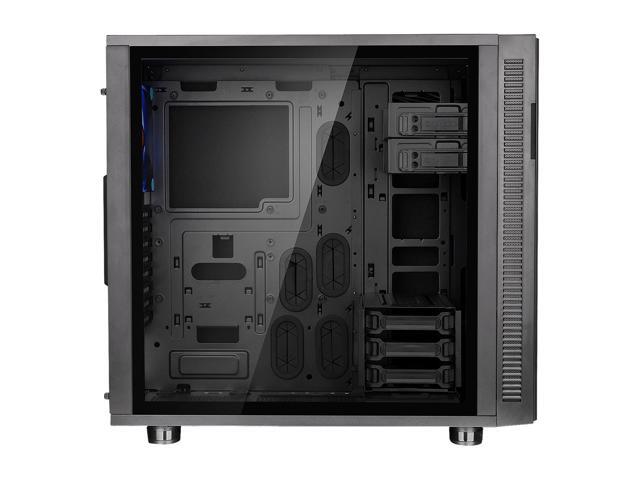

The tempered glass features 4mm thickness that guarantees the durability of the window. Moreover, the enlarged window design permits users to fully display and admire all components of the liquid-cooling system. Show off your dedicated set in the subtlest manner!
The Suppressor F31 comes with fully modular drive cages that provide the ease of installation/removal and maximize the interior space for custom cooling loop. Especially, the tool-less drive bay design allows users to freely interchange the 3.5” and 2.5” hard-drives to suit their particular needs. The dual drive bay concept of “2+3” offers a good ratio for accessories and storage devices.
Specially designed with dual GPU placement, the Suppressor F31 has the support for vertical graphic card layout with dual PCI-E slots design. Plus, the included GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard.
Thermaltake PCI-e X16 Riser Cable (Optional) – Support a wide range of GPU solutions.
Built-in sound-damping panels incorporated the top, front, and side panels of the Suppressor F31 to reinforce noise reduction for silent operation. Optimizing cooling performance with removable mounted top panels to expand cooling configurations for both air and liquid cooling solutions. Design and build a custom leading-edge silent operation PC with options for 120/140/200mm cooling fans and liquid cooling support for single, dual and triple radiator applications.
The Suppressor F31 features its cable management with maximum 50mm in width, and supports up to a tower CPU cooler with maximum height 180mm, and a dual expansion slot VGA of up to 420mm in length without HDD rack. Moreover, the Suppressor F31 has the ability to accommodate multiple 3.5”/2.5” and 5.25” storage devices at the same time. Most importantly, the hidden drive bay design guarantees expandability for more liquid cooling components.
Featuring a width of 250mm, the Suppressor F31 enables users to build a complete high-end system that supports up to triple 120mm, double 140mm liquid cooling radiators or up to 200mm case fans. Additionally, to deliver superior airflow, the Suppressor F31 is preinstalled with a 140mm turban fan at the front, and a 140mm Riing Blue fan at the rear.
Patented Riing 14 LED Blue – A 140mm patented blue LED Ring radiator fan with high-static pressure design.
|Case Type||Mid Tower|
|Model||Suppressor F31 Tempered Glass Edition|
|Dimension (H x W x D)||497 x 250 x 515 mm (19.5 x 9.8 x 20.3 inch)|
|Net Weight||10.6 kg / 23.4 lb|
|Side Panel||Tempered Glass (4mm thickness)|
|Color||Exterior & Interior : Black|
|Cooling System||Front (intake) :140 x 140 x 25 mm Turbo fan (1000rpm, 16dBA)
Rear (exhaust) :140 x 140 x 25 mm Riing LED Blue fan (1400rpm, 28dBA) x 1 (1000rpm, 22dBA with LNC)
|Drive Bays||Accessible:2 x 5.25’’
Hidden:3 x 3.5’’ or 2.5’’ (HDD Cage)
|Motherboards||6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX), 12” x 9.6” (ATX)|
|I/O Ports||USB 3.0 x 2, USB 2.0 x 2, HD Audio x 1|
|PSU||Standard PS2 PSU (optional)|
|LCS Upgradable||Supports 1/2", 3/8" or 1/4” water tube|
|Fan Support||Front:2 x 120mm , 2 x 140mm , 1 x 200mm
Top:3 x 120mm , 3 x 140mm , 2 x 200mm
Rear:1 x 120mm , 1 x 140mm
Bottom:2 x 120mm , 2 x 140mm
|Radiator Support||Front:1 x 360mm , 1 x 280mm
Top:1 x 360mm , 1 x 280mm
Rear:1 x 120mm , 1 x 140mm
Bottom:1 x 120mm , 1 x 140mm
|Clearance||CPU cooler height limitation: 180mm
VGA length limitation: 278mm(with HDD rack) 420mm(without HDD rack)
PSU length limitation: 180mm (With One Bottom Fan) 220mm (Without Bottom Fan)
