SuperChassis 745TQ-R920B from Supermicro

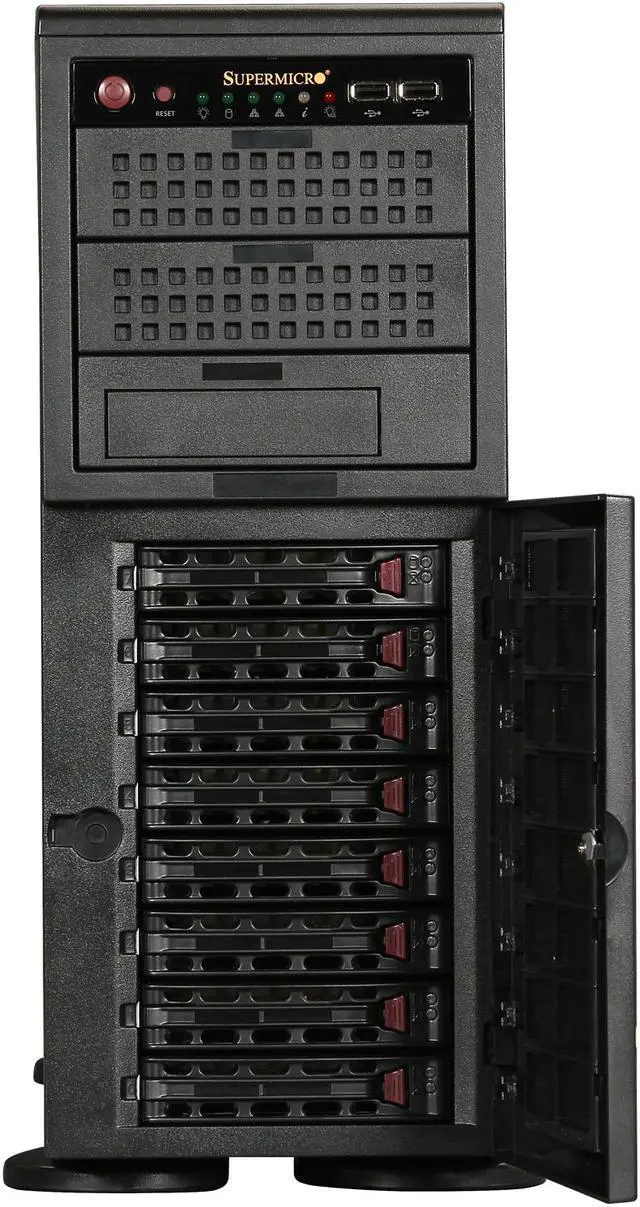

A 4U / Full Tower chassis that accommodates up to E-ATX 13.68" x 13" motherboard, and offers enough expandability you need to build a full-featured server or workstation. It comes with eight 3.5" hot-swap HDD bays concealed behind the front door, and has five 5000RPM fans for robust cooling. 920W Platinum level power supply delivers ultra high efficiency while the redundant power design helps maximize uptime - ideal for mission-critical applications. The case is also rugged built with quality materials and superb craftsmanship, guaranteeing the durability and sturdiness you need to build a reliable, robust server system that’s able to go the distance.
- 8x 3.5" SAS/SATA Backplane for Hot-Swappable Drives
- Front HDD Door Lock & Side Panel Intrusion Switch
- Front I/O Ports: 2x USB 2.0

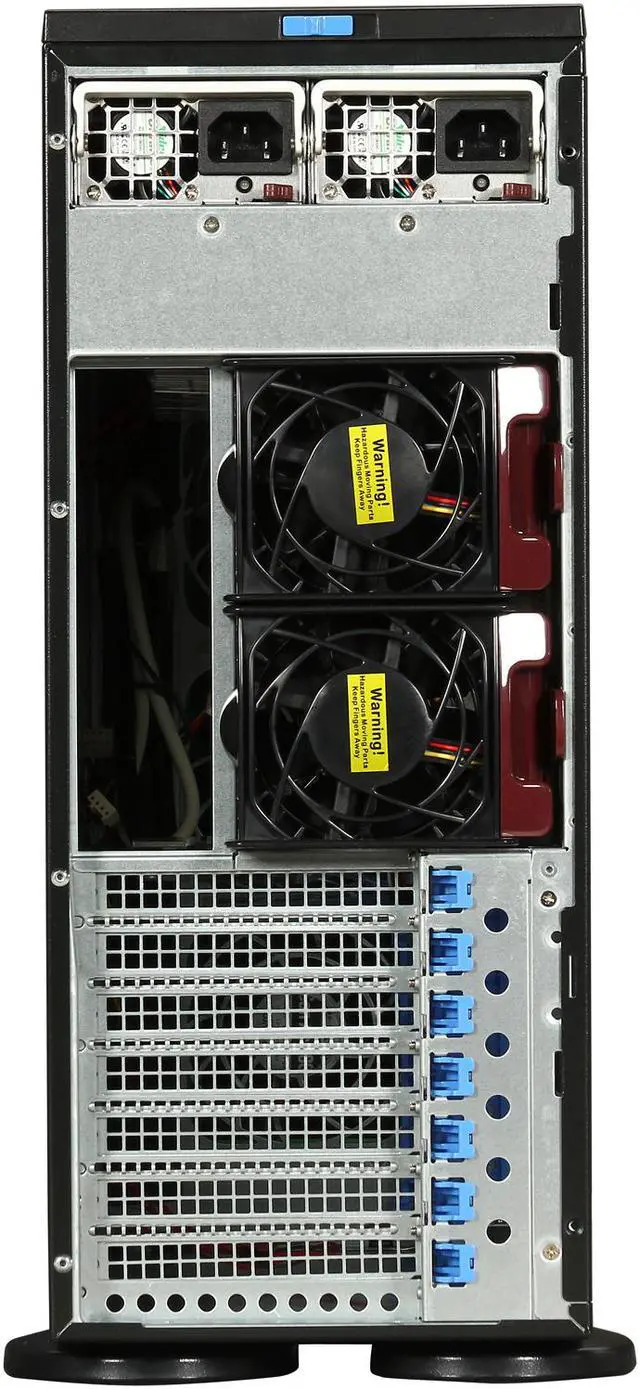

- 3x Middle 8cm (5000 rpm) PWM Fans & 2x 8cm (5000 rpm) PWM Fans
- 4U / Full Tower Chassis Supports max. Motherboard, Sizes E-ATX 13.68" x 13" ATX/Micro ATX
- 920W Redundant Platinum Level Certified High-Efficiency Power Supply
- 3x 5.25" External HDD Drive Bays & 8x 3.5" Hot-Swappable HDD Drives

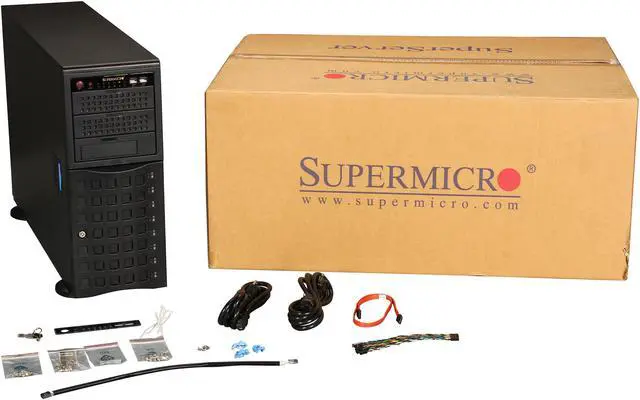

Case Type: 4U Rackmount / Tower M/B Type: ATX, EATX; Supports Motherboard Size - 13.68 x 13.00 inch / 34.7 x 33.0 cm Processor Support: Dual, Single Intel/AMD Processors Drive Bays: 8x 3.5' Hot-swap SAS/SATA Drive Bays, 2x 5.25' Peripheral Drive Bays, 1x 5.25' Peripheral Drive Bay (fits 3.5' bay devices) Expansion Slots: 7x PCI Expansion slots Backplane: SAS/SATA Hard Drive Backplane w/ SES2 Cooling System: 3x 5000RPM Hot-swap PWM Cooling Fans, 2x 5000RPM Hot-swap Rear Exhaust PWM Fans Front Panel: Buttons: Power On/Off, System Reset LEDs: Power, Hard Drive Activity, 2x Network Activity, System Overheat, Power Fail Ports: 2x USB Ports Power Supply: 920W 80 PLUS Platinum Certified High-efficiency (94%+) AC-DC Redundant Power Supply w/ PMBus and I2C Color: Black Dimensions (WxDxH): 7.0 x 25.5 x 17.2 inch / 178.0 x 648.0 x 437.0 mm Gross Weight: 62.0 lbs / 28.0 kg Chassis Only. CPU, MB, HD, memory and other parts are not included. Package Contents: SuperChassis 745TQ-R920B Chassis 1 x 743 SAS Backplane with AMI MG9072 4 x SATA Cable 61cm Flat S-S PBF 1 x 8-pin to 8-pin Ribbon Cable with Tube for SGPIO, 40cm, PBF 1 x SC745 24-pin Redundant Power Distributor 1 x SC745 Intel DP X8.X7 PC Air Shroud 1368x13/12x13MB 1 x Front Control Cable Round 16 TO 16-pin Ribbon 20 (50cm) 1 x 4 to 4-pin Middle Fan Power Extension, 200MM (PWM) 8 x SCA Hard Drive Carrier, 2U 1 x Plastic Feet (4 pcs set) for 4U Tower Chassis, black color Product Type: Server Case Motherboard Supported: EATX Motherboard Supported: ATX Product Type: Server Case Manufacturer Part Number: CSE-745TQ-R920B Motherboard Supported: EATX Motherboard Supported: ATX Weight (Approximate): 62 lb Color: Black Form Factor: Tower Form Factor: Rack-mountable Color: Black Form Factor: Tower Form Factor: Rack-mountable Manufacturer: Supermicro Computer, Inc Product Model: 745TQ-R920B Product Name: SuperChassis 745TQ-R920B Chassis Product Line: SuperChassis Brand Name: Supermicro Brand Name: Supermicro Height: 17.2 Width: 7 Depth: 25.5 Number of External 3.5 Bays: 8 Number of External 5.25 Bays: 3 Compatible Rack Unit: 4U Number of Power Supplies Installed: 2 Front USB: Yes Power Supply Wattage: 920 W Number of Total Expansion Bays: 11 Product Family: SuperChassis Number of Fans Installed: 5 Number of External 3.5 Bays: 8 Number of External 5.25 Bays: 3 Compatible Rack Unit: 4U Number of Power Supplies Installed: 2 Power Supply Wattage: 920 W Number of Total Expansion Bays: 11 Number of Total Expansion Slots: 7 Total Number of USB Ports: 2
