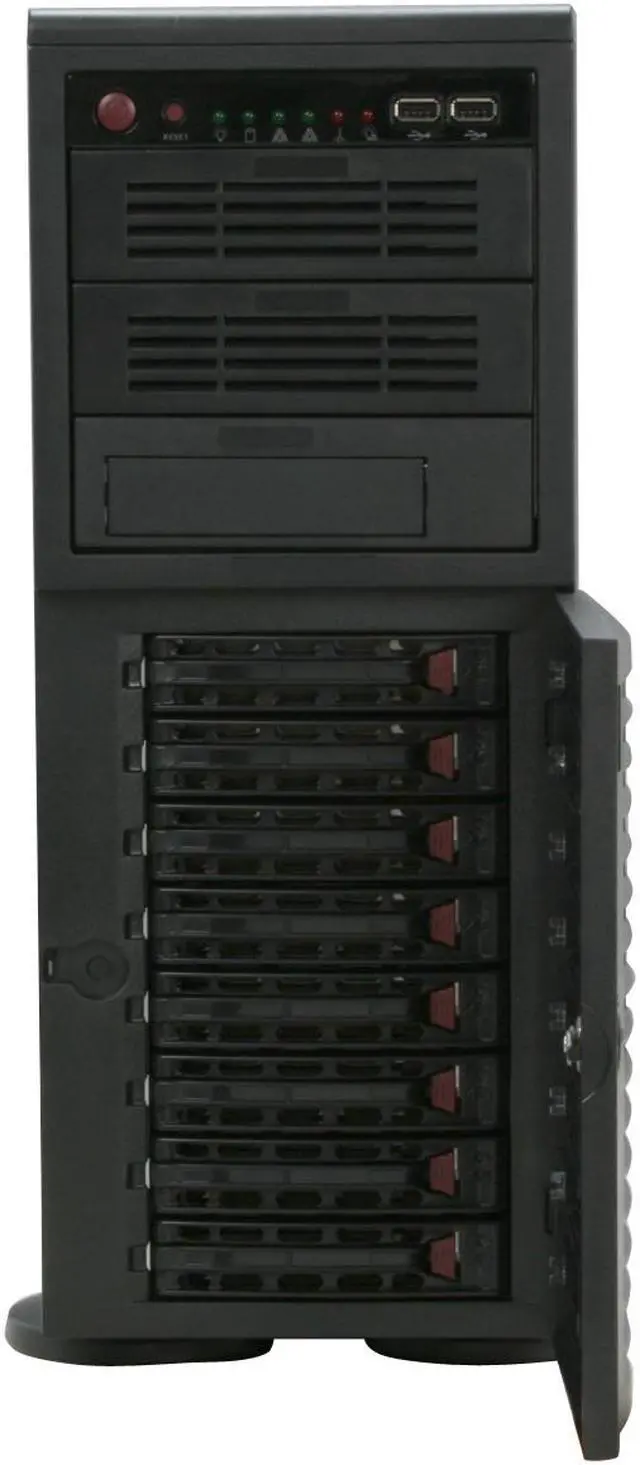

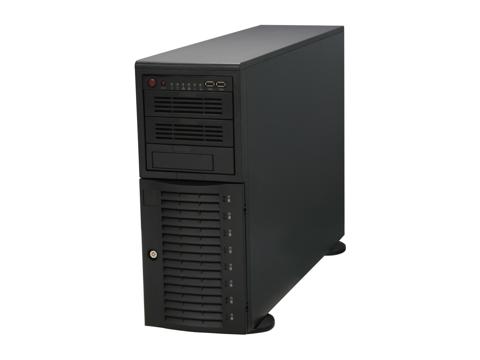

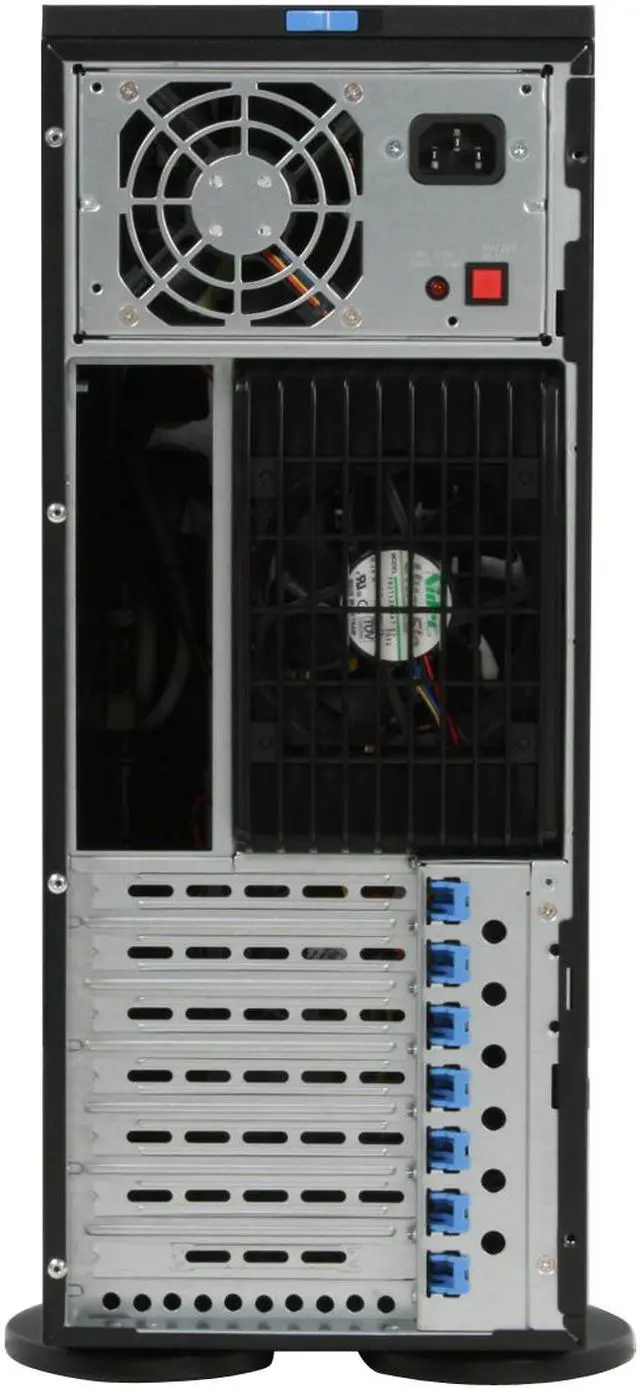

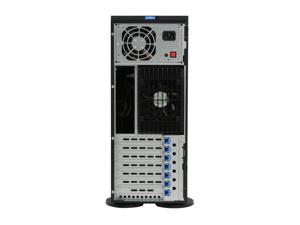

SUPERMICRO CSE-743TQ-865B-SQ Black Pedestal Server Case 865W 2 External 5.25" Drive Bays
- 865W
- 2 External 5.25" Drive Bays 8 Hot-Swap Drive Bays
Overview
Specs
Reviews (10)
SUPERMICRO CSE-743TQ-865B-SQ Black Pedestal Server Case
Features
- Whisper Quiet System Chassis (28dB)
- 865W Super Quiet Power Supply

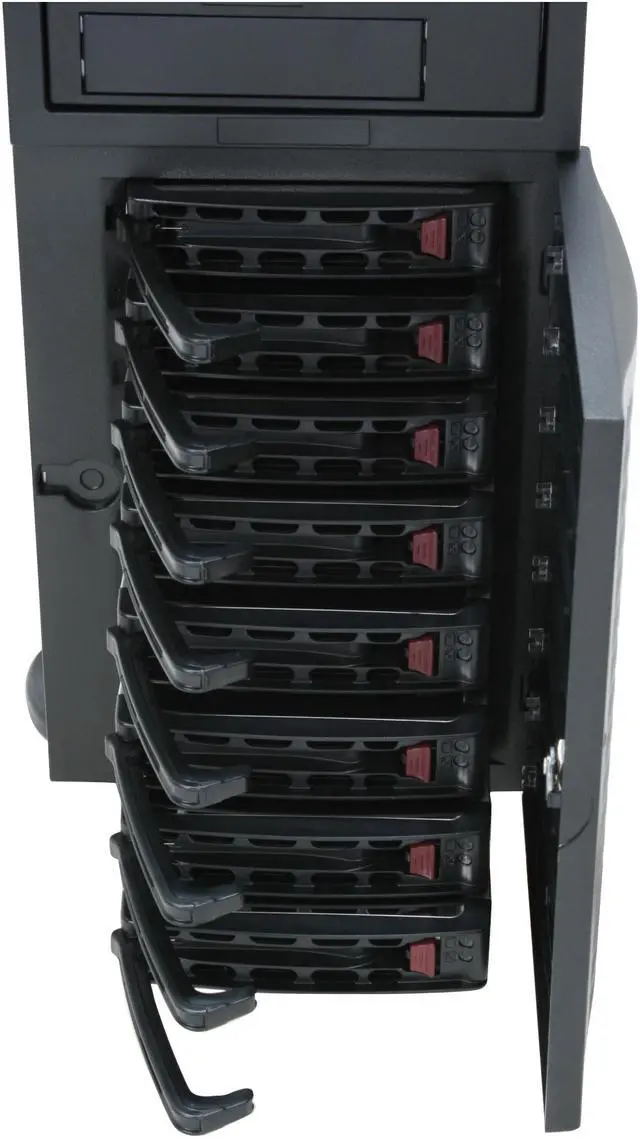

- 8x 3.5" SAS / SATA Hot-swappable Drive Bays
- 2x 5.25" Peripheral Drive Bays
- 1x 5.25" Drive Bay For 3.5" Drive
- 100% Cooling Redundancy with Adjustable Air Shroud

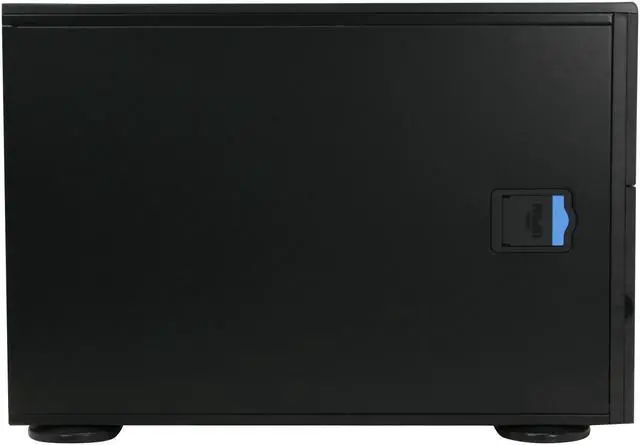

- Locking Side Panel & Bezel with Filter
- 90-degree rotatable 5 1/4" Bay module
Specifications
| Product SKUs | |
| CSE-743TQ-865B-SQ | SuperChassis 743TQ-865B-SQ (Black) |
| Form Factor | |
| Form Factor | 4U chassis support for max. motherboard size - 12" x 13" E-ATX |
| Processor Support | |
| Processor Support | Supports dual, single Intel® / AMD processors |
| Dimensions | |
| Width | 7.0" (178mm) |
| Height | 17.8" (452mm) |
| Depth | 25.5" (648mm) |
| Gross Weight | 56 lbs (25.4kg) |
| Available Colors | Black |
| Expansion Slots | |
| Expansion Slots | 7x Full-height, Full-length PCI expansion slots |
| Drive Bays | |
| Hot-swap |
|
| Peripheral Bay(s) |
|
| SAS / SATA Backplane | |
| SAS / SATA Backplane | SAS / SATA Hard Drive Backplane w/AMI MG9072 |

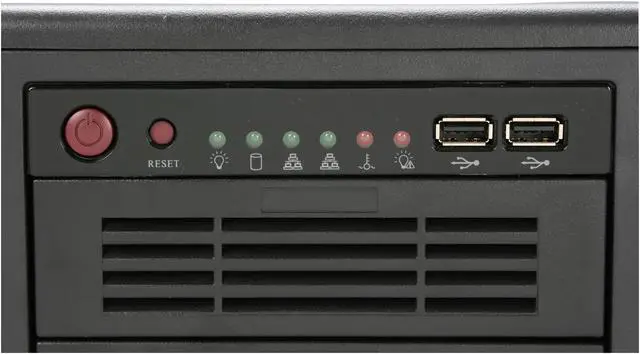

| Front Panel | |
| Buttons |
|
| LEDs |
|
| Ports | 2x USB Ports |
| System Cooling | |
| Fans |
|
| System Monitoring | |
| System Monitoring | Chassis intrusion switch |
| Operating Environment (System) | |
| Operating Temperature Range | 5°C ~ 35°C (41°F ~ 95°F) |
| Non-Operating Temperature Range | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Relative Humidity Range | 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Power Supply | |
| Power Supply | 865W AC power supply (cooling-redundant) w/ PFC |
| AC Voltage | 100 - 240V, 50-60Hz, 12-6 Amp |
| +5V standby | 6.5 Amp |
| +12V | 70 Amp |
| +5V | 30 Amp |
| +3.3V | 30 Amp |
| Certification | 80 Plus Certified |
| +3.3V | 30 Amp |
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|
What's in the Box

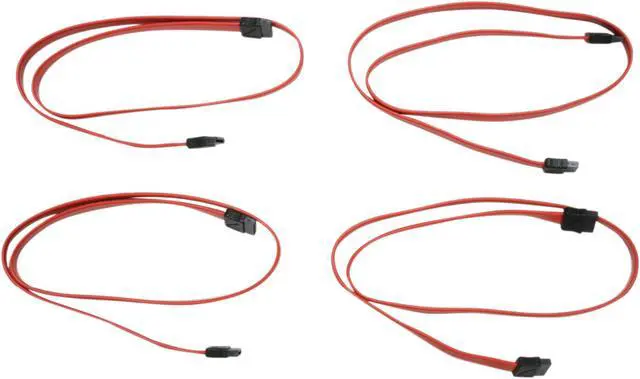

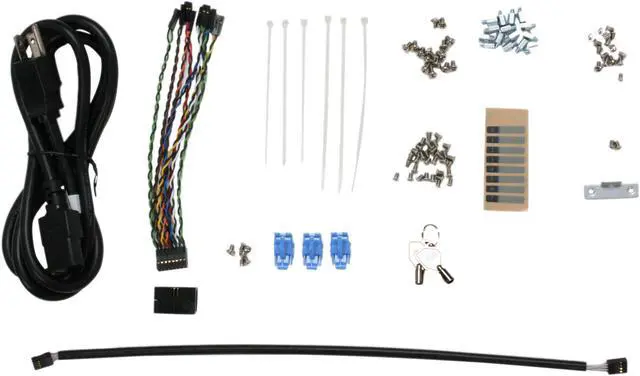

1. 865W Super Quiet - High Efficiency Power Supply . 2. 8 x 3.5 SAS / SATA Hot-swappable Drive Bays . 3. 2x 5.25 Peripheral Drive Bays . 4. 1x 5.25 Drive Bay For 3.5 1.44MB Floppy Drive . 5. 7x Full-height, Full-length expansion slot . 6. 2x Front USB Ports. 7. Locking Bezel with Filter . 8. Power Switch, Reset Switch and 6x LED Indicators, 4x 6-pin Power Connectors . 9. 90-degree rotatable module. Package Contents: SuperChassis SC743TQ-865B-SQ Rackmount Enclosure 1 x SAS Hard Drive Backplane 1 x SATA Cable (2 Ft, Amphenol) 1 x Front Panel Ribbon Cable 1 x 6 Split Converter Cable 1 x 8-pin to 8-pin Ribbon Cable for SGPIO 4 x 210mm 4-pin To 4-pin Fan Power Cable 2 x (80 x 25), SC743 Super Quite chassis fan, 4-pin PWM fan assembly 1 x (92 x 25), SC743 Super Quite rear fan, 4-pin PWM fan assembly 8 x Black Hot-swappable drive tray 1 x 865W Super Quiet High Efficiency Power Supply Product Type: Server Case Motherboard Supported: EATX Product Type: Server Case Manufacturer Part Number: CSE-743TQ-865B-SQ Motherboard Supported: EATX Weight (Approximate): 56 lb Color: Black Form Factor: Rack-mountable Color: Black Form Factor: Rack-mountable Manufacturer: Supermicro Computer, Inc Product Model: SC743TQ-865B-SQ Product Name: SC743TQ-865B-SQ Chassis Product Line: SuperChassis Brand Name: Supermicro Brand Name: Supermicro Height: 7 Width: 17.2 Depth: 25.5 Number of External 3.5 Bays: 8 Number of External 5.25 Bays: 3 Compatible Rack Unit: 4U Number of Power Supplies Supported: 1 Number of Power Supplies Installed: 1 Front USB: Yes Power Supply Wattage: 865 W Number of Total Expansion Bays: 11 Product Family: SuperChassis Number of Fans Installed: 3 Number of External 3.5 Bays: 8 Number of External 5.25 Bays: 3 Compatible Rack Unit: 4U Number of Power Supplies Supported: 1 Number of Power Supplies Installed: 1 Power Supply Wattage: 865 W Number of Total Expansion Bays: 11 Number of Total Expansion Slots: 7 Total Number of USB Ports: 2
