SUPERMICRO CSE-502L-200B Black 1U Rackmount Mini Server Chassis 200W
- 200W
Overview
Specs
Reviews (11)

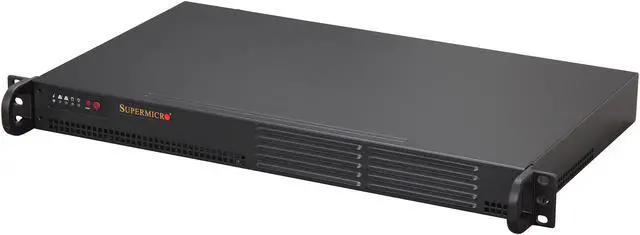

SUPERMICRO CSE-502L-200B Black 1U Rackmount Mini Server Chassis
Features
- Mini 1U Chassis Optimized for Intel Atom Platforms
- 200W Low Noise Power Supply
- 1x 3.5" Internal Drive Bay
- OR 2x 2.5" Internal Drive Bay (Optional)
- OR 1x Full-height, Half-length PCI Expansion Slot (Optional)
- OR 1x 2.5" Internal Drive & 1x FH, HL PCI (optional)
- Power Switch, Reset Button & 5 LED Indicators
Specifications
| Product SKUs | |
| CSE-502L-200B | SuperChassis 502L-200B (Black) |
| Form Factor | |
| Form Factor | 9.8"-Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6" |
| Processor Support | |
| Processor Support | Single Processor Support: Intel® Atom™ series |
| Dimensions | |
| Height | 1.7" (43mm) |
| Width | 17.2" (437mm) |
| Depth | 9.8" (249mm) |
| Gross Weight | 10 lbs (4.5kg) |
| Available Colors | Black |
| Expansion Slots | |
| Expansion Slots | 1x full-height half-length PCI expansion slot (Optional) (Riser Card Required) |
| Drive Bays | |
| Internal Bay |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Motherboard and Server(s) | |
| Motherboard (for CSE-502L-200B) |
|
| Server(s) for SC502L-200B | 5015A-EHF-D525 |
| Operating Environment (System) | |
| Operating Temperature Range | 5°C ~ 35°C (41°F ~ 95°F) |
| Non-Operating Temperature Range | -40°C ~ 60°C (-40°F ~ 140°F) |
| Operating Relative Humidity Range | 8% ~ 90% (non-condensing) |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Power Supply and Distributor | |
| Power Supply | 200W Low Noise AC-DC power supply with PFC |
| AC Voltage | 100 - 240V, 50-60Hz, 3-1.5 Amp Max |
| +5V | 16.0 Amp |
| +5V standby | 2.0 Amp |
| +12V | 15.0 Amp |
| -12V | 0.8 Amp |
| +3.3V | 17.0 Amp |
| Regulatory (Power Supply) | |
| Power Supply Safety / EMC |
|

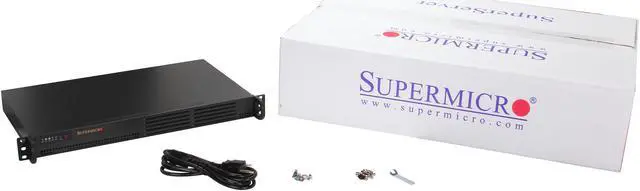

What's in the Box
