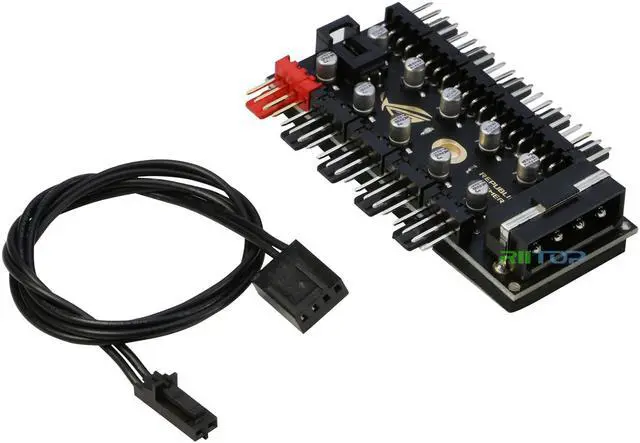

RIITOP 4 Pin PWM Fan RGB Splitter Controller Hub 1 to 10 Ports for CPU Fan, Case Chasis Cooling Fan, Power by IDE Molex Large 4pin

Note:
1. Only the fan on 'CPU Fan' channel is used for monitoring.
2. Compatible with 3 Pin, 4 Pin fans.(Please note: 4Pin fan speed can be adjusted by temperature control. 3Pin fan can also be used, but because 3Pin has no PWM function, it is at fixed speed (full speed) after inserting.
3. In the hub interfaces, the RED CPU interface is the CPU fan dedicated interface (with speed detection function). Since the mainboard can only receive one rotation speed signal, the remaining nine conventional fan interfaces have the PWM function, but no speed signal(will work at full speed).

Features:
It is designed for enthusiasts with need for controlling numerous system fans.
Capable of expanding one motherboard PWM fan header to support up to ten fans.
Header of CPU fan is powered by motherboard 4pin holder, and Fan1~Fan 9 are powered by the Molex LP4 4pin connector from computer PSU.
Compatible with 3-pin / 4-pin Fans (Due 3pins no PWM controller, 3pin fans would run in full speed. )

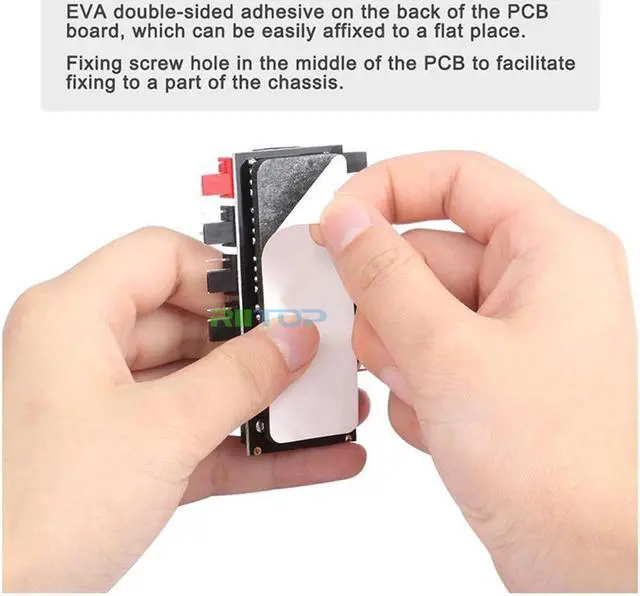

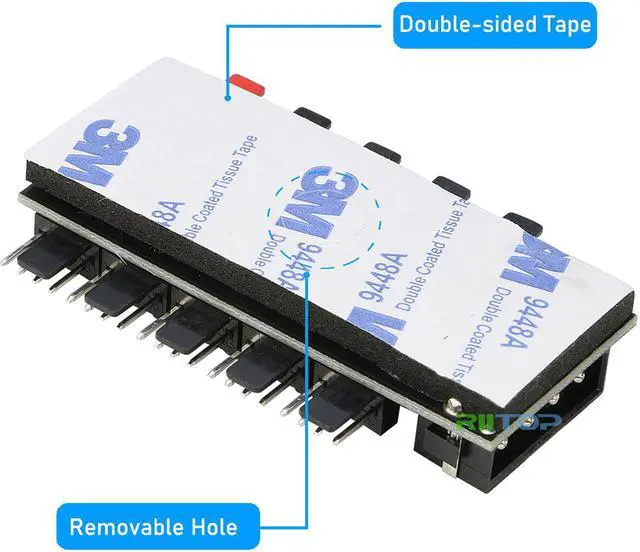

Comes with Self-Stick for easy installation and options to hide the PCB itself.
Please note: 4Pin fan speed can be adjusted by temperature control. 3Pin fan can also be used, but because 3Pin has no PWM function, it is at fixed speed (full speed) after inserting.

In the hub interfaces, the RED CPU interface is the CPU fan dedicated interface (with speed detection function). Since the mainboard can only receive one rotation speed signal, the remaining nine conventional fan interfaces have the PWM function, but no speed signal(will work at full speed).

Specifications:
Type: 1 to 10 ports PWM Fan Controller Splitter hub.
Demension: 70x47x17 mm.
Cable Length: About 40cm.
Weight: 25g / 0.06 lb.
Power by: CPU fan is powered by motherboard 4pin holder, Fan1~Fan 9 are powered by the Molex LP4 4pin connector.

Package Contents:
1x 10 port 4pin PWM Fan Controller Splitter Hub.
1x Power Cable 40cm.
