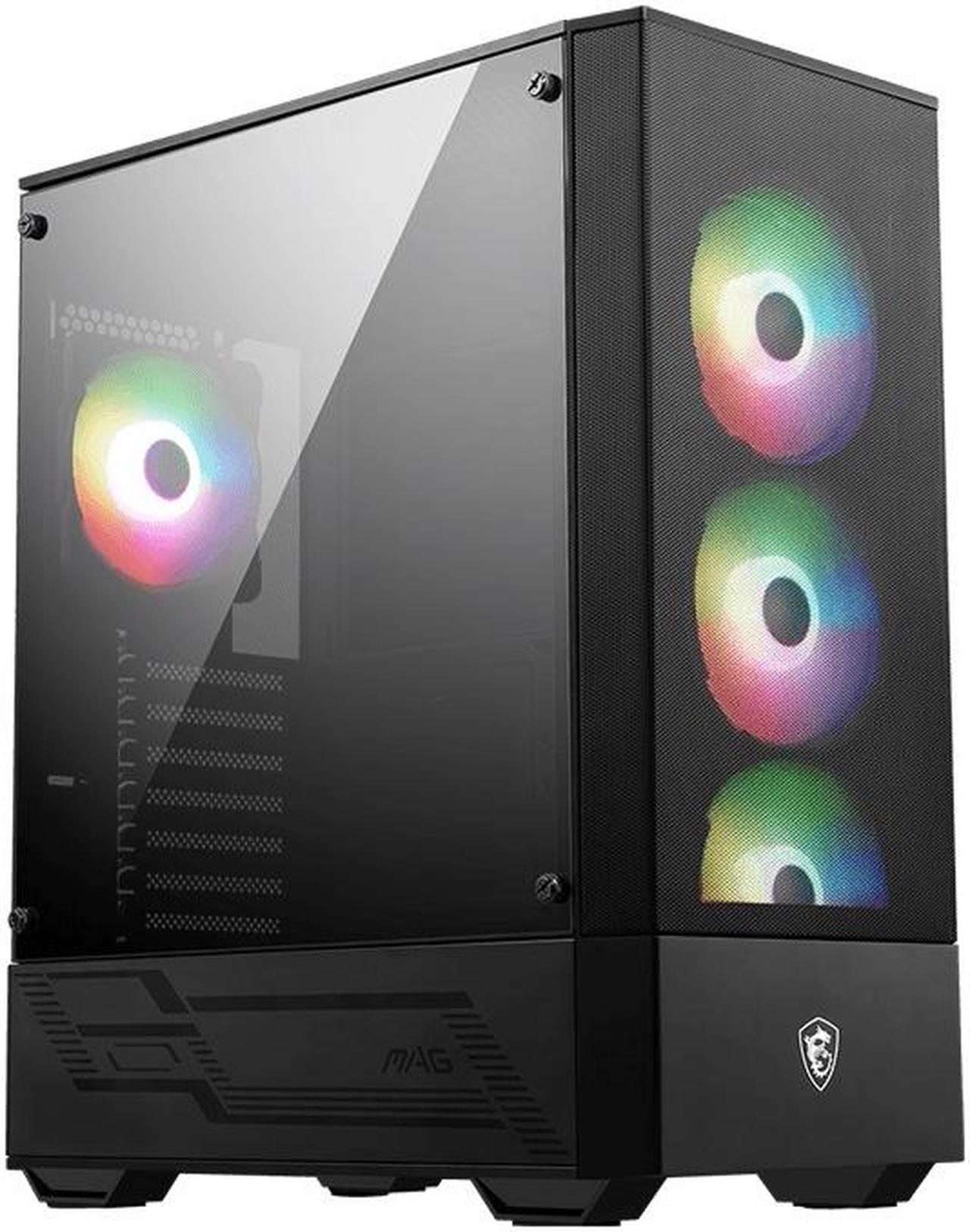

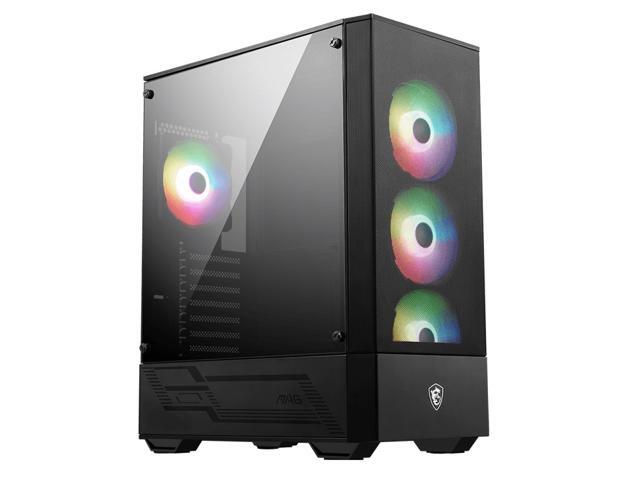

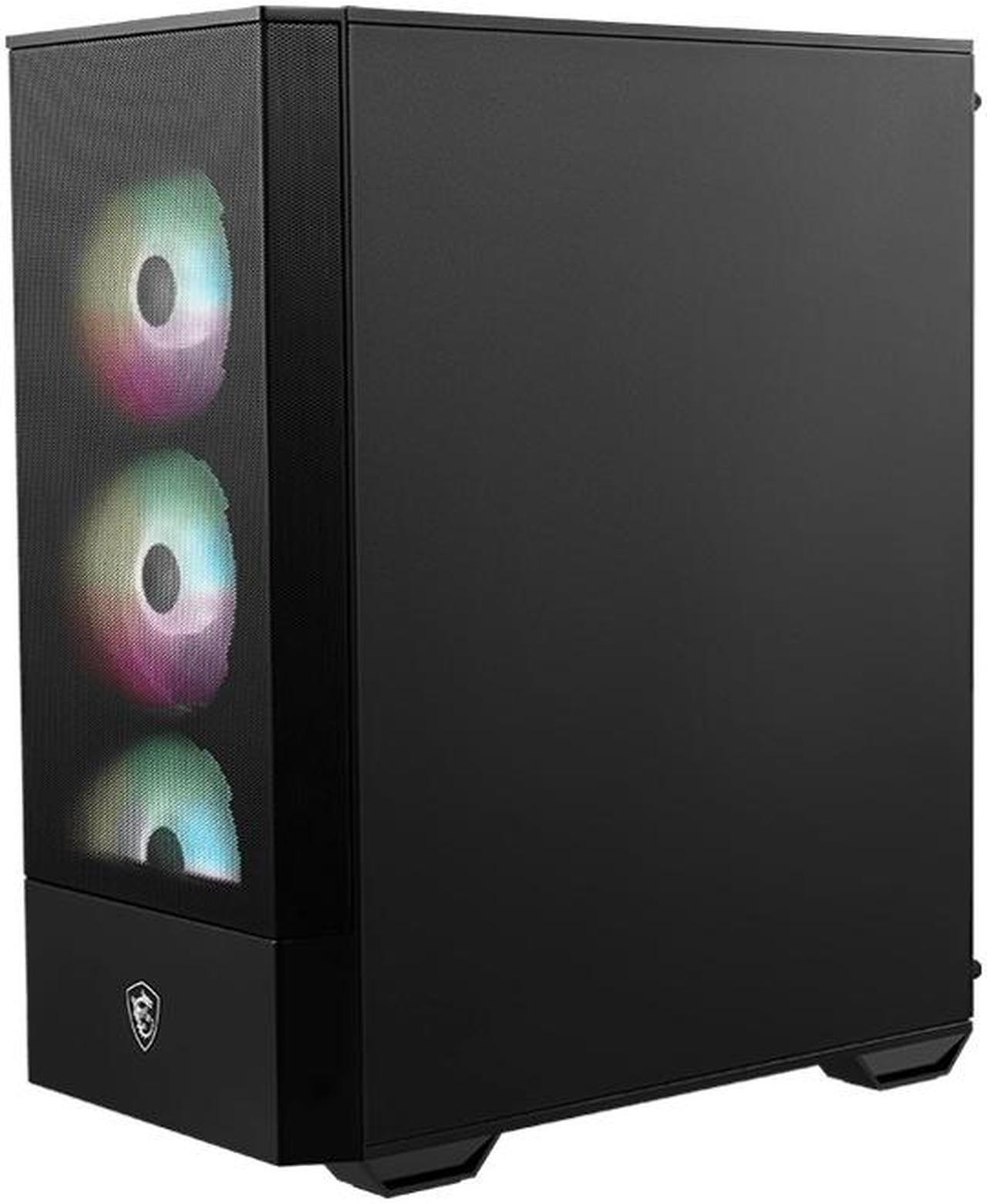

MSI Mid-Tower PC Gaming Case – Tempered Glass Side Panel – 4 x 120mm aRGB Fan – Liquid Cooling Support up to 240mm Radiator x 1 – MAG Forge 112R

Options: FORGE 112R

FORGE 112R
FORGE 321R AIRFLOW

Optimized Air Flow: Can install up to 6x system fans, providing ventilation and stable performance to the whole system.
ARGB Fan included: Built-in ARGB fan with striking lighting and vivid lighting effects.
Tool-Less Tempered Glass: Premium-grade 4mm thick tempered glass that guarantees window durability and viewing capability.
Magnetic Filter: The magnetic dust filter on top is designed to give users an easy
un-installing and cleaning experience.
Mystic Light Sync: MSI Mystic Light provides you complete control of ARGB lighting of your PC in one software.
1 to 6 ARGB LED Control board: Bundle with 1 to 6 ARGB LED control board that gives you more ways to decorate your gaming rig.

ARGB SHOWROOM

Create your own ARGB battle station with the MAG FORGE 110 Series, fully supported by MSI Mystic Light.

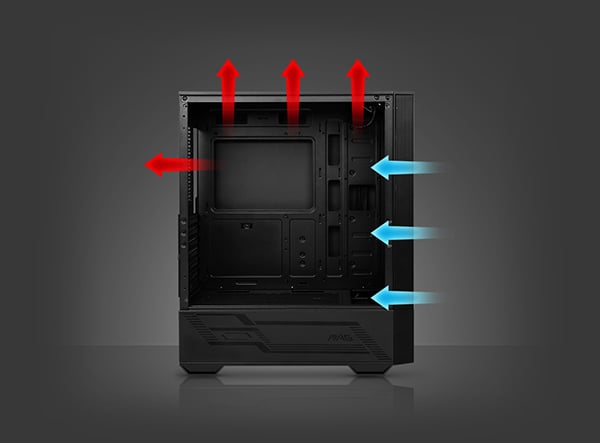

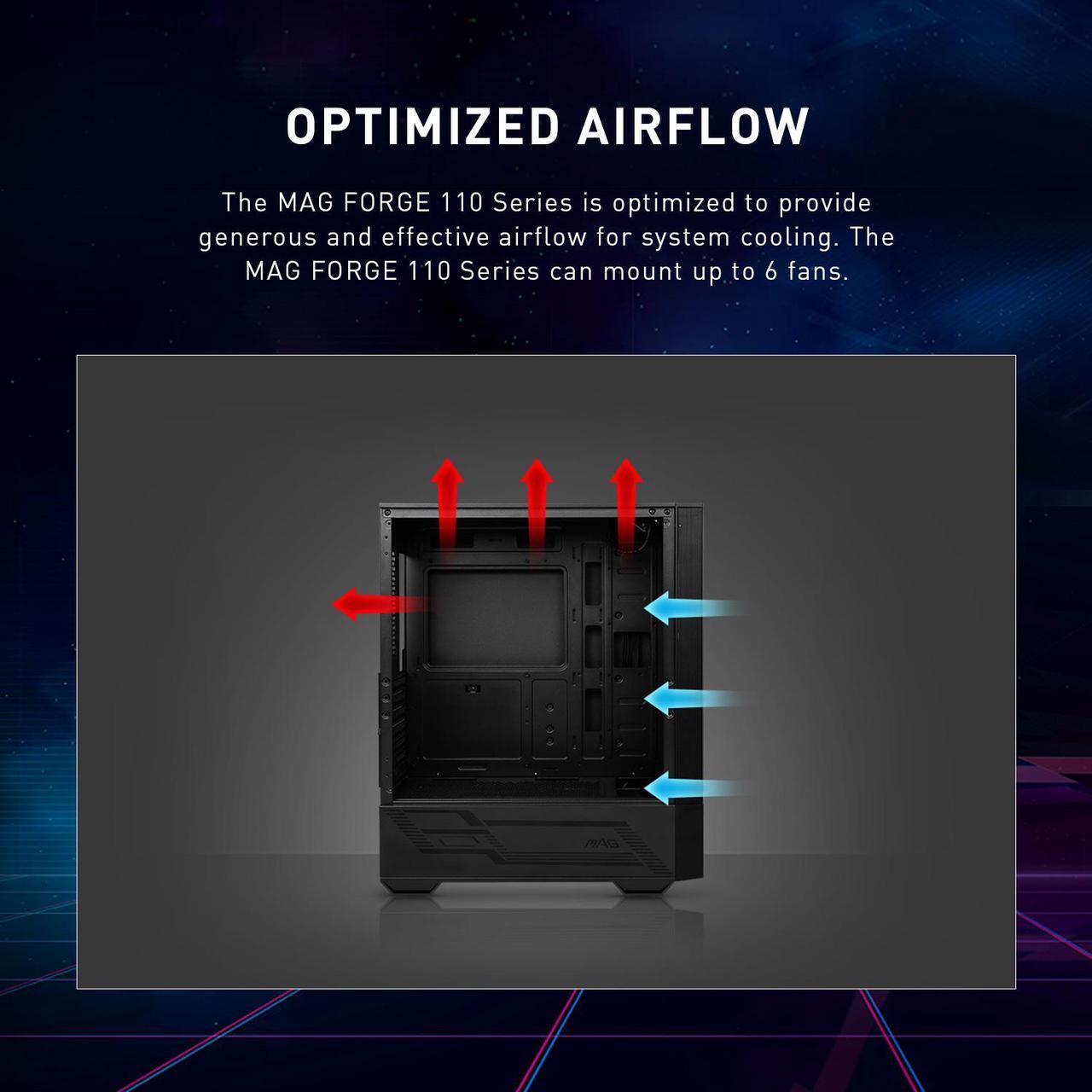

Optimized Airflow

The MAG FORGE 110 Series is optimized to provide generous and effective airflow for system cooling. The MAG FORGE 110 Series can mount up to 6 fans.

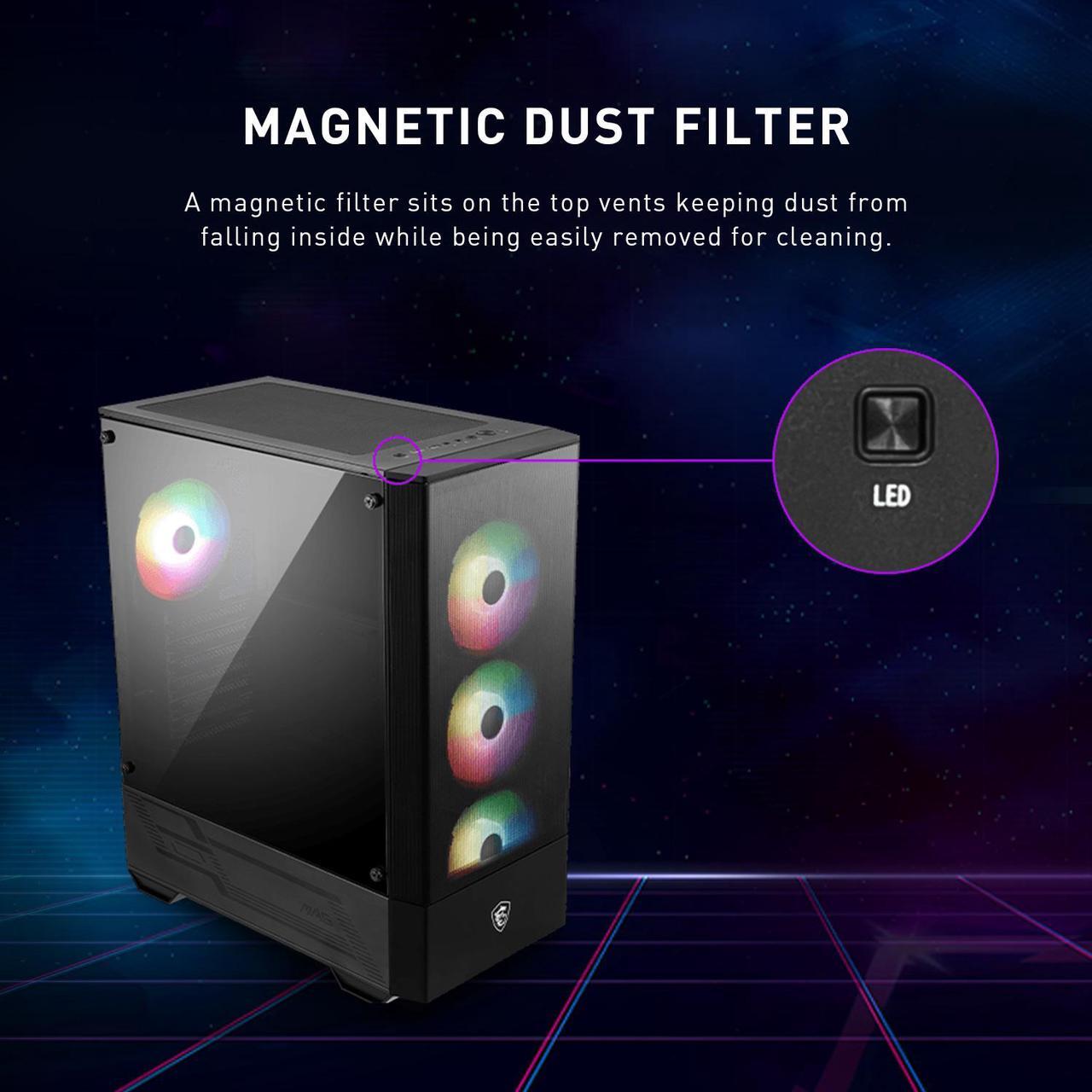

MAGNETIC DUST FILTER

A magnetic filter sits on the top vents keeping dust from falling inside while being easily removed for cleaning.

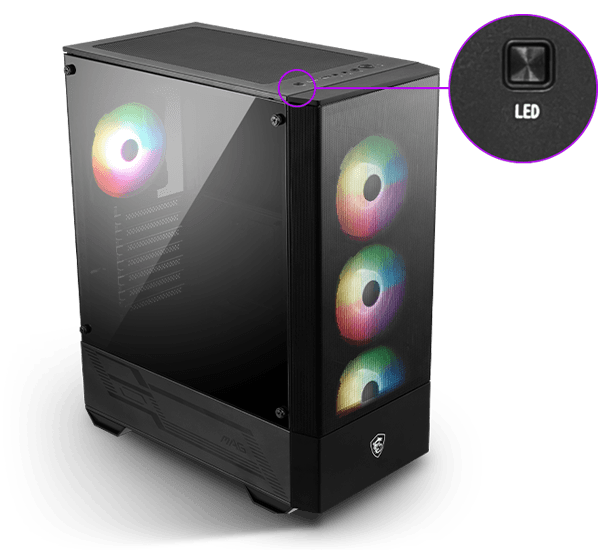

INSTA-LIGHT LOOP BUTTON

Quickly control the fan and front LED strip’s lighting effects with Insta-Light Loop at the touch of a button. Click through the profiles at ease and choose a favorite.

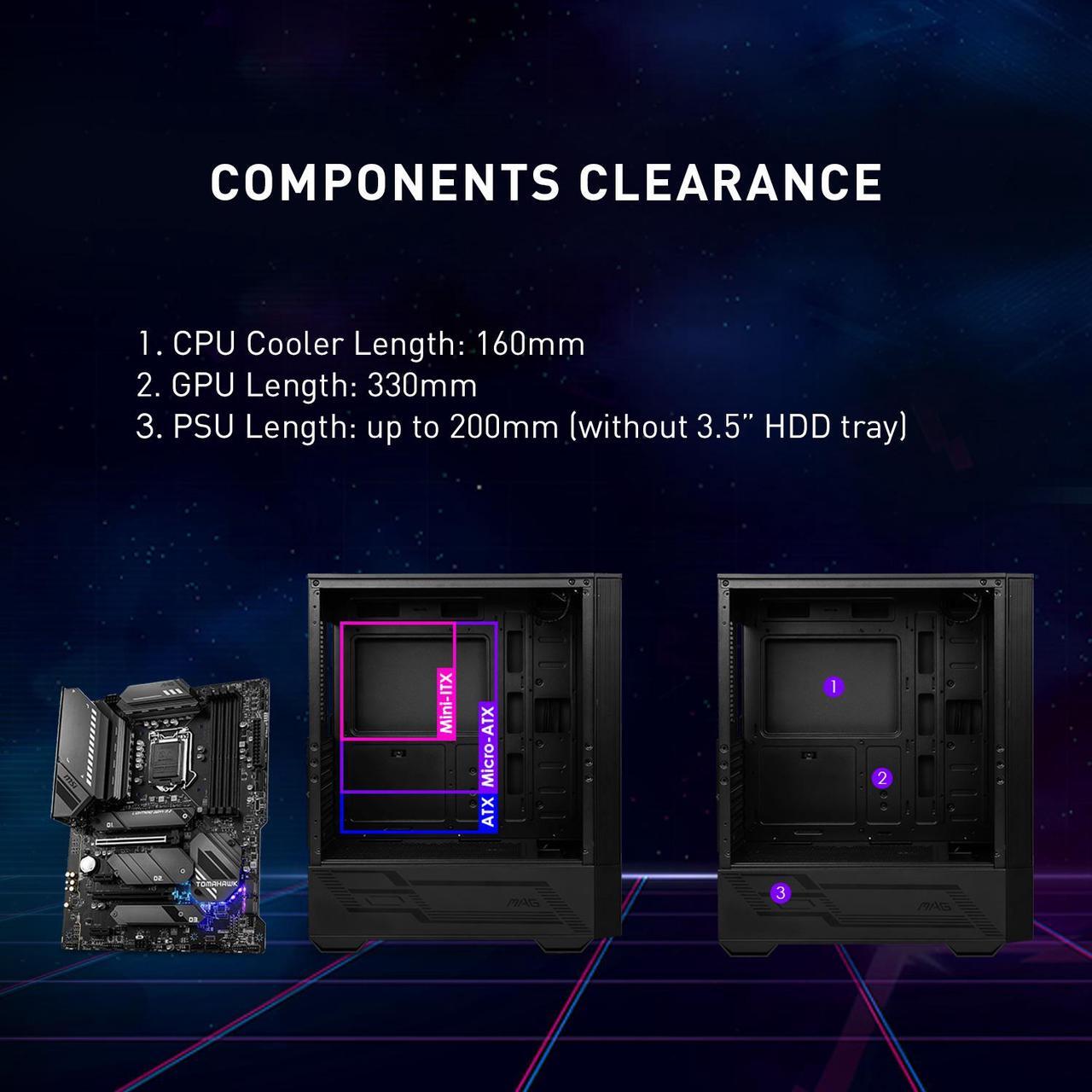

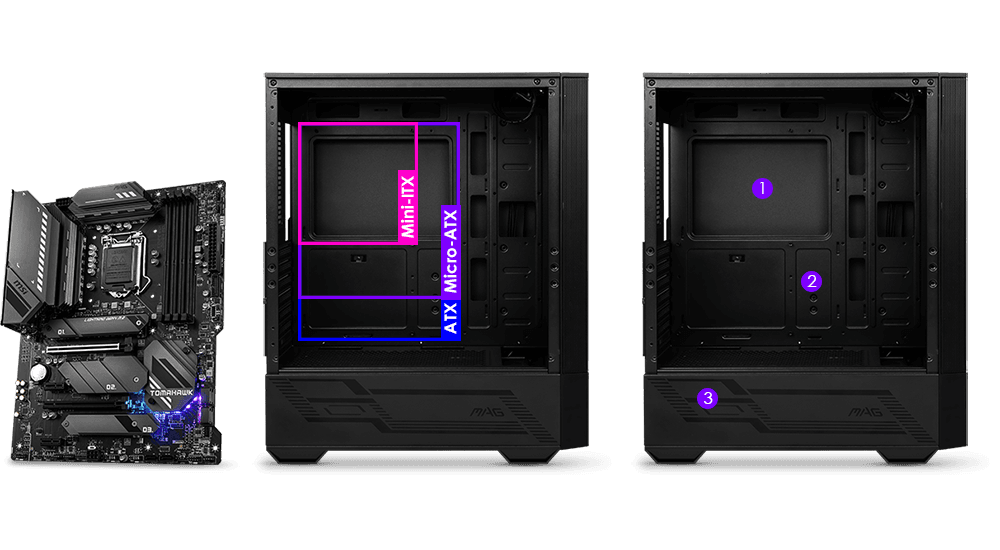

Components Clearance

1. CPU Cooler Length: 160mm

2. GPU Length: 330mm

3. PSU Length: up to 200mm (without 3.5" HDD tray)

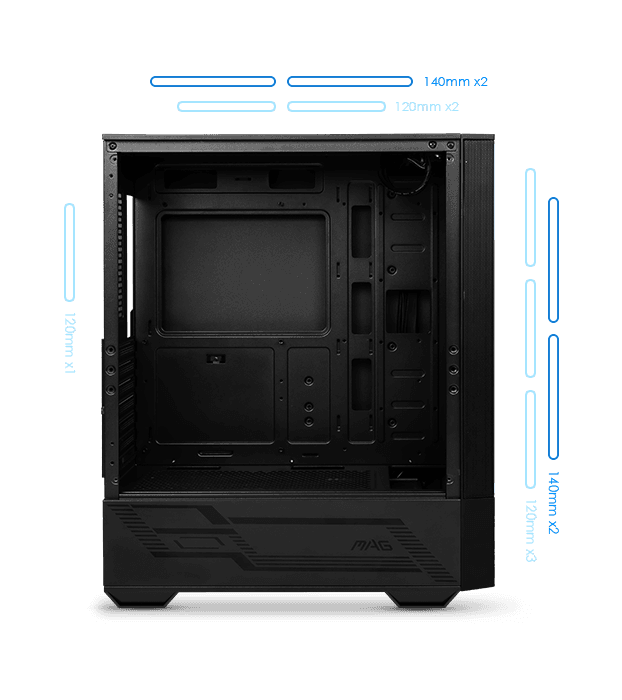

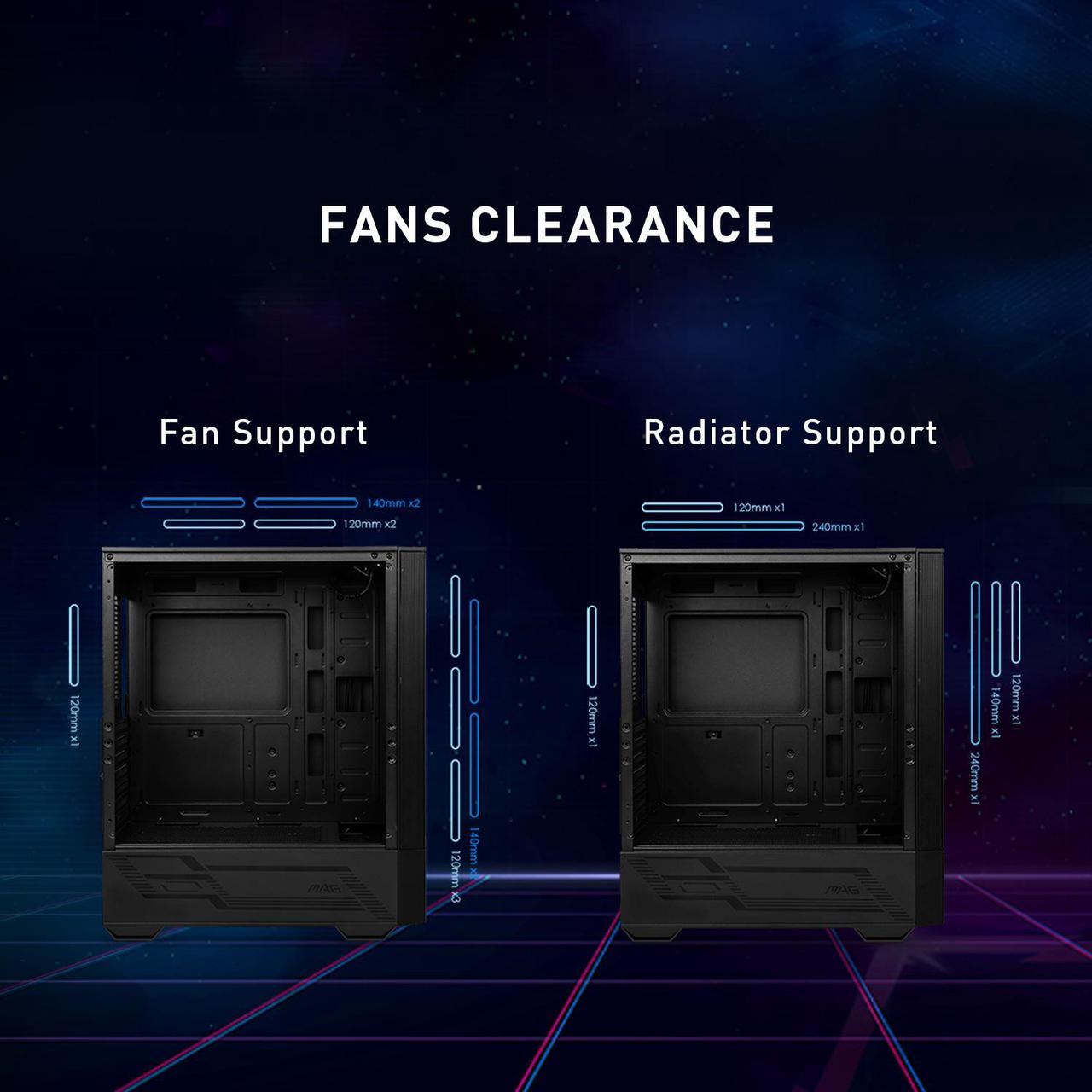

FAN Support

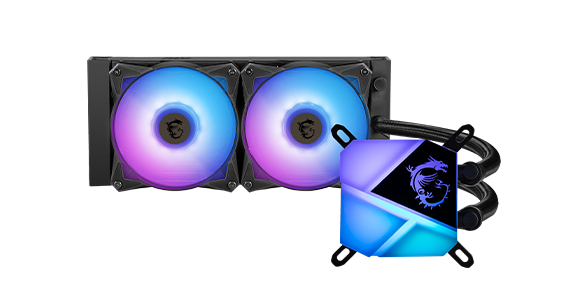

Radiator Support

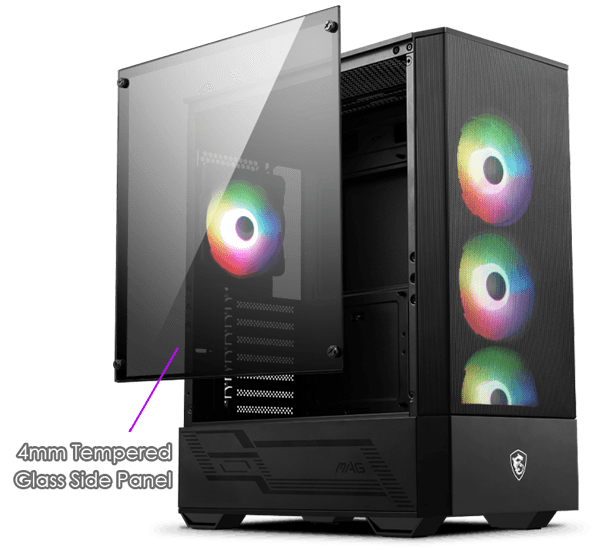

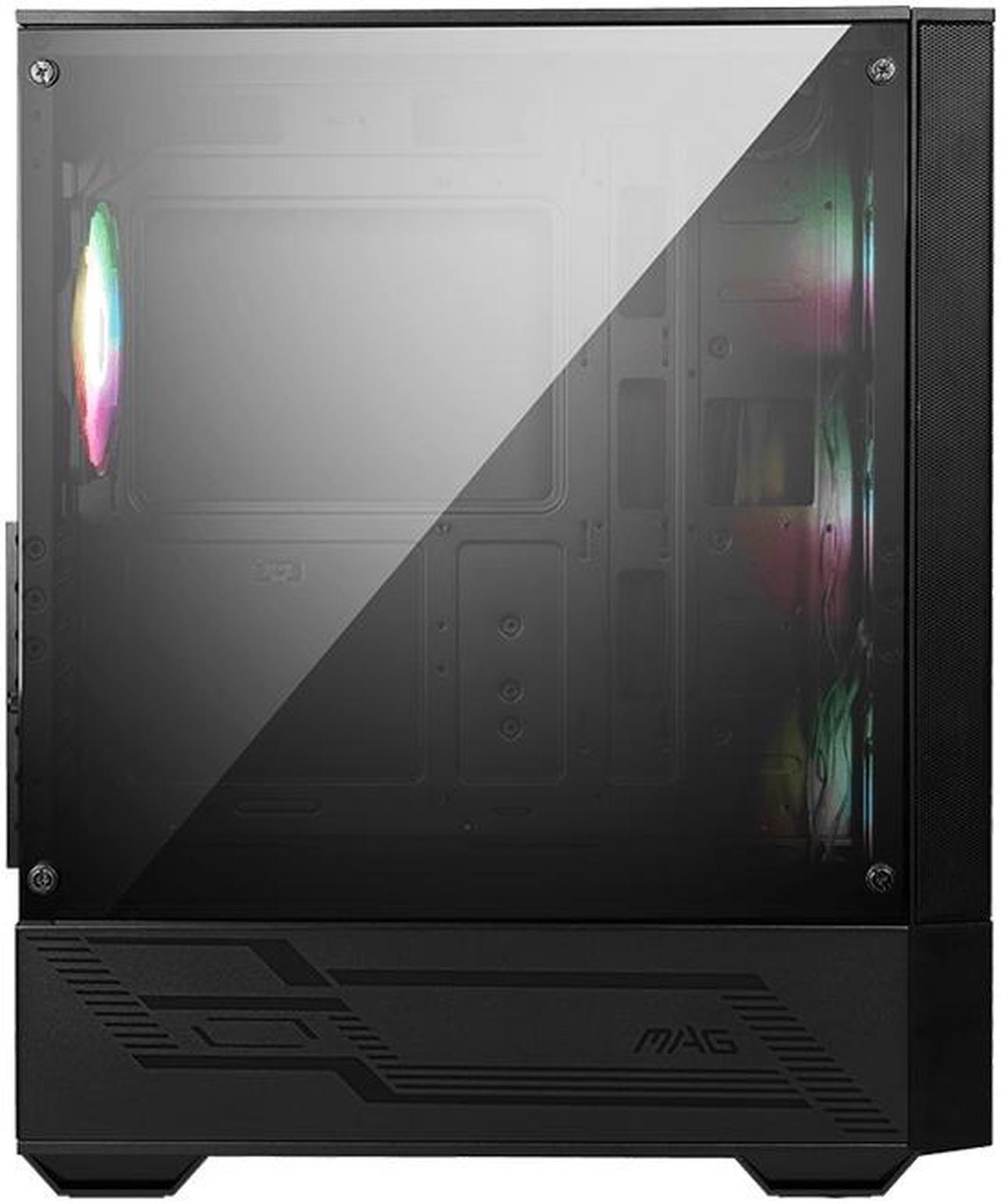

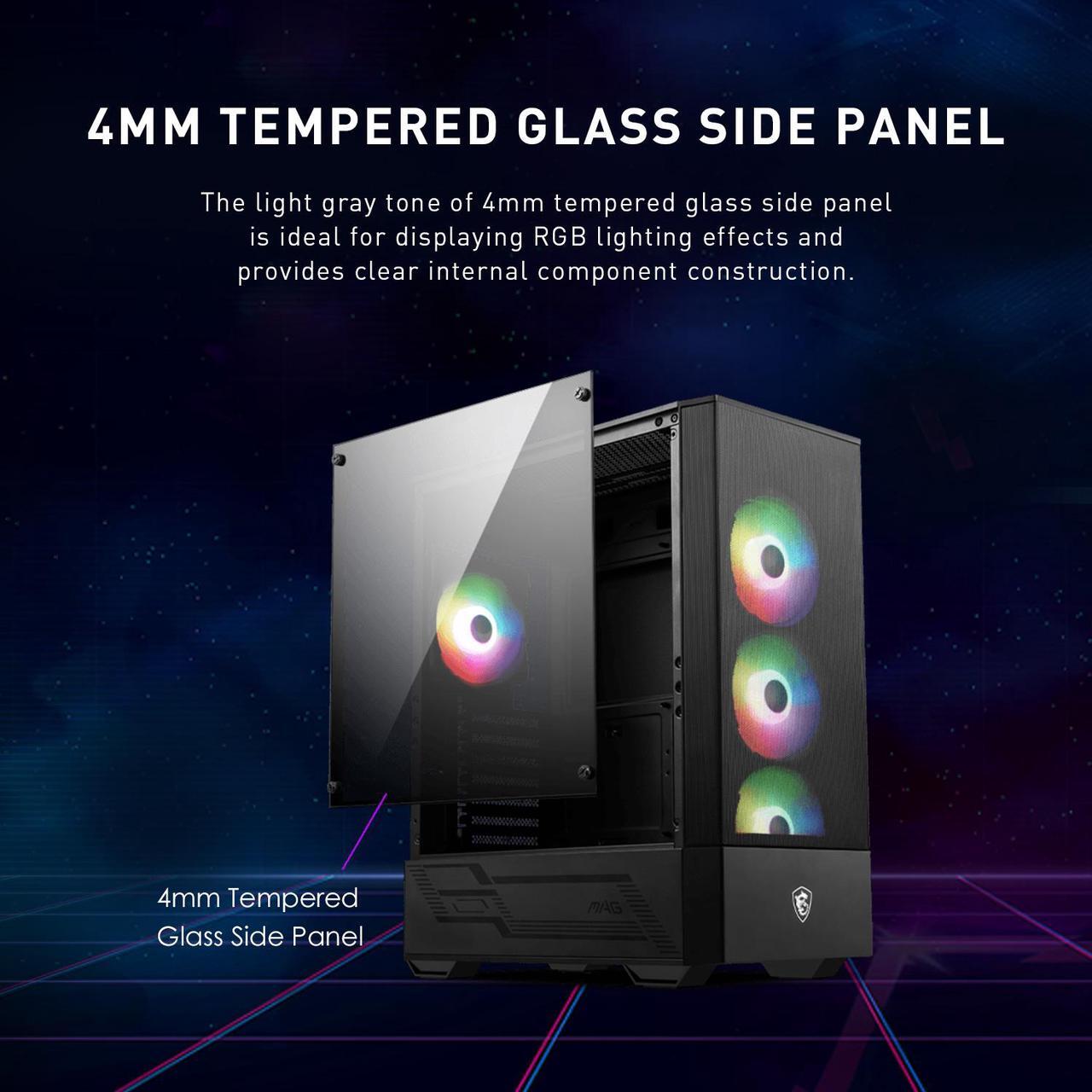

TOOL-LESS TEMPERED GLASS

The light gray tone of 4mm tempered glass side panel is ideal for displaying RGB lighting effects and provides clear internal component construction.

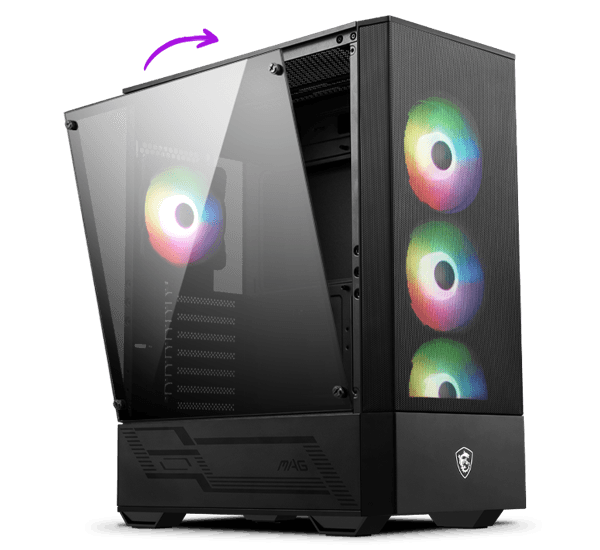

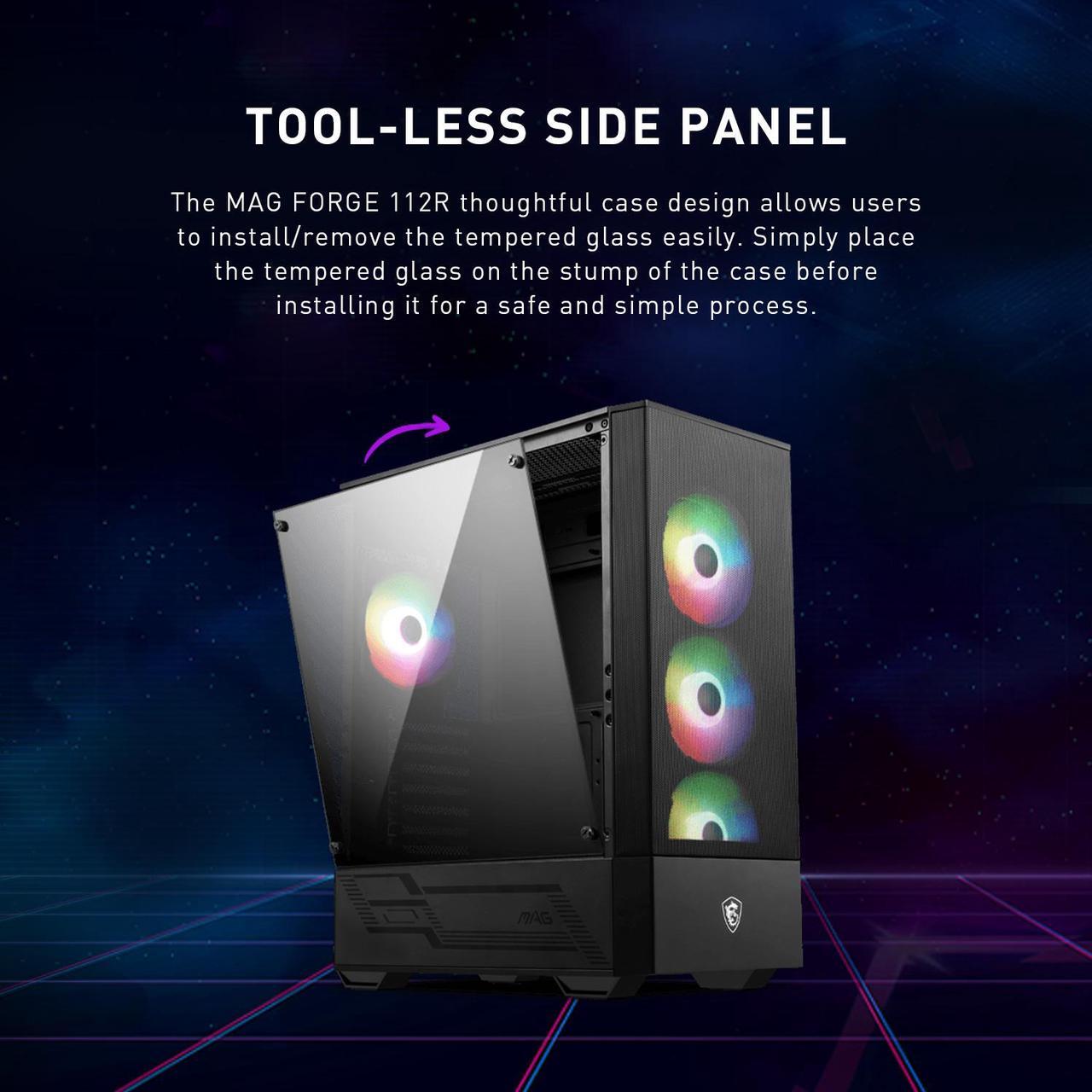

The MAG FORGE 112R’s thoughtful case design allows users to install/remove the tempered glass easily. Simply place the tempered glass on the stump of the case before installing it for a safe and simple process.

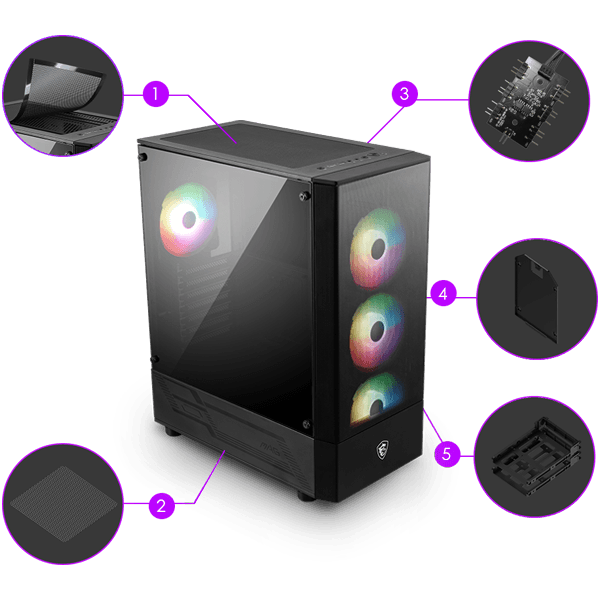

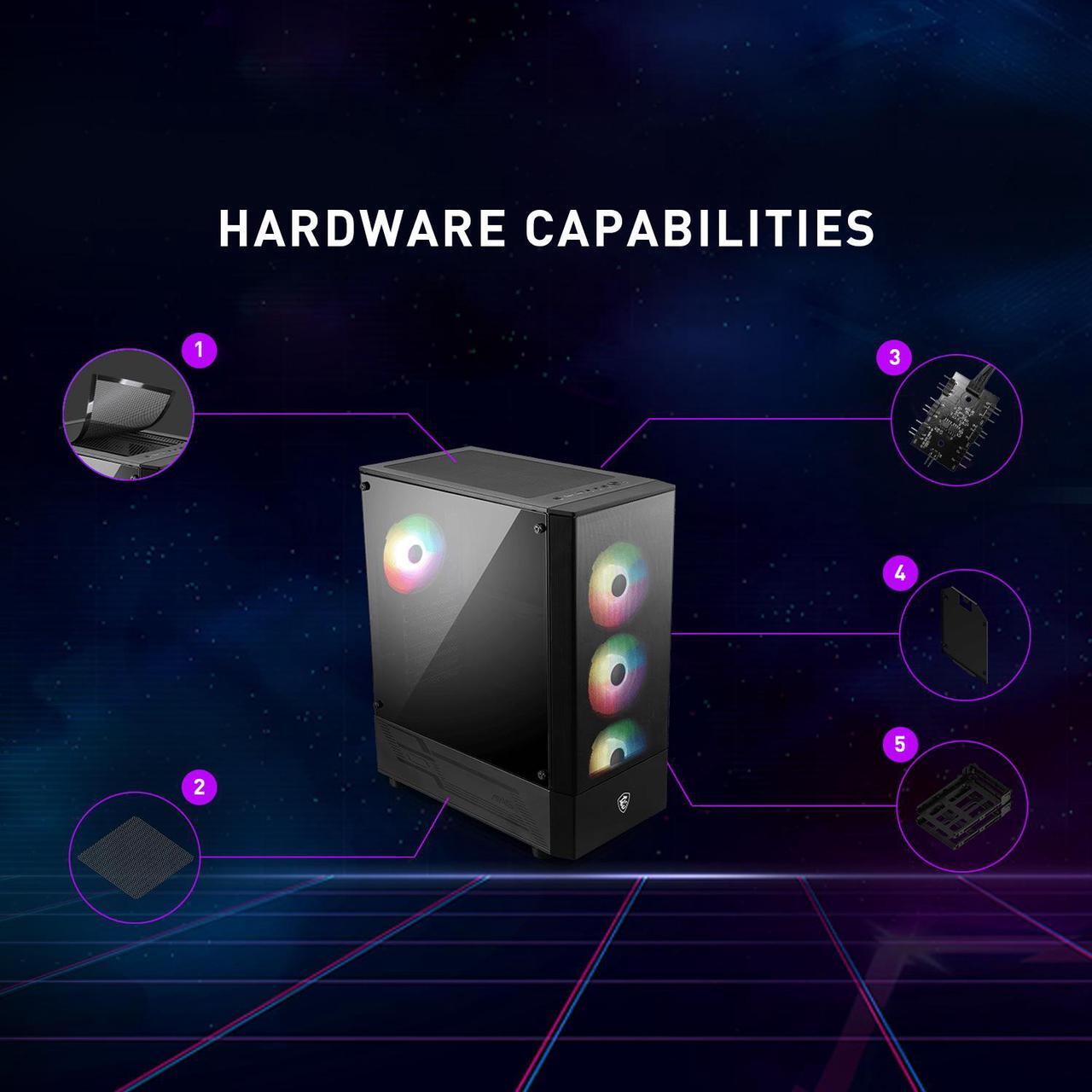

1. Magnetic Filter

2. Dust Filter

3. 1 to 6 LED Control Board

4. 1 x 2.5" Storage Tray

5. 2 x 3.5" Storage Bay

PRODUCT SPEC

Product Name	MAG FORGE 112R
Support MB Form Factor	ATX / M-ATX / ITX
Dimension (D) x (W) x (H)	409 x 214 x 485 mm / 16.1 x 8.43 x 19.9 inches
Dimension w/o Feet/Protrusions/Screws (DxWxH)	376 x 210 x 464 mm / 14.8 x 8.27 x 18.27 inches
I/O Ports	2 x USB 3.2 Gen 1 Type-A / 1 x Audio / 1 x Mic
Driver Bays	2.5" SSD x 3 / 3.5" HDD x 2
VGA Card Support	330mm / 13inches
CPU Cooler Support	160mm / 6.3inches
Power Supply	Standard ATX, max up to 200mm (without 3.5" HDD tray installed)
Cooling Layout	Front: 120mm x 3 or 140mm x 2 Top: 120mm x 2 or 140mm x 2 Rear: 120mm x 1
Radiator Layout	Front: 120 / 140 / 240 mm Top: 120 / 240 mm Rear: 120 mm

Type	ATX Mid Tower
Color	Black
Case Material	ABS Plastic / SPCC Steel / Tempered Glass
Motherboard Compatibility	ATX / Micro ATX / Mini ITX
Side Panel Window	1 Side Tempered Glass

Internal 3.5" Drive Bays	2x 2.5" or 3.5"
Internal 2.5" Drive Bays	3
Expansion Slots	7

Fan Options	Front: 120mm x 3 or 140mm x 2 Top: 120mm x 2 or 140mm x 2 Rear: 120mm x 1 Pre-Installed Fan: Front: 3 x 120 mm ARGB Fan Rear: 1 x 120 mm ARGB Fan
Pre-installed Fans	Front - 3 x 120mm / Rear - 1 x 120mm
Radiator Options	Front: 120 / 140 / 240 mm Top: 120 / 240 mm Rear: 120 mm

Max GPU Length	330 mm
Max CPU Cooler Height	160 mm
Max PSU Length	Standard ATX, max up to 200mm (without 3.5" HDD tray installed)
Dimensions	16.1 x 8.43 x 19.9" Dimensions w/o Feet/Protrusions/Screws (DxWxH): 14.8 x 8.27 x 18.27"
Weight	11.6 lbs
