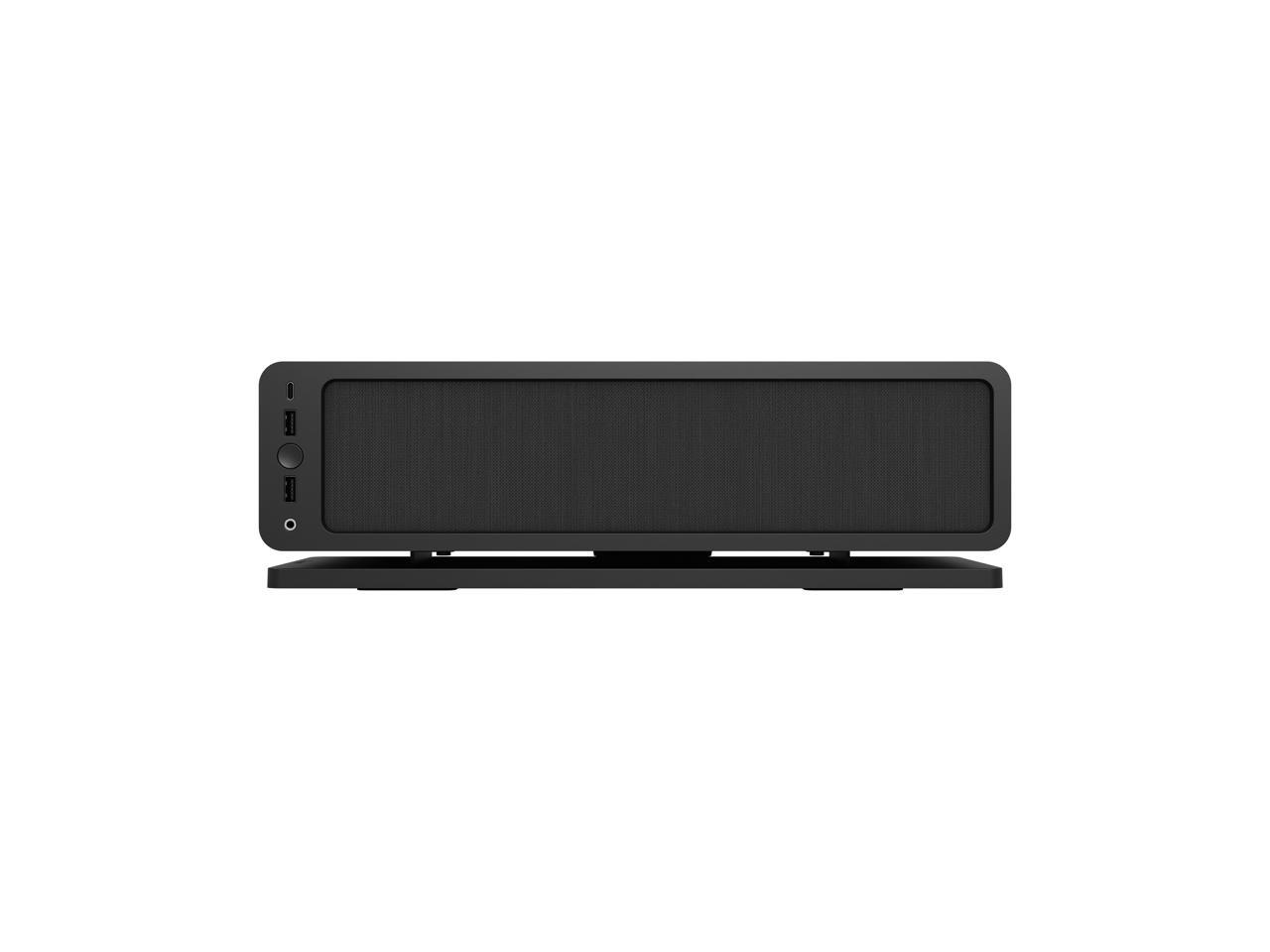

Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Visit Fractal Design Store

Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Name: Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser
Brand: Fractal Design
SKU: N82E16811352201
Price: 199.99 CAD
Availability: InStock
Rating: 4 (14 reviews)

(14)(15) Write a Review

See more "fractal ridge"

In stock. Limit 2 per customer.

Ships from Canada.

Compact SFF console-type case
SFX/SFX-L support
6 mm anodized and CNCd aluminum front
PCIe 3.0 riser card and 2x 140 mm PWM Aspect fans included
Horizontal and vertical orientation (multiple foot configurations)
Excellent GPU cooling
Front I/O with 2x USB 3.0, 1x USB-C and Combo jack
2x 140 mm side and 3x 80 mm top fan support
4x SSD support, 2x screw mount and 2x clip-in fast mounts
Discreet power LED bar in front

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 1 year
Limited Warranty period (labor): 1 year
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy. Read full return policy for details.

Type	Small Form Factor
Color	Black
Case Material	Steel
With Power Supply	No
Power Supply Mounted	Bottom
Motherboard Compatibility	Mini-ITX / Mini-DTX (with one 140 mm case fan removed)
Side Panel Window	No
With front LCD display	Front power LED bar

Fan Options	Total fan mounts: 2x 120/140 mm and 3x 80 mm Side: 2x 120/140 mm (2x Aspect 140 mm PWM included) Top: 3x 80 mm
Radiator Options	Side: 120 mm with GPU up to 175mm in length, 240/280 mm without GPU

Max GPU Length	335 mm total, 325 mm with SSD installed
Max CPU Cooler Height	70 mm
Max PSU Length	130 mm Cable Routing Space: 13.8 mm behind PSU
Dimensions (H x W x D)	395.4 x 110 x 374 mm in vertical orientation w/ stand 115 x 375 x 360 mm in horizontal orientation w/ stand 94.6 x 375 x 355 mm without feet/screws/protrusions
Weight	4.3 kg

Features	• Compact SFF console-type case • All panels come off for maximum accessibility • 6 mm anodized and CNCd aluminum front • PCIe 3.0 riser card included • Horizontal and vertical orientations with multiple foot configurations • Ventilated side, top and bottom panels • 2x 140 mm PWM Aspect fans included • 2x 140 mm side fan and 3x 80 mm top fan support • Front I/O comes with 2x USB 3.0, 1x USB type-C and a combined mic and headphone jack • 4x SSD support, 2x screw mount and 2x clip-in fast mounts • Excellent GPU Cooling • Supports GPUs up to a length of 335 mm • 57 mm thick GPU support with included 140 mm fans (82 mm without fans) • 70 mm CPU cooler support • Fits a 120 mm radiator (without full-length GPU) • SFX/SFX-L Support • Power LED bar in front • Built-in security lock slot • Radiator support without GPU: Up to 240/280 mm (max 328 mm length, 144 mm width) • Radiator support with GPU under 175 mm long: 120 mm
Package Content	Case Accessory box Manual

SHOP WITH CONFIDENCE

Are you an E-Blast Insider?

Fractal Design Ridge Black Mini-ITX Slim Small Form Factor Console PC Case with PCIe 3.0 Riser

Learn more about the Fractal Design FD-C-RID1N-01

Customer Reviews of the Fractal Design FD-C-RID1N-01

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Expansion
Internal 2.5" Drive Bays	4 (included)
Expansion Slots	3
