Micro ATX / ATX / Mini ITX / E-ATX (305mm x 277mm)
Side Panel Window
Internal 3.5" Drive Bays
Internal 2.5" Drive Bays
Hot-Swap Drive Bays
7 + 2 Vertical
Front Panel Ports
1 x USB 3.0 / 1 x USB 3.1 Type-C / Audio
Front: 3 x 120mm (3 x 120mm RGB Included), 2 x 140mm fan
Top: 2 x 120mm, 2 x 140mm fan
Rear: 1 x 120mm fan
Front: 360mm / 280mm
Top: 280mm with CORSAIR LPX DRAM / 240mm with all CORSAIR DRAM
Side Air duct
Dimensions & Weight
Max GPU Length
Max CPU Cooler Height
Max PSU Length
180mm (220mm If HDD Cage Removed)

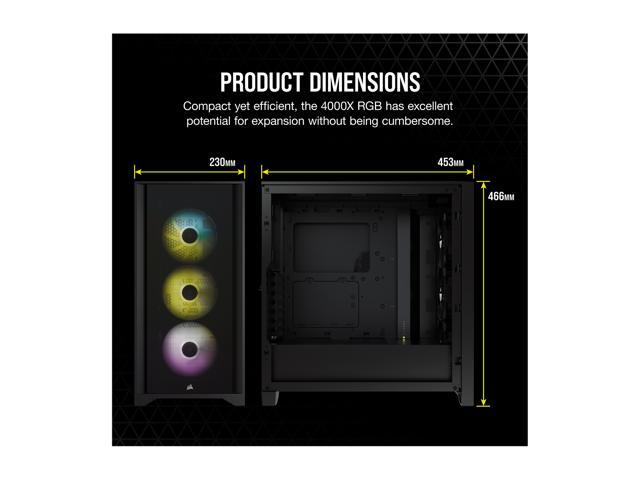

Dimensions (H x W x D)
18.35" x 9.06" x 17.83"
Make it Personal: Combining stylish tempered glass, customizable RGB lighting, innovative cable management and concentrated airflow, choose the 4000X RGB for a unique high-performance PC.
Tempered Glass Side and Front Panels: Show off your components and RGB lighting, with dedicated front ventilation channels for ample airflow.

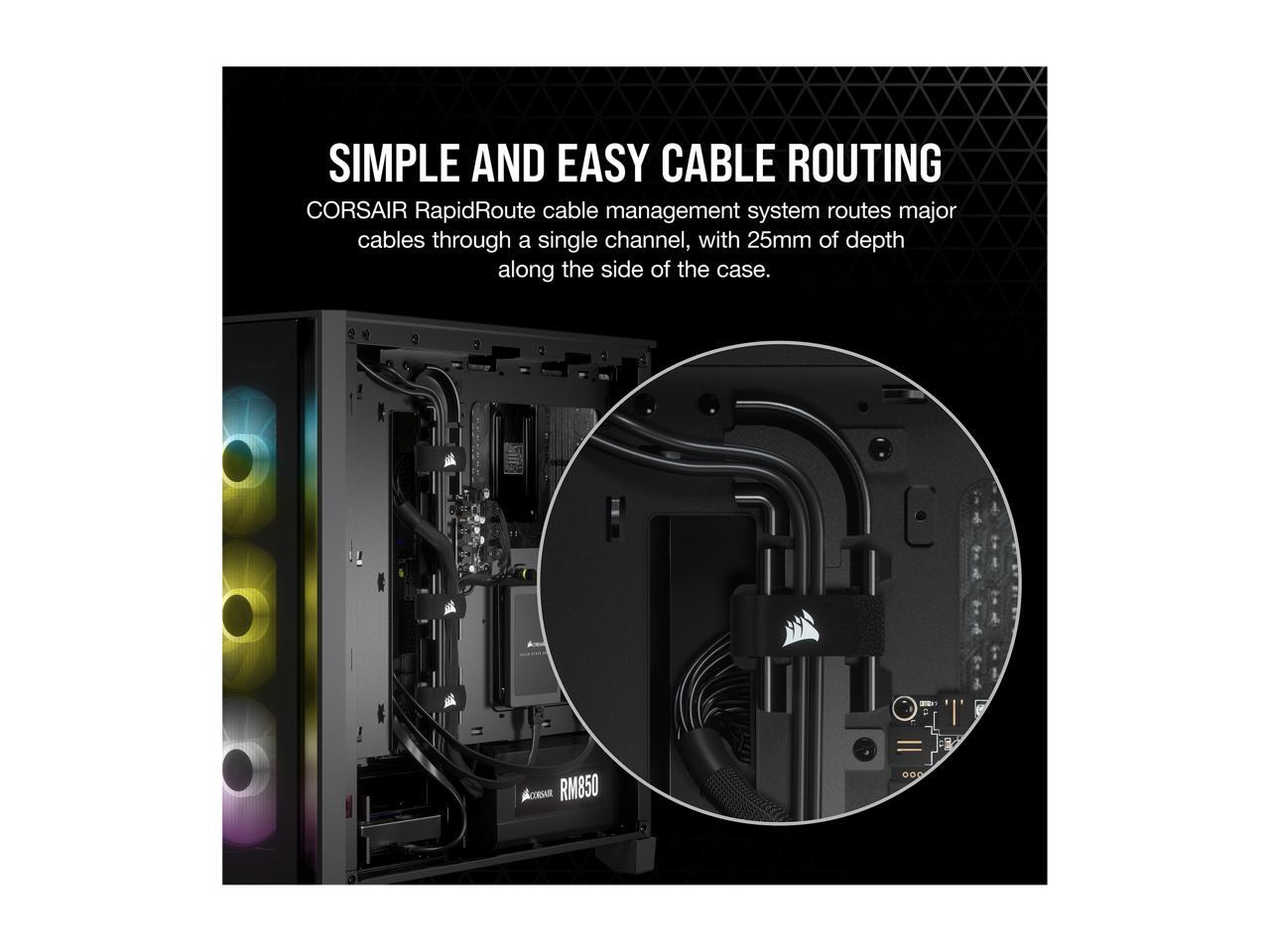

CORSAIR RapidRoute Cable Management System: Makes it simple and fast to build an immaculate, professionallooking system with major cables neatly routed through a single channel, with a roomy 25mm of space behind the motherboard for all of your cables.
Three Included 120mm RGB Fans: CORSAIR AirGuide RGB fans utilize anti-vortex vanes to concentrate airflow and enhance cooling Each fan is equipped with eight individually addressable RGB LEDs for brilliant lighting.
Smart RGB Lighting out of the Box: Fully control and synchronize the RGB lighting for up to six fans with the included iCUE Lighting Node CORE and CORSAIR iCUE software.

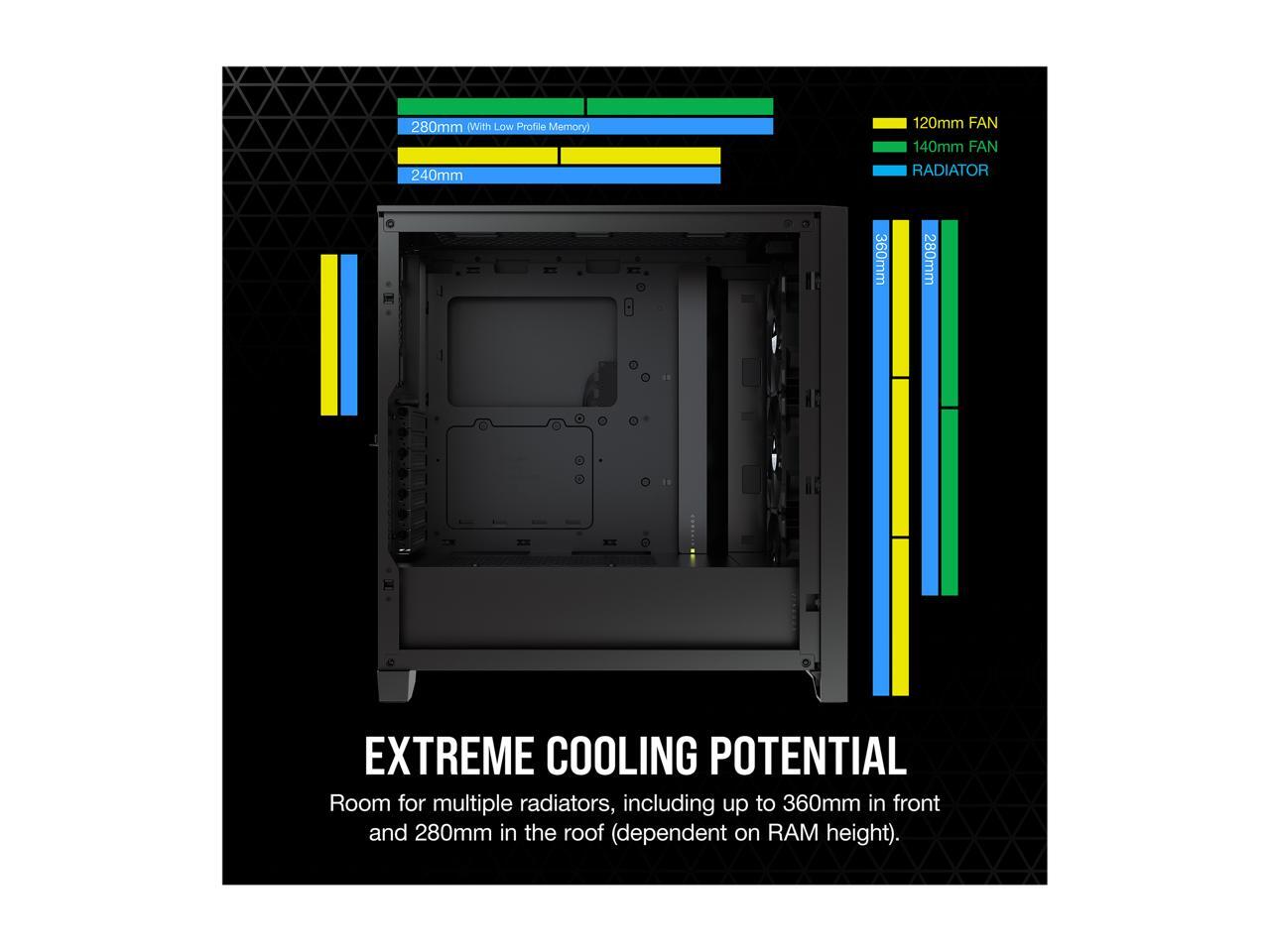

Extreme Cooling Potential: A spacious interior fits up to 6x 120mm or 4x 140mm cooling fans, along with multiple radiators including a 360mm in front and 280mm in the roof (dependent on RAM height).

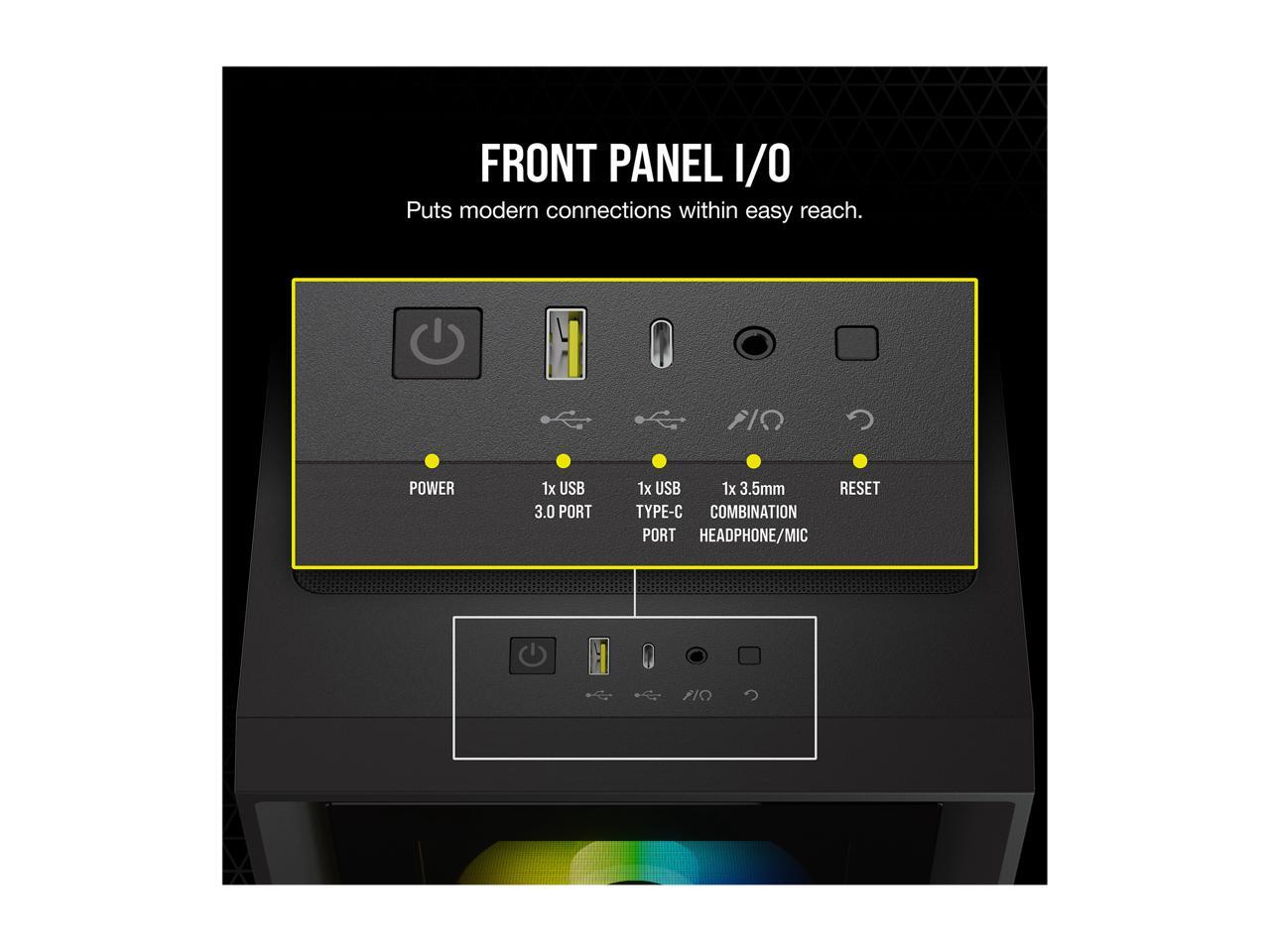

Modern Front Panel I/O: Puts your connections within easy reach, including a USB 3.1 Type-C Port, USB 3.0 port, and a combination audio/microphone jack.
All the Storage You Need: Fits up to 2x SSDs and 2x HDDs.
