|Type||ATX Mid Tower|
|Case Material||Steel / Plastic / Tempered Glass|
|With Power Supply||No|
|Power Supply Mounted||Bottom|

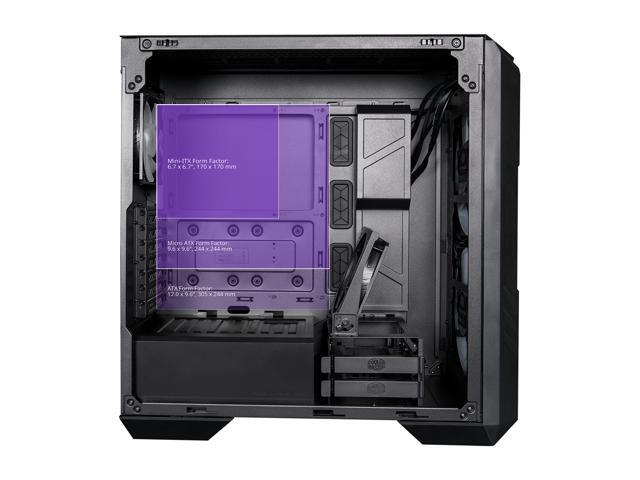

|Motherboard Compatibility||Micro ATX / ATX / ITX / E-ATX / SSICEB *|
(* up to 12" x 14.1", may impact cable management and case features, remove cable cover and GPU fan bracket features)
|Side Panel Window||Yes|
|Dust Filters||Bottom / Front / Top|
|Internal 3.5" Drive Bays||2|
|Internal 2.5" Drive Bays||2|
|Front Ports||2 x USB 3.2 Gen 1 (USB 3.0) / 1 x USB 3.2 Gen2 type C / Audio / Reset/ARGB button|
|Fan Options||Front: 3 x 120mm / 2 x 140mm / 2 x 200mm fan* (1 x 120mm SickleFlow PWM ARGB fans included)|
Top: 3 x 120mm / 2 x 140mm / 2 x 200mm fan (2 x 200mm ARGB Fans included)
Rear: 1 x 120mm fan (1 x 120mm SickleFlow PWM (GPU Fan) included)
Top on HDD cage: 1 x 120mm fan
* 200mm Mounting Hole Spacing 154 x 154 w/ up to 30mm thickness

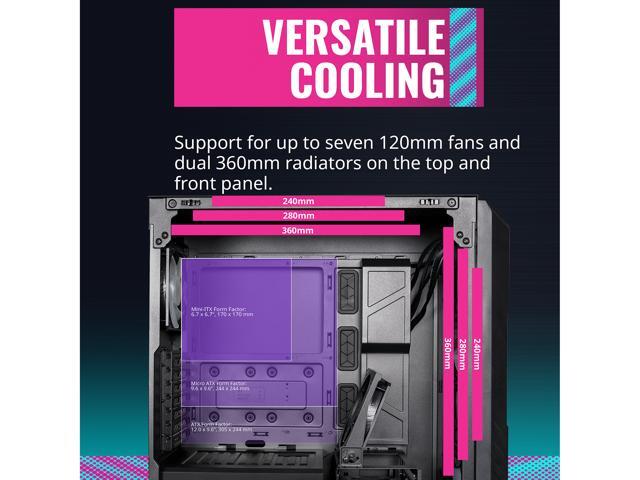

|Radiator Options||Front: 120 / 140 / 200 / 240 / 280 / 360mm |
Top: 120 / 140 / 240 / 280 / 360mm
|Max GPU Length||410 mm|
|Max CPU Cooler Height||167 mm|
|Max PSU Length||180 mm|
|Dimensions (H x W x D)||20.08" x 8.82" x 20.32"|

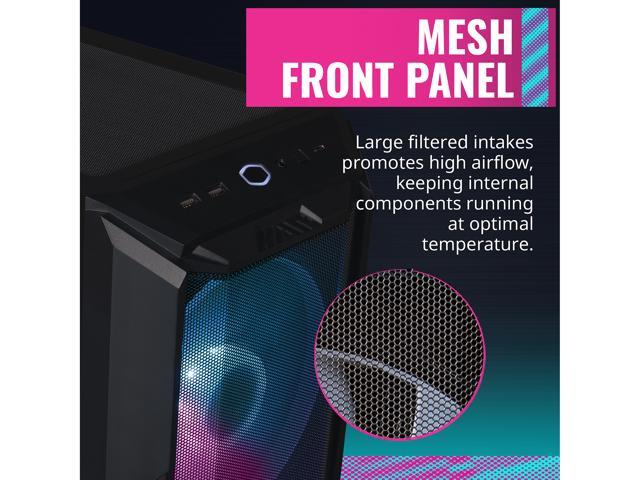

|Features||Mesh Front Panel: Large filtered intakes promotes high airflow, keeping internal components running at optimal temperature. |

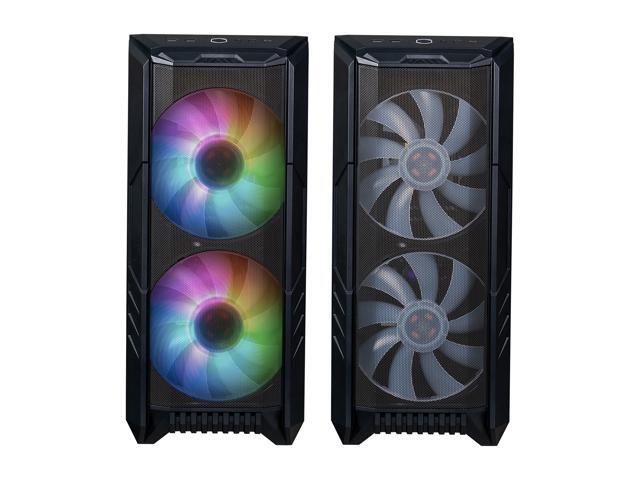

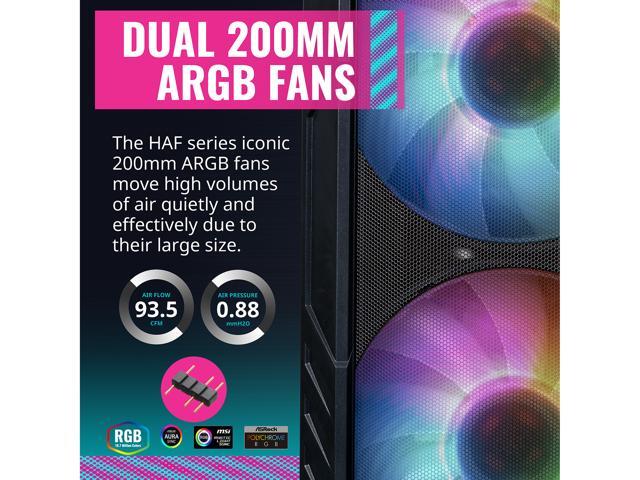

Dual 200mm ARGB Fans: The HAF series iconic 200mm ARGB fans move high volumes of air quietly and effectively due to their large size.

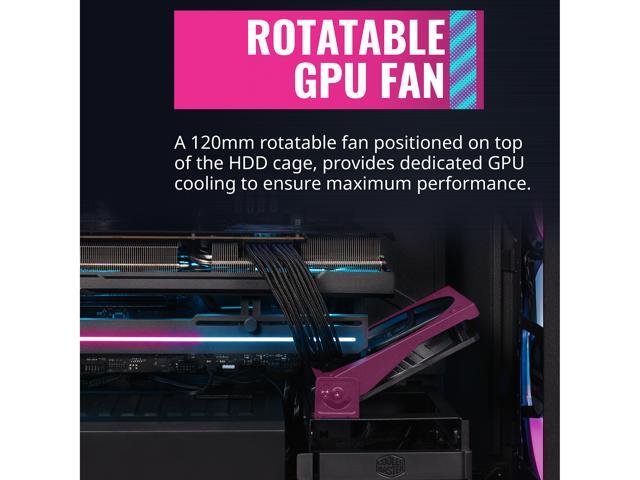

Rotatable GPU Fan: A 120mm rotatable fan positioned on top of the HDD cage, provides dedicated GPU cooling to ensure maximum performance.

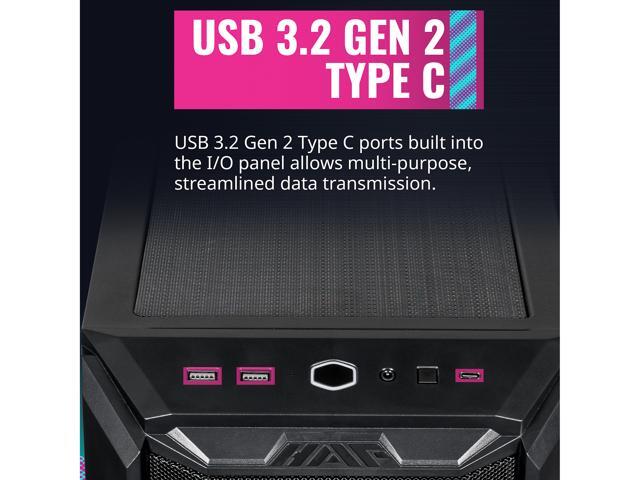

USB 3.2 Gen 2 Type C Support: USB 3.2 Gen 2 Type C ports built into the I/O panel allows multi-purpose, streamlined data transmission.

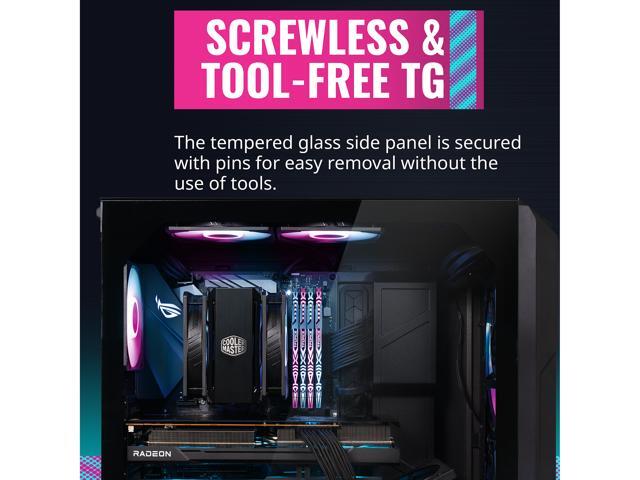

Screwless & Tool-Free TG Side Panel Design: The tempered glass side panel is secured with pins for easy removal without the use of tools.

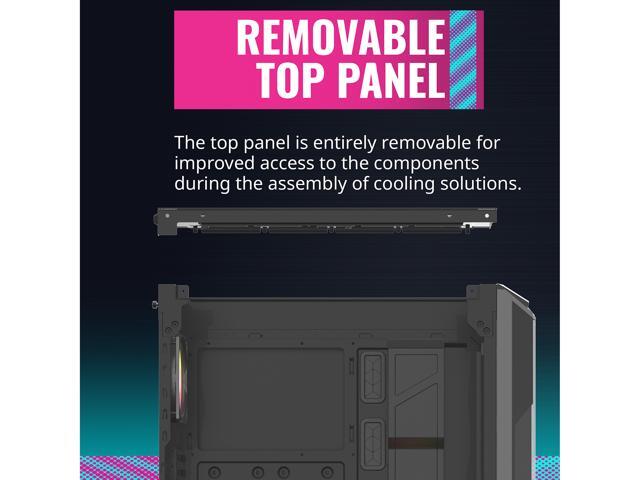

Removable Top Panel : The top panel is entirely removable for improved access to the components during the assembly of cooling solutions.
|Package Content||HAF 500 |
Install Tool Kits
|Date First Available||March 09, 2022|
