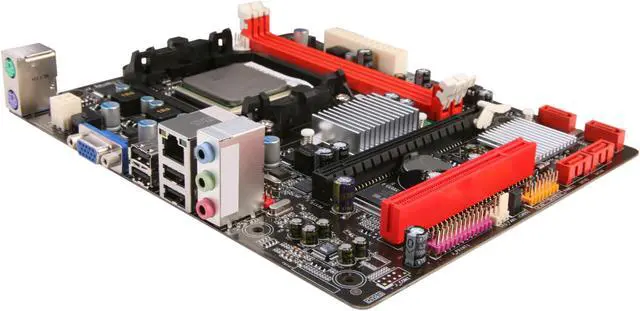

Main image of BIOSTAR COMBOA7L3B AMD Sempron 130 AM3 AMD 760G Micro ATX Motherboard / CPU Combo

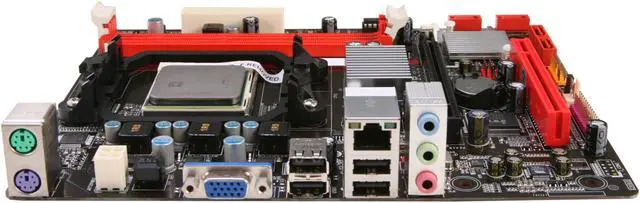

Alt view image 2 of 5 - BIOSTAR COMBOA7L3B AMD Sempron 130 AM3 AMD 760G Micro ATX Motherboard / CPU Combo

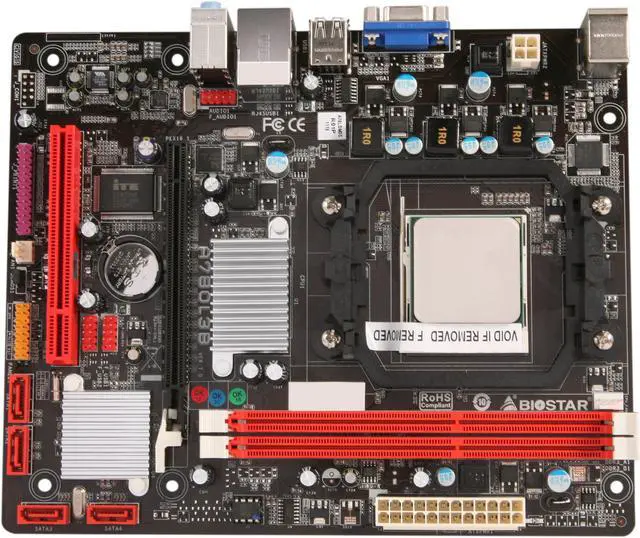

Alt view image 3 of 5 - BIOSTAR COMBOA7L3B AMD Sempron 130 AM3 AMD 760G Micro ATX Motherboard / CPU Combo

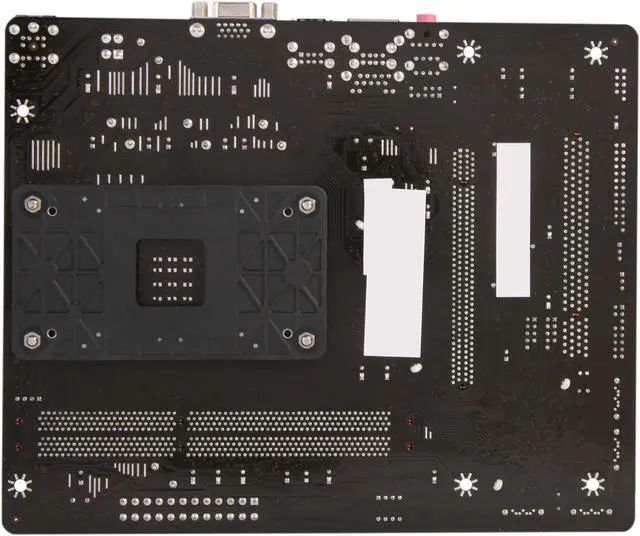

Alt view image 4 of 5 - BIOSTAR COMBOA7L3B AMD Sempron 130 AM3 AMD 760G Micro ATX Motherboard / CPU Combo

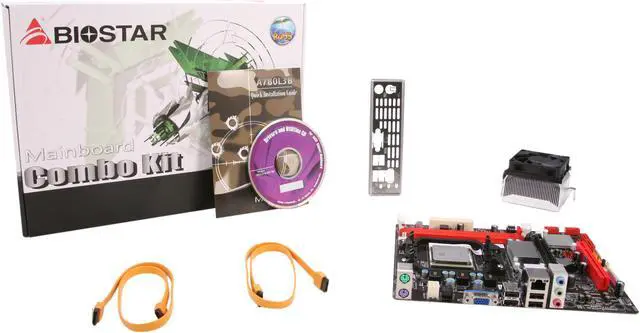

Alt view image 5 of 5 - BIOSTAR COMBOA7L3B AMD Sempron 130 AM3 AMD 760G Micro ATX Motherboard / CPU Combo

Shop All Biostar Products

BIOSTAR COMBOA7L3B AMD Sempron 130 AM3 AMD 760G Micro ATX Motherboard / CPU Combo

(11) Write a Review

AMD Phenom II X4 Processor AMD Phenom II X3 Processor AMD Phenom II X2 Processor AMD Athlon II X4 Processor AMD Athlon II X3 Processor AMD Athlon II X2 Processor AMD Sempron Processor
DDR3 800/1066/1333/1600(OC)
ATI Radeon 3000

Specs

Reviews (11)

Learn more about the Biostar COMBOA7L3B

Model
Brand	BIOSTAR
Model	COMBOA7L3B
Combo Type	Motherboard / CPU Combo

Bundle
Motherboard	A780L3B
CPU	AMD Sempron 130

Supported CPU
CPU Socket Type	AM3
CPU Type	AMD Phenom II X4 Processor AMD Phenom II X3 Processor AMD Phenom II X2 Processor AMD Athlon II X4 Processor AMD Athlon II X3 Processor AMD Athlon II X2 Processor AMD Sempron Processor
FSB	1600 MHz Hyper Transport (3200 MT/s)

Chipsets
North Bridge	AMD 760G
South Bridge	AMD SB710

Memory
Number of Memory Slots	2x240pin
Memory Standard	DDR3 800/1066/1333/1600(OC)
Maximum Memory Supported	16GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express x16	1 x PCI Express x16
PCI Slots	1 x PCI Slot

Storage Devices
SATA	4 x SATA 3.0Gb/s
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	ATI Radeon 3000

Onboard Audio
Audio Chipset	VIA VT1708B
Audio Channels	6 Channels

Onboard LAN
LAN Chipset	Realtek 8105T
Max LAN Speed	100Mbps

Rear Panel Ports
PS/2	2
Video Ports	D-Sub
USB 1.1/2.0	4 x USB 2.0
Audio Ports	3 Ports

Internal I/O Connectors
Onboard USB	4 x USB 2.0

Features
Features	Windows 7 Compatible Supports Solid capacitor Supports BIOS-Flasher Supports BIOS-Relife Maximum CPU TDP (Thermal Design Power) : 95Watt

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	8.86" x 7.17"
