- What is a Category 5e patch cable? Think of it as the street that links the house on your block and all the destinations in town. In actuality, it's a cable used to connect all the hardward destinations in a Local Area Network (LAN).
The RJ45 Cat 5e patch is perfect for use with 10/100 Base-T networks.

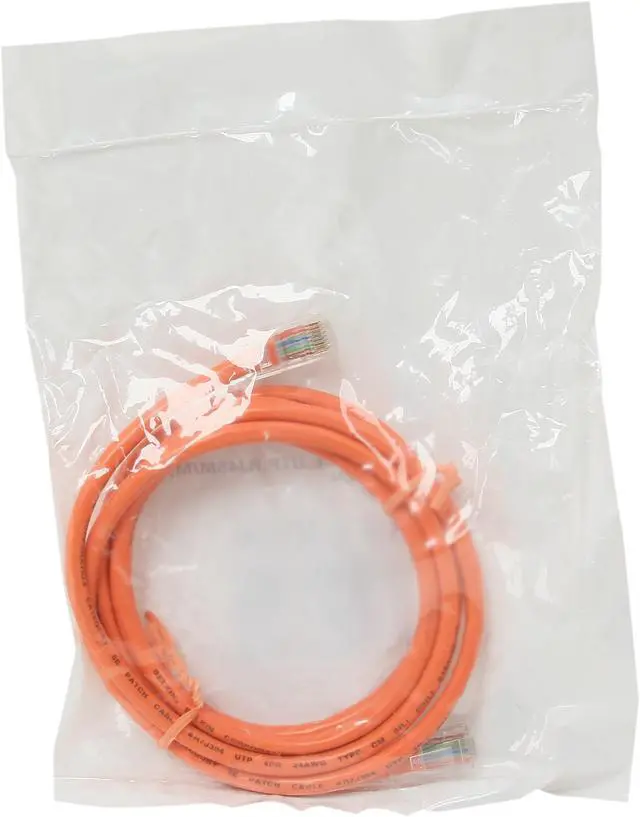

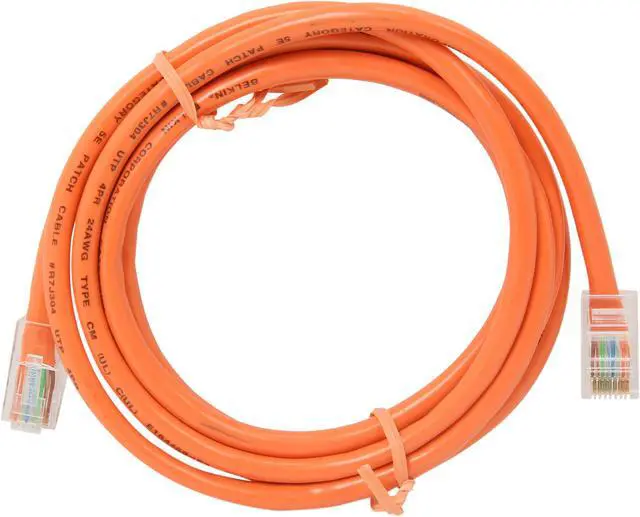

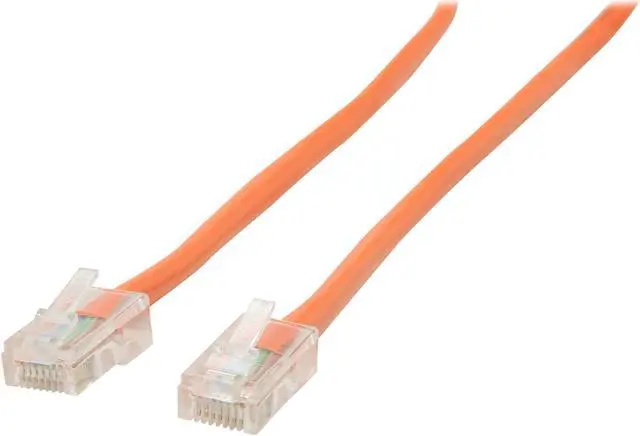

Learn more about the Belkin A3L791-05-ORG-S
Model| Brand | Belkin |
|---|
| Model | A3L791-05-ORG-S |
|---|
| Type | Others |
|---|
Details| Cat | 5E |
|---|
| Connector A | RJ45 |
|---|
| Connector B | RJ45 |
|---|
| Length | 5 ft. |
|---|
| Color | Orange |
|---|
| Shielded | No |
|---|
Features| Features | Characteristic Impedence: 100±15O @ 1 ~ 100MHz
Conductor Construction: Bare Stranded Copper
Conductor Resistance: 89.2O/km/20°C max
Conductor Size: 24AWG x 4pairs
Connector Type: 50 micron gold-plated connector
Description: Cat5e UTP Stranded Patch Cable
Dielectric Strength: AC 1.75kV/0.15sec
Flame Retardant Test: CM
Insulation Material: HDPE
Jacket Diameter: 5.5±0.15mm
Jacket Material: PVC
Mutual Capacitance: 56pF/m max
Propagation Delay: 538nS/100m max @ 100MHz
Rating: 75°C, 300V
Spark Test: 2.5kV
Standards Compliance: ISO/IEC 11801; TIA/EIA-568-B.2
Structural Return Loss: 19.0dB min at 100MHz
Exceeds the performance requirement of Category 5e.
Perfect in conjunction with 10 and 100 Base-T networks.
50-micron gold plated connectors to insure a clean and clear transmission.
Premium snagless-type moldings to protect the connection.
PowerSum tested. |
|---|
Additional Information| First Listed on Newegg | January 25, 2023 |
|---|
