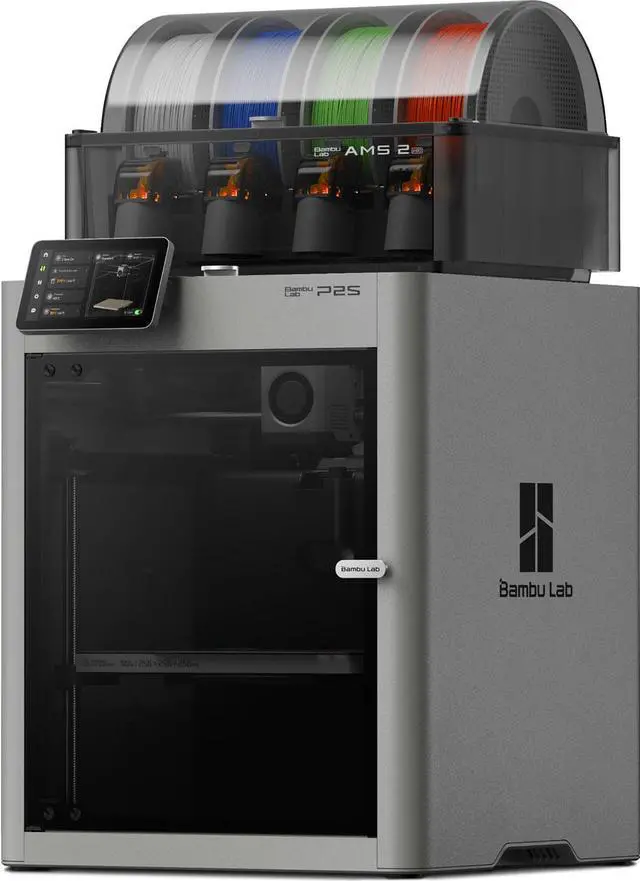

| Make and Model | Bambu Lab P2S Combo 3D Printer w/ AMS 2 Pro | |||||||||||||||||
| Part Number | PF004-U+SA007-US1 | |||||||||||||||||
| Bambu Lab P2S 3D Printer | ||||||||||||||||||
| 3D Print Technology | FDM (Fused Deposition Modeling) | |||||||||||||||||
| Filament Diameter | 1.75mm | |||||||||||||||||
| Filament Support | ABS | ABS-GF | ASA | ASA-CF | PA | PA6-CF | PA6-GF | PAHT-CF | PC | PET | PET-CF | PETG | PETG-CF | PLA | PLA-CF | PPA-CF | PVA | TPU |
| Nozzle Diameter | Included: 0.4mm | Optional Nozzles: 0.2mm, 0.6mm, 0.8mm | ||||||||||||||||
| Maximum Print Size | 256 x 256 x 256mm | |||||||||||||||||
| Speed | Tool Head Speed: Up to 600mm/second | Tool Head Acceleration: Up to 20m/second2 | ||||||||||||||||
| Hot End Flow | Up to 40mm3/ second | Test parameters: 250mm round model with a single outer wall, Bambu Lab ABS and 280 C printing temperature | ||||||||||||||||
| Air Filter | Activated Carbon Air Filter w/ Granulated Coconut Shell | |||||||||||||||||
| VOC Filtration | Supported | |||||||||||||||||
| Particulate Matter Filtration | Supported | |||||||||||||||||
| Touch Display | 5 inch / 127mm Color Touchscreen w/ 854 x 480 resolution | |||||||||||||||||
| Processor | Application: Quad Core ARM A7 Processor, 1.5GHz Motion Controller: Dual Core Cortex M4 + Single-core Cortex M7 Processors | |||||||||||||||||
| Neural Processor | 2 TOPS | |||||||||||||||||
| Storage | Internal Storage: 8GB EMMC | External Storage: 1x USB Port supports USB Drives | ||||||||||||||||
| Control Interfaces | Mobile App | PC App | Touchscreen | |||||||||||||||
| Internal Camera | Full HD (1,920 x 1,080) | Supports 30 fps streams | ||||||||||||||||
| Slicer | Bambu Studio | Also supports third-party slicers which export standard G-code, such as Super Slicer, PrusaSlicer and Cura; but certain advanced features may not be supported. | ||||||||||||||||
| Operating System Support | Linux | MacOS | Windows | |||||||||||||||
| Wi-Fi | WiFi 4: IEEE 802.11 n / g / b / a Dual Band (2.4 / 5 GHz) Wireless | |||||||||||||||||
| Bambu Lab AMS 2 Pro | ||||||||||||||||||
| Capacity | Fits up to 4 Filament Spool Rolls | |||||||||||||||||
| Spool Sizing | Spool Width: 50 ~ 68mm | Spool Diameter: 197 ~ 202mm | ||||||||||||||||
| Filament Diameter | 1.75mm | |||||||||||||||||
| RFID Tag Support | Supports BAMBU LAB RFID encoded Spools | |||||||||||||||||
| Filament Support | ABS | ASA | Bambu PAHT-CF | Bambu PETG-CF | Bambu PLA-CF | BVOH (dried) | HIPS | PA | PC | PET | PETG | PLA | POM | PP | PVA (dried) | TPU | ||
| Filament Not Supported | Bambu PET-CF | Bambu TPU 95A | BVOH (damp) | PVA (damp) | TPE | TPU (Generic) | Not Compatible with any Carbon Fiber or Glass Fiber Reinforced Polymers | |||||||||||
| Combined Specifications | ||||||||||||||||||
| Power | Bambu Lab P2S 3D Printer: | Internal AC Power Supply: | Input: 100 ~ 240Vac, 50 / 60Hz | Output: Up to 1,000W @ 110Vac | AMS 2 Pro: | Input: 24V @ 4A, 96W | (External power provided by P2S 3D Printer) | |||||||||||
| Dimensions | P2S 3D Printer: 392 x 406 x 478mm | AMS 2 Pro: 372 x 280 x 226mm | P2S 3D Printer + AMS 2 Pro: 392 x 406 x 704mm | |||||||||||||||
| Weight | P2S 3D Printer: 14.9kg | AMS 2 Pro: 2.5kg | P2S 3D Printer + AMS 2 Pro: 17.4kg |
