$2,399.99
Meet Your Seller

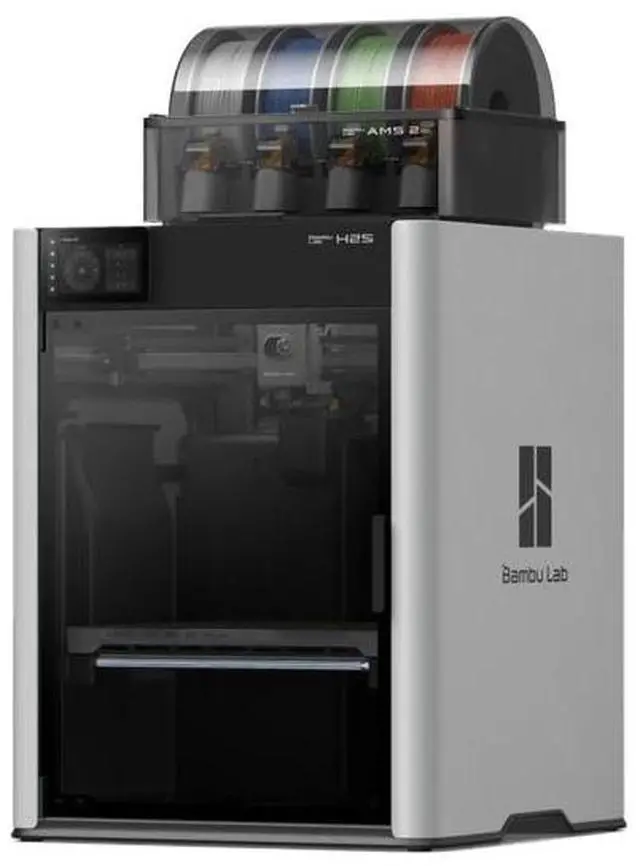

Bambu Lab H2S Combo Enclosed CoreXY 3D Printer w/ AMS 2 PRO
- 340*320*340 mm³ Print Volume
- Multi-color 3D Printing
- Closed-loop Servo Motor Extruder
- Optional 10W Laser and Cutting Module
- 5m Resolution Optical Motion Calibration
- 350°C Nozzle & 65°C Active Chamber Heating
- Full Filament Path AI Detection
- Voltage Range: 100-120 V
+
+
Overview
Specs
Reviews
Specifications
| Make and Model | Bambu Lab H2S Combo | |
| Part Number | PF003-S+SA007-US | |
| Color | Grey | |
| Type | Fused Deposition Modeling | |
| Build Volume (W*D*H) | 340 x 320 x 340 mm³ | |
| Chassis | Aluminum, Steel, Plastic and Glass | |
| Hotend | All Metal | |
| Extruder Gear | Hardened Steel | |
| Nozzle | Hardened Steel | |
| Max Nozzle Temperature | 350 | |
| Included Nozzle Diameter | 0.4 mm | |
| Supported Nozzle Diameter | 0.2 mm, 0.4 mm, 0.6 mm, 0.8 mm | |
| Filament Diameter | 1.75 mm | |
| Extruder Motor | Bambu Lab High-precision Permanent Magnet Synchronous Motor | |
| Supported Build Plate Type | Textured PEI plate, Smooth PEI Plate | |
| Max Heatbed Temperature | 120 | |
| Max Speed of Toolhead | 1000 mm/s | |
| Max Acceleration of Toolhead | 20,000 mm/s² | |
| Max Flow for Hotend (Standard Flow Hotend) | 40 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 printing temperature) | |
| Max Flow for Hotend (Optional High Flow Hotend) | 65 mm³/s (Test parameters: 250 mm round model with a single outer wall; Bambu Lab ABS; 280 printing temperature) | |
| Active Chamber Heating | Supported | |
| Max Temperature | 65 | |
| Pre-filter Grade | G3 | |
| HEPA Filter Grade | H12 | |
| Activated Carbon Filter Type | Granulated Coconut Shell | |
| VOC Filtration | Superior | |
| Particulate Matter Filtration | Supported | |
| Part Cooling Fan | Closed Loop Control | |
| Cooling Fan for Hotend | Closed Loop Control | |
| Main Control Board Fan | Closed Loop Control | |
| Chamber Exhaust Fan | Closed Loop Control | |
| Chamber Heat Circulation Fan | Closed Loop Control | |
| Auxiliary Part Cooling Fan | Closed Loop Control | |
| Filament Supported | Standard: PLA, PETG, TPU, PVA, BVOH, ABS, ASA, PC, PA, PET, PPS | Reinforced: Carbon/Glass Fiber Reinforced PLA, PETG, PA, PET, PC, ABS, ASA, PPA, PPS |
| Live View Camera | Built-in; 1920*1080 | |
| Toolhead Camera | Built-in; 1600*1200 | |
| Door Sensor | Supported | |
| Filament Run Out Sensor | Supported | |
| Filament Tangle Sensor | Supported | |
| Filament Odometry | Supported with AMS | |
| Power Loss Recovery | Supported | |
| Voltage | 100120 VAC / 200240 VAC, 50/60 Hz | |
| Max Power | 2050 W@220 V / 1170 W@110 V | |
| Working Temperature | 10 -30 | |
| Touchscreen | 5-inch 720*1280 Touchscreen | |
| Storage | Built-in 8 GB EMMC and USB Port | |
| Control Interface | Touchscreen, mobile App, PC App | |
| Neural Processing Unit | 2 TOPS | |
| Slicer | Bambu Studio | |
| Third-Party Support | Supports G-code slicers like Super Slicer, PrusaSlicer, Cura (some advanced features may not be supported) | |
| Supported OS | MacOS, Windows, Linux | |
| Operating Frequency | 2412-2472 MHz (CE/FCC), 2400-2483.5 MHz (SRRC), 5150-5850 MHz | |
| Wi-Fi Transmitter Power (EIRP) | 2.4 GHz: <23 dBm (FCC); <20 dBm (CE/SRRC/MIC); 5 GHz Bands: various limits | |
| Wi-Fi Protocol | IEEE 802.11 a/b/g/n | |
| Working Temperature | 0 35 | |
| Max Engraving Speed | 400 mm/s | |
| Max Cutting Thickness | 5 mm (Basswood Plywood) | |
| Engraving Area | H2D: 310 * 270 mm²; H2S: 310 * 260 mm² | |
| XY Positioning Method | Visual Positioning | |
| XY Positioning Accuracy | < 0.3 mm | |
| Z Height Measuring | Micro Lidar; ± 0.1 mm | |
| Flame Detection | Supported | |
| Temperature Detection | Supported | |
| Door Sensor | Supported | |
| Laser Module Installation Detection | Supported | |
| Dimensions | 492 x 514 x 626 mm | |
| Weight | 30 kg |
