AZZA PSAZ-850G ATX 3.1 White 850 W ATX / ATX 3.0 Compatible / ATX 3.1 Compatible 80 PLUS GOLD Certified Full Modular Active PFC Power Supply
- ATX / ATX 3.0 Compatible / ATX 3.1 Compatible
- Full Modular
- 80 PLUS GOLD Certified
- 100 - 240 V 50/60 Hz
+
+
Specs
Reviews (1)
Learn more about the AZZA PSAZ-850G ATX 3.1 White
| Brand | AZZA |
|---|---|
| Model | PSAZ-850G ATX 3.1 White |
| Color | White |
|---|---|
| Type | ATX / ATX 3.0 Compatible / ATX 3.1 Compatible |
| Maximum Power | 850 W |
| Fans | 120 mm |
| PFC | Active |
| Main Connector | 20+4Pin |
| PCI-Express Connector | 4 x 6+2-Pin |
| SATA Power Connector | 9 |
| Max PSU Length | 160 mm |
| Modular | Full Modular |
| Power Good Signal | 100-500ms |
| Hold-up Time | > 16ms |
| Efficiency | 90% at Typical load |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | UVP / OVP / OPP / OCP / SCP / OTP |
| Input Voltage | 100 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 10A |
| MTBF | >100,000 Hours |
| Connectors | 1 x 12VHPWR (12+4) PCIe / 1 x 24 pin (20+4) ATX / 2 x 8 pin (4+4) EPS (CPU) / 4 x 4 pin Peripheral / 4 x 8 pin (6+2) PCIe / 9 x SATA |

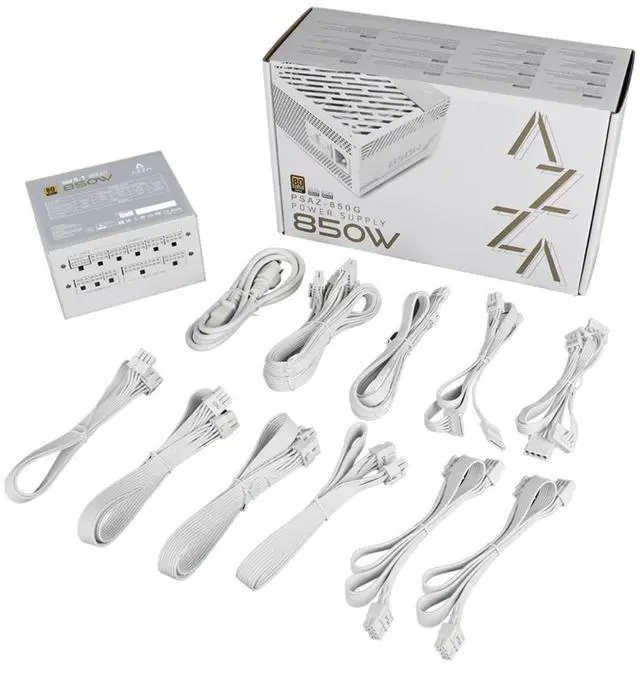

| Cable Spec | 1 x ATX/MB cable (x1 20+4 PIN) 2 x CPU/EPS cable (4+4 PIN) 3 x PCI-e cable (4x 6+2 PIN) 3 x SATA cable (9x SATA) 1 x Molex cable (4x Molex) 1 x PCI-e 5.0 (1x12+4 Pin) |
| Dimensions | 3.39" x 5.91" x 6.30" |
|---|
| First Listed on Newegg | November 21, 2025 |
|---|
