AC/DC
| AC Input | 100-240Vac~ 14-9A 50-60Hz (Not for China) |
|---|---|
| AC Input | 200-240Vac~ 9A 50-60Hz (Only for China) |
| DC Output | +3.3V +5V +12V -12V +5Vsb |
| Max Output Current | 20A 20A 100A 0.3A 3A |
| Max Combined Power | 120W 1200W 18.6W |
| Total Power | 1200W |
SPECIFICATIONS

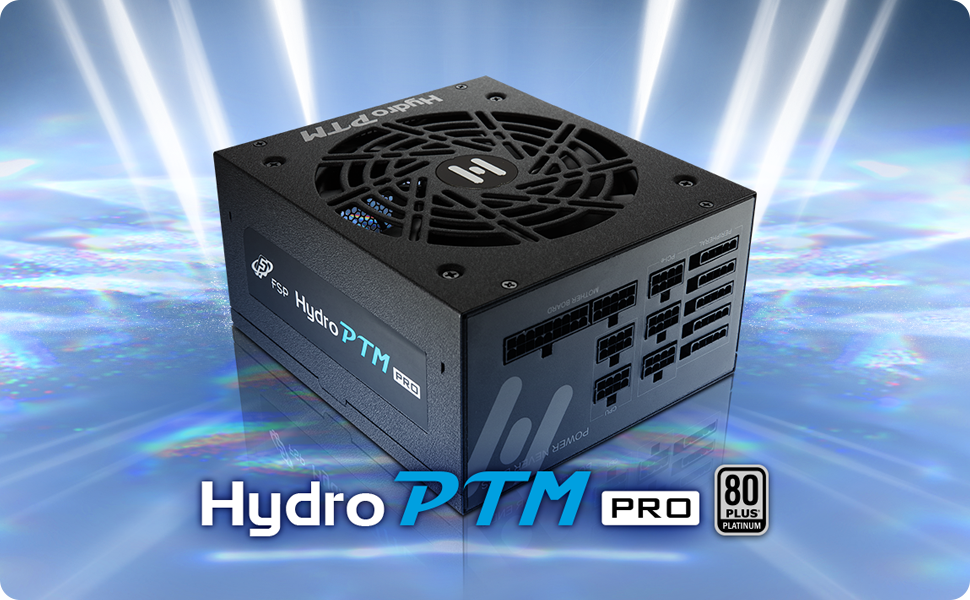

| Model | HPT2-1200M,Gen5 |
|---|---|
| Rated Output Power | 1200W |
| Form Factor | ATX |
| 80 PLUS Certification | Platinum |
| Input Voltage | 100-240V |
| Input Current | 14-9A |
| Input Frequency | 50-60Hz |
| PFC | Active PFC |
| Efficiency | 92% |

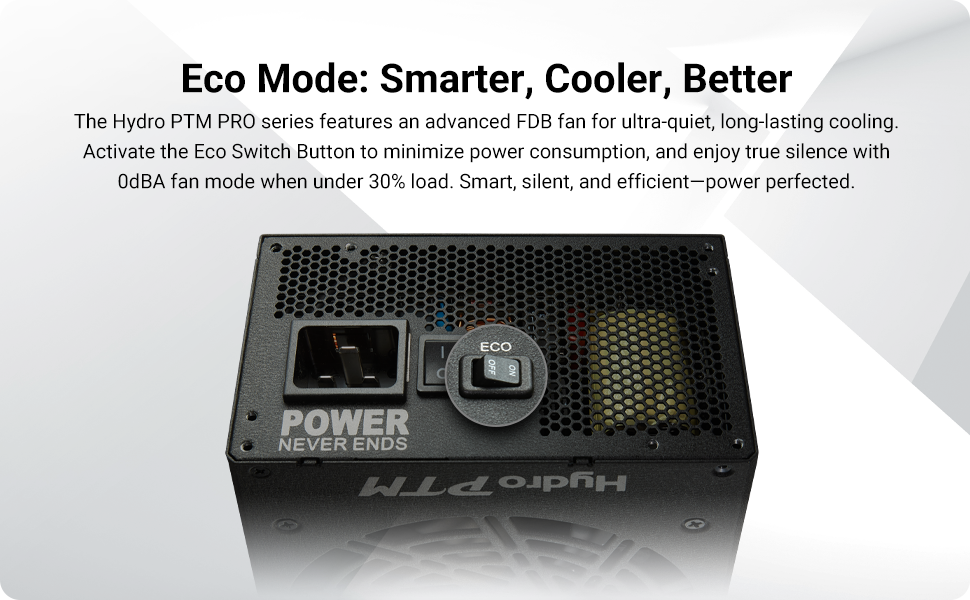

| Fan Type | FDB Fan, 135mm |
| Dimensions(L x W x H) | 150 x 190 x 86 mm |
| Protection | OCP, OVP, SCP, OPP, OTP, UVP |
