MAIN OVERVIEW FEATURES:
- Audio Processor Manufacturer: C-Media
- Audio Processor Model: CM6631A
- Host Interface: USB
- Signal to Noise Ratio (SNR): 104 dB
- Maximum Playback Sampling Rate: 3 Byte 192 kHz
- Maximum Recording Sampling Rate: 3 Byte 192 kHz
- Sound Channels: 5.1
- USB: Yes
- Number of Audio Line In: 1
- Number of Headphone Ports: 4
- Number of Audio Line Out: 1
- S/PDIF Out: Yes
- Number of Digital Audio Coaxial Output: 1
- Form Factor: External
- Height: 1"
- Width: 3.1"
- Thickness: 5.1"
- Weight (Approximate): 1.39 lb
- Package Contents:
- Xonar U5 USB Soundcard and Headphone Amplifier
- 1 x S/PDIF Adapter
- 1 x USB Cable
- 1 x Driver CD
- 1 x User Manual
- Environmentally Friendly: Yes
- Environmental Certification: RoHS
Learn more about the ASUS Xonar U5
Model| Brand | ASUS |
|---|
| Model | Xonar U5 |
|---|
Audio core| Audio Chipset | C-Media CM6631A |
|---|
| Channels | 5.1 |
|---|
| Sample Rate | 192KHz |
|---|
| Digital Audio | 24-bit |
|---|
| SNR | 104dB |
|---|

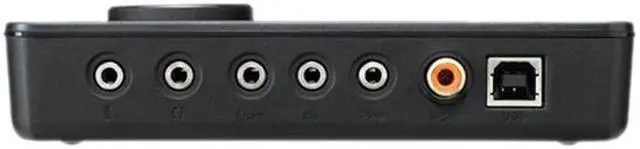

Ports| Line In | 1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo) |
|---|
| Line Out | 4 x 3.5 mm jack (1/8") (Headphone out /Front out/Center-Subwoofer out/Rear out) |
|---|
| SPDIF Out | 1 x Coaxial |
|---|
| MIC In | 1 x 3.5 mm jack (1/8") (Line-in/ Mic-in combo) |
|---|
Details| Interface | USB |
|---|
| External Box | Yes |
|---|
| Operating Systems Supported | Windows 8.1 Windows 8 , 32bit/64bit Windows 7 , 32bit/64bit Mac OS X * * Xonar U5 playback under OS X without any driver needed. |
|---|
Features| Features | True 5.1-channel HD (192kHz/24-bit) surround sound from a compact USB-powered device
104dB signal-to-analog ratio (SNR) ensures pure sound
Sonic Studio provides complete control over loads of sound technologies
Perfect Voice technology eliminates noises for clear in-game communications
Independent mic and master-volume controls for instant in-game adjustments
Integrated headphone amplifier provides clear, detailed sound for an immersive audio experience |
|---|
Dimensions & Weight| Dimensions | 0.98'' x 5.12" x 3.15'' (H x W x D) |
|---|
| Weight | 1.35 |
|---|
Package Contents| Package Contents | Xonar U5 x 1 S/PDIF adapter x 1 USB cable x 1 Driver CD x 1 User manual x 1 |
|---|
Additional Information| First Listed on Newegg | July 31, 2022 |
|---|
