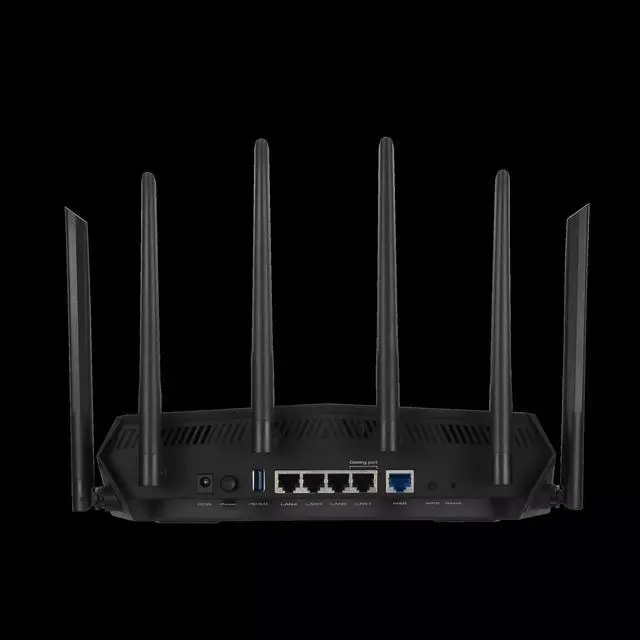

ASUS TUF Gaming AX5400 Dual Band WiFi 6 Gaming Router with dedicated Gaming Port, 3 steps port forwarding, AiMesh for mesh WiFi, AiProtection Pro network security and AURA RGB lighting

Network Standard IEEE 802.11 a IEEE 802.11 b IEEE 802.11 g WiFi 4 ( 802.11 n) WiFi 5 ( 802.11 ac) WiFi 6 ( 802.11 ax) IPv4 IPv6 Product Segment AX5400 ultimate
AX performance: 574+4804 Mbps AX technology
Yes Data Rate 802.11 a: up to 54
Mbps 802.11 b: up to 11
Mbps 802.11 g: up to 54 Mbps WiFi 4 ( 802.11 n): up to 300 Mbps WiFi 5 ( 802.11 ac) (1024QAM): up to 4333 Mbps WiFi 6 ( 802.11 ax) ( 2.4GH z): up to 574 Mbps WiFi 6 ( 802.11 ax) (5GHz): up to 4804 Mbps Antenna External antenna x 6 Transmit/Receive 2.4GH z 2x2 5GHz-2 4x4 Processor 1.5 GHz tri-core processor Memory 256 MB Flash 512 MB RAM Boosts speed OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth Operating Frequency 2.4G Hz / 5 GHz Ports RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4 USB 3.2 Gen 1 x 1 Button WPS Button, Reset Button, Power Button LED Indicator Power x 1 2.4GH z x 1 5GHz x 1 WAN x 1 LAN x 4
Power Supply AC Input: 100V~240V (50~60Hz)
DC Output: 12 V with max. 2.5 A current Package content TUF-AX5400 WiFi 6 Gaming router RJ-45 cable Power adapter Quick Start Guide Warranty card TUF Gaming AX5400 WiFi 6 router RJ-45 cable Power adapter Quick Start Guide Warranty card Product Weight (g) 600 g
AiMesh AiMesh: Yes
Primary AiMesh router: Yes
AiMesh node: Yes Router APP ASUS Router APP: Yes
Game Game Boost/acceleration: Yes Alexa
Support Alexa skil: Yes IFTTT
Support IFTTT: No
AiProtection AiProtection: AiProtection Pro Router
Security Assessment: Yes
Malicious site blocking: Yes
Two-Way IPS: Yes Infected Device Prevention and Blocking; Yes Parental
Control Parental Control: Yes Parental Control Customized Internet schedule: Yes Traffic
Control Adaptive QoS: Yes
Bandwidth Monitor: Yes
Bandwidth limiter: Yes Maximum
Bandwidth limiter rule: 32
Traditional QoS: Yes Maximum Traditional
QoS rule: 32
Traffic Monitor: Yes
Real-time traffic monitor: Yes
Wired Traffic Monitor: Yes
Wireless Traffic Monitor: Yes
Traffic Analyzer: Yes
Traffic analysis period: Daily, Weekly, Monthly
Website history: Yes
Wireless IPv6: Yes
MU-MIMO: Yes
Wi-Fi Encryption: WPA3-Personal, WPA2-Personal, WPA-Personal, WPA-Enterprise, WPA2-Enterprise, WPS support
UTF-8 SSID: Yes
Guest Network: Yes Maximum Guest
Network rule: 2.4GH z x3, 5GHz x3
WPS: Yes
Wi-Fi MAC address filter: Yes
Maximum MAC filters: 64
Wireless scheduler: Yes
Airtime fairness: Yes
RADIUS Server: Yes
Universal beamforming: Yes
Explicit beamforming: Yes
IGMP snooping: Yes WAN Internet connection
Type: PPPoE, PPTP, L2TP, Automatic IP, Static
IP Dual WAN: Yes
WAN Aggregation: Yes 3G/4G
LTE dongle: Yes
Android tethering: Yes
Port forwarding: Yes
Maximum port forwarding rule: 64
Port triggering: Yes
Maximum port triggering rule: 32
DMZ: Yes
DDNS: Yes
NAT Passthrough: PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H. 323 Pass-Through, SIP Pass-Through, PPPoE relay
LAN DHCP Server: Yes
IPTV: Yes
LAN Link Aggregation: Yes Manually assign
IP address: Yes Maximum manually assign
IP address rule: 64 VPN
VPN Client L2PT: Yes
VPN Client OVPN: Yes
VPN Client PPTP: Yes
VPN Server IPSec: Yes
VPN Server OVPN: Yes
VPN Server PPTP: Yes
VPN Fusion: Yes USB application
File System: HFS+, NTFS, vFAT, ext2, ext3, ext4 3G/4G
LTE dongle: Yes
HDD hibernation: Yes
Safely Remove disk: Yes
AiCloud: Yes
Download master: Yes
AiDisk: Yes
Media Server: Yes
Time Machine: Yes
Samba Server: Yes
FTP Server: Yes
Shared Folder privileges: Yes
Administration Operating mode: Wireless router mode Access point mode Media bridge mode Repeater mode AiMesh node mode
Operating system: ASUSWRT
Free OS upgrade: Yes
Firewall: Yes
Maximum Firewall keyword filter: 64
Maximum Firewall network service filter: 32
Maximum Firewall URL filter: 64 Wake on
LAN (WOL): Yes
SSH: Yes
Configuration backup and restore: Yes
Diagnosis tools: Yes
Feedback system: Yes
System log: Yes
