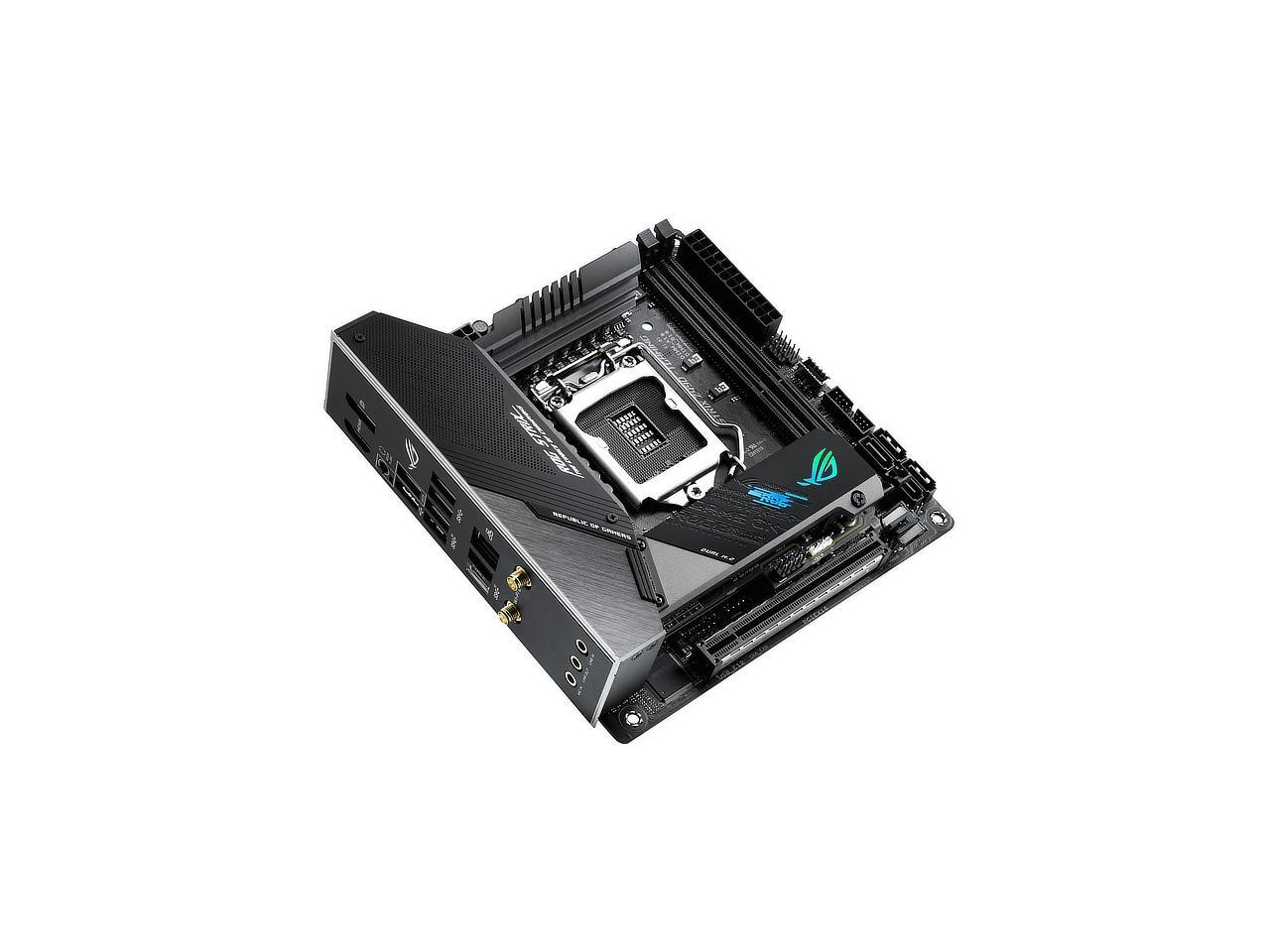

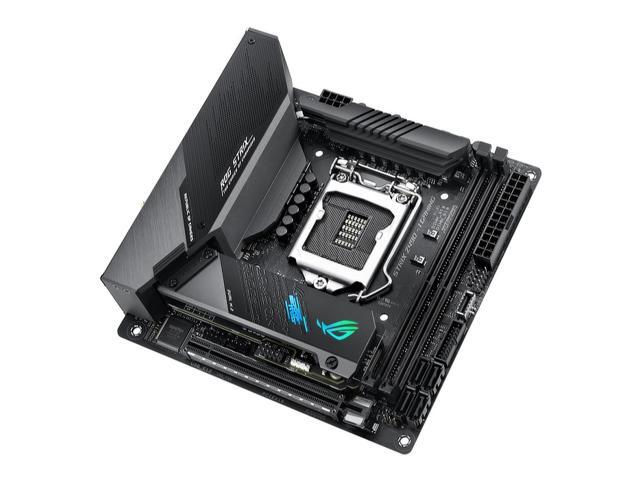

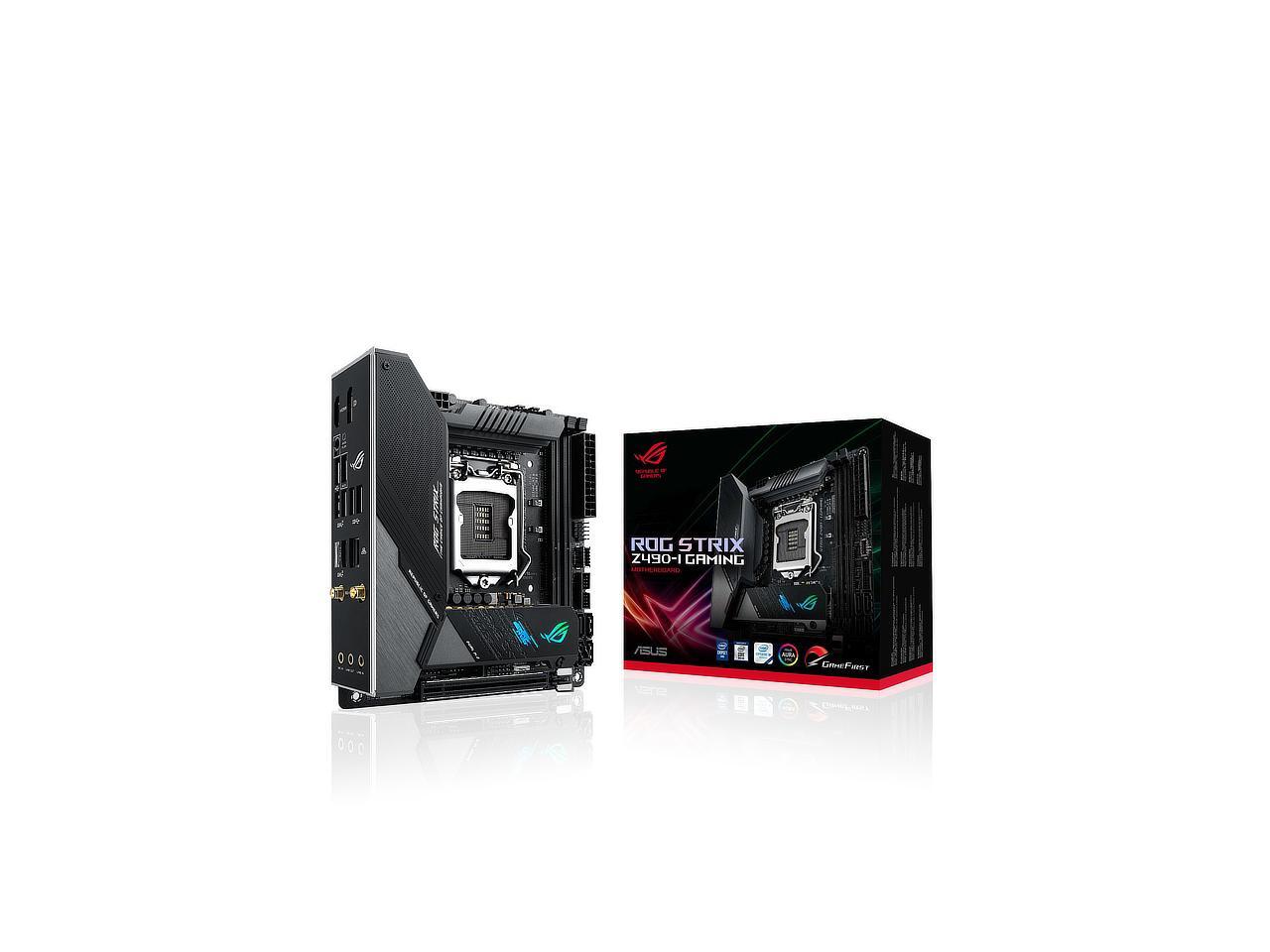

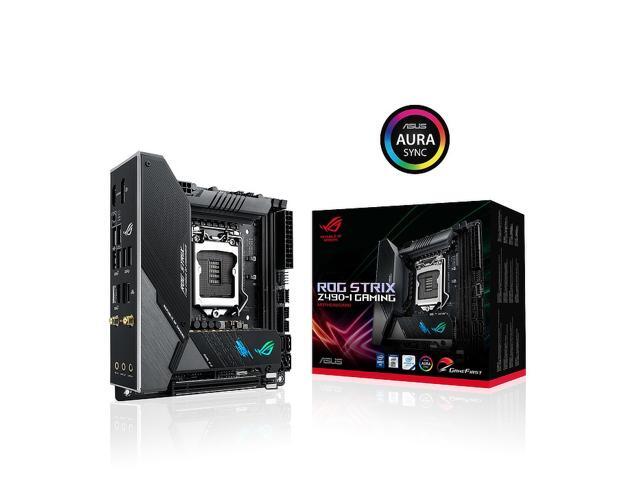

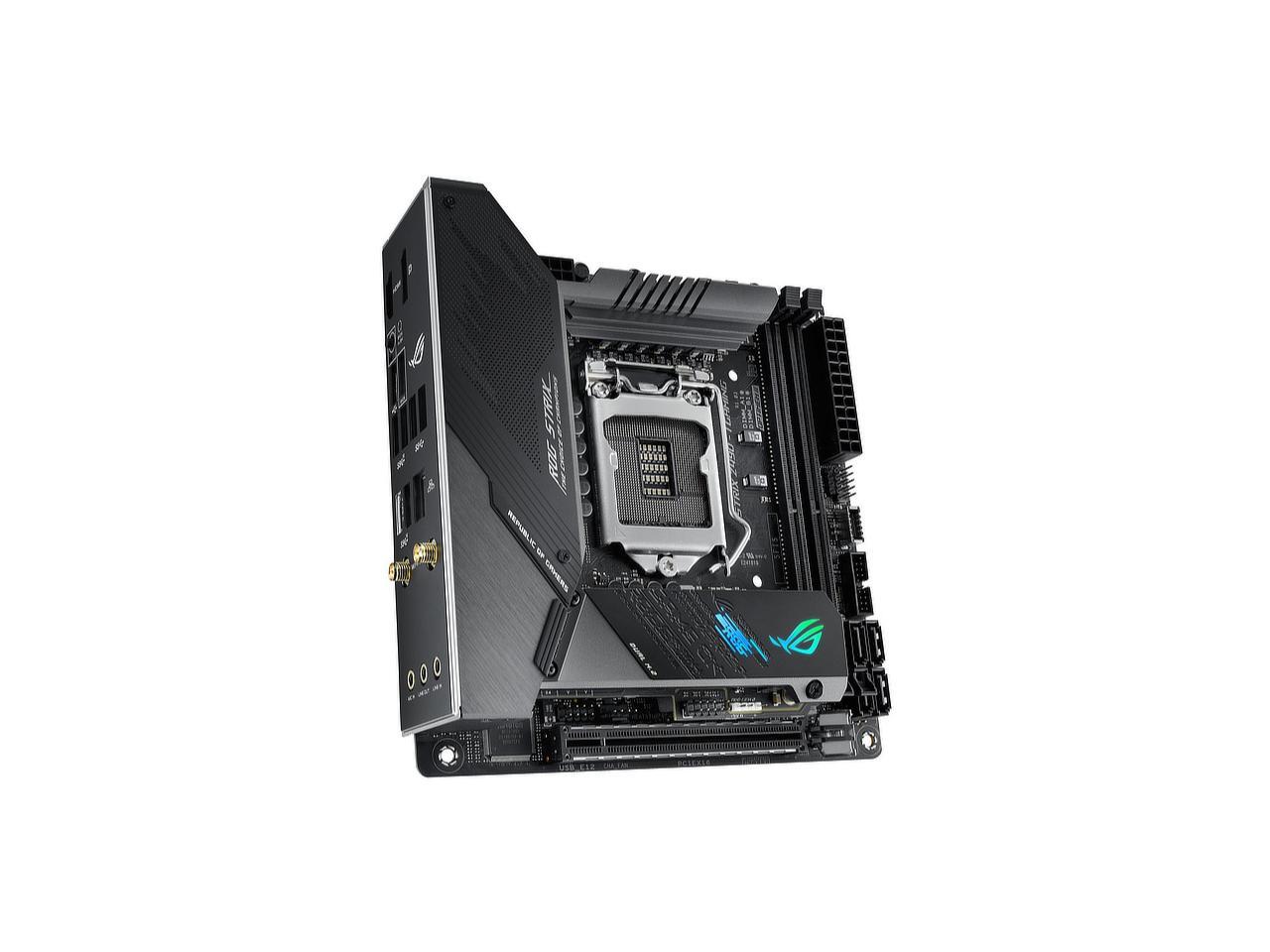

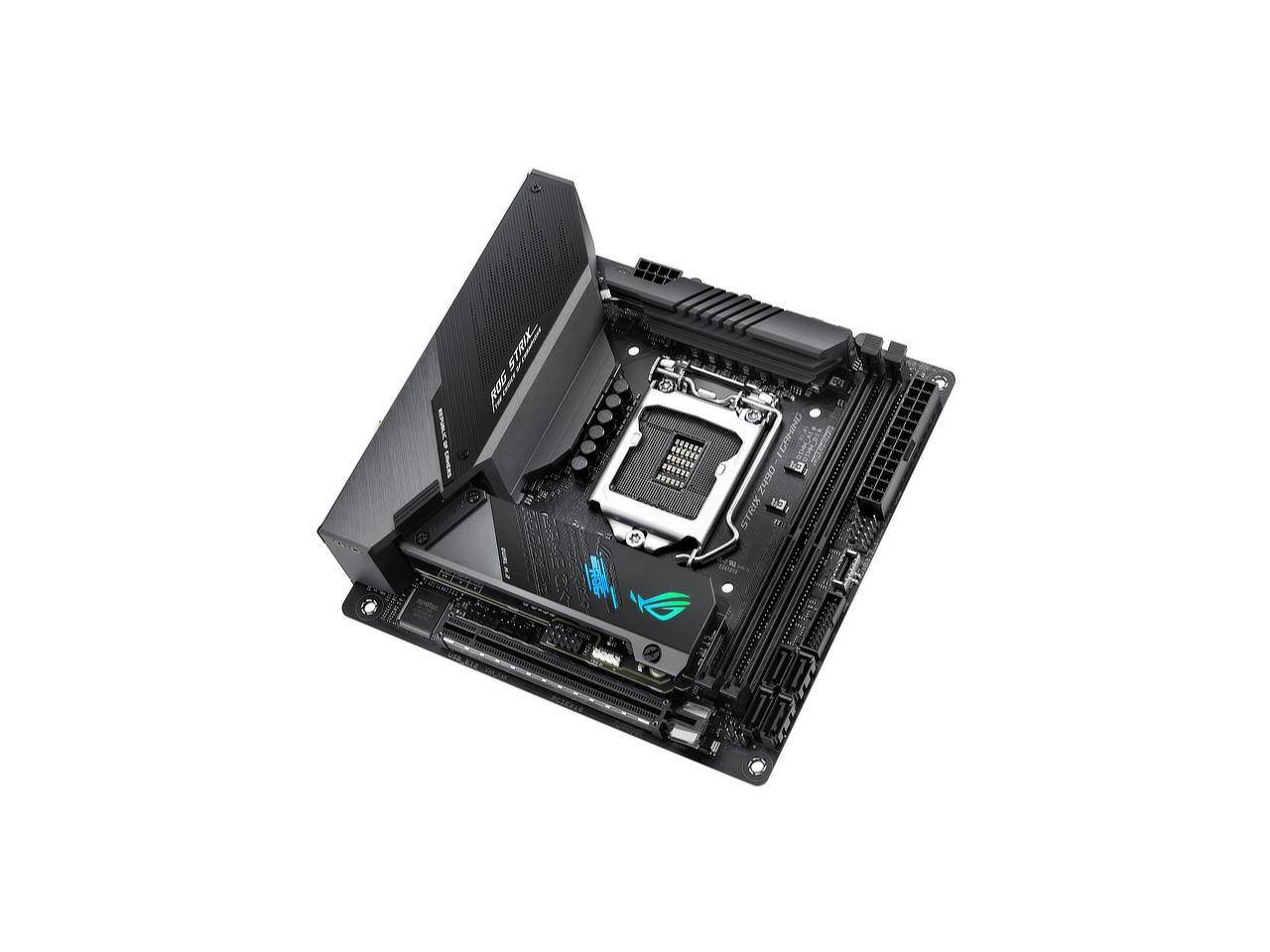

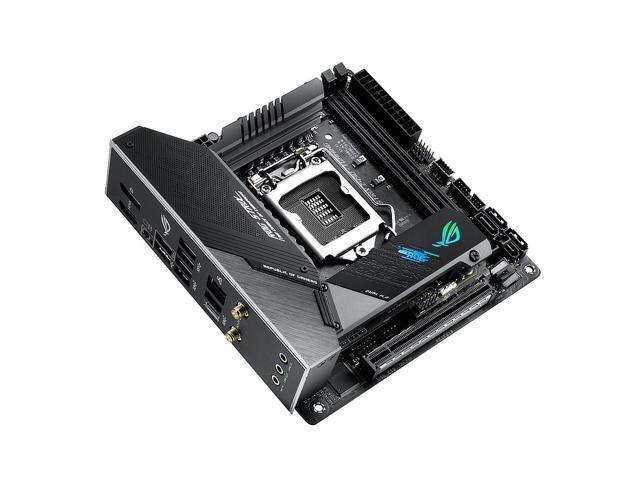

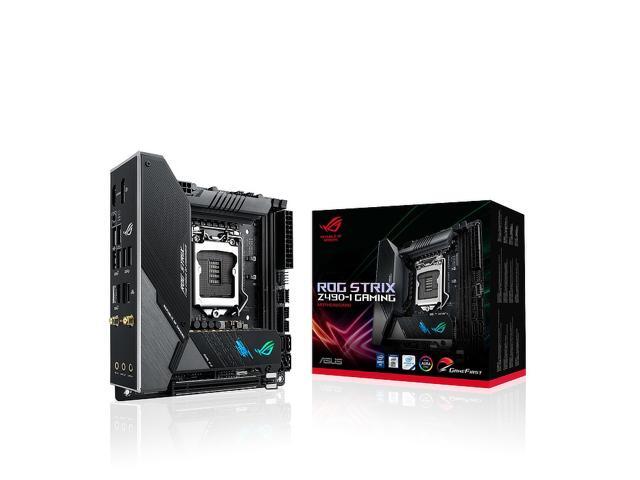

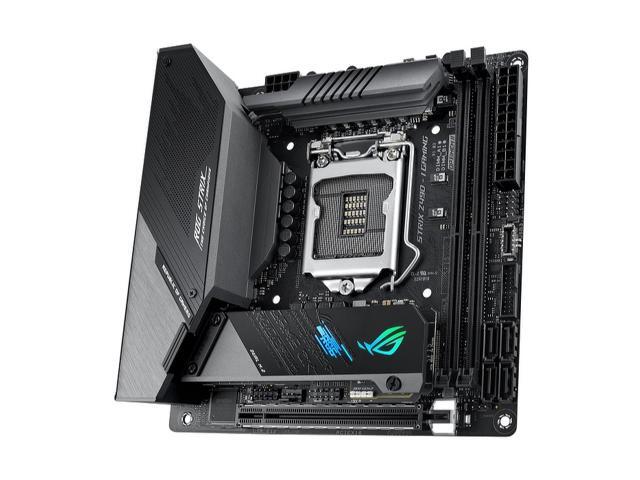

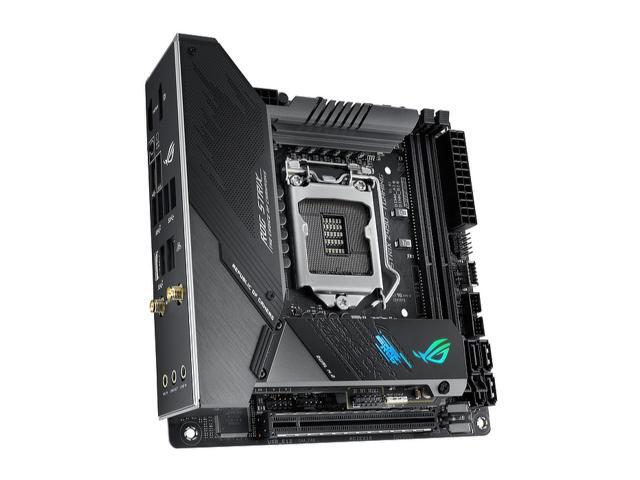

ASUS ROG STRIX Z490-I GAMING (90MB13A0-M0EAY0) LGA 1200 Intel Z490 SATA 6Gb/s Mini ITX Intel Motherboard
Check more best sellers of "Intel Motherboards"
Check more lowest price of "Intel Motherboards"
OUT OF STOCK.
Ships from China.
Fees for brokerage and duty included in price. Most customers receive within 5-32 days.
- Intel Z490
- Supports 10th Gen Intel Core Processors
- Supports Intel Pentium Gold and Celeron Processors
- DDR4 4800(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933(OC) / 2800(OC) / 2666 / 2400(OC) / 2133
Specs
Reviews
Learn more about the ASUS STRIX Z490-I GAMING (90MB13A0-M0EAY0)
| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | STRIX Z490-I GAMING (90MB13A0-M0EAY0) |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 10th Gen Intel Core Processors Supports Intel Pentium Gold and Celeron Processors |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0* * Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z490 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4800(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933(OC) / 2800(OC) / 2666 / 2400(OC) / 2133 * * 10th Gen Intel Core i9 / i7 CPUs support 2933 / 2800 / 2666 / 2400 / 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | 1 x PCI Express 3.0 x16* * Actual support may vary by CPU. |
|---|
| SATA 6Gb/s | 4 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support* * When the M.2_2 Socket is operating in SATA mode, SATA port 2 will be disabled. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
|---|---|
| Audio Channels | 8 Channels |
| LAN Chipset | Intel I225-V |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6 AX201 802.11a/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.1 |
| Back I/O Ports | 1 x Intel I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C) 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 (one port can be switched to USB BIOS FlashBack) 1 x USB BIOS FlashBack Button(s) 1 x ASUS Wi-Fi Module 3 x LED-illuminated audio jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen 2 front panel connector 1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s) |
|---|---|
| Other Connectors | 1 x CPU Fan connector(s) 1 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x Aura RGB Strip Header 1 x Addressable Gen 2 header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Internal speaker connector(s) 1 x System panel(s) (Chassis intrusion header is inbuilt) 1 x Clear CMOS jumper(s) 1 x Thermal sensor connector |
| Form Factor | Mini ITX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 6.7" x 6.7" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) |
| Features | Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU Digi+ VRM Xpert 4 Turbo app - EZ update WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features: ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool II - Pre- mounted I/O shield - SafeSlot AURA Sync - Standard RGB header - Addressable Gen 2 RGB header BIOS: 256MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit |
|---|

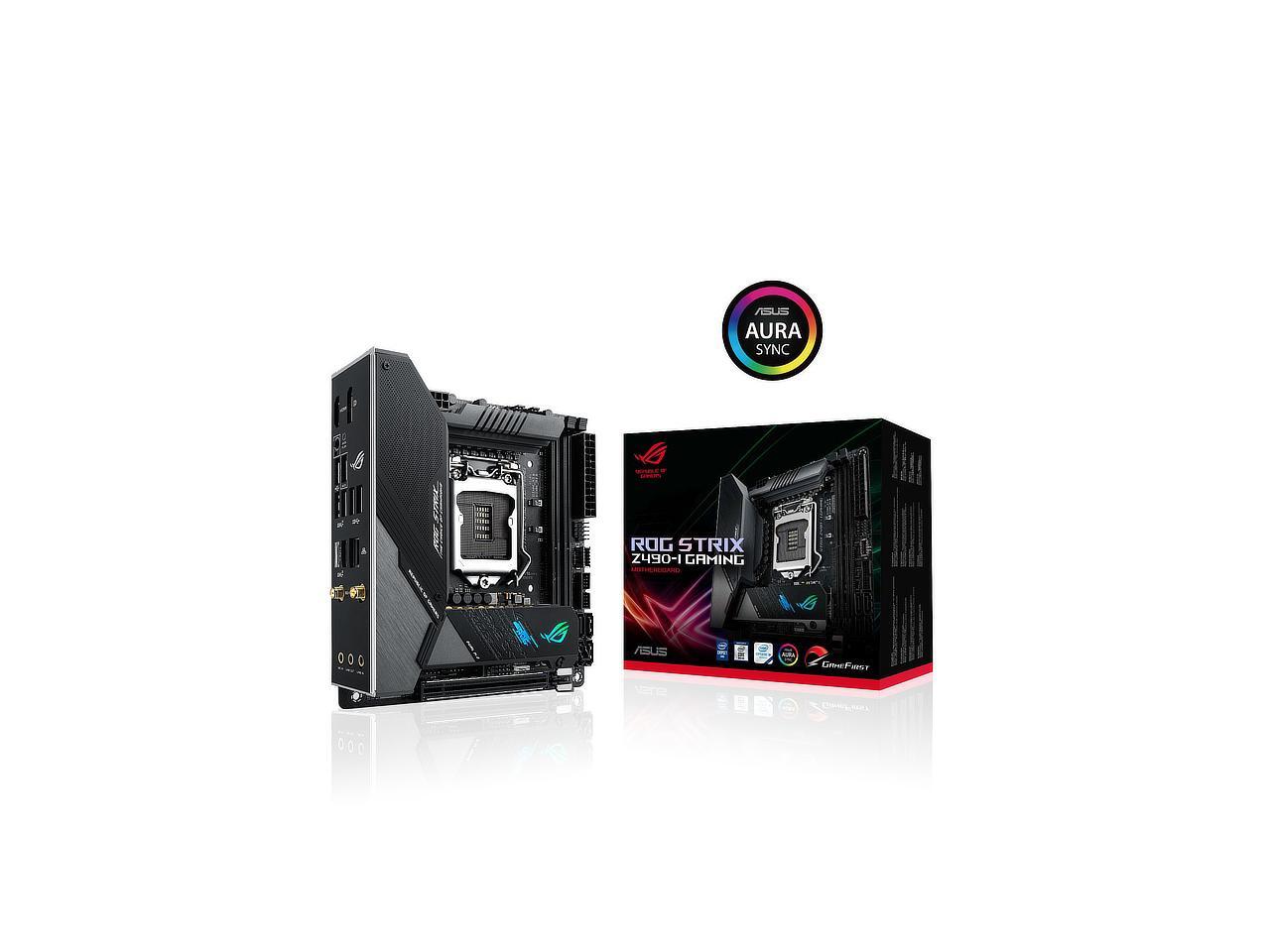

| Package Contents | Accessories: User's manual 4 x SATA 6Gb/s cable(s) 2 x M.2 Screw Package 1 x Supporting DVD 1 x CABLE TIE BLACK 1 x ROG Strix stickers 1 x Extension cable for Addressable LED 1 x Panel cable 1 x ROG Thank you card 1 x Wi-Fi moving antenna 1 ROG key chain |
|---|
| Date First Available | April 04, 2022 |
|---|
