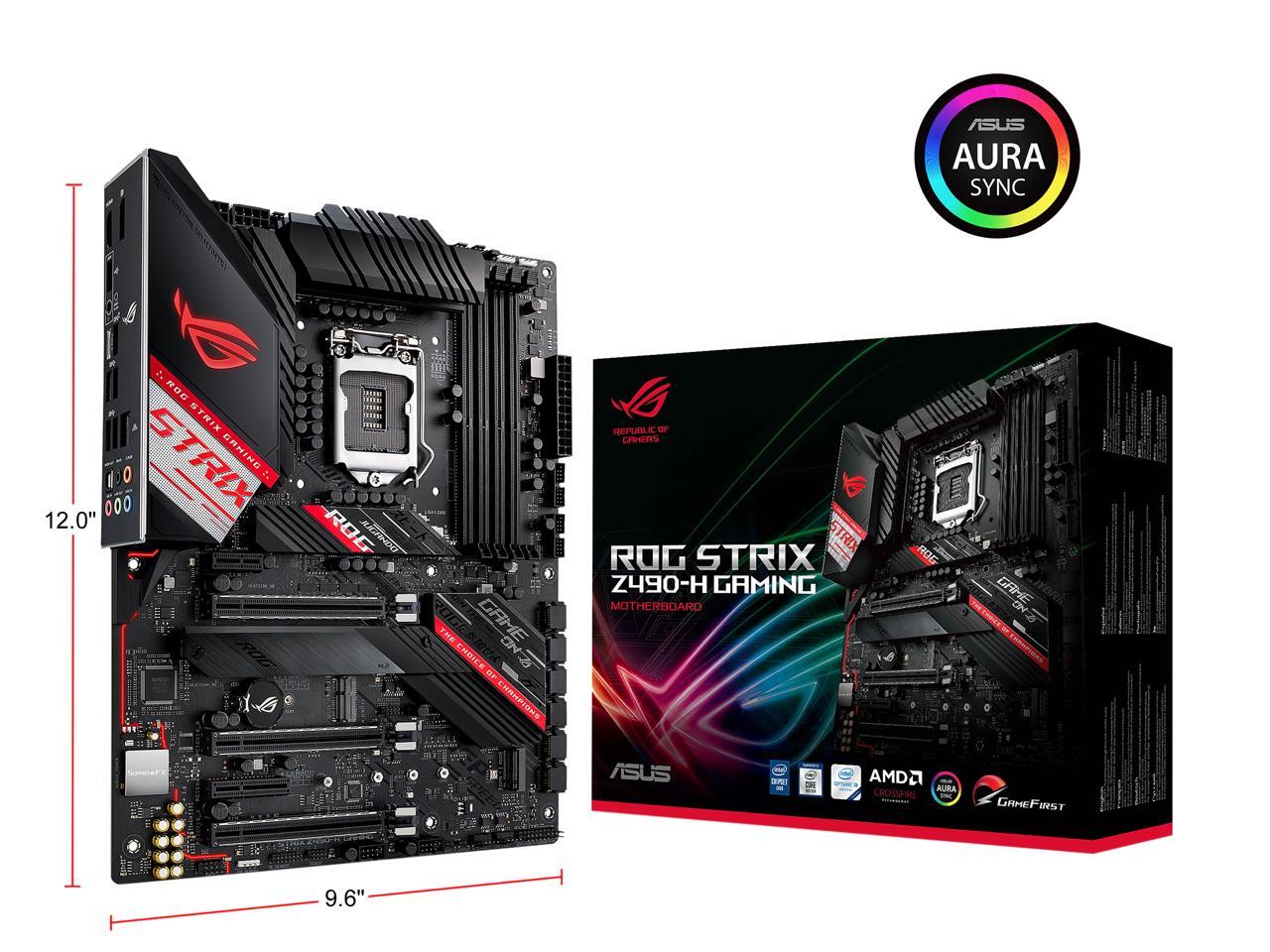

ASUS ROG STRIX Z490-H GAMING LGA 1200 (Intel 10th Gen) Intel Z490 SATA 6Gb/s ATX Intel Motherboard (12+2 Power Stages, DDR4 4600, Intel 2.5Gb Ethernet, USB 3.2 Gen 2, AURA Sync)

Visit Hellowland Store

ASUS ROG STRIX Z490-H GAMING LGA 1200 (Intel 10th Gen) Intel Z490 SATA 6Gb/s ATX Intel Motherboard (12+2 Power Stages, DDR4 4600, Intel 2.5Gb Ethernet, USB 3.2 Gen 2, AURA Sync)

Name: ASUS ROG STRIX Z490-H GAMING LGA 1200 (Intel 10th Gen) Intel Z490 SATA 6Gb/s ATX Intel Motherboard (12+2 Power Stages, DDR4 4600, Intel 2.5Gb Ethernet, USB 3.2 Gen 2, AURA Sync)
Brand: ASUS
SKU: N82E16813119295
Price: 525.99 CAD
Availability: InStock
Rating: 4 (27 reviews)

(27)(3) Write a Review

See more "asus z490"

In stock.

Ships from China.

Fees for brokerage and duty included in price.

Option: ROG STRIX Z490-H GAMING

PRIME Z490M-PLUS
PRIME Z490-A
PRIME Z490-P
PROART Z490-CREATOR 10G
ROG MAXIMUS XII APEX
ROG MAXIMUS XII EXTREME
ROG MAXIMUS XII FORMULA
ROG MAXIMUS XII HERO (WI-FI)
ROG STRIX Z490-A GAMING
ROG STRIX Z490-E GAMING
ROG STRIX Z490-F GAMING
ROG STRIX Z490-G GAMING (WI-FI)
ROG STRIX Z490-H GAMING
ROG STRIX Z490-I GAMING
TUF GAMING Z490-PLUS (WI-FI)

Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors

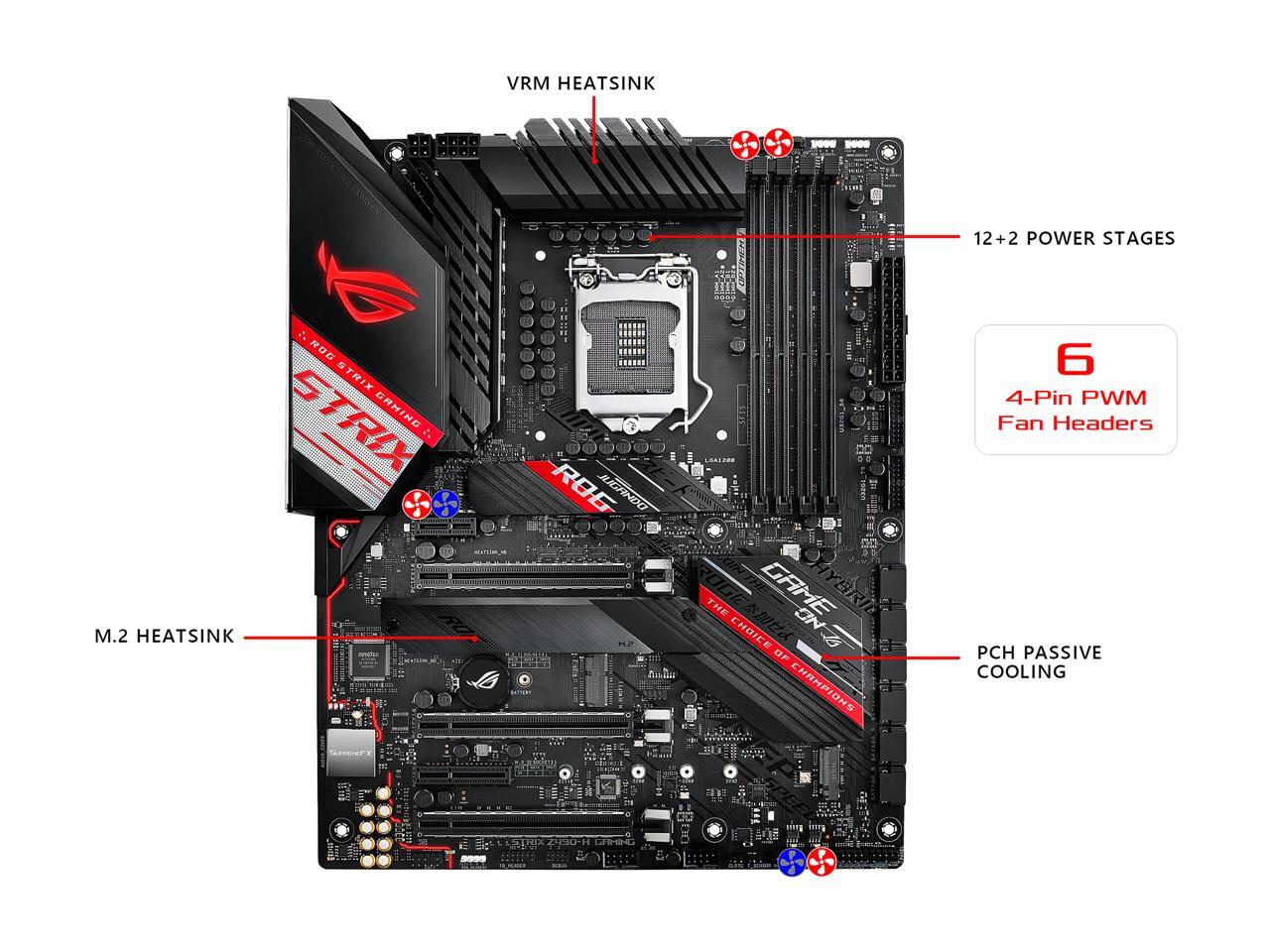

Robust Power Solution: 12+2 Dr. MOS power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance to the limit
Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
High-performance Gaming Networking: On-board Intel 2.5Gb Ethernet with ASUS LANGuard
Fastest Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2, Thunderbolt header
Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action

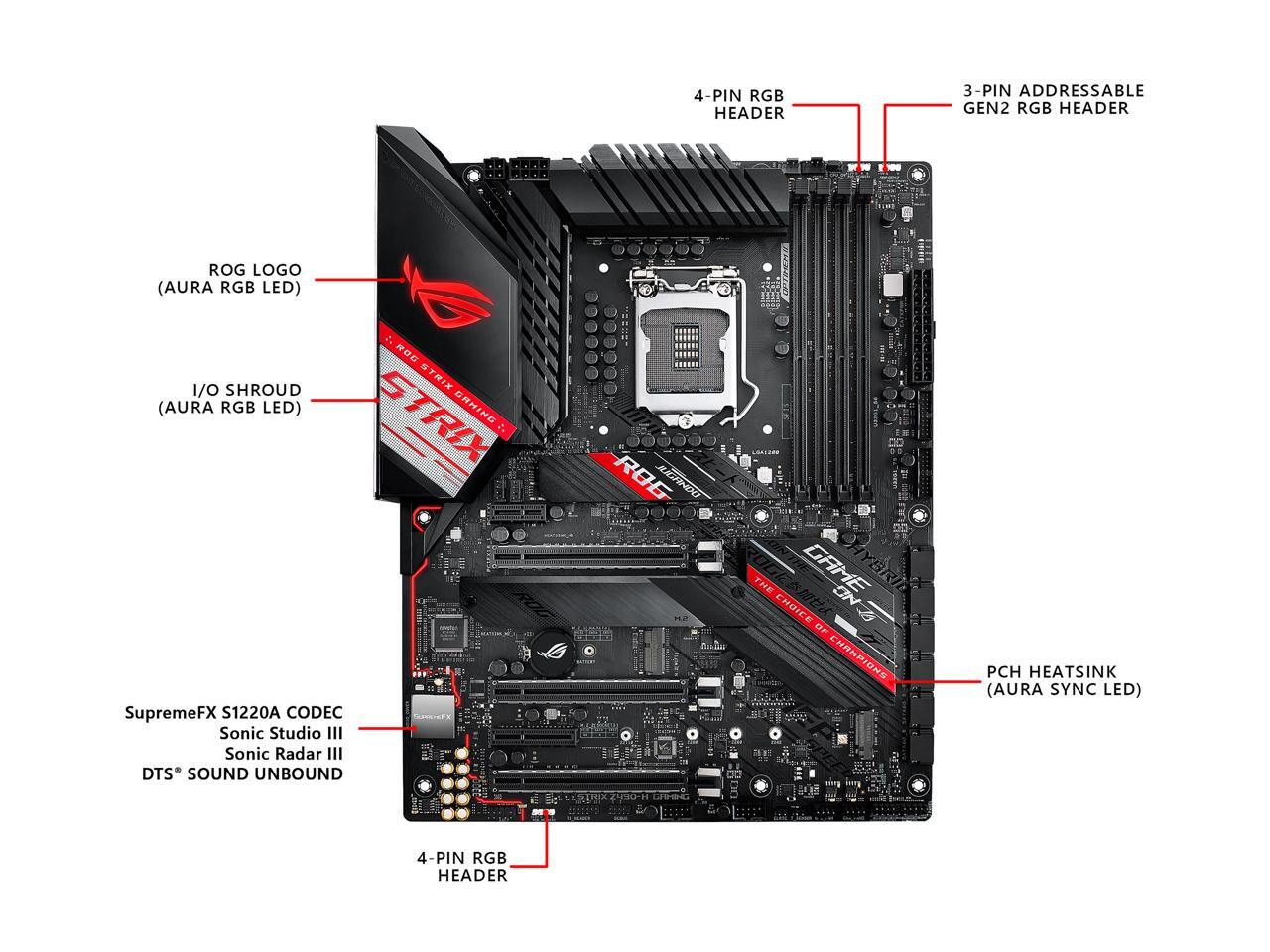

Unmatched Personalization: Time-honored red on black gaming look, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days
Return for replacement within: 90 days
This item is covered by Hellowland Return Policy

CPU Socket Type	LGA 1200
CPU Type	Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
Supported CPU Technologies	Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	Intel 10th Gen Processors 3 x PCIe 3.0 x16 (x16 or x8+x4+x4)
PCI Express x4	Intel Z490 Chipset 1 x PCIe 3.0 x4 (max at x2 mode)
PCI Express x1	1 x PCIe 3.0 x1
Other Slots	M.2 slot only (Key E) (Support CNVI & PCIe interface)* * Wi-Fi module is sold separately.

SATA 6Gb/s	6 x SATA 6Gb/s
M.2	1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Audio Chipset	ROG SupremeFX Surround Sound High Definition Audio CODEC S1220A
Audio Channels	8 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
