ASUS ROG STRIX Z490-G GAMING (WiFi 6) LGA 1200 Intel Z490 Intel Motherboard (12+2 Power Stages, Intel 2.5Gb Ethernet, Bluetooth v5.1 and AURA Sync)
See more "lga 1200 micro atx"
In stock.
Ships from China.
Fees for brokerage and duty included in price.
- Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
- Robust Power Solution: 12+2 power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance to the limit
- Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
- High-performance Gaming Networking: On-board Intel 2.5Gb Ethernet with ASUS LANGuard
- Best Gaming Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2, front panel USB 3.2 Gen 2 Type-C connector
- Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action
- Unmatched Personalization: Micro ATX small form factor, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
Specs
Reviews
Learn more about the ASUS STRIX Z490-G GAMING (WI-FI)
| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | STRIX Z490-G GAMING (WI-FI) |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors * Refer to www.asus.com for CPU support list |
| Supported CPU Technologies | Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0** ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
| Chipset | Intel Z490 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic: 1 x DisplayPort 1.4 ** 1 x HDMI 1.4b * * Graphics specifications may vary between CPU types. ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update. |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 3.0 x16 | Intel 10th Gen Processors 1 x PCIe 3.0 x16 (x16 mode) *1 Intel Z490 Chipset 1 x PCIe 3.0 x16 (max at x4 mode) *2 *1. Support PCIe bifurcation for RAID on CPU function. *2. When PCIe 3.0 x16_2 runs at x4 mode, SATA6G_56 will be disabled. |
|---|---|
| PCI Express x1 | 1 x PCIe 3.0 x1 |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode) 1 x M.2_2 socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)* * M.2_2 shares bandwidth with SATA6G_2. When M.2_2 runs SATA mode, SATA6G_2 will be disabled. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
|---|---|
| Audio Channels | 8 Channels * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio. |
| LAN Chipset | Intel I225-V |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6 AX201 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports up to 2.4Gbps max data rate Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 Supports CNVI interface |
| Bluetooth | Bluetooth v5.1* * BT 5.1 function will be ready in Windows 10 build 19041 or later. |
| Back I/O Ports | 1 x Intel I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 2 x USB 3.2 Gen 2 (1 x Type-A+1 x USB Type-C) 4 x USB 3.2 Gen 1 Type-A 2 x USB 2.0 1 x Optical S/PDIF out 1 x USB BIOS FlashBack Button(s) 1 x ASUS Wi-Fi Module 5 x Gold-plated audio jacks |
|---|
| Onboard USB | 1 x USB 3.2 Gen2 connector support additional 1 USB ports(20-pin, Type-C) 1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|---|---|
| Other Connectors | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 1 x W_PUMP+ connector 2 x Aura RGB Strip Headers 2 x Addressable Gen 2 header(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x CPU OV 1 x Clear CMOS jumper(s) 1 x VRM_HS_FAN Header |
| Form Factor | Micro ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 9.6" x 9.6" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
| Features | Multi-GPU Support: Supports AMD 2-Way CrossFireX Technology Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync AI Suite 3 - 5-Way Optimization with AI Overclocking TPU EPU Digi+ VRM Xpert 4 Turbo app - EZ update AI Charger WinRAR UEFI BIOS AI Overclocking Guide ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors - ON-semi NCP302045 - MicroFine Alloy Choke ASUS Q-Design - ASUS Q-DIMM - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink - Aluminum heatsink design ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - Procool II - Pre-mounted I/O shield - SafeSlot AURA Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) BIOS: 192(128+64)MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE |
|---|

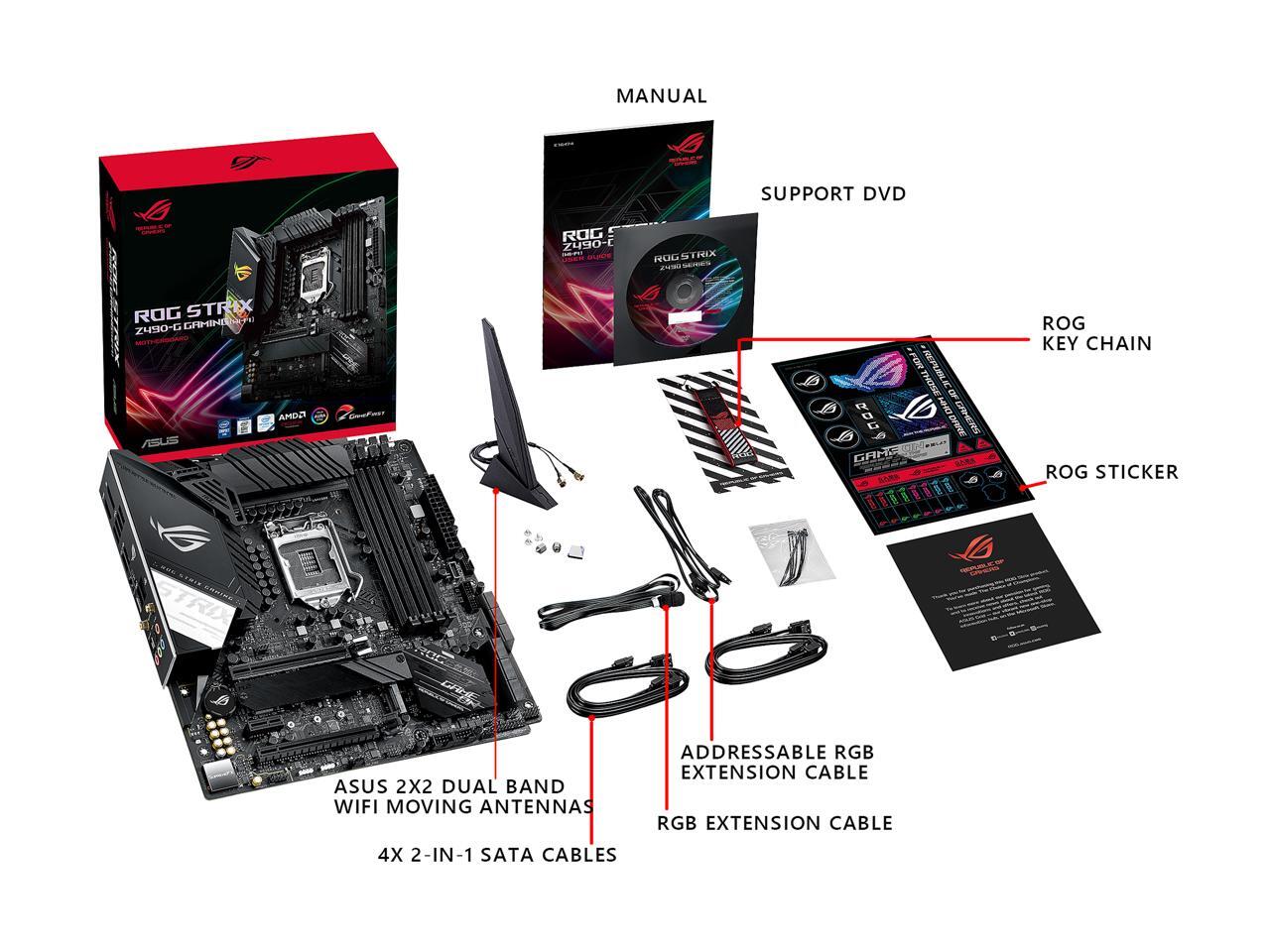

| Package Contents | Accessories: User's manual 4 x SATA 6Gb/s cable(s) 1 x Supporting DVD 1 x ROG Strix stickers 1 x Cable ties pack(s) 1 x Extension Cable for RGB strips (80cm) 1 x Extension cable for Addressable LED 1 x ROG Thank you card 1 x 2-in-1 Rubber pad 1 x Wi-Fi moving antenna 1 x M.2 SSD screw package(s) 1 ROG key chain |
|---|
| Date First Available | October 02, 2022 |
|---|
