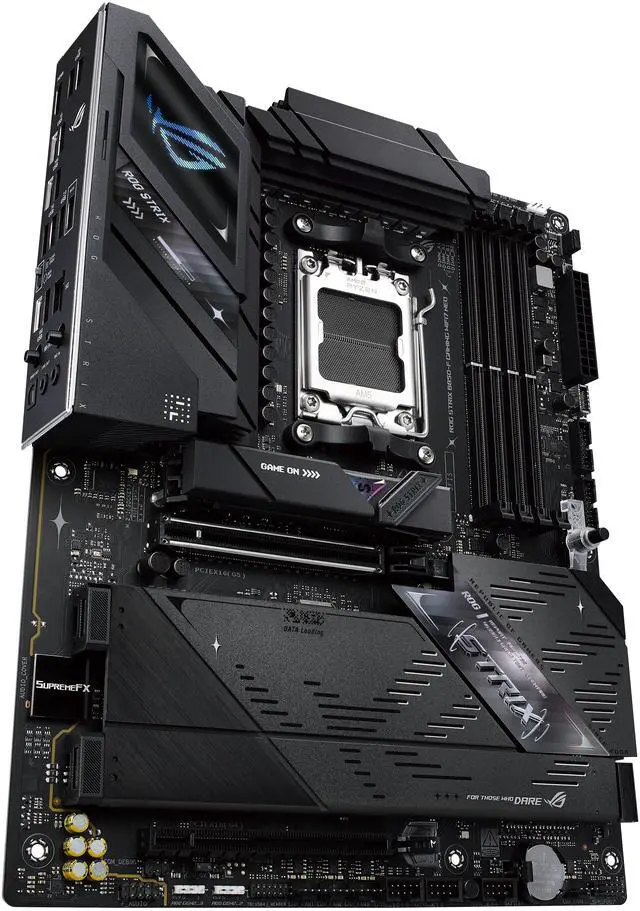

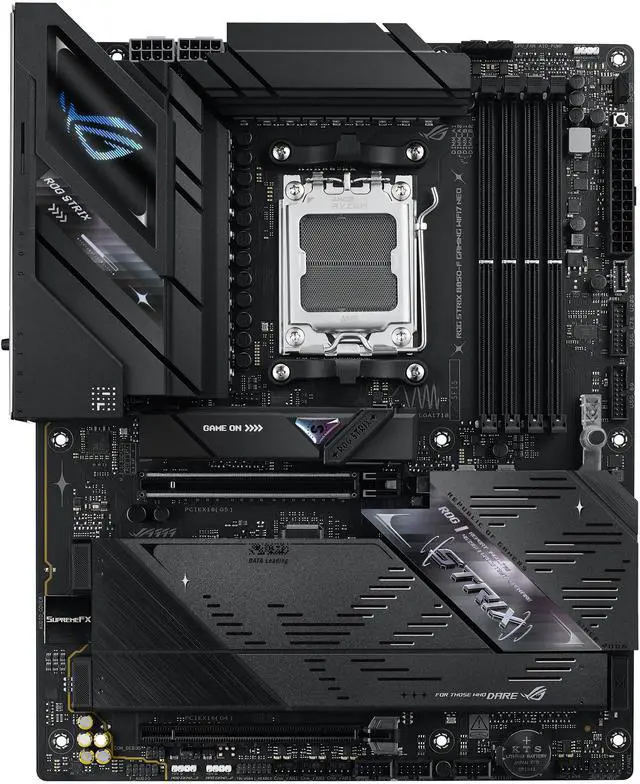

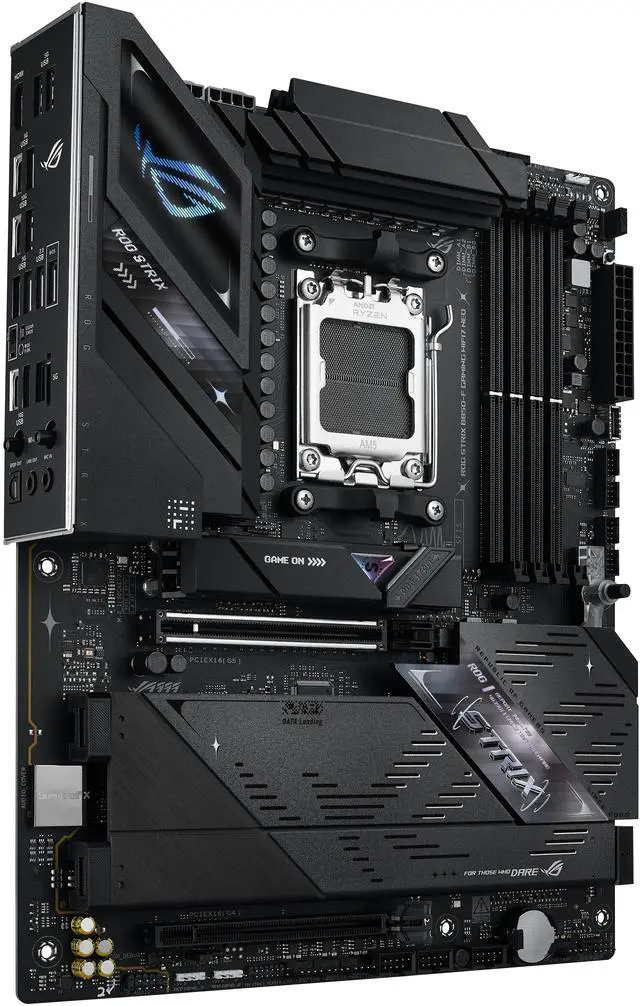

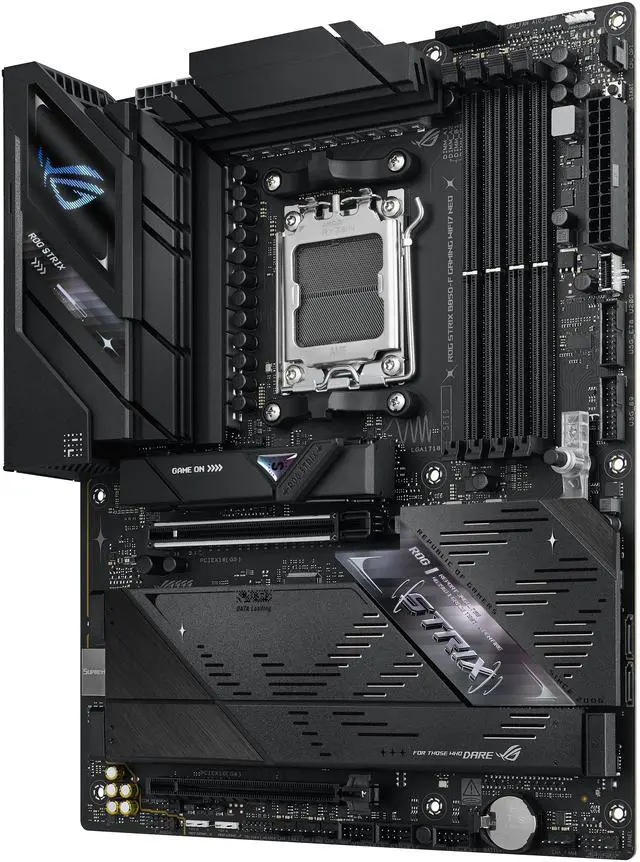

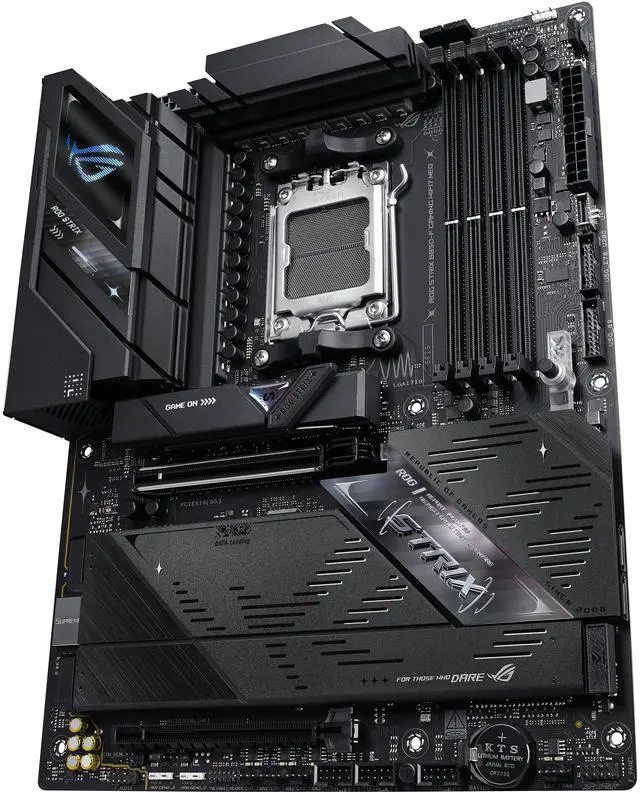

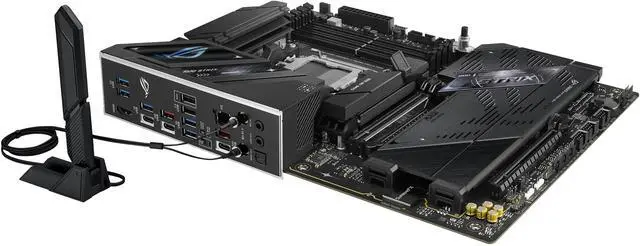

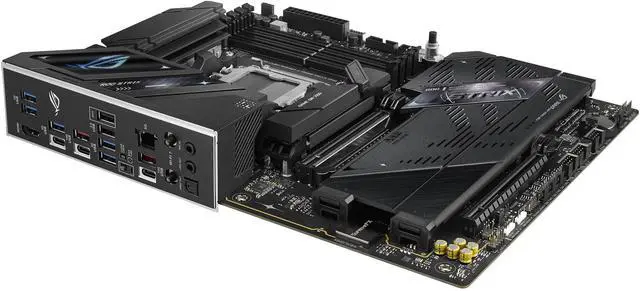

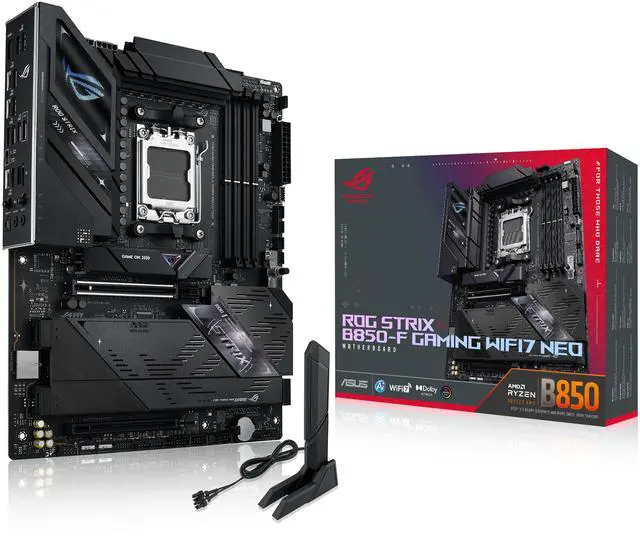

Main image of ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

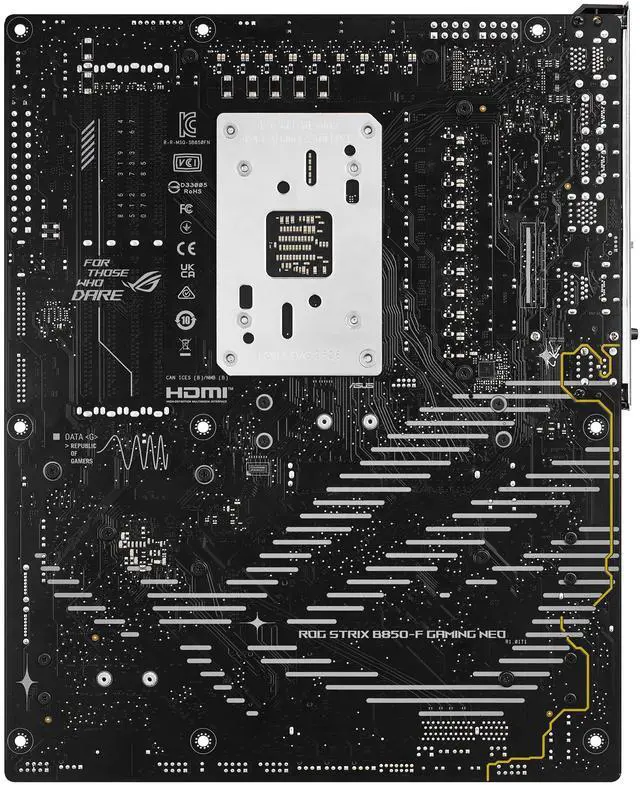

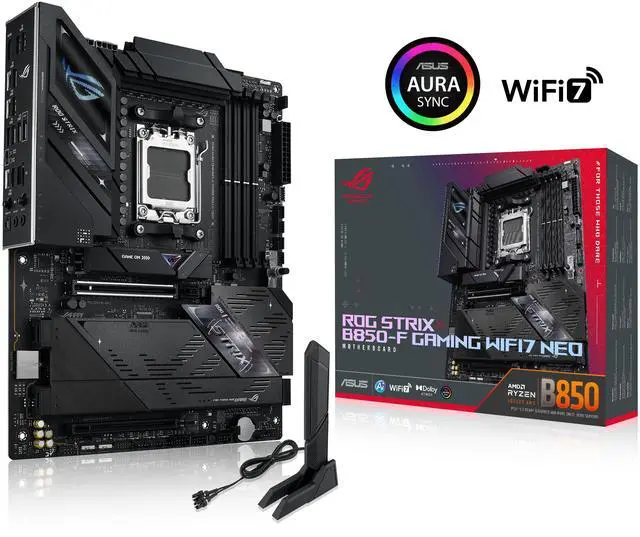

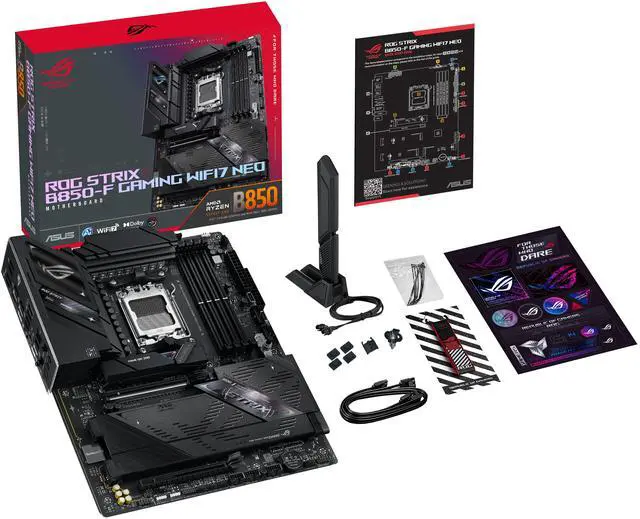

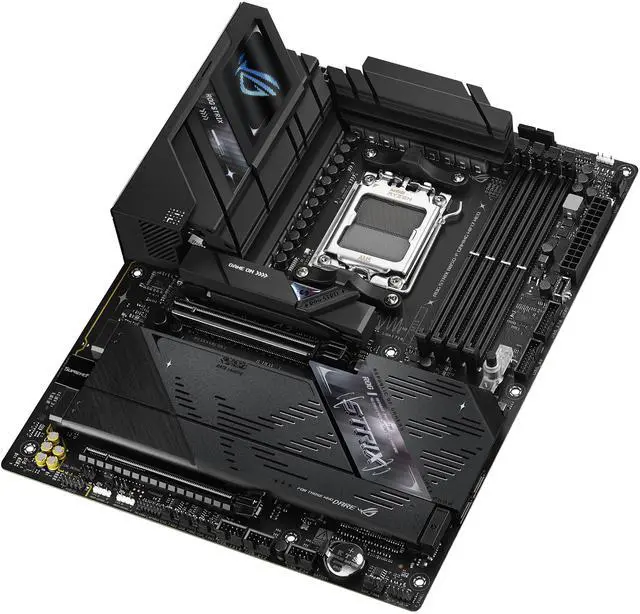

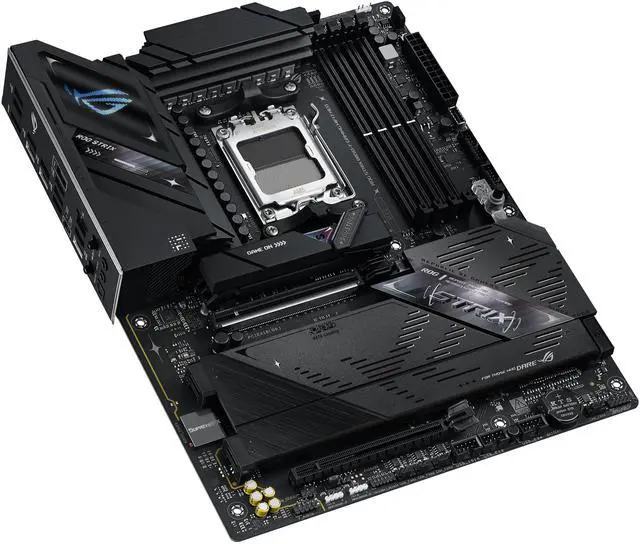

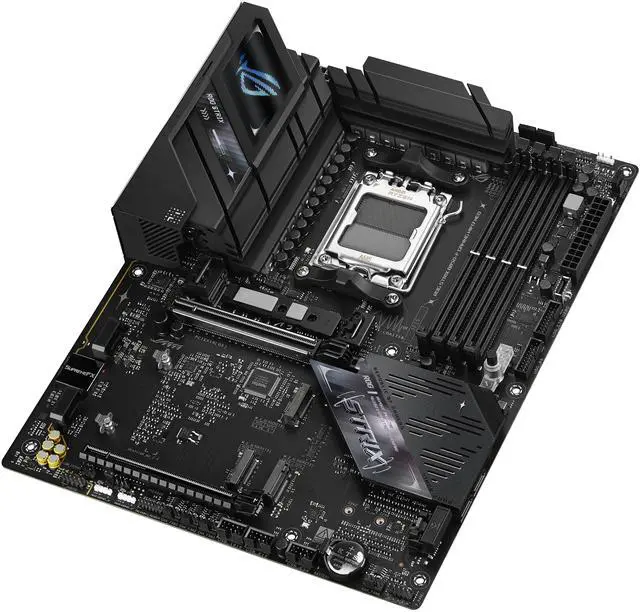

Alt view image 2 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 3 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 4 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 5 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 6 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 7 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 8 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 9 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 10 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 11 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 12 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 13 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 14 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Alt view image 15 of 15 - ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Shop All ASUS Products

ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Option: ROG Strix B850-F GAMING WIFI7 NEO

ROG STRIX B850-F GAMING WIFI
ROG STRIX B850-A GAMING WIFI
ROG STRIX B850-I GAMING WIFI
TUF GAMING B850-PLUS WIFI
TUF GAMING B850M-PLUS WIFI
PRIME B840-PLUS WIFI
PRIME B840M-A WIFI-CSM
B850 MAX GAMING WIFI W
TUF GAMING B850M-E WIFI
PRIME B850-PLUS WIFI
TUF GAMING B850M-PLUS WIFI7
ROG Strix B850-F GAMING WIFI7 NEO

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 series desktop processors
Intelligent Control: ASUS AI Advisor, AI Cache Boost, AI Networking II, AI Cooling II and AEMP to simplify setup and improve performance
Robust Power Solution: 16+2+2 power solution rated for 80A per stage with an 8+8-pin ProCool power connector, high-quality alloy chokes and durable capacitors to support multi-core processors
Optimized Thermal Design: Massive heatsinks bridged to the VRMs with high-conductivity thermal pads and an integrated I/O cover
Latest M.2 Support: Two PCIe? 5.0 M.2 slot and two PCIe 4.0 M.2 slots

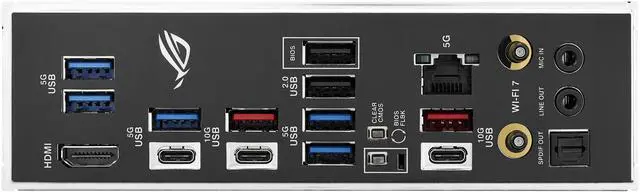

Abundant Connectivity: USB 20Gbps Type-C front-panel connector, two 5Gbps headers, three USB 2.0 headers , PCIe 5.0 x16 SafeSlot, HDMI port
High-Performance Networking: On-board WiFi 7 (802.11be) with Realtek 5Gb Ethernet
DIY Friendly Design: PCIe Slot Q-Release, M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-DIMM, Q-LED, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
Immersive Audio: ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 with Savitech SV3H712 amplifier
Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including three addressable Gen 2 headers

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy.
Read full return policy for details.

CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports up to 8400+(OC)/8200+(OC) MT/s with Ryzen 9000 Series Processors, 9000+(OC)/8600+(OC) MT/s with Ryzen 8000 Series Processors, 8000+(OC)/8000+(OC) MT/s Ryzen 7000 Series Processors
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Yes
Buffer Supported	Un-buffered

PCI Express 5.0 x16	AMD Ryzen 9000 & 7000 Series Desktop Processors 1 x PCIe 5.0 x16 slot (supports x16 mode) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors 1 x PCIe 4.0 x16 slots (supports x8 mode) AMD Ryzen 8500 & 8300 Series Desktop Processors 1 x PCIe 4.0 x16 slots (supports x4 mode)
PCI Express 4.0 x16	AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode) ** PCIEX16(G4) slot (supports x4 mode) from AMD B850 Chipset shares bandwidth with M.2_3

Serial ATA (SATA)	2 x SATA 6Gb/s
M.2	AMD Ryzen 9000 & 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8700 & 8600 & 8400 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) AMD Ryzen 8500 & 8300 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4) * M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.
SATA RAID	0/1/5/10

Max LAN Speed	5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	Bluetooth 5.4

ASUS ROG Strix B850-F GAMING WIFI7 NEO, AMD ATX motherboard, 16+2+2 power stages, DDR5 slots, four M.2 slots, PCIe 5.0, three USB 2.0 headers, USB 20Gbps Type-C WiFi 7, Realtek 5G and Aura Sync RGB

Learn more about the ASUS ROG STRIX B850-F GAMING WIFI7 NEO

Customer Reviews of the ASUS ROG STRIX B850-F GAMING WIFI7 NEO

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	1 x USB 20Gbps connector (support(s) USB Type-C) 2 x USB 5Gbps header(s) support(s) 4 additional USB 5Gbps ports 3 x USB 2.0 header(s) support(s) 6 additional USB 2.0 ports
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header(s) 1 x 4-pin CPU OPT Fan header(s) 1 x 4-pin AIO Pump header(s) 4 x 4-pin Chassis Fan header(s) Miscellaneous 3 x Addressable RGB Gen 2 header(s) 1 x CPU Over voltage jumper 1 x Front Panel Audio header (F_AUDIO) 1 x Start button 1 x 10-1 pin Front Panel System header 1 x Thermal Sensor header 1 x Thunderbolt (USB4) header

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector

BIOS Feature	64 MB (512Mb) Flash ROM, UEFI AMI BIOS
Software	ROG Exclusive Software - ROG CPU-Z - Dolby Atmos ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - GameFirst - WiFi Q-Antenna - MLO Wizard ASUS DriverHub - ASUS MB Manager - ASUS AI Advisor - AIDA64 Extreme (60 days free trial) - HWiNFO - ASUS GlideX - TurboV Core - Norton 360 for Gamers (60 Days Free Trial) - WinRAR (40 Days Free Trial) Adobe Creative Cloud (Free Trial) UEFI BIOS Integrated WiFi Driver Support AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode - ASUS MyHotkey FlexKey
