ROG Astral BTF
PCI Express 5.0
24GB GDDR7
21760 CUDA Cores
2610 MHz/2580 MHz
Learn more about the ASUS ROG-ASTRAL-RTX5090DV2-O24G-BTF
Model| Brand | ASUS |
|---|
| Series | ROG Astral BTF |
|---|
| Model | ROG-ASTRAL-RTX5090DV2-O24G-BTF |
|---|
Interface| Interface | PCI Express 5.0 |
|---|
Chipset| Chipset Manufacturer | NVIDIA |
|---|
| GPU Series | NVIDIA GeForce RTX 50 Series |
|---|
| GPU | GeForce RTX 5090 |
|---|
| Game Clock | 2610 MHz |
|---|
| Boost Clock | 2580 MHz |
|---|
| CUDA Cores | 21760 Cores |
|---|
Memory| Effective Memory Clock | 28000 MHz (28 Gbps) |
|---|
| Memory Size | 24GB |
|---|
| Memory Interface | 384-Bit |
|---|
| Memory Type | GDDR7 |
|---|
Ports| Multi-Monitor Support | 4 |
|---|

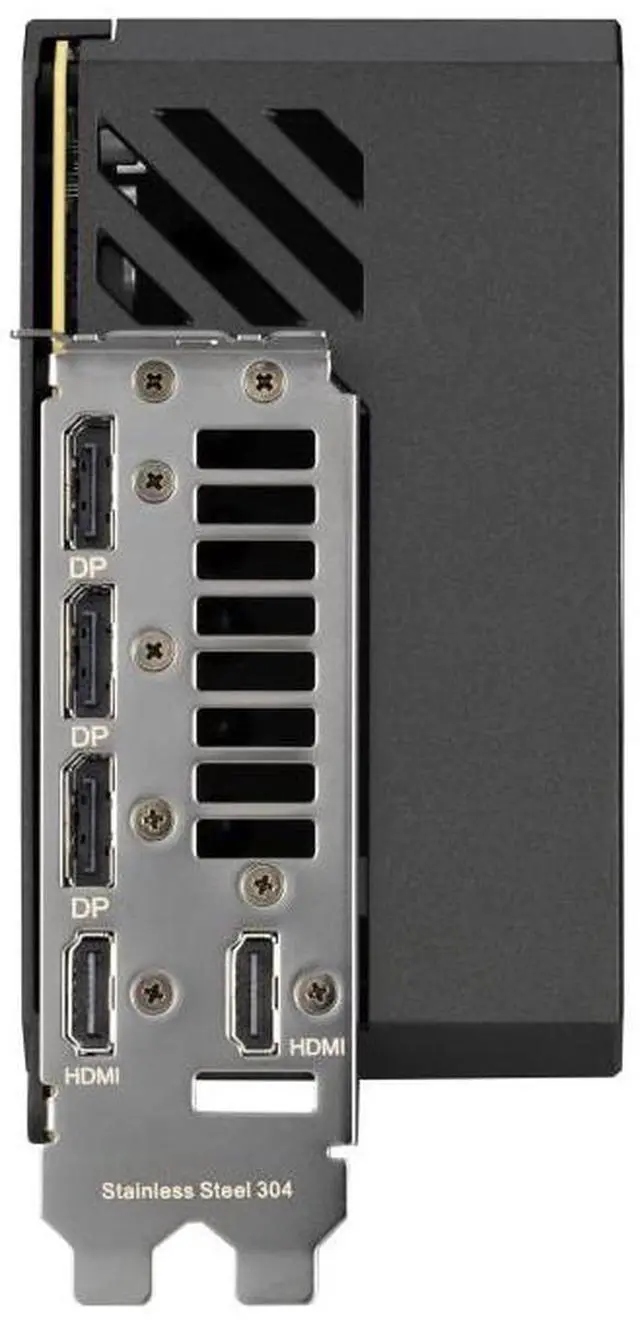

| HDMI | 2 x (Native)HDMI 2.1b |
|---|
| DisplayPort | 3x (Native) DisplayPort 2.1b) |
|---|
Details| Color | Black |
|---|
| Max Resolution | 7680 x 4320 |
|---|
| Virtual Reality Ready | Yes |
|---|
| Cooler | Triple Fans |
|---|
| Recommended PSU Wattage | 1000W |
|---|
| Power Connector | 1 x 16-Pin |
|---|
| HDCP Ready | Yes |
|---|
Form Factor & Dimensions| Form Factor | ATX |
|---|
| Max GPU Length | 357.6 mm |
|---|
| Card Dimensions (L x H) | 14.1 x 5.9 x 3 inch |
|---|
| Slot Width | 3.8 Slots |
|---|
Additional Information| First Listed on Newegg | April 06, 2026 |
|---|
