Complimentary 3-month Adobe Creative Cloud subscription with the purchase. Learn more on ASUS website for more details
Intel Core i7-11700 processor with Windows 11 Home
NVIDIA GeForce RTX 3070 with 8GB GDDR6
Fast storage and memory featuring 1TB PCIe NVMe SSD and 32GB DDR4 Memory (upgradable to 128GB RAM)
Extensive connectivity with RJ45 Gigabit Ethernet, 1x HDMI 1.4, 2x Display port 1.2, 1x 7.1 channel audio (3 ports), 2x PS2, 2x USB 2.0 Type A, 4x USB 3.2 Gen 1 Type A, 1x 2-in-1 card reader SD/MMC, 1x 3.5mm combo audio jack, 1x USB 3.2 Gen 1 Type-C, 2x USB 3.2 Gen 1 Type A (*USB Transfer speed may vary. Learn more at ASUS website)
Wi-Fi 6 (802.11ax) latest Wi-Fi standard + Dual-band Bluetooth 5.0
Wireless keyboard and wireless optical mouse included
22.05 lbs.
+
+
Overview
Specs
Reviews
29 Tower i7 11700 32G 1T W11H
Learn more about the ASUS PD500TC-PH778
Model
Brand
ASUS
Series
ProArt Station PD5
Model
PD500TC-PH778
Part Number
90PF0301-M000R0
Quick Info
Type
Business & Content Creation
Form Factor
Tower
Usage
Business
Color
Black
Processor
Intel Core i7-11700 2.50 GHz
Processor Main Features
64 bit 8-Core 16-Thread Processor
Cache Per Processor
16 MB L3 Cache
Memory
32 GB DDR4
Storage
1 TB M.2 NVMe PCIe 3.0 SSD
Graphics
NVIDIA GeForce RTX 3070 8 GB GDDR6 with LHR
Power Supply
500W power supply (80+ Gold, peak 550W)
Monitor
Monitor not included
Operating System
Windows 11 Home 64-bit
Special Features
Security: BIOS Booting User Password Protection HDD User Password Protection and Security Trusted Platform Module (Firmware TPM)
Motherboard
Chipset
Intel B560
CPU
CPU Type
Intel Core i7 11th Gen
CPU Name
Intel Core i7-11700
L3 Cache Per CPU
16 MB
CPU Main Features
64 bit 8-Core 16-Thread Processor
Graphics
GPU/VGA Type
GeForce RTX 3070
GPU Memory
8 GB GDDR6
Virtual Reality Ready
Yes
Memory
Memory Capacity
32GB DDR4
Memory Spec
16 GB x 2
Memory Slot (Total)
4
Memory Slot (Available)
2
Maximum Memory Supported
128 GB
Storage
SSD
1TB PCIe
HDD
No
Optical Drive
Optical Drive Type
No
Display
Screen Size
No Screen
Audio
Audio Features
High Definition 7.1 Channel Audio
Communications
LAN Chipset
Intel WGI219V
LAN Speed
10/100/1000Mbps
WLAN
802.11ax Wireless LAN
WiFi Generation
Wi-Fi 6
Bluetooth
Bluetooth 5.0 (Dual band) 2x2
Front Panel Ports
Front USB
1 x USB 3.2 Gen 1 Type-C 2 x USB 3.2 Gen 1 Type-A
Front Audio Ports
1 x 3.5mm combo audio jack
Card Reader
2-in-1 card reader SD / MMC
Back Panel Ports
PS/2
2
Video Ports
Graphics Card: 1 x HDMI, 3 x Display Ports Motherboard: 1 x HDMI 1.4, 2 x Display port 1.2
Rear USB
2 x USB 2.0 Type-A 4 x USB 3.2 Gen 1 Type-A
RJ45
1 port
Rear Audio Ports
7.1 channel audio (3 ports)
Expansion
Internal Bays
2 x 3.5"
PCI Slots (Available/Total)
1 x PCIe 4.0 x 16 2 x PCIe 3.0 x 1 1 x M.2 connector for WiFi 2 x M.2 connector for storage
Keyboard
Keyboard Type
Wireless Keyboard
Mouse
Mouse Type
Wireless Optical Mouse
Dimensions & Weight

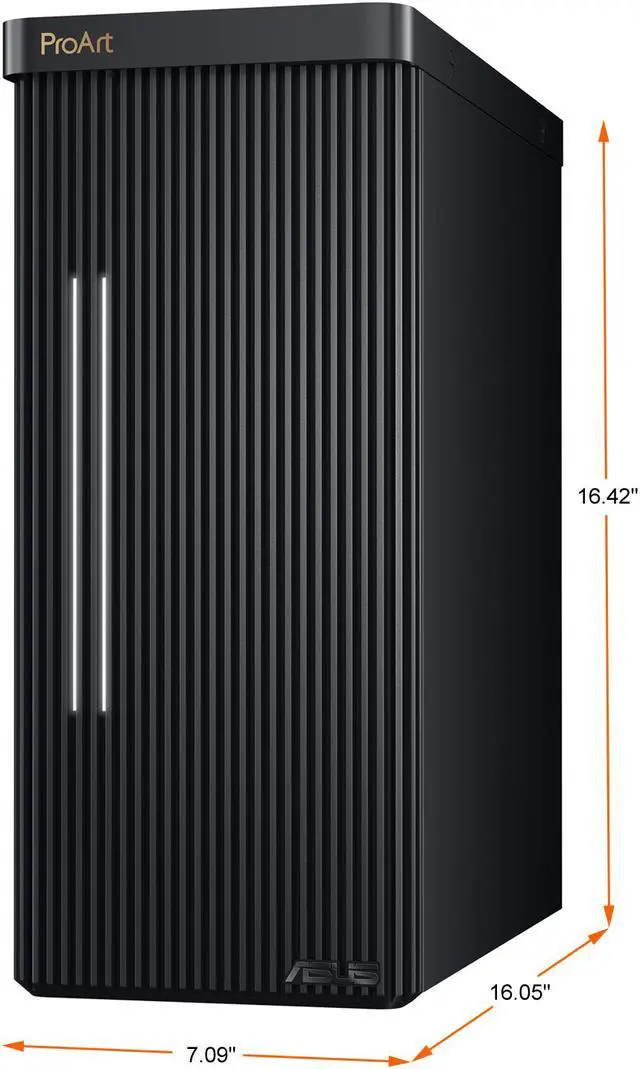

Dimensions (H x W x D)
16.42" x 7.09" x 16.05"
Weight
22.05 lbs.
Additional Information
First Listed on Newegg
January 30, 2023
