$419^.99

Limit 2 per customer.

Add to PC build list

Ships from United States.

Sold by Newegg

Shipped by Newegg

Price alert

Add to wish list

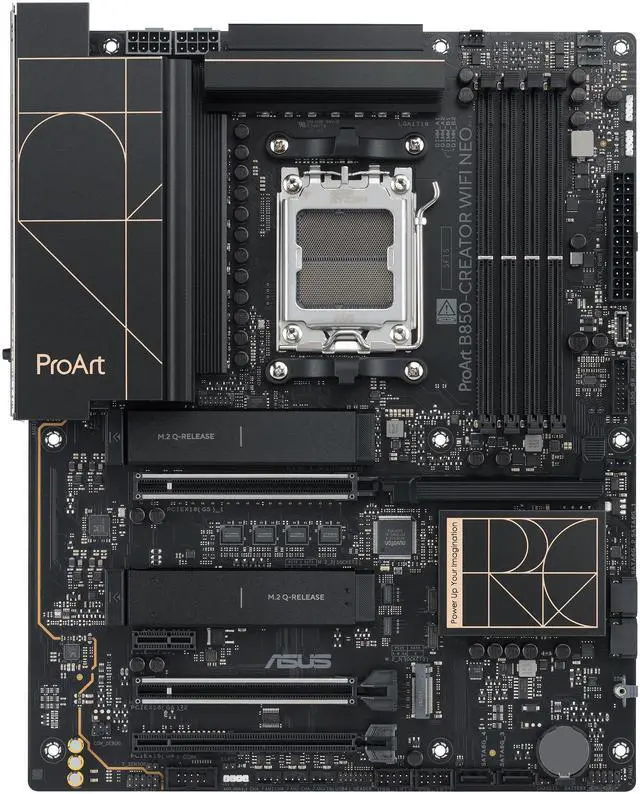

Main image of ASUS ProArt B850-CREATOR WIFI NEO AMD AM5 B850 ATX motherboard, 14+2+1 80A stages, DDR5, PCIe 5.0, 3x M.2, Wi-Fi 7, 5G LAN, DP, HDMI, SATA, USB Type-C, ProArt Creator Hub, ASUS Control Center Express

Shop All ASUS Products

ASUS ProArt B850-CREATOR WIFI NEO AMD AM5 B850 ATX motherboard, 14+2+1 80A stages, DDR5, PCIe 5.0, 3x M.2, Wi-Fi 7, 5G LAN, DP, HDMI, SATA, USB Type-C, ProArt Creator Hub, ASUS Control Center Express

Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
AMD AM5 Socket: Ready for AMD Ryzen 9000, 8000 and 7000 Series and AMD EPYC 4005 Series Processors
Intelligent Control: AI Cache Boost, ASUS AI Advisor, AI Cooling II and AEMP to simplify setup and improve performance
Robust Power Solution: 14+2+1 power solution rated for 80A per stage with an 8+8-pin ProCool power connector, high-quality alloy chokes, and durable capacitors to support multi-core processors
Future-proofed Connectivity: Dual Realtek 5Gb Ethernet, WiFi 7, two PCIe 5.0 and two PCIe 5.0 M.2 slots and a USB 20Gbps front panel connector with 30W PD/Quick Charge 4+
DIY-friendly Design: PCIe Slot Q-Release with SafeSlot, M.2 Q-Release, M.2 Q-Slide, M.2 Q-Latch, Q-Antenna, BIOS FlashBack, Q-Connector
ProArt gives you more: ProArt Creator Hub with unified PC monitoring, quick presets for fans and performance, and one-click workflow launching
Advanced Security: USB port management, software blacklisting and Regedit on/off controls via ASUS Control Center Express
Renowned Software: BIOS 64 MB, ASUS MB Manager, ASUS DriverHub, TurboV Core, ASUS GlideX, Norton 360 Deluxe (60-day free trial), and intuitive UEFI BIOS dashboard

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy.
Read full return policy for details.

CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports up to 8400+(OC)/8200+(OC) MT/s with Ryzen 9000 Series Processors, 9000+(OC)/8600+(OC) MT/s with Ryzen 8000 Series Processors, 8000+(OC)/8000+(OC) MT/s Ryzen 7000 Series Processors
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered

PCI Express 5.0 x16	AMD Ryzen 9000 & 7000 Series Desktop Processors* 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)* AMD Ryzen 8000 Series Desktop Processors 1 x PCIe 4.0 x16 slot (supports x8/x4 mode) * When you use both PCIEX16(G5)_1 and PCIE16(G5)_2, they will run at x8 each. ** The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
PCI Express 4.0 x16	AMD B850 Chipset 1 x PCIe 4.0 x16 slot (supports x4 mode)****
PCI Express x1	1 x PCIe 4.0 x1 slots

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	AMD Ryzen 7000 & 9000 Series Desktop Processors* M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) AMD Ryzen 8000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode) AMD B850 Chipset M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)* * The PCIEX16(G4) shares bandwidth with M.2_3. The PCIEX16(G4) will be disabled when M.2_3 runs.
SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC1220P
Audio Channels	Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Premium audio capacitors - Dedicated audio PCB layers - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio. A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. * Once an EPYC CPU is installed, the onboard audio function will be disabled.

ASUS ProArt B850-CREATOR WIFI NEO AMD AM5 B850 ATX motherboard, 14+2+1 80A stages, DDR5, PCIe 5.0, 3x M.2, Wi-Fi 7, 5G LAN, DP, HDMI, SATA, USB Type-C, ProArt Creator Hub, ASUS Control Center Express

Learn more about the ASUS PROART B850-CREATOR WIFI

Customer Reviews of the ASUS PROART B850-CREATOR WIFI

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Max LAN Speed	2 x 5Gbps
Wireless LAN	Wi-Fi 802.11 be
Bluetooth	Yes

Onboard USB	1 x USB 20Gbps connector (supports USB Type-C with up to 30W PD/QC4+) 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Other Connectors	Fan and Cooling Related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers Storage Related 3 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 3 x Addressable RGB Gen2 headers 1 x Clear CMOS header 1 x Chassis Intrusion header 1 x COM Port header 1 x Front Panel Audio header (F_AUDIO) 1 x SPI TPM header (14-1 pin) 1 x 10-1 pin Front Panel System header 1 x Thunderbolt (USB4) header 1 x Thermal Sensor header

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V CPU Power connector

BIOS Feature	64 MB (512Mb) Flash ROM, UEFI AMI BIOS
Software	ASUS Exclusive Software Armoury Crate - Aura Creator - Aura Sync - Fan Xpert 4 (with AI Cooling II) - MLO Wizard ASUS DriverHub - ASUS MB Manager - ASUS AI Advisor - ASUS CPU-Z -ASUS GlideX -ProArt Creator Hub -CreatonFirst -USB Wattage Watcher -TurboV Core Adobe Creative Cloud (Free Trial)** Norton 360 Deluxe (60 Days Free Trial) WinRAR (40 Days Free Trial) UEFI BIOS Integrated WiFi Driver Support AI Cache Boost ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash - ASUS UEFI BIOS EZ Mode
