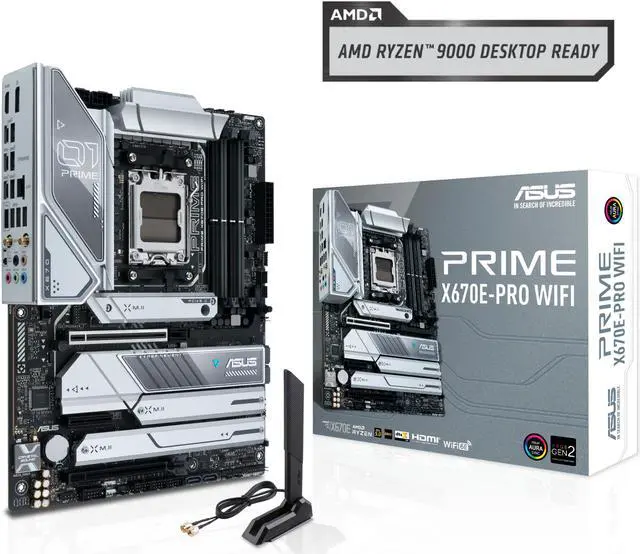

ASUS PRIME X670E-PRO WIFI AMD X670 AM5 Ryzen Desktop 9000 8000 & 7000 ATX motherboard with PCIe 5.0, four M.2 slots, DDR5 slots, USB 3.2 Gen 2x2 Type-C, USB4 support, WIFI 6E, and 2.5G Ethernet

Name: ASUS PRIME X670E-PRO WIFI ATX AMD Motherboard
Brand: ASUS
SKU: N82E16813119587
Rating: 4 (525 reviews)

AM5 Socket: Ready for AMD Ryzen Desktop 9000*, 8000*, and 7000 Series Processors
*BIOS Update maybe required when used with AMD Ryzen Desktop 9000 and 8000 Series CPU Processors

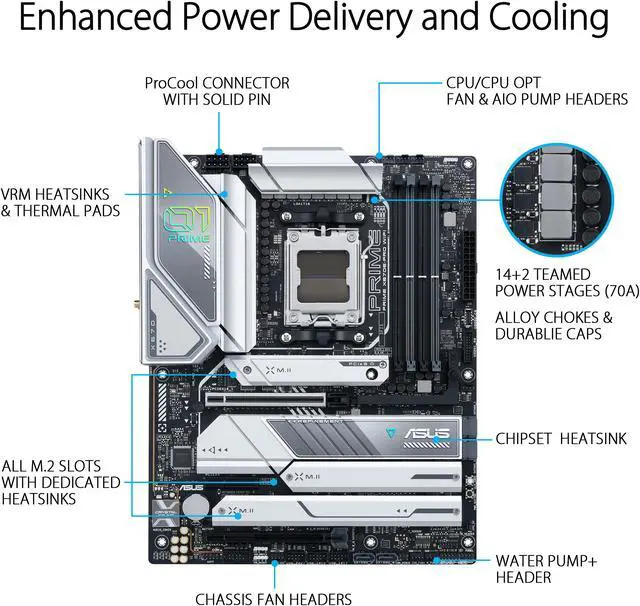

Enhanced power solution: 14+2 teamed power stages, ProCool sockets, alloy chokes and durable capacitors for stable power delivery
Next-gen connectivity: PCIe 5.0, USB 3.2 Gen2x2 Type-C, front USB 3.2 Gen 2 Type-C, USB4 header support, WiFi 6E, Realtek 2.5 Gb Ethernet, and LANGuard
Exclusive overclocking technology: AI Overclocking, Dynamic OC Switcher, and Ryzen Core Flex
Comprehensive cooling: Large VRM heatsinks, M.2 heatsinks, PCIe Slot Q-Release, M.2 Q-Latch, BIOS?FlashBack, hybrid fan headers and Fan Xpert 4 with AI Cooling II
Two-way AI Noise Cancelation: Reduces background noise from the microphone and audio output for crystal-clear communication in games or video conferences
BIOS FlashBack is the simplest and safest (UEFI) BIOS update method.

Overview

Specs

Reviews (525)

Warranty & Returns

Return for refund within: 30 days

Return for replacement within: 30 days

CPU Socket Type	AM5
CPU Type	AMD Socket AM5 for AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors* * Refer to www.asus.com for CPU support list.

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Supports DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory* * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Maximum Memory Supported	256GB
Channel Supported	Dual Channel
ECC Supported	Non-ECC
Buffer Supported	Un-buffered
Memory Feature	Supports AMD EXTended Profiles for Overclocking (EXPO) OptiMem II

PCI Express 5.0 x16	1 x PCIe 5.0 x16 slot(s)* * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).
PCI Express 4.0 x16	1 x PCIe 4.0 x16 slot (supports x4 mode)
PCI Express x4	1 x PCIe 4.0 x4 slots

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	AMD Ryzen 7000 Series Desktop Processors M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD X670 Chipset M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)** M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. * M.2_2 slot shares bandwidth with SATA_1&2. When M.2_w runs at PCIe x4 mode, SATA_1&2 will be disabled.
SATA RAID	0/1/10

Audio Chipset	Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC* - Impedance sense for front and rear headphone outputs - Internal audio Amplifier to enhance the highest quality sound for headphone and speakers - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) - Supports up to 32-Bit/192 kHz playback* Audio Features - Power pre-regulator reduces power input noise to ensure consistent performance - Premium audio capacitors - Dedicated audio PCB layers - Audio cover - Unique de-pop circuit * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Audio Channels	7.1 Channels

LAN Chipset	1 x Realtek 2.5Gb Ethernet
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) Supports 2.4/5/6GHz frequency band* * WiFi 6E 6GHz regulatory may vary between countries.
Bluetooth	Bluetooth v5.2

Onboard USB	1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 3 x USB 2.0 headers support additional 6 USB 2.0 ports
Other Connectors	Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 4 x 4-pin Chassis Fan headers 1 x W_PUMP+ header Storage related 4 x M.2 slots (Key M) 4 x SATA 6Gb/s ports Miscellaneous 2 x Addressable Gen 2 headers 1 x AURA RGB header 1 x Clear CMOS button 1 x COM Port header 1 x CPU Over Voltage jumper 1 x Front Panel Audio header (AAFP) 1 x Power button 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function 1 x Thermal Sensor header 1 x Thunderbolt header

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 2 x 8-pin +12V Power connectors
