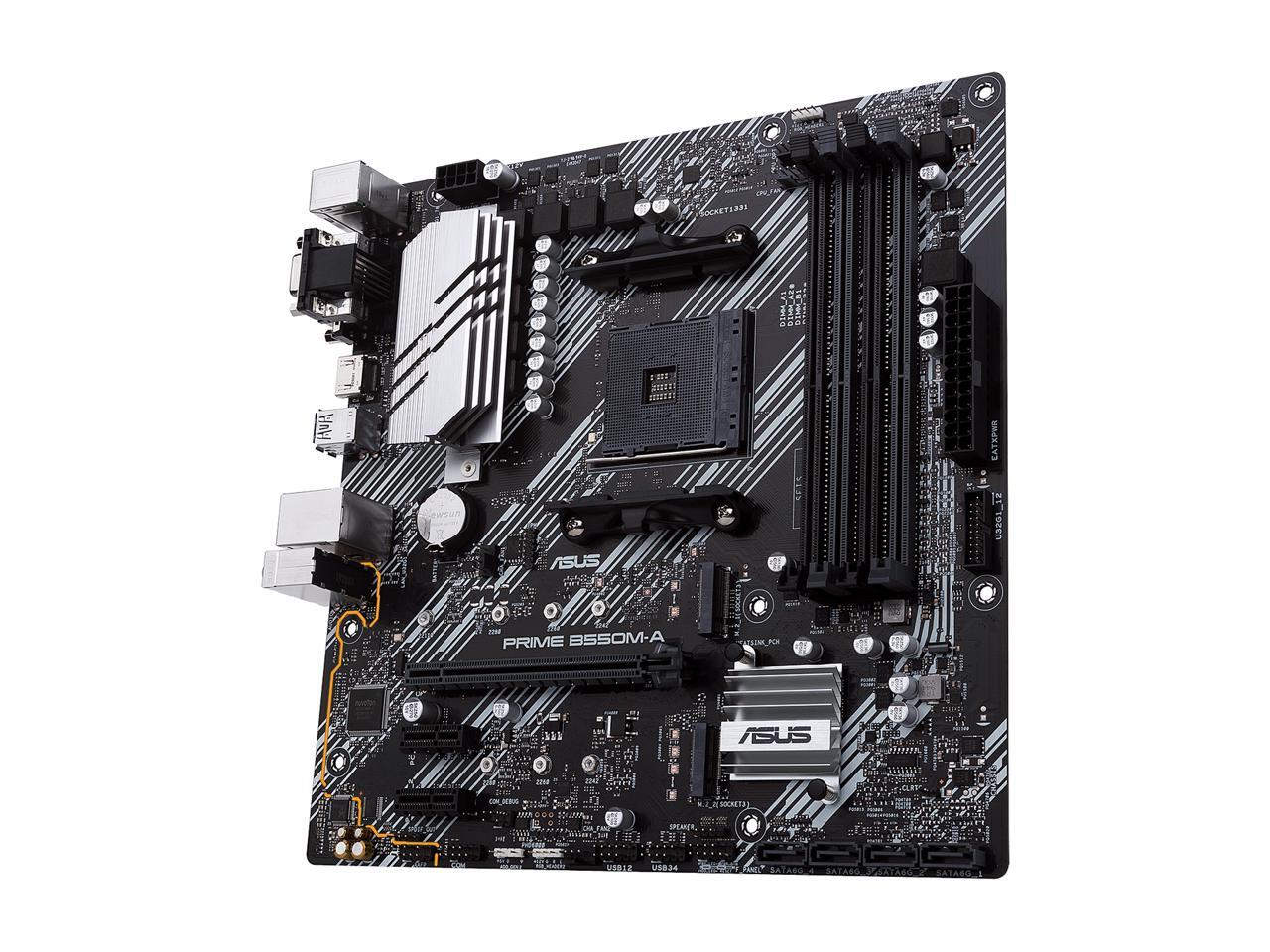

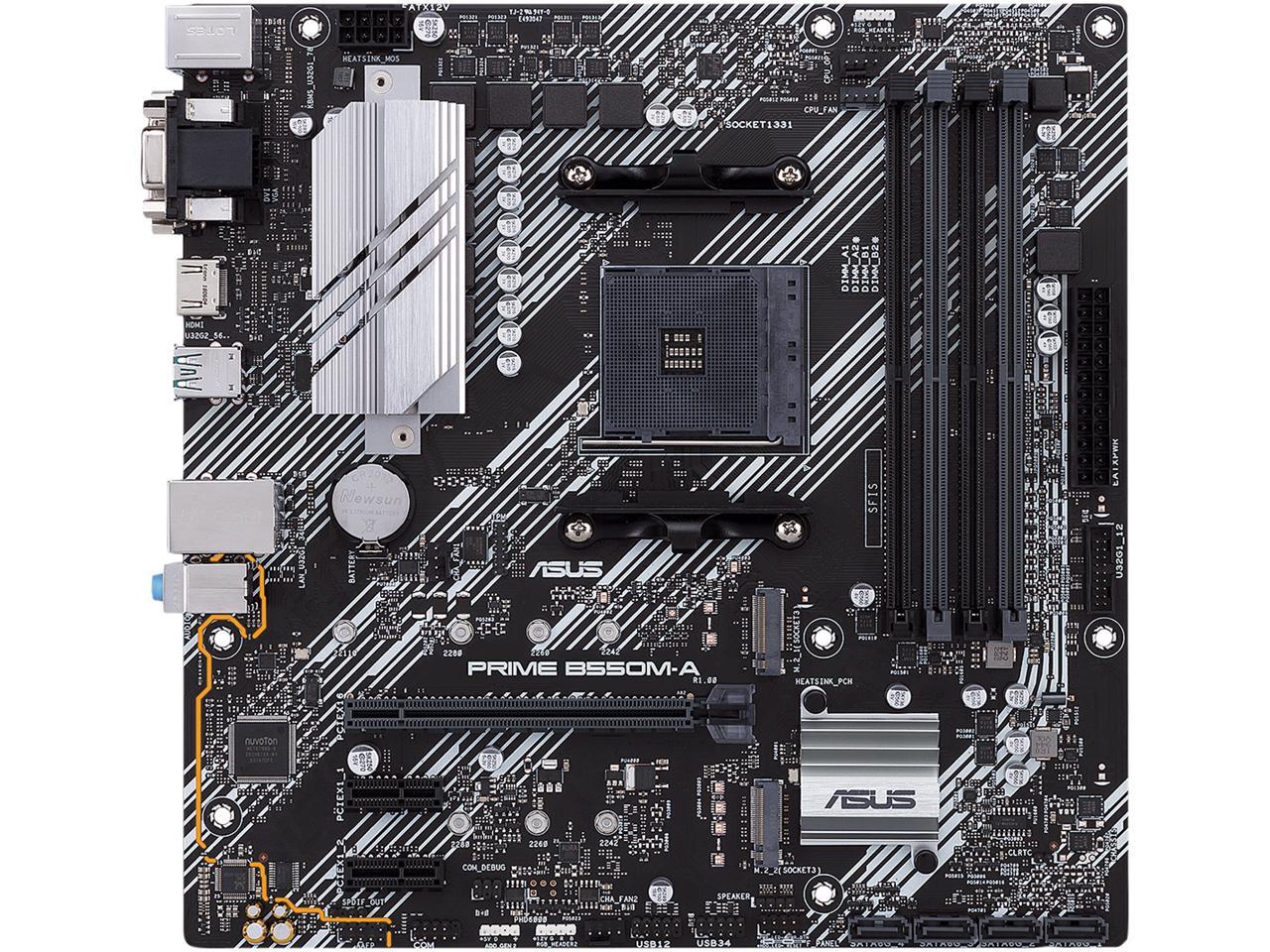

ASUS Prime B550M-A/CSM AMD AM4 (3rd Gen Ryzen) microATX Commercial Motherboard (PCIe 4.0, ECC Memory, 1Gb LAN, HDMI 2.1/D-Sub, 4K@60HZ, TPM, ASUS Control Center Express)

Name: ASUS PRIME B550M-A/CSM AM4 Micro ATX AMD Motherboard
Brand: ASUS
SKU: N82E16813119317
Rating: 4 (1888 reviews)

BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
AMD AM4 Socket and PCIe 4.0: The perfect pairing for 3rd Gen AMD Ryzen CPUs

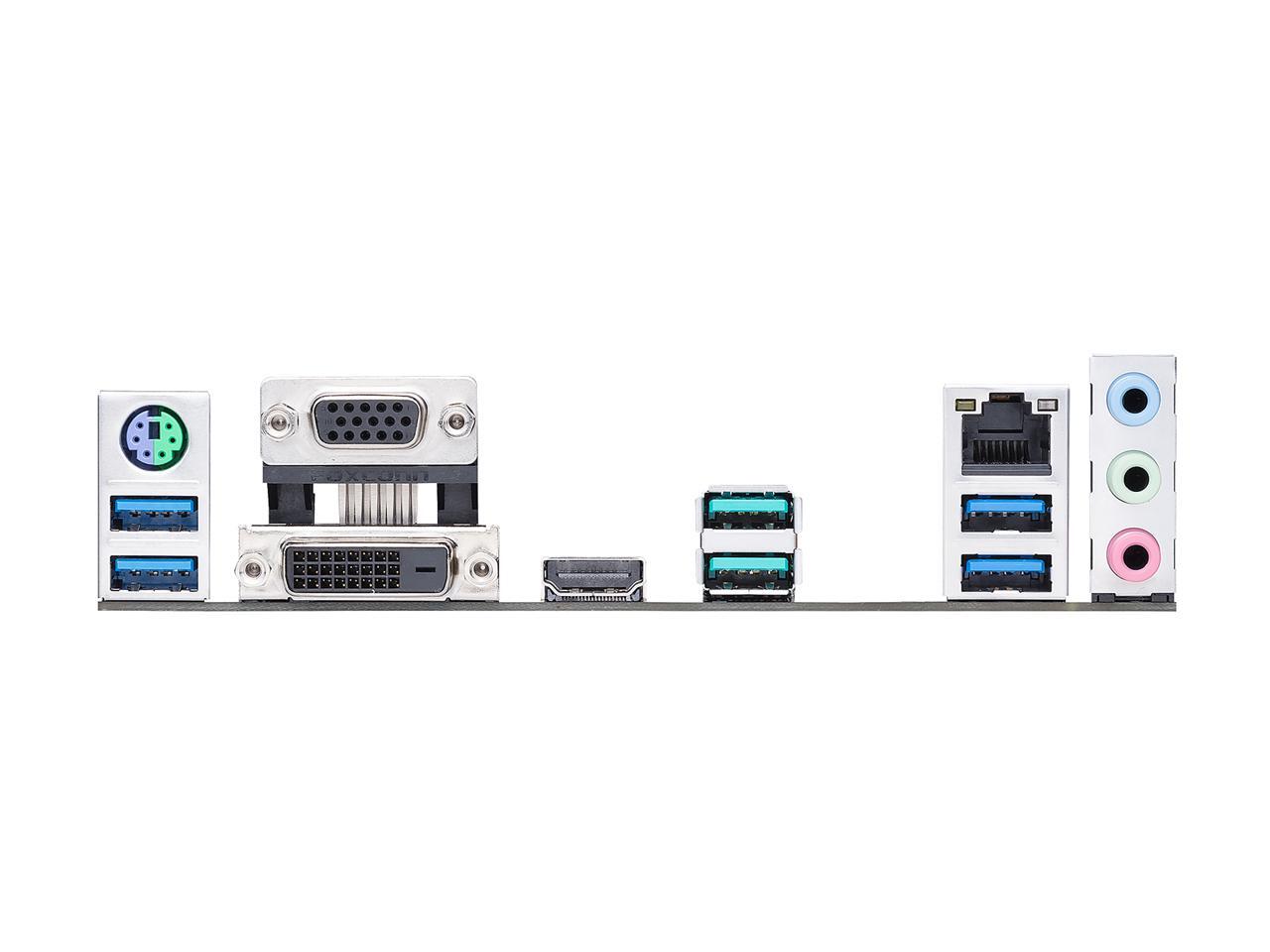

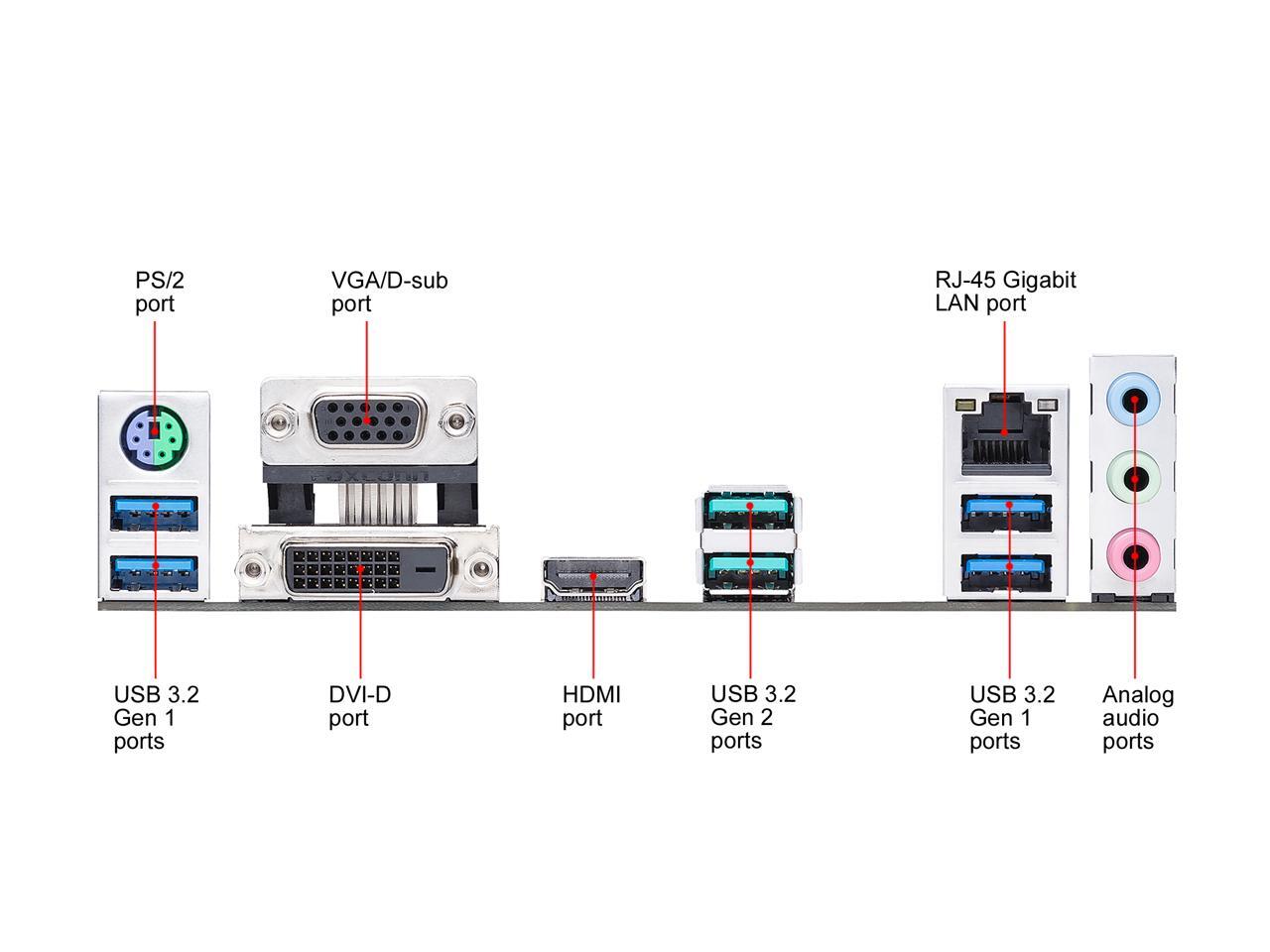

Fast Connectivity: 1Gb LAN, USB 3.2 Gen 2 Type-A ports, a front panel USB 3.2 Gen 1 connector, plus HDMI 2.1, D-Sub, and DVI display outputs
First PCIe 4.0 CSM motherboard: ASUS Corporate Stable Model with up to 36-month supply, EOL notice, and ECN control
ASUS Control Center Express (ACCE) to make IT endpoint management simpler
5X Protection III: all-round protection with LANGuard, DRAM overcurrent protection, overvoltage protection, SafeSlot Core safeguards and stainless-steel back I/O

Overview

Specs

Reviews (1,888)

Warranty & Returns

CPU Socket Type	AM4
CPU Type	BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	3rd Gen AMD Ryzen Processors DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * 3rd Gen AMD Ryzen with Radeon Graphics Processors DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 4.0 x16	3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode) 3rd Gen AMD Ryzen with Radeon Graphics Processors 1 x PCIe 3.0 x16 (x16 mode)
PCI Express x1	AMD B550 Chipset 2 x PCIe 3.0 x1 slots * Support PCIe bifurcation for RAID on CPU function.

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	3rd Gen AMD Ryzen Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support 3rd Gen AMD Ryzen with Radeon Graphics Processors: 1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 3.0 x4 and SATA modes) storage devices support AMD B550 Chipset: 1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
SATA RAID	0/1/10

Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels * A chassis with an HD audio module in the front panel is required to support 7.1-channel audio output.

Onboard USB	1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports
Other Connectors	1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 2 x Chassis Fan connector(s) 2 x Aura RGB Strip Headers 1 x Addressable Gen 2 header(s) 1 x SPI TPM header 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector

Form Factor	Micro ATX
LED Lighting	RGB

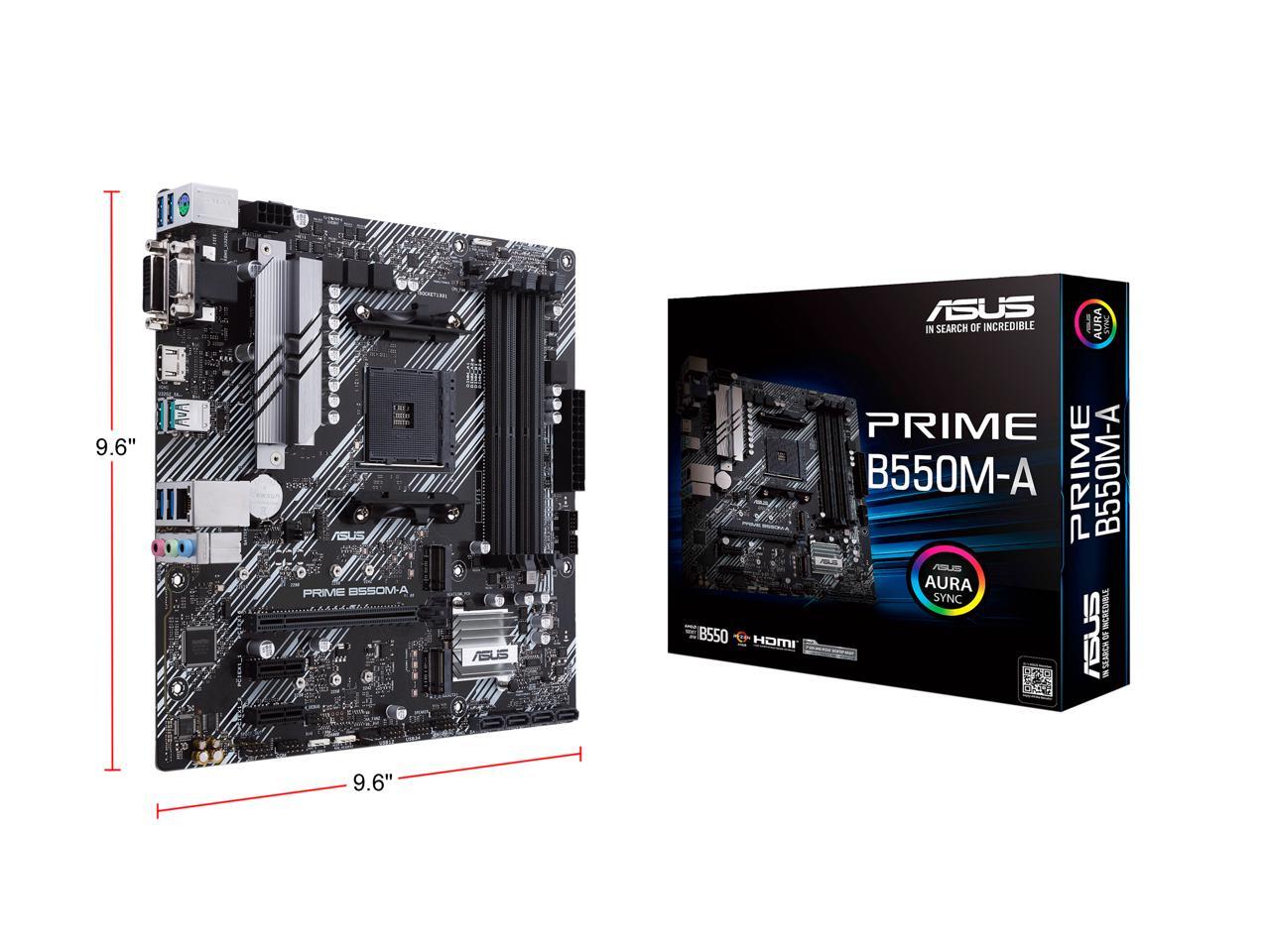

Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps
