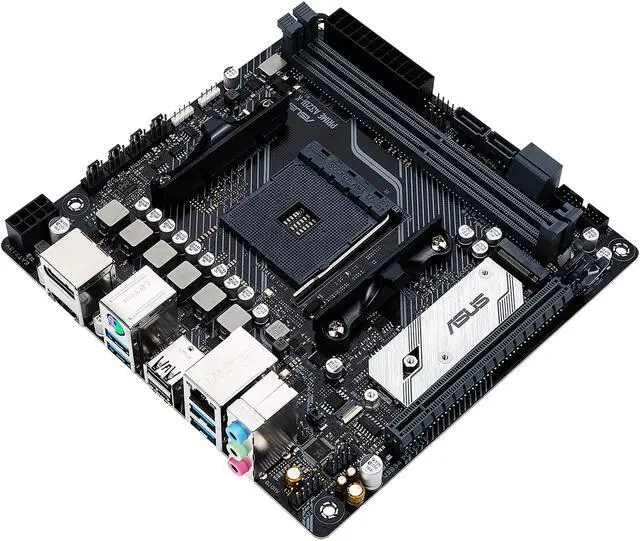

ASUS PRIME A320I-K/CSM AM4 AMD A320 Mini ITX AMD Motherboard

OPEN BOX

AMD A320
AMD AM4 Socket for 2nd/1st AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / 7th Generation A-series/Athlon X4 Processors
AMD Ryzen 2nd Generation Processors
DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
AMD Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors
DDR4 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
AMD 7th Generation A-series/Athlon Processors
DDR4 2400/ 2133 MHz Non-ECC, Un-buffered Memory

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Overview

Specs

Model
Brand	ASUS
Model	PRIME A320I-K/CSM

Supported CPU
CPU Socket Type	AM4
CPU Type	AMD AM4 Socket for 2nd/1st AMD Ryzen / 2nd and 1st Gen AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / 7th Generation A-series/Athlon X4 Processors

Chipsets
Chipset	AMD A320

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	AMD Ryzen 2nd Generation Processors DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory AMD Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors DDR4 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory AMD 7th Generation A-series/Athlon Processors DDR4 2400/ 2133 MHz Non-ECC, Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	32GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	AMD Ryzen 2nd Generation/Ryzen 1st Generation Processors 1 x PCIe 3.0/2.0 x16 (x16 mode) AMD Ryzen with Radeon Vega Graphics / 7th Generation A-Series/Athlon X4 Processors 1 x PCIe 3.0/2.0 x16 (x8 mode) AMD Athlon with Radeon Vega Graphics Processors 1 x PCIe 3.0/2.0 x16 (x4 mode)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s port(s), gray
M.2	AMD Ryzen 2nd Generation / Ryzen with Radeon Vega Graphics / Ryzen 1st Generation Processors: 1 x M.2 Socket 3, with M Key, type 2242/2260/2280 storage devices support (both PCIE 2.0 x4 & SATA mode) AMD 7th Generation A-Series/Athlon X4 Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode) AMD Athlon with Radeon Vega Graphics Processors: 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Integrated Graphics in the AMD Ryzen with Radeon Vega Graphics / Athlon with Radeon Vega Graphics / 7th Generation A-Series APU Multi-VGA output support: HDMI/DisplayPort ports - Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 24 Hz / 2560 x 1600 @ 60 Hz - Supports DisplayPort with max. resolution 4096 x 2160 @ 60 Hz Maximum shared memory of 2048MB (for iGPU exclusively)

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	8 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Rear Panel Ports

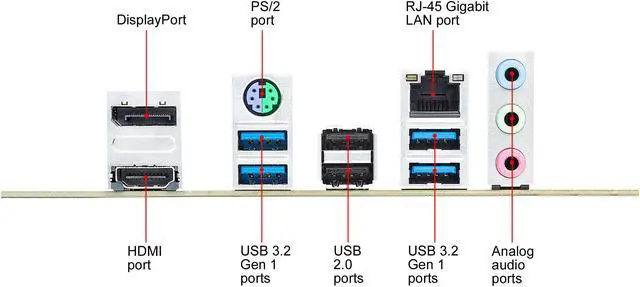

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DisplayPort 1 x HDMI 1 x LAN (RJ45) port(s) 4 x USB 3.2 Gen 1 (blue) 2 x USB 2.0 3 x Audio jack(s)

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) (19-pin) 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
Other Connectors	2 x Aura RGB Strip Headers 1 x TPM header 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) (1 x 4-pin) 2 x Chassis Fan connector(s) (1 x 4-pin) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s) 1 x Clear CMOS jumper(s)

Physical Spec
Form Factor	Mini ITX
LED Lighting	RGB
Dimensions (W x L)	6.7" x 6.7"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s)

Software Feature
Windows 11	Supported

Features
Features	Special Features: ASUS 5X Protection III: - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage - ASUS Overvoltage Protection: World-class circuit-protecting power design - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability! - ASUS DIGI+ VRM: Premium components provide better power efficiency - ASUS ESD Guards - Enhanced ESD protection ASUS EPU: - EPU AURA: - Aura Lighting Control - Aura RGB Strip Headers ASUS Exclusive Features: - AI Suite 3 - Ai Charger ASUS Quiet Thermal Solution: - Stylish Fanless Design Heat-sink solution - ASUS Fan Xpert 2+ ASUS EZ DIY: - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Q-Design: - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED) - ASUS Q-Slot - ASUS Q-DIMM BIOS: 128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information Operating System: Windows 10 64-bit
