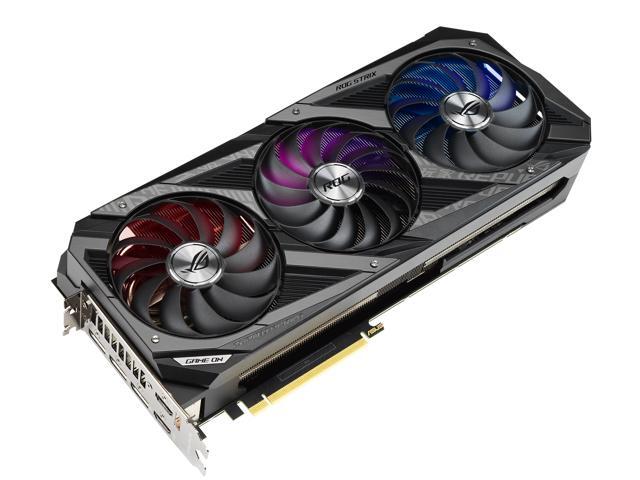

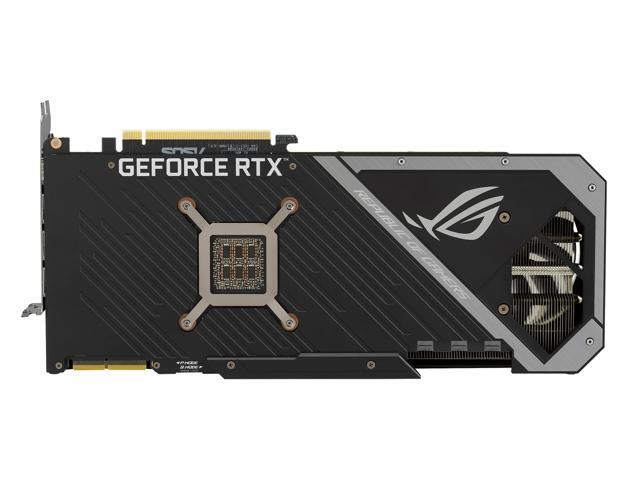

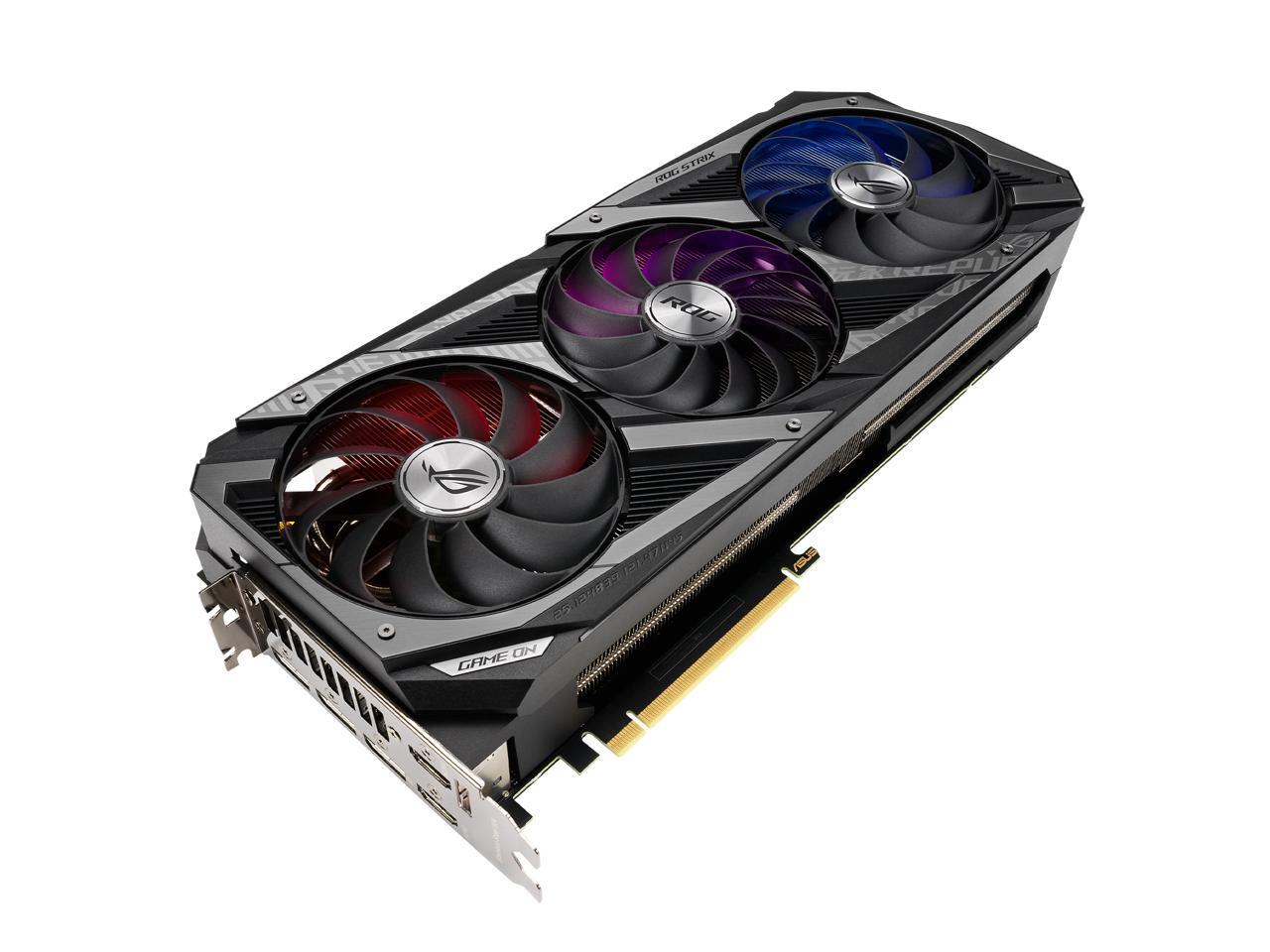

Learn more about the ASUS ROG-STRIX-RTX3090-O24G-GAMING
Model
Brand
ASUS
Series
ROG Strix
Model
ROG-STRIX-RTX3090-O24G-GAMING
Interface
Interface
PCI Express 4.0
Chipset
Chipset Manufacturer
NVIDIA
GPU Series
NVIDIA GeForce RTX 30 Series
GPU
GeForce RTX 3090
Core Clock
1890 MHz
Boost Clock
OC Mode - 1890 MHz Gaming Mode - 1860 MHz
CUDA Cores
10496 Cores
Memory
Effective Memory Clock
19.5 Gbps
Memory Size
24GB
Memory Interface
384-Bit
Memory Type
GDDR6X
3D API
DirectX
DirectX 12
OpenGL
OpenGL 4.6

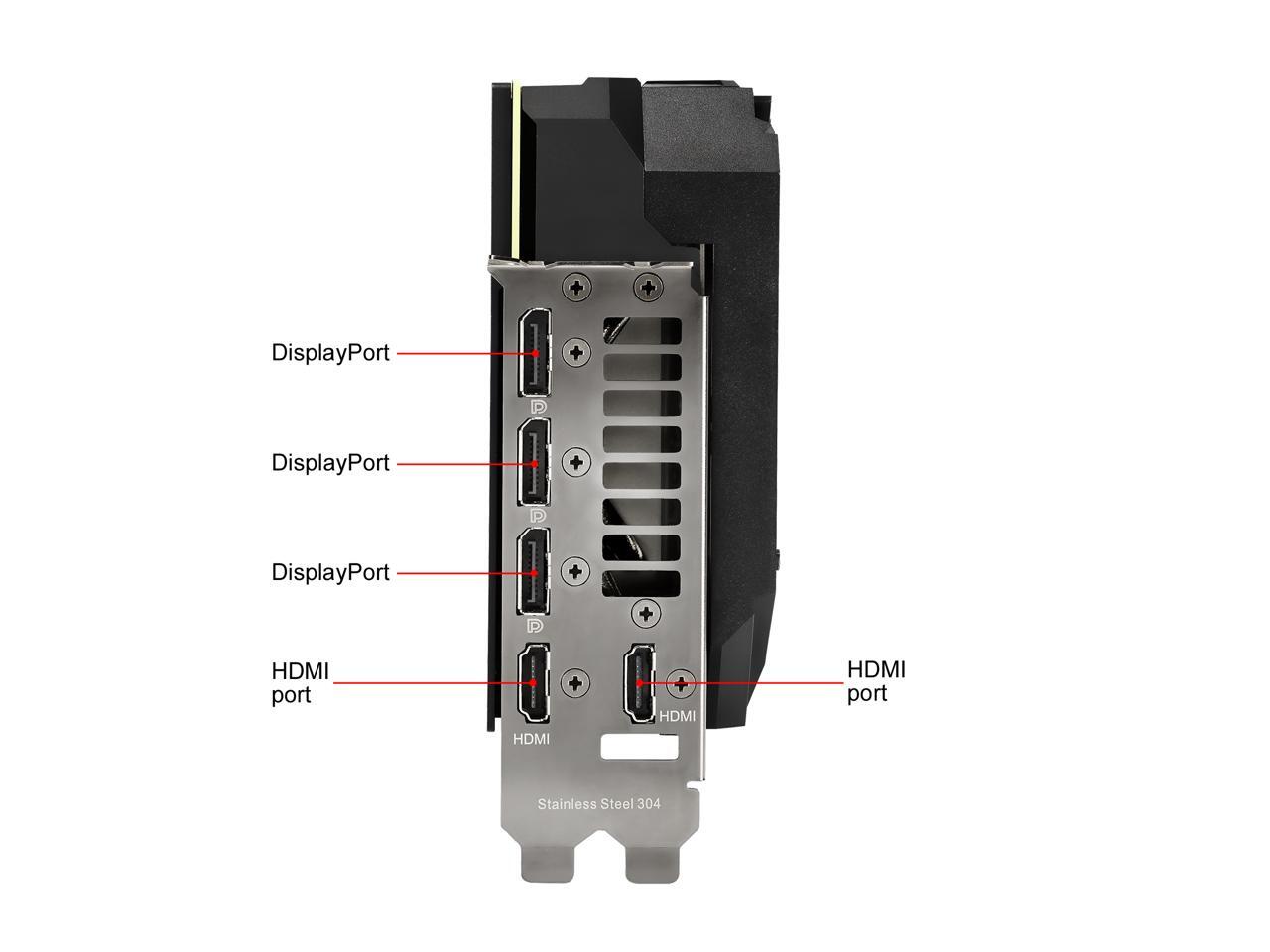

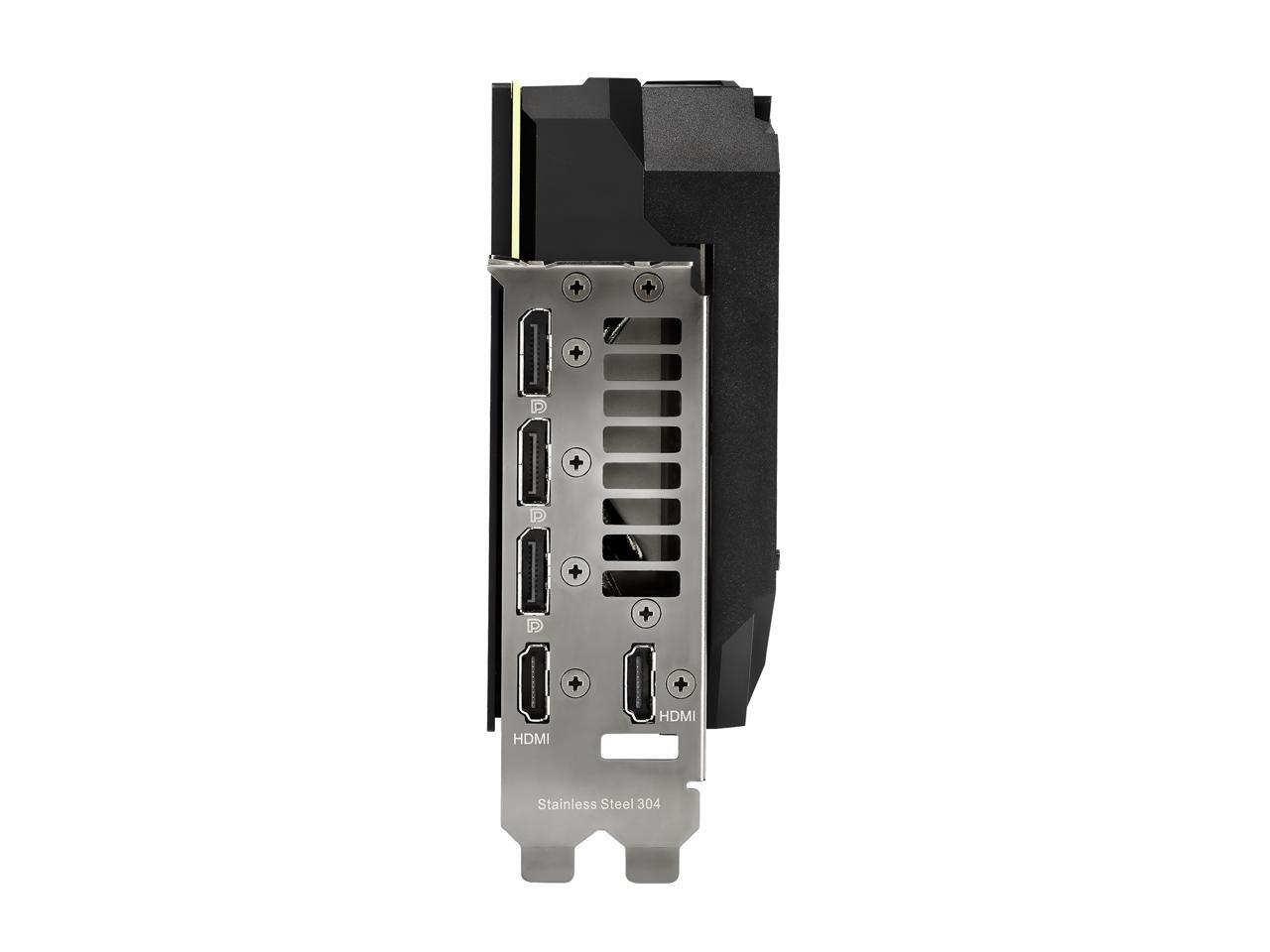

Ports
Multi-Monitor Support
4
HDMI
2 x HDMI 2.1
DisplayPort
3 x DisplayPort 1.4a
Details
Max Resolution
7680 x 4320
SLI Support
SLI Ready
Virtual Reality Ready
Yes
Cooler
Triple Fans
Thermal Design Power
750W
System Requirements
Recommended PSU: 850W
Recommended PSU Wattage
850W
Power Connector
3 x 8-Pin
HDCP Ready
2.3
Features
Features
NVIDIA Ampere Streaming Multiprocessors: The building blocks for the world's fastest, most efficient GPU, the all-new Ampere SM brings 2X the FP32 throughput and improved power efficiency.
2nd Generation RT Cores: Experience 2X the throughput of 1st gen RT Cores, plus concurrent RT and shading for a whole new level of ray tracing performance.
3rd Generation Tensor Cores: Get up to 2X the throughput with structural sparsity and advanced AI algorithms such as DLSS. Now with support for up to 8K resolution, these cores deliver a massive boost in game performance and all-new AI capabilities.
Axial-tech Fan Design has been tuned up with more fan blades and a reversed rotational direction for the center fan.
2.9-slot design expands cooling surface area compared to last gen for more thermal headroom than ever before.
Super Alloy Power II includes premium alloy chokes, solid polymer capacitors, and an array of high-current power stages.
GPU Tweak II provides intuitive performance tweaking, thermal controls, and system monitoring.
Form Factor & Dimensions
Max GPU Length
319 mm
Card Dimensions (L x H)
12.53" x 5.51"
Slot Width
2.9-slot
Packaging
Package Contents
Accessories: 1 x ROG Velcro Hook & Loop 1 x Collection card 1 x ROG ruler 1 x Speedsetup manual
Additional Information
Date First Available
February 24, 2023
