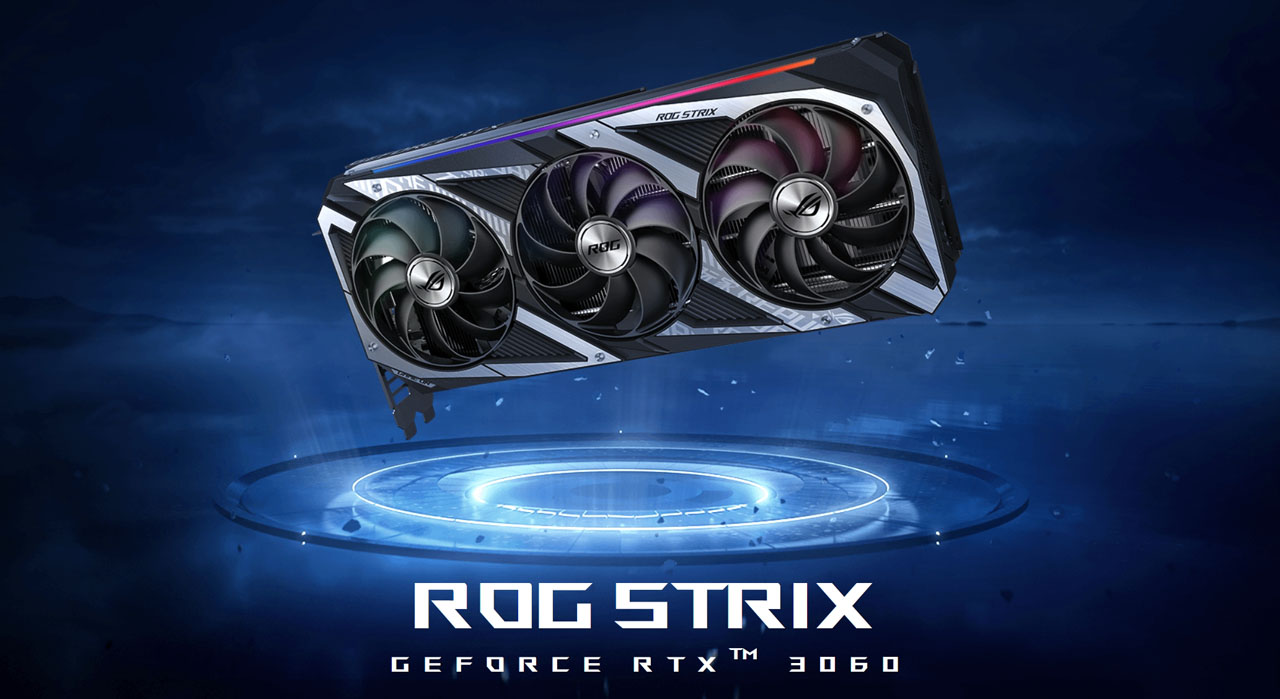

ASUS ROG Strix GeForce RTX 3060 V2 OC Edition
The GeForce RTX 3060 is a sweet spot class graphics card powered by Ampere — NVIDIA’s 2nd generation RTX architecture. Built with enhanced Ray Tracing Cores and Tensor Cores, new streaming multiprocessors, and high-speed G6 memory, the GeForce RTX 3060 offers incredible performance to dominate 1080p gaming.
This ROG Strix OC edition supports up to 1912 MHz Boost Clock (OC Mode) (1780 MHz for reference card) for more FPS power. From inside out, this card has been radically improved in cooling to fully unleash the performance of the NVIDIA Ampere architecture. On top of performance, it also boasts a fresh design with complementary RGB lighting, giving you a graphics card that stands out in every way.
Axial-tech Fan Design
Three cutting edge fans feature a smaller hub that facilitates longer blades and a barrier ring to increase downward air pressure.
The two side fans spin counterclockwise to reduce turbulence. And to eliminate unnecessary noise, a stop mode halts all fans when the GPU temp falls below 50 degrees and power consumption is low.
To get heat up off the die and into the heatsink array to benefit from the new fan design requires special attention. We use a manufacturing process that polishes the surface of the heat spreader to improve smoothness at the microscopic level. The extra flatness allows for better contact with the die for improved thermal transfer.
* For illustration only
The heat spreader draws heat up into heatpipes that carry it through a fin stack that fills most of the card’s large, 2.7-slot footprint.
Top-shelf capacitors, chokes, and MOSFETs are selected to effortlessly deliver hundreds of watts at a millisecond’s notice. The Super Alloy Power II parts are soldered to the PCB using our advanced Auto-Extreme automated manufacturing process. Smooth joints on the rear of the PCB and the elimination of human errors ensures each graphics card meets our rigorous specifications.
The rear of the ROG Strix graphics card sports two PWM FanConnect headers that provide additional DIY flexibility. Chassis fans can be directly attached to the GPU and tuned with a curve that is based on CPU or GPU temperature, providing extra intake or exhaust for demanding 3D tasks.
In addition to under-the-hood design changes, the ROG Strix features a new face with metal accents that mirror the design aesthetic of ROG and ROG Strix motherboards. Textured accents in a greyscale colorway blend seamlessly into subtle builds or make a striking impact while the card is vertically mounted and lit by chassis LEDs.
It's Cooler Out Back
Flipping the card around reveals more design improvements. For enhanced heat dissipation, a wide backplate vent and shortened PCB allow hot air to escape towards chassis exhaust fans instead of being recycled back into the cooler. The I/O bracket is made from stainless steel to protect ports and provide a more secure mount. A conveniently placed Dual BIOS switch allows quick selection between “performance” and “quiet” mode for basic customization of the card’s default behavior without software. To top it off, an ROG logo with addressable RGB backlighting adds flair.
A new addressable RGB element lines the front edge of the card and can be customized with Armoury Crate software to sync lighting and effects with other ROG components. To fulfill the power demands of the GeForce RTX 3060, an 8-pin power connector is present, along with an onboard circuit that monitors PSU rail voltage. The circuit is fast enough to catch any transients that result in the rail voltage dropping too low. If that happens, a red LED will light up to indicate a power supply issue.

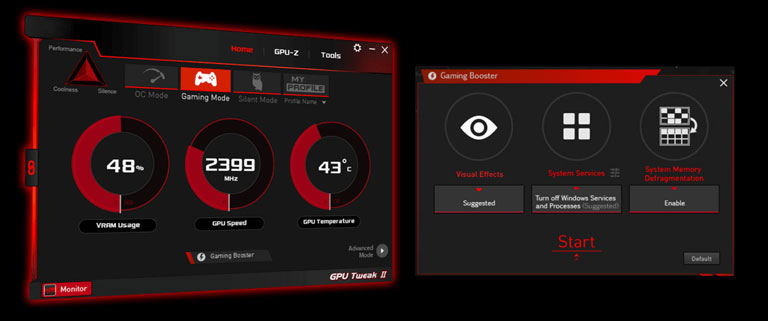

GPU Tweak II
The ASUS GPU Tweak II utility takes graphics card tuning to the next level. It allows you to tweak critical parameters including GPU core clocks, memory frequency, and voltage settings, with the option to monitor everything in real-time through a customizable on-screen display. Advanced fan control is also included along with many more features to help you get the most out of your graphics card.
We've partnered with wtfast to help you to play free from lag, latency issues, and lost packets. With a 6-month subscription to the wtfast Gamers Private Network, you'll enjoy lower ping for a smoother, more fluid online gaming experience. Buy an ASUS graphics card — and don't be left waiting!
XSplit offers a premium streaming experience with in-game annotations and other advanced features. Enjoy a free license with the purchase of select ASUS graphics cards. See you online!
QuantumCloud is a safe and easy-to-use application that lets you effortlessly earn extra money by sharing your graphics card’s computing power. Earnings are accessible through your PayPal or WeChat account, and QuantumCloud also supports multiple exchange methods, including Steam. In addition, QuantumCloud doesn’t collect any personal data, so your privacy stays protected. Get started right away with just one click!
