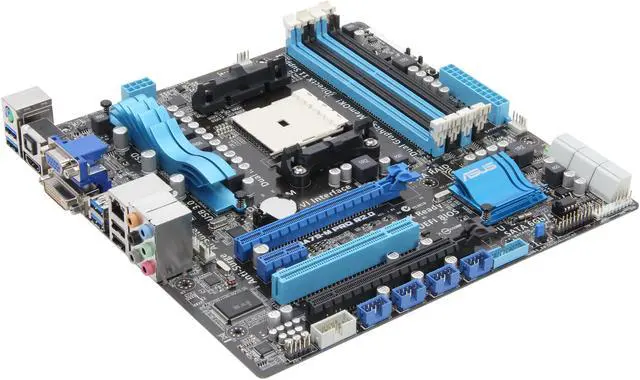

Main image of ASUS F1A75-M PRO R2.0 FM1 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard with UEFI BIOS

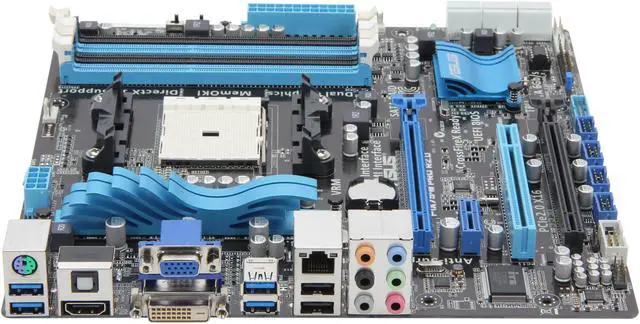

Alt view image 2 of 5 - ASUS F1A75-M PRO R2.0 FM1 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard with UEFI BIOS

Alt view image 3 of 5 - ASUS F1A75-M PRO R2.0 FM1 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard with UEFI BIOS

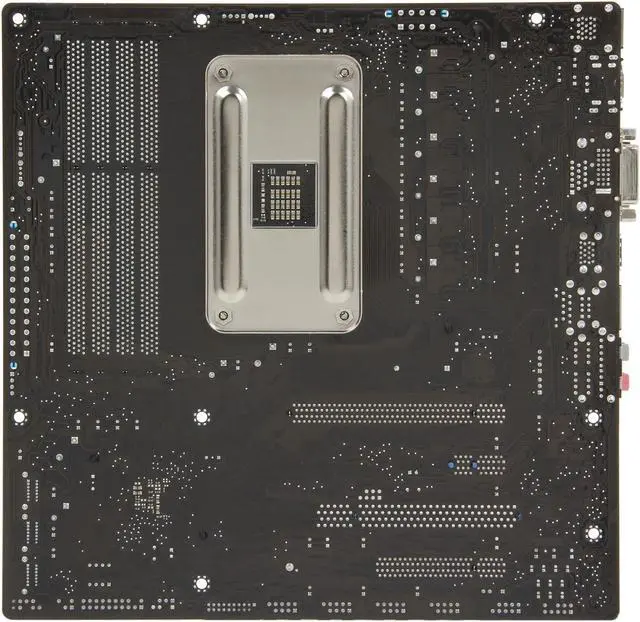

Alt view image 4 of 5 - ASUS F1A75-M PRO R2.0 FM1 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard with UEFI BIOS

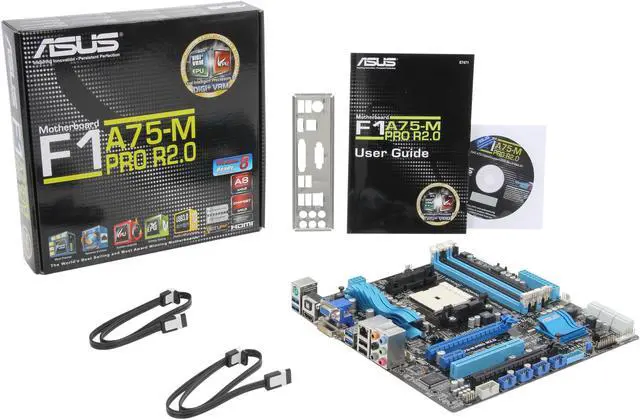

Alt view image 5 of 5 - ASUS F1A75-M PRO R2.0 FM1 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard with UEFI BIOS

Shop All ASUS Products

ASUS F1A75-M PRO R2.0 FM1 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard with UEFI BIOS

Name: ASUS F1A75-M PRO R2.0 FM1 Micro ATX AMD Motherboard with UEFI BIOS
Brand: ASUS
SKU: N82E16813131871
Rating: 4 (22 reviews)

(22) Write a Review

AMD A75 (Hudson D3)
A-Series / Athlon Series / E2-Series / Sempron
DDR3 2250(O.C.)/1866/1600/1333/1066

Overview

Specs

Reviews (22)

AMD® A-& E2- series Accelerated Processor with AMD Radeon™ HD 6000 Series Graphics

This motherboard supports AMD® A-& E2- series Accelerated Processor with AMD Radeon™ HD 6000 Series Graphics. This revolutionary APU (Accelerated Processing Unit) combines processing power and advanced DirectX 11 graphics in one small, energy-efficient design to enable accelerated performance and an industry-leading visual experience. It features Dual-channel DDR3 memory support and accelerates data transfer rate up to 5GT/s.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.ca's Standard Return Policy.
Read full return policy for details.

Number of Memory Slots	4x240pin
Memory Standard	DDR3 2250(O.C.)/1866/1600/1333/1066
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

PCI Express 2.0 x16	2 (x16, x4)
PCI Express x1	1 x PCI Express x1
PCI Slots	1 x PCI Slot

Serial ATA (SATA)	6 x SATA 6Gb/s
SATA RAID	0/1/10/JBOD

Audio Chipset	Realtek ALC892
Audio Channels	8 Channels

LAN Chipset	Realtek 8111F
Max LAN Speed	1Gbps

ASUS F1A75-M PRO R2.0 FM1 AMD A75 (Hudson D3) USB 3.0 HDMI Micro ATX AMD Motherboard with UEFI BIOS

Learn more about the ASUS F1A75-M PRO R2.0

Customer Reviews of the ASUS F1A75-M PRO R2.0

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

CPU Socket Type	FM1
CPU Type	A-Series / Athlon Series / E2-Series / Sempron

Back I/O Ports	1 x D-Sub / 1 x DVI / 1 x HDMI / 1 x Optical S/PDIF Out / 1 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 1 / 6 x Audio Jacks
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	D-Sub + DVI
HDMI	1 x HDMI
USB 3.0	4 x USB 3.0
USB 1.1/2.0	2 x USB 2.0
S/PDIF Out	1 x Optical
Audio Ports	6 Ports

Onboard USB	2 x USB 3.0 + 8 x USB 2.0
Other Connectors	1 x TPM connector(s) 1 x COM port(s) connector(s) 1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x Power Fan connector(s) 1 x S/PDIF out header(s) 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x Front panel audio connector(s) (AAFP) 1 x System panel(s)

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	24 Pin
