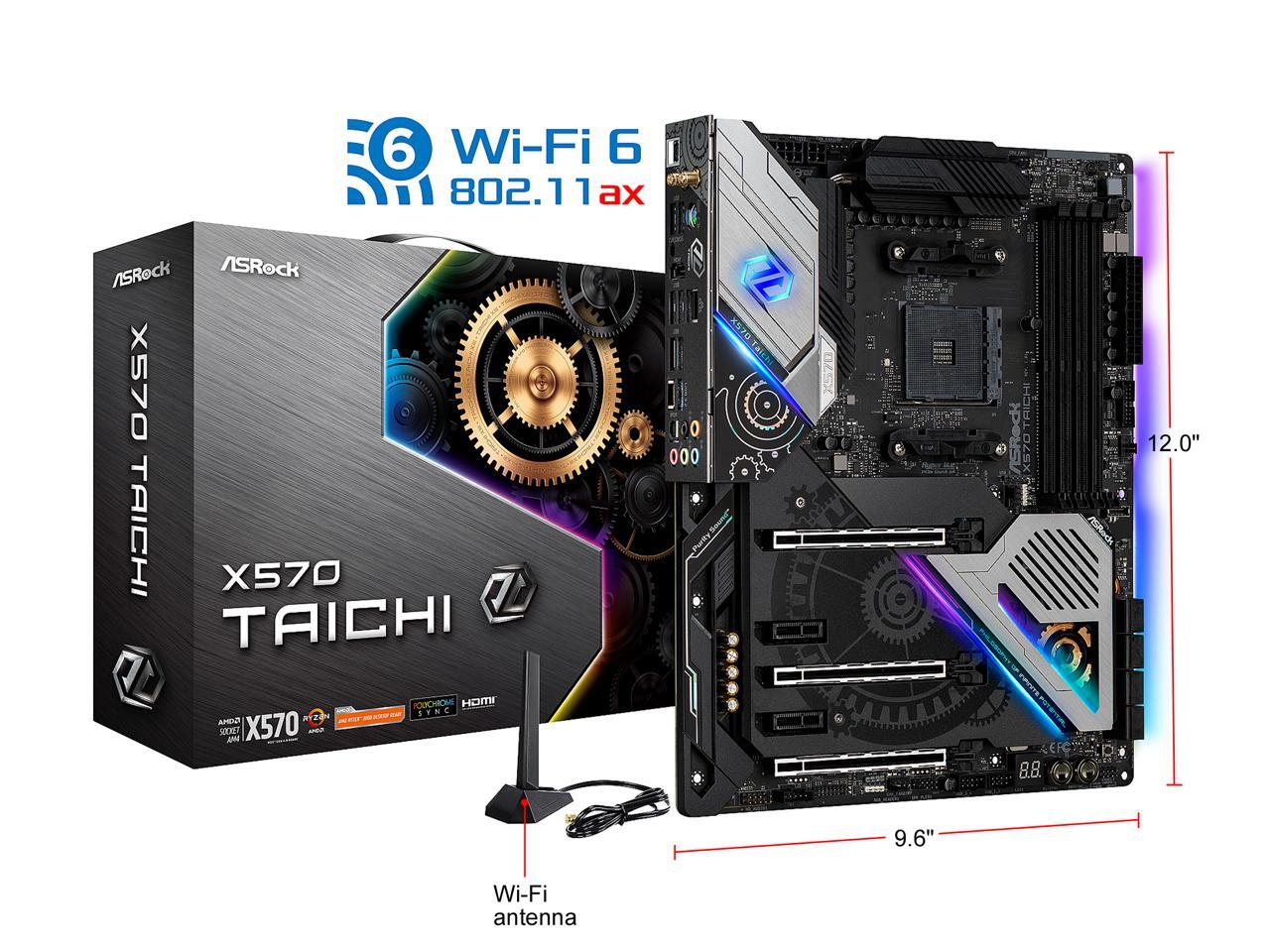

Images from RETAIL item, box contents may vary.
ASRock X570 TAICHI AM4 AMD X570 SATA 6Gb/s ATX AMD Motherboard
OPEN BOX Product Type
See more "asrock x570"
Check more best sellers of "AMD Motherboards"
Check more lowest price of "AMD Motherboards"
In stock. Limit 5 per customer.
Ships from Canada.
- BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU
- AMD X570
- Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 2000 Series Processors
- DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer & Matisse), APUs (Renoir))
- DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Pinnacle Ridge))
- DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Picasso))
+
+
Specs
Learn more about the ASRock X570 TAICHI
| Brand | ASRock |
|---|---|
| Model | X570 TAICHI |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | Supports AMD Ryzen 5000 Series / 4000 G-Series / 3000 Series / 2000 Series Processors* * BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list. |
| Chipset | AMD X570 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 4666+(OC) / 4400(OC) / 4300(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Vermeer & Matisse), APUs (Renoir)) DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Pinnacle Ridge)) DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 (AMD Ryzen series CPUs (Picasso)) |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| Buffer Supported | Un-buffered |
| PCI Express 4.0 x16 | 3 x PCI Express 4.0 x16* * Actual support may vary by CPU. * Supports NVMe SSD as boot disks. * When Picasso is installed, this motherboard supports single graphics card on either PCIE1 or PCIE5 only. |
|---|---|
| PCI Express x1 | 2 x PCI Express 4.0 x1 |
| Other Slots | 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11 ax module (on the rear I/O) 15µ Gold Contact in VGA PCIe Slot (PCIE1) |
| SATA 6Gb/s | 8 x SATA 6Gb/s |
|---|---|
| M.2 | 1 x Hyper M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)* 1 x Hyper M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s)* 1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)* * If M2_3 is occupied, PCIE5 slot will be disabled. * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit. * Support RAID 0/1/10. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Audio Chipset | Realtek ALC1220 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel i211AT |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Intel 802.11 ax Wi-Fi Module IEEE802.11a/b/g/n/ax |
| Bluetooth | Bluetooth 5.0 |
| Back I/O Ports | 2 x Antenna Ports 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection) 1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection) 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)* 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) 1 x Clear CMOS Button 1 x BIOS Flashback Button HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks) * Ultra USB Power is supported on USB3_5_6 ports. * ACPI wake-up function is not supported on USB3_5_6ports. |
|---|
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection) |
|---|---|
| Other Connectors | 1 x TPM Header 1 x SPI TPM Header 1 x Power LED and Speaker Header 1 x AMD Fan LED Header* 1 x RGB LED Header** 1 x Addressable LED Header*** 1 x CPU Fan Connector (4-pin)**** 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****** 1 x Front Panel Audio Connector (15µ Gold Audio Connector) 1 x AMD LED Fan USB Header 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only) 1 x Dr. Debug with LED 1 x Power Button with LED 1 x Reset Button with LED 1 x Clear CMOS Button * The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. ** Supports in total up to 12V/3A, 36W LED Strip. *** Supports in total up to 5V/3A, 15W LED Strip. **** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ***** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. ***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX Power Connector (Hi-Density Power Connector) 1 x 8-pin 12V Power Connector (Hi-Density Power Connector) 1 x 4-pin 12V Power Connector (Hi-Density Power Connector) |
| Windows 11 | Supported |
|---|
| Date First Available | May 06, 2022 |
|---|
