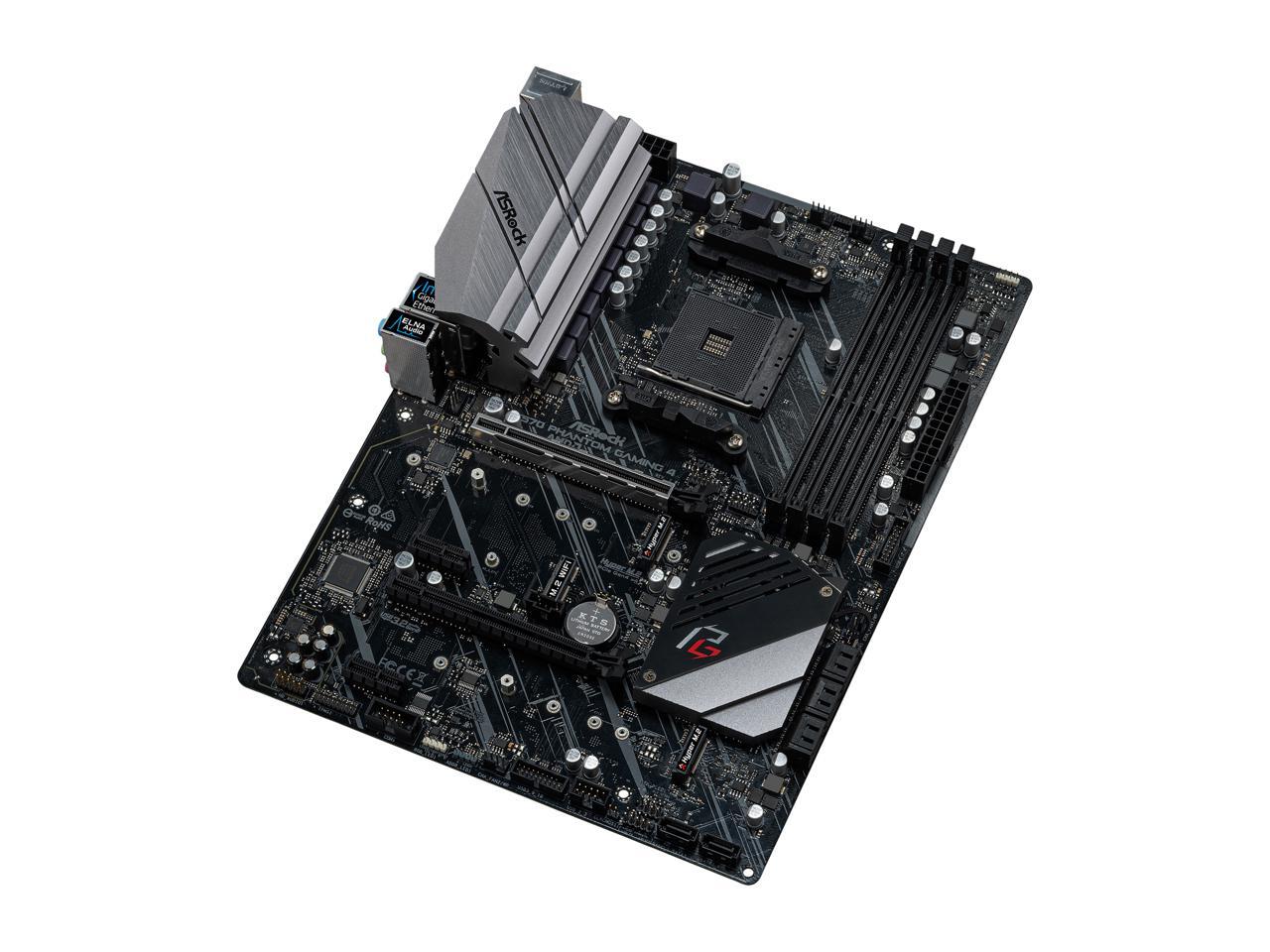

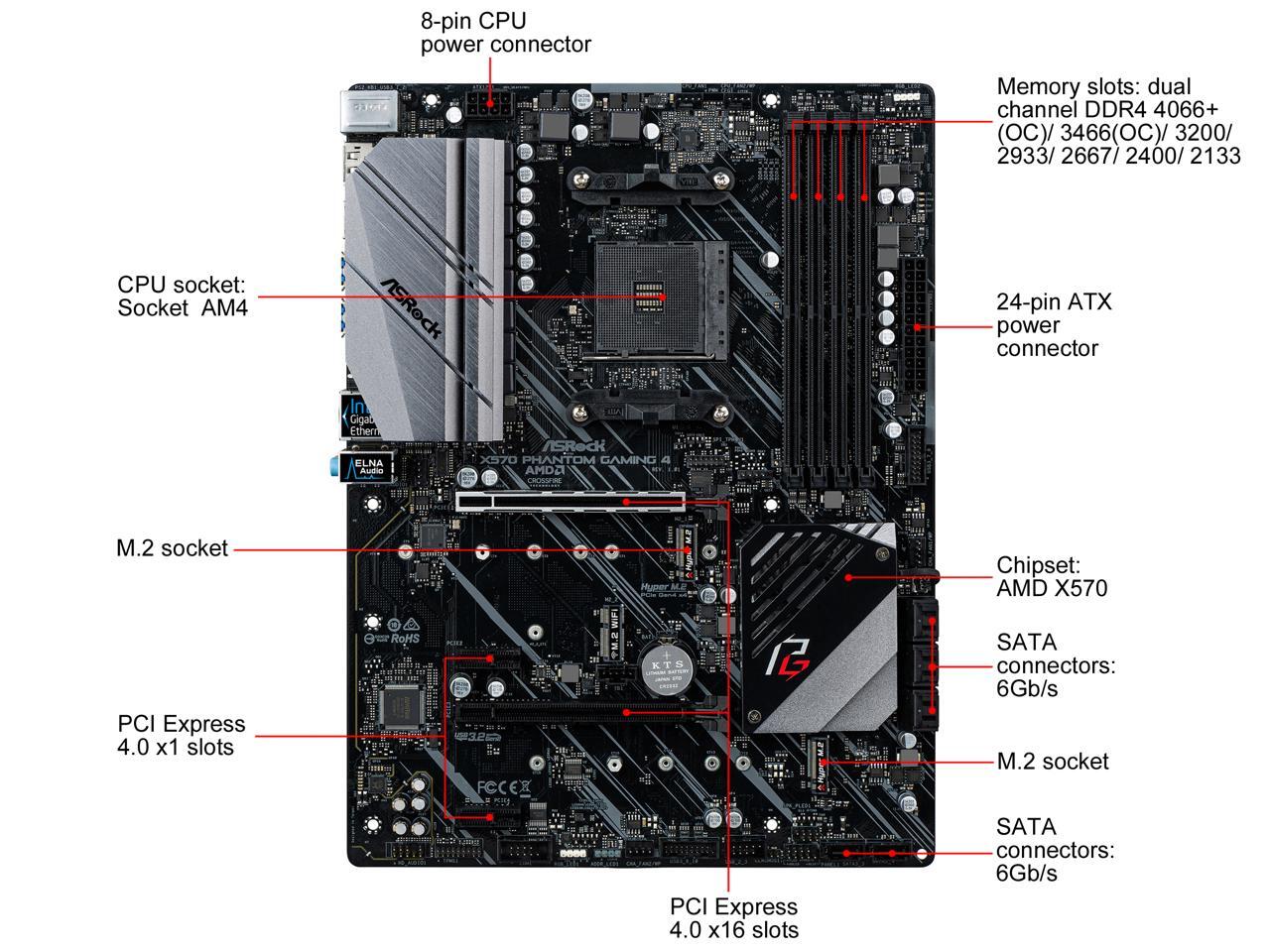

|Model||X570 PHANTOM GAMING 4|
|CPU Socket Type||AM4|
|CPU Type||Supports AMD AM4 socket Ryzen 2000 and 3000 series processors|
* BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASRock website for CPU support list.
|Number of Memory Slots||4x288pin (DDR4)|
|Memory Standard||AMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*|
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory*
* For Ryzen Series CPUs (Picasso), ECC is only supported with PRO CPUs
* Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
|Maximum Memory Supported||128GB|
* Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
|Channel Supported||Dual Channel|
|PCI Express 4.0 x16||AMD Ryzen series CPUs (Matisse)|
- 2 x PCI Express 4.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
AMD Ryzen series CPUs (Pinnacle Ridge)
- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE3))*
AMD Ryzen series CPUs (Picasso)
- 2 x PCI Express 3.0 x16 Slots (PCIE1/PCIE3: single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE3))*
* Supports NVMe SSD as boot disks
|PCI Express x1||2 x PCI Express 4.0 x1 Slots|
|Other Slots||1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module|
15µ Gold Contact in VGA PCIe Slot (PCIE1)
|SATA 6Gb/s||8 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug|
|M.2||1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280/22110 M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with Matisse) or Gen3 x4 (32Gb/s) (with Pinnacle Ridge and Picasso)*|
1 x Hyper M.2 Socket (M2_3), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen4 x4 (64Gb/s) (with Matisse) or Gen3 x4 (32Gb/s) (with Pinnacle Ridge and Picasso)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 Kit
|Onboard Video Chipset||Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU*|
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.**
Dual graphics output: support HDMI and DisplayPort 1.2 ports by independent display controllers
Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Ports (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.0
Supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.2 Ports
Supports Microsoft PlayReady
* Actual support may vary by CPU.
** The Max shared memory 16GB requires 32GB system memory installed.
|Audio Chipset||Realtek ALC1200|
|Audio Channels||7.1 Channels|
|LAN Chipset||Intel i211AT|
|Max LAN Speed||1Gbps|

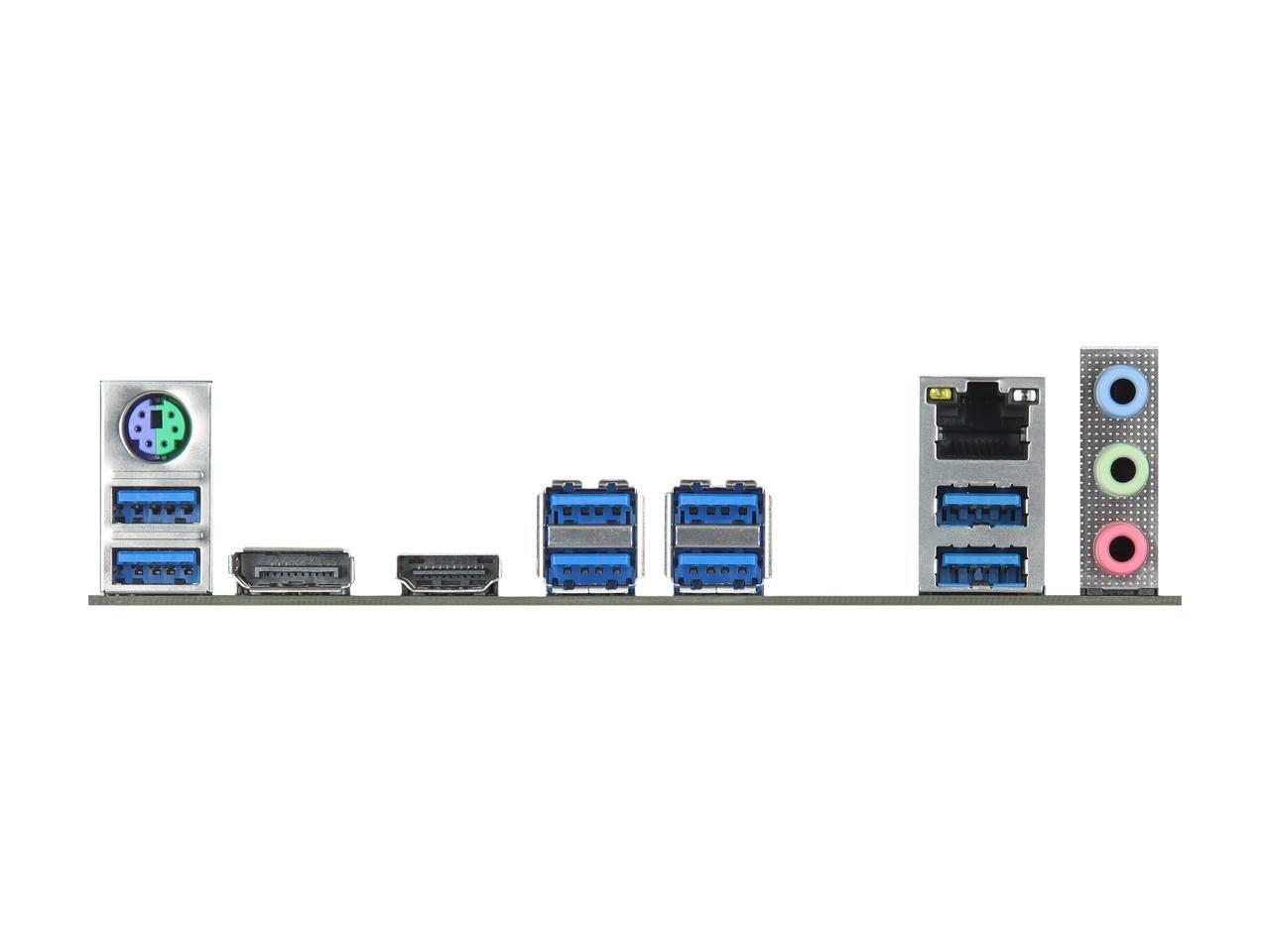

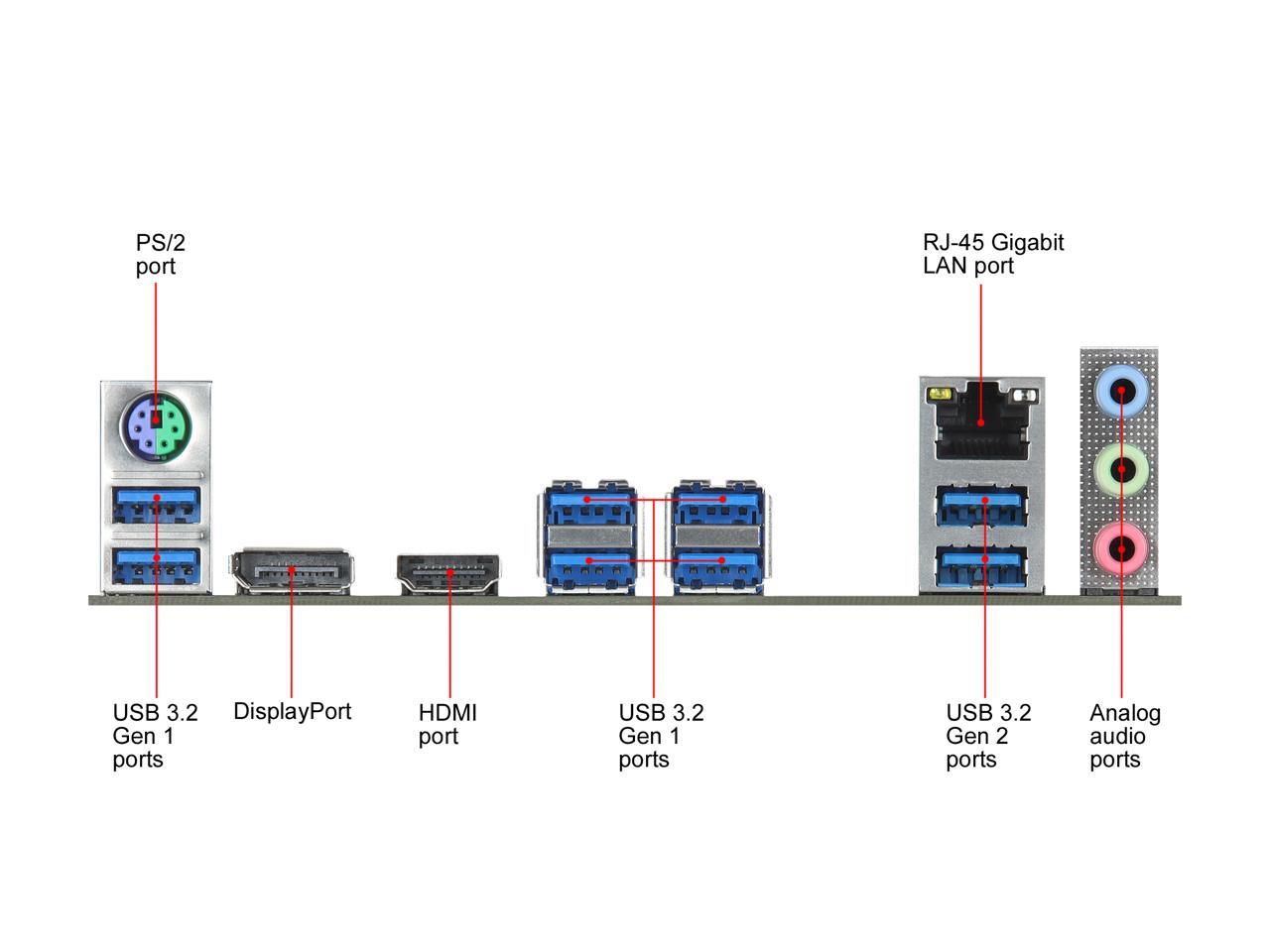

|Back I/O Ports||3 x Antenna Ports (on I/O Panel Shield)|
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.2
2 x USB 3.2 Gen2 Type-A Ports (10Gb/s) (Supports ESD Protection)
6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / Microphone
|Onboard USB||1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)|
2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
|Other Connectors||1 x COM Port Header|
1 x SPI TPM Header
1 x Power LED and Speaker Header
2 x RGB LED Headers*
1 x Addressable LED Header**
1 x CPU Fan Connector (4-pin)***
1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
1 x Front Panel Audio Connector
1 x AMD LED Fan USB Header
1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt AIC Card only)
* Support in total up to 12V/3A, 36W LED Strip.
** Supports in total up to 5V/3A, 15W LED Strip.
*** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
**** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
***** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use.
|Dimensions (W x L)||12.0" x 9.0"|
|Power Pin||1 x 24-pin ATX Power Connector|
1 x 8-pin 12V Power Connector
|Date First Available||November 03, 2019|
