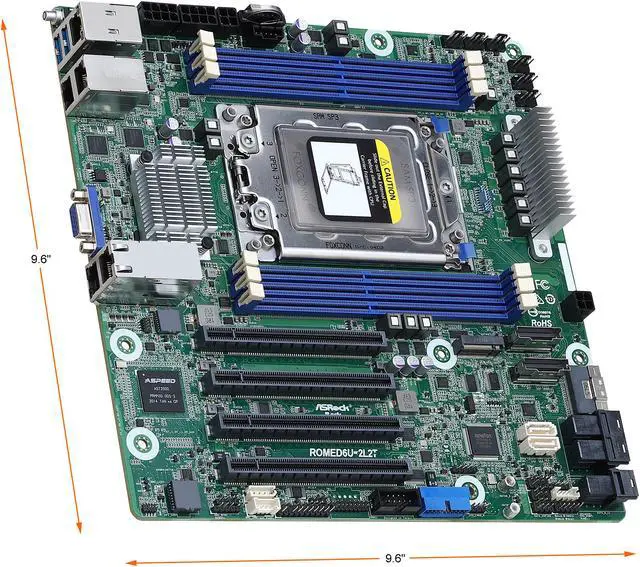

AsRock Rack ROMED6U-2L2T Micron-ATX Server Motherboard AMD SP3 (LGA4094) EPYC 7002 and 7001 series
- Micro-ATX (9.6" x 9.6")
- Single Socket SP3 (LGA 4094), supports AMD EPYC™ 7003 (with AMD 3D V-Cache™ Technology*)/7002 series processors
- 6 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, NVDIMM-N
- 4 PCIe4.0 x16
- 1 Slimline (PCIe4.0x8), 2 Slimline ( PCIe4.0x8 or 8 SATA 6Gb/s)
- Supports 1 M.2 (PCIe4.0 x4 or SATA 6Gb/s), 1 M.2 (PCIe4.0 x4 or SATA 6Gb/s) [BTO]
- 31 SATA 6Gb/s
- 2 RJ45 (10GbE) by Intel® X710-AT2
- 2 RJ45 (1GbE) by Intel® i210
- Remote Management (IPMI)
Specs
Reviews (5)
Learn more about the ASRock Rack ROMED6U-2L2T
| Brand | AsRock Rack |
|---|---|
| Model | ROMED6U-2L2T |
| CPU Socket Type | Socket SP3 (LGA4094) |
|---|---|
| CPU Type | Supports AMD EPYC 7003 (with AMD 3D V-Cache Technology*) / 7002 Series Processors *A BIOS update is required to support AMD EPYC 7003 series processors with AMD 3D V-Cache Technology |
| Number of DDR4 Slots | 6 x 288-pin DDR4 RDIMM, LRDIMM |
|---|---|
| Registered | Yes |
| PCI Express 4.0 x16 | Slot 7: PCIe 4.0 x16 Slot 6: PCIe 4.0 x16 Slot 5: PCIe 4.0 x16 Slot 4: PCIe 4.0 x16 |
|---|
| SATA | 14 x SATA 6.0Gb/s |
|---|---|
| Additional RAID Controller | 12 via mini-SAS HD, 2 via SATA 7-pin |
| M.2 | 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2280 form factor 1 M-key (PCIe4.0 x4 or SATA 6Gb/s); support 2260 form factor |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel X710-AT2 |
|---|---|
| LAN Speed | 10Gbps |
| Second LAN Chipset | Intel I210 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 10Gbps |
| Video Ports | 1 |
|---|---|

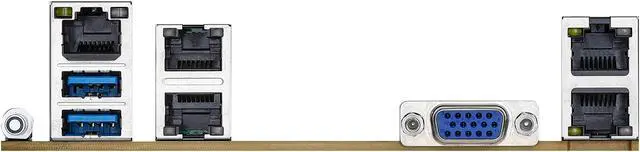

| RJ45 | 4 x RJ45 |
| USB 3.1 | 2 x USB 3.1 |
| Other Connectors | COM Header: 1 Front Lan LED Connector: LAN3/LAN4 LED header Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus TPM Header: 1 (17-pin, LPC) Thermal Sensor Header: 2 IPMB Header: 1 PMBus CONN: 1 Fan Header: 6 (4-pin) NMI Header: 1 System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Speaker Header: 1 BMC_SMB Header: 1 SGPIO Header: 3 CPU HSBP: 1 Clear CMOS: 1 (contact pads) |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | July 16, 2020 |
|---|
