ASRock Rack EP2C621D12 WS EEB Server Motherboard LGA 3647 Intel C621
- EEB 12" x 13"
- Support Intel Xeon Scalable Processors Dual Socket
- Support 12 x DIMM slots, DDR4 2666/2400/2133 R DIMM & LR DIMM
- Support 14 x SATA3 6.0 Gb/s (including 2 x SATA DOM ports and 2 x M.2 ports)
- Support 7 x PCIe3.0x16 (PCIE1: x8, PCIE2/PCIE3/PCIE4/PCIE5: x16, PCIE6/PCIE7: x16/x0 or x8/x8)
- Support 4 x GLAN + 1 x Dedicated IPMI LAN
- Workstation Motherboard
+
+
Specs
Reviews (2)
Learn more about the ASRock Rack EP2C621D12 WS

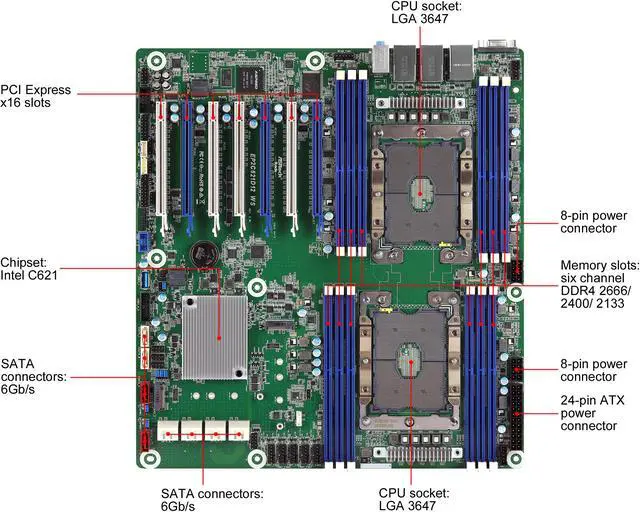

| Brand | AsRock Rack |
|---|---|
| Model | EP2C621D12 WS |
| CPU Socket Type | Dual LGA 3647 |
|---|---|
| CPU Type | Supports 2nd Gen. Intel Xeon Scalable Processors / Intel Xeon Scalable Processors |
| North Bridge | Intel C621 |
|---|
| Number of DDR4 Slots | 12 x 288-pin |
|---|---|
| DDR4 Standard | R DIMM: 2666 / 2400 / 2133 MHz LR DIMM: 2666 / 2400 / 2133 MHz NVDIMM: 2666 / 2400 / 2133 MHz |
| Maximum Memory Supported | 64GB |
| Channel Supported | Six Channel |
| PCI Express 3.0 x16 | SLOT1: Gen3 x16 link SLOT3: Gen3 x16 link, auto switch to x8 link if SLOT4 is ccupied SLOT5: Gen3 x16 link SLOT6: Gen3 x16 link SLOT7: Gen3 x16 link |
|---|---|
| PCI Express x8 | SLOT2: Gen3 x8 link SLOT4: Gen3 x8 link |
| Other Slots | M.2: 2 (2230/2242/2260/2280, support PCIE(x4) or SATA3 M.2) |
| SATA | 14 x SATA3 (including 2 x SATA DOM ports and 2 x M.2 ports) |
|---|
| Onboard Video Chipset | Aspeed AST2500 |
|---|

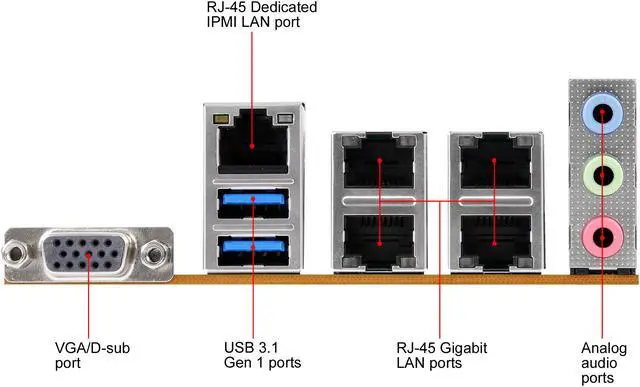

| Number of LAN | 4 x RJ45 GLAN by Marvell 88E1543 (1000Mb/s) 1 x RJ45 Dedicated IPMI LAN port |
|---|
| Video Ports | D-Sub |
|---|---|
| RJ45 | 4+1 (IPMI) RJ45 Gigabit Ethernet LAN port LAN Ports with LED (ACT / LINK LED and SPEED LED) |
| USB 3.0 | 2 x USB 3.0 |
| Audio Ports | 3 Ports |
| Features | EEB 12" x 13" Dual Socket P, support Intel Xeon Scalable Processors Supports DDR4 2666 / 2400 / 2133 R DIMM & LR DIMM, 12 x DIMM slots Supports 14 x SATA3 6.0 Gb/s by INTEL C621 (including 2 x SATA DOM ports and 2 x M.2 ports) Supports 7 x PCIe3.0 x16 (PCIE1: x8, PCIE2/PCIE3/PCIE4/PCIE5: x16, PCIE6/PCIE7: x16/x0 or x8/x8) |
|---|
| Form Factor | EEB |
|---|---|

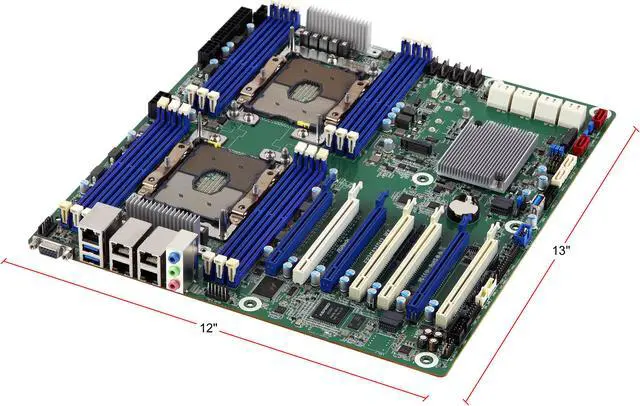

| Dimensions (W x L) | 12.0" x 13.0" |
| First Listed on Newegg | March 16, 2023 |
|---|
