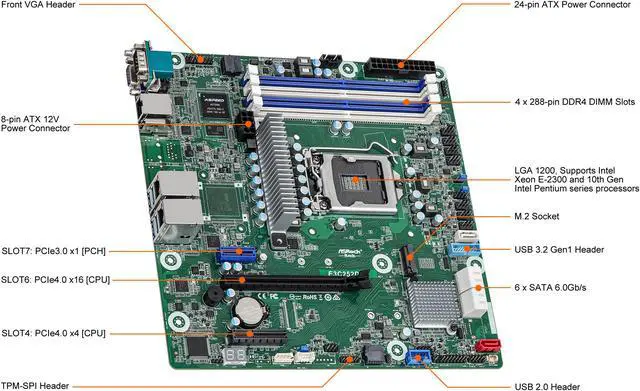

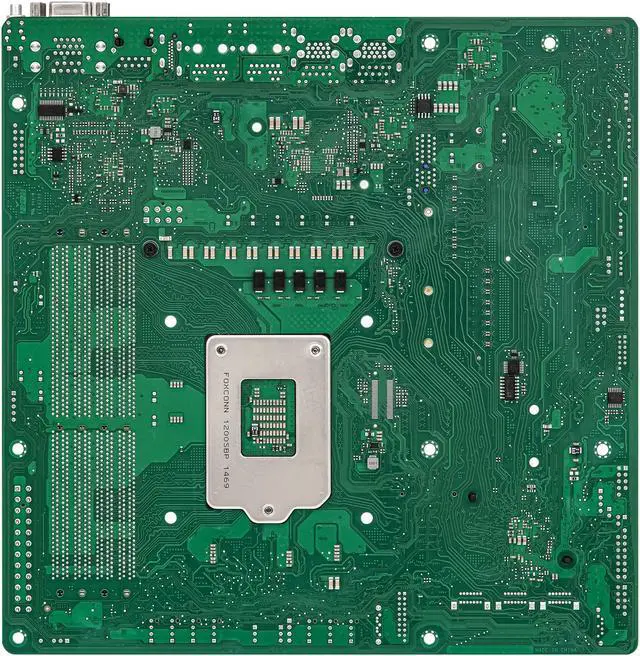

AsRock Rack E3C252D4U Micro ATX Server Motherboard LGA 1200 Intel C252
- Micro-ATX (9.6" x 9.6")
- Supports Intel Xeon E-2300 and 10th Gen Intel Pentium series processors
- 4 DIMM slots (2DPC), supports DDR4 ECC/non-ECC UDIMM
- 1 PCIe4.0 x16, 1 PCIe4.0 x4, 1 PCIe3.0 x1
- Supports 1 M.2 (PCIe3.0 x2 or SATA 6Gb/s)
- 6 SATA 6Gb/s
- 2 RJ45 (1GbE) by Intel i210
- VGA, HDMI
- Remote Management (IPMI)
+
+
Specs
Reviews (2)
Learn more about the ASRock Rack E3C252D4U
| Brand | AsRock Rack |
|---|---|
| Model | E3C252D4U |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports Intel Xeon E-2300 and 10th Gen Intel Pentium series processors |
| Number of Processor Support | 1 |
| North Bridge | Intel C252 |
|---|
| Number of DDR4 Slots | 4 DIMM slots (2DPC) |
|---|---|
| DDR4 Standard | DDR4 3200 |
| PCI Express 4.0 x16 | SLOT6: PCIe4.0* x16 [CPU] *When installing 10th Gen Intel Pentium Series Processors, SLOT6 supports PCIe3.0 only and SLOT4 will not function |
|---|---|
| PCI Express x4 | SLOT4: PCIe4.0* x4 [CPU] |
| PCI Express x1 | SLOT7: PCIe3.0 x1 [PCH] |
| SATA | 6 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| M.2 | 1 M-key* (PCIe3.0 x2 or SATA 6Gb/s); support 22110/2280/2260 form factor [PCH] *SATA0 will be disabled when M2_1 populated with SATA device |
| Onboard Video Chipset | Aspeed AST2500 |
|---|
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 1Gbps |
| Back I/O Ports | 1 DB15, 1 DB9, 4 Type-A (USB3.2 Gen1), 2 RJ45 (1GbE), 1 HDMI |
|---|
| Other Connectors | Internal Connector/Headers Auxiliary Panel Header: 1 (18-pin): chassis intrusion, system fault LED, LAN1/LAN2 activity LED, locate, SMBus System Panel: 1 (9-pin): power switch, reset switch, system power LED, HDD activity LED Video output: 1 Speaker Header: 1 Buzzer: 1 Fan Header: 7 (4-pin) Thermal Sensor Header: 1 TPM Header: 1 (13-pin, SPI) SGPIO Header: 1 SMBus header: 1 PMB header: 1 IPMB Header: 1 Clear CMOS: 1 (contact pads) USB 3.2 (Gen1) Header: 1 (19-pin, 2 USB3.2 Gen1) USB 2.0 Header: 1 (9-pin, 2 USB2.0) NMI Header: 1 Power Connector: 1 (24-pin, ATX main power), 1 (8-pin, ATX 12V) ME/SPS Recovery: 1 |
|---|
| Form Factor | Micro ATX |
|---|---|

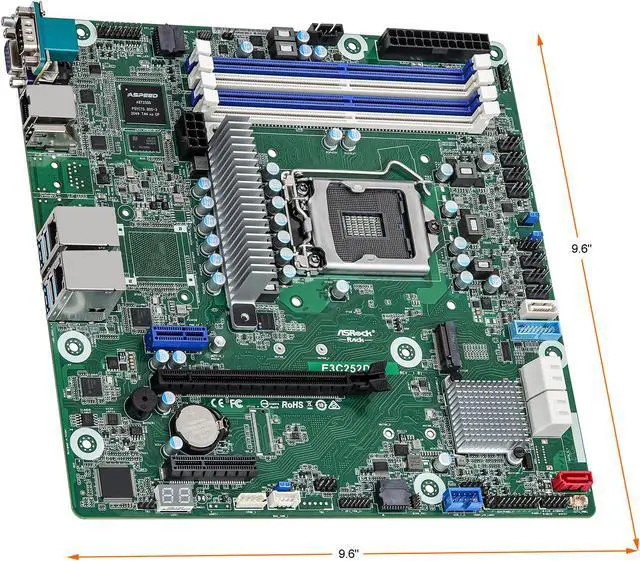

| Dimensions (W x L) | 9.6" x 9.6" |
| First Listed on Newegg | July 05, 2023 |
|---|
