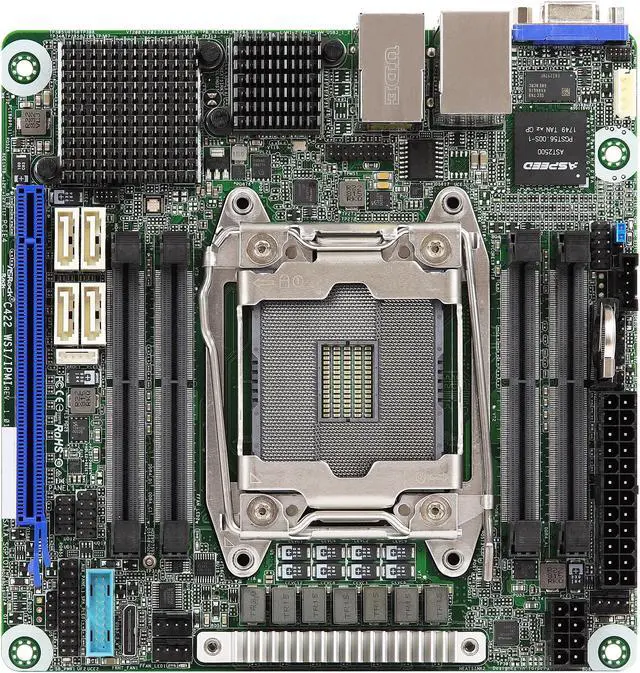

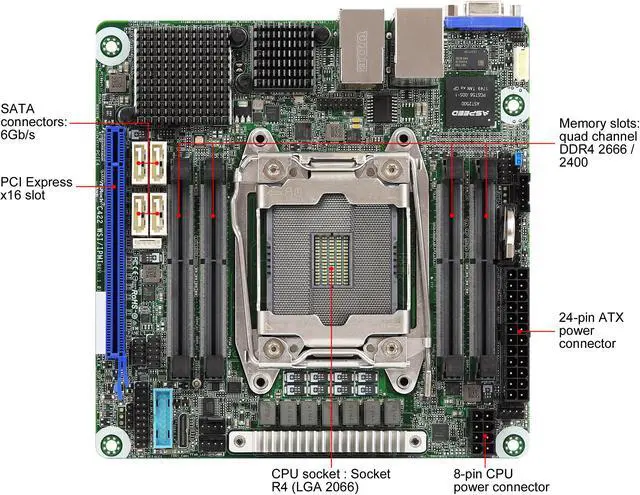

AsRock Rack C422 WSI/IPMI Mini-ITX Server Motherboard Single Socket R4 LGA 2066 Intel C422 with Dedicated IPMI
- Mini ITX 6.7'' x 6.7''
- Support Single Socket R4 (LGA 2066, Intel Skylake-W Processors)
- Support 4 x DIMM slots, Quad channels DDR4 ECC SO DIMM
- Support 4 x SATA3 by C422
- Support 1 x PCIe 3.0 x16
- Support 2 x GLAN + 1 x IPMI
Specs
Reviews (1)
Learn more about the ASRock Rack C422 WSI/IPMI
| Brand | AsRock Rack |
|---|---|
| Model | C422 WSI/IPMI |
| CPU Socket Type | Single Socket R4 (LGA 2066) |
|---|---|
| CPU Type | Supports Intel Skylake-W Processors |
| North Bridge | Intel C422 |
|---|
| DDR4 Standard | DDR4 2666 / 2400 ECC SO DIMM |
|---|---|
| Channel Supported | Quad Channel |
| PCI Express 3.0 x16 | 1 |
|---|
| SATA | C422: 4 x SATA3 6Gb/s |
|---|
| Onboard Video Chipset | Aspeed AST2500 |
|---|

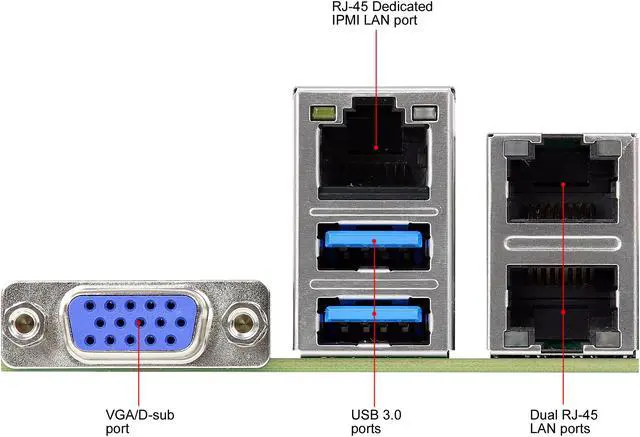

| Number of LAN | 2 x RJ45 GLAN by Intel i350 |
|---|
| S-Video | 1 x D-Sub |
|---|---|
| RJ45 | RJ45: 2+1 (IPMI) LAN Ports with LED (ACT / LINK LED and SPEED LED) |
| USB 3.0 | 2 x USB 3.0 |
| Features | Support Single Socket R4 (LGA 2066), Intel Skylake-W Processors Support Quad channels DDR4 ECC SO DIMM Support 4 x SATA3 by C422 Support 1 x PCIe 3.0 x16 Support Intel i350 |
|---|
| Form Factor | Mini ITX |
|---|---|
| Dimensions (W x L) | 6.7" x 6.7" |
| First Listed on Newegg | April 17, 2019 |
|---|
