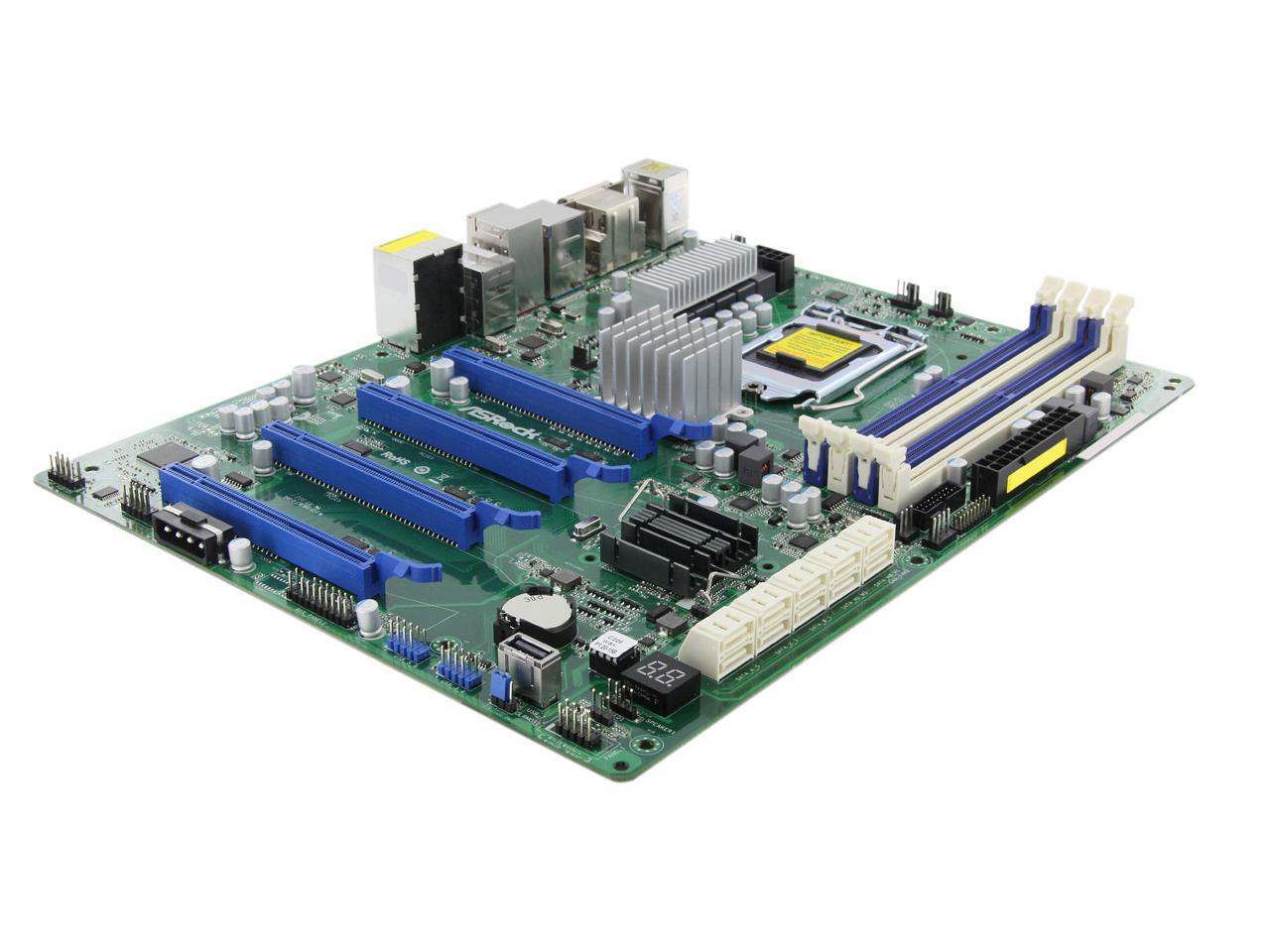

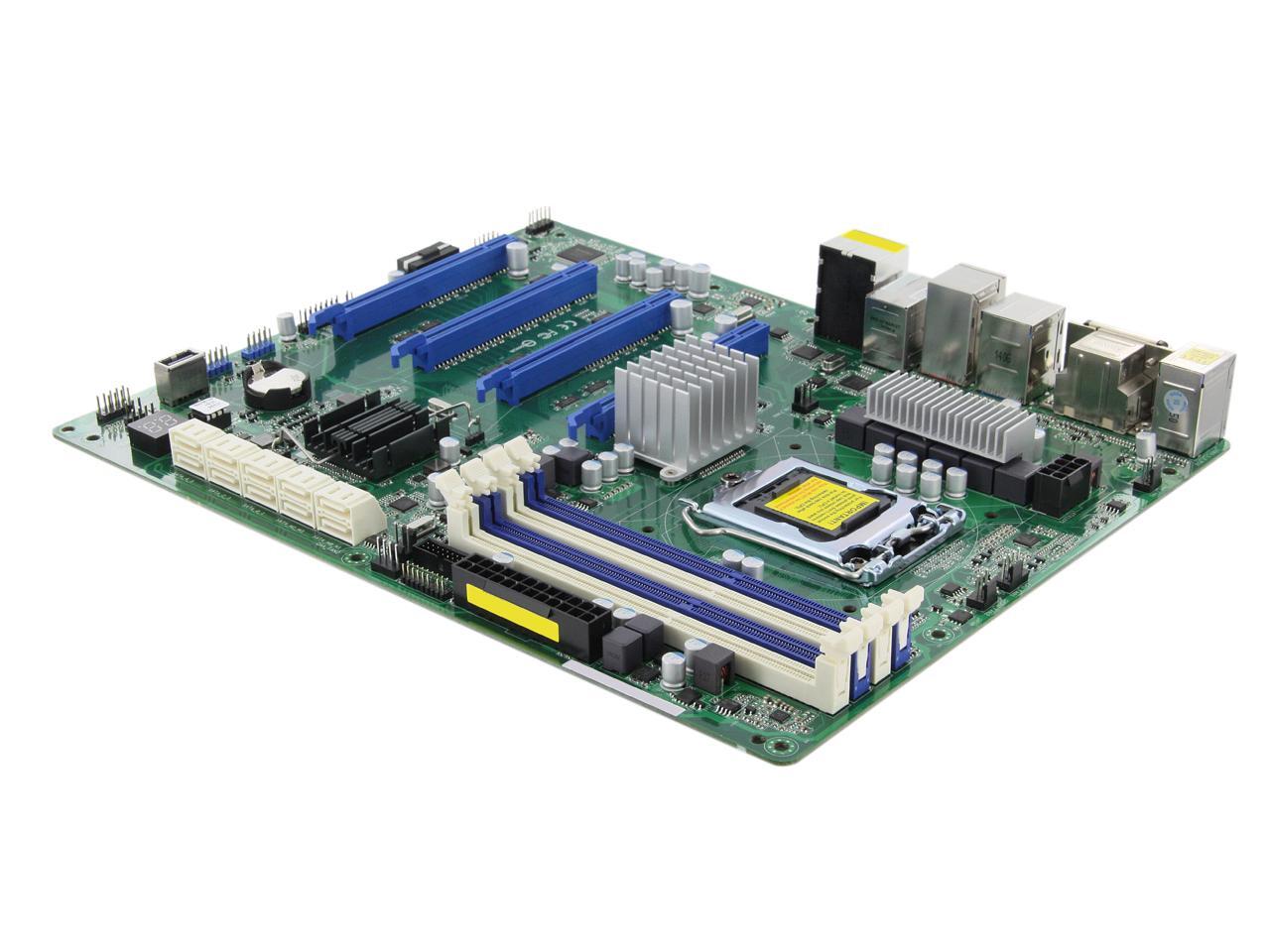

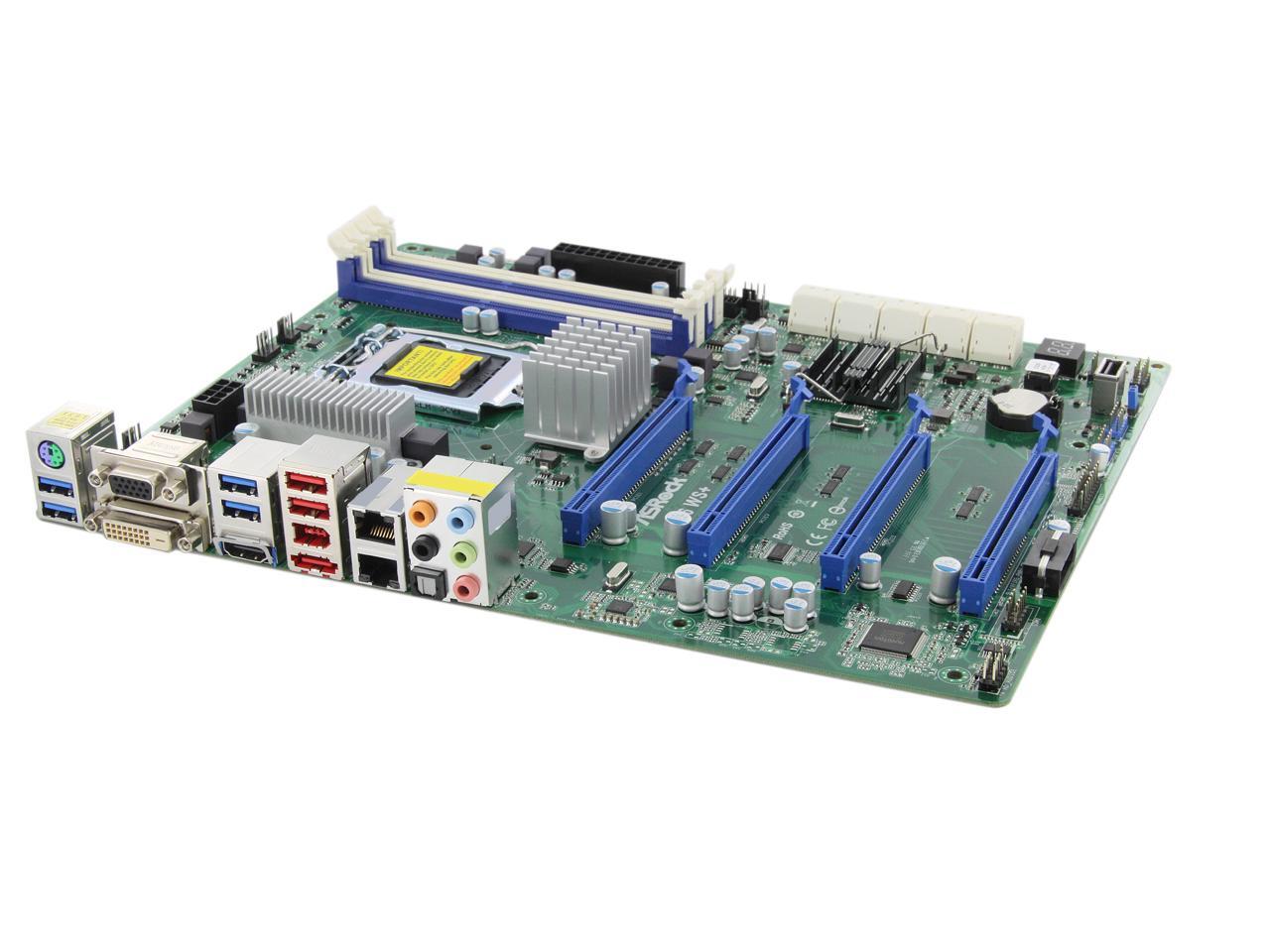

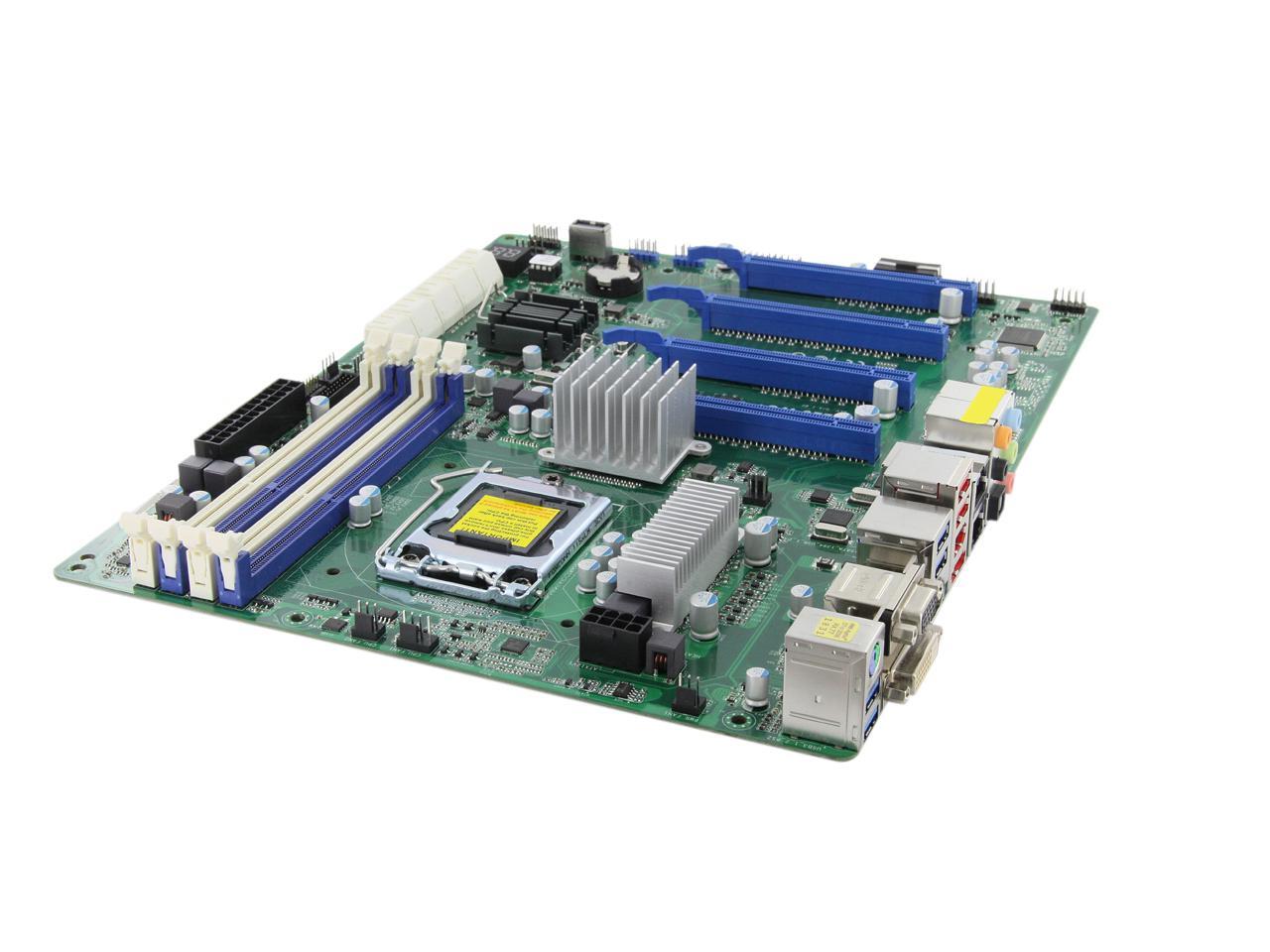

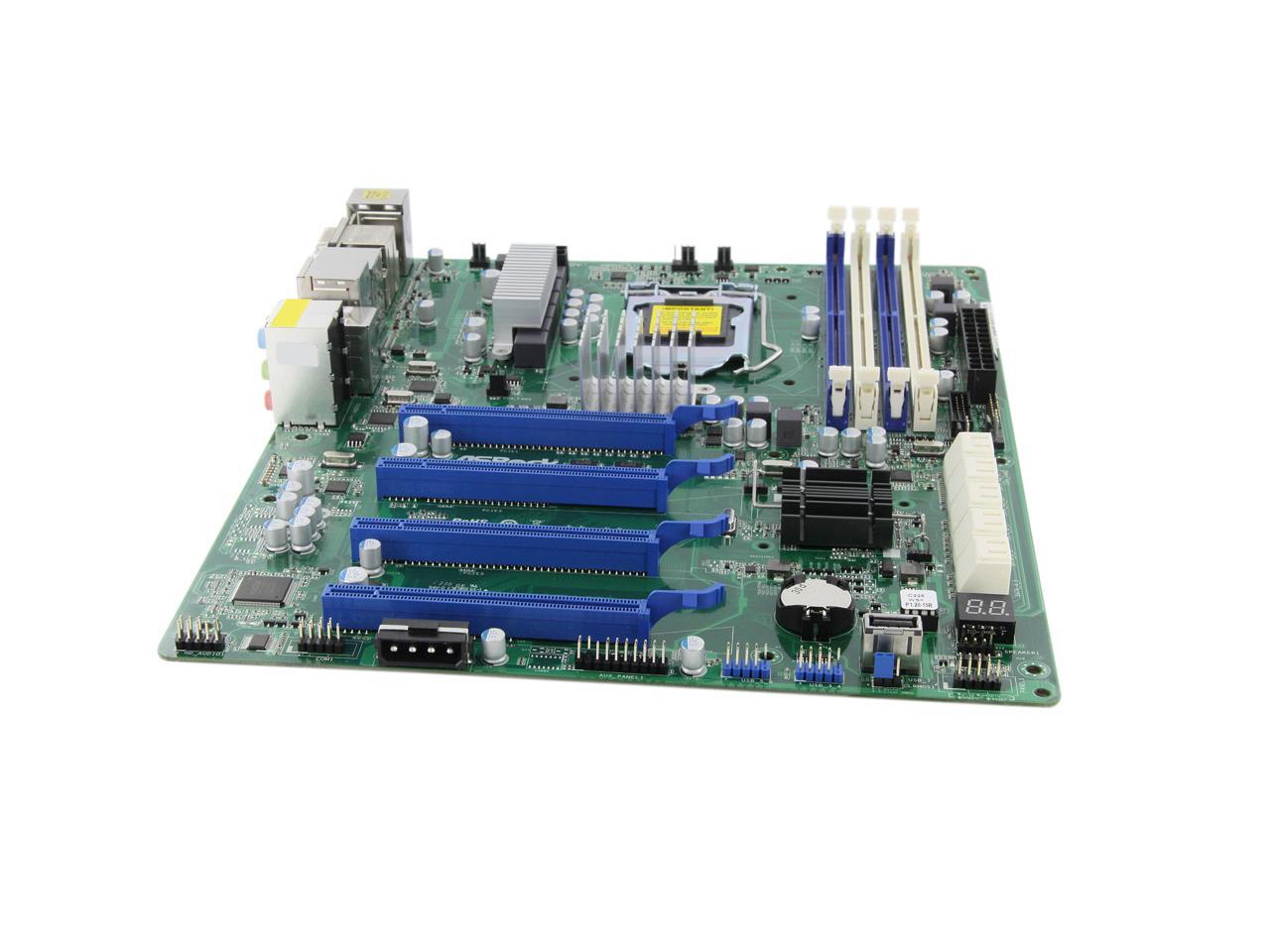

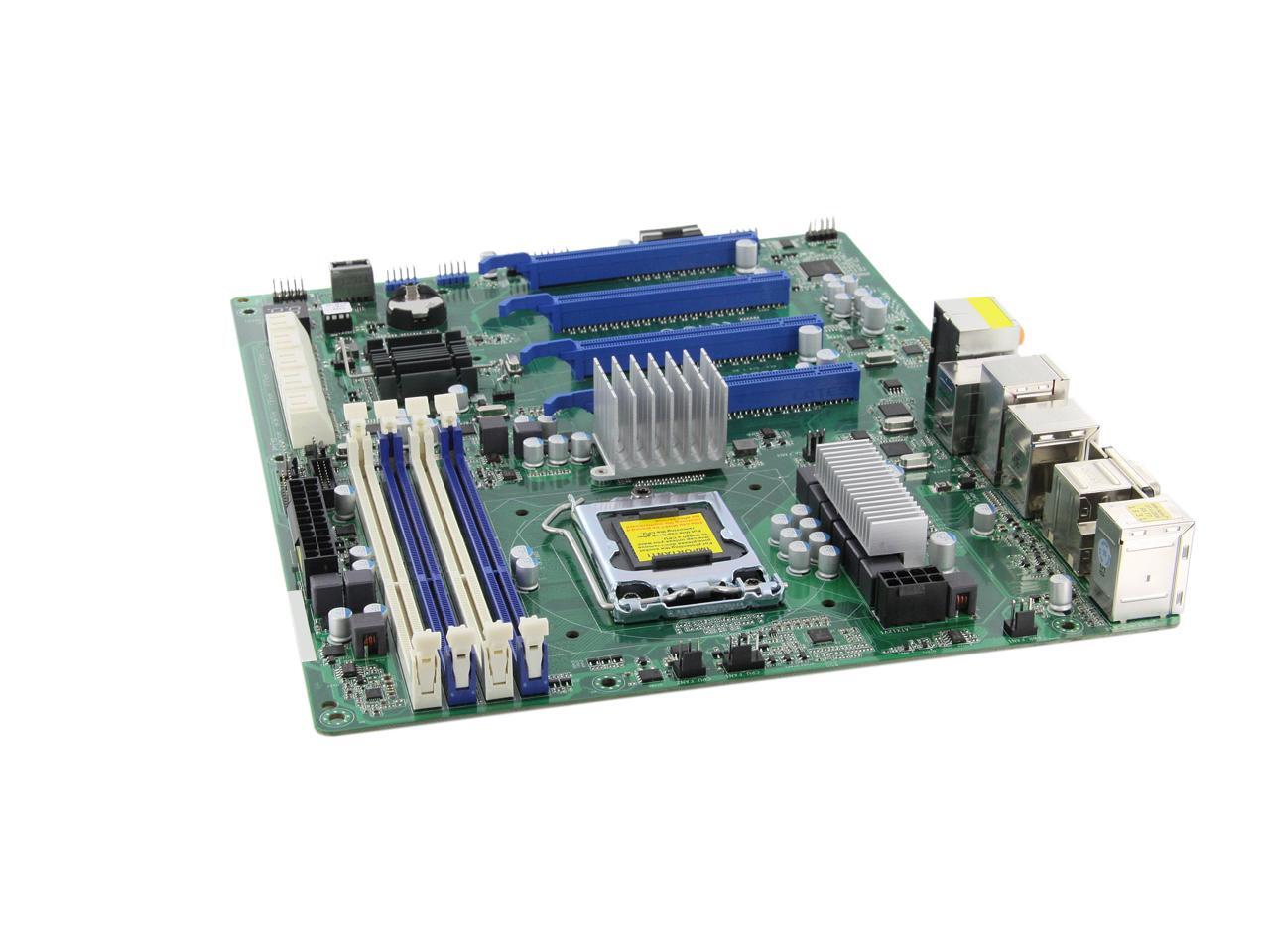

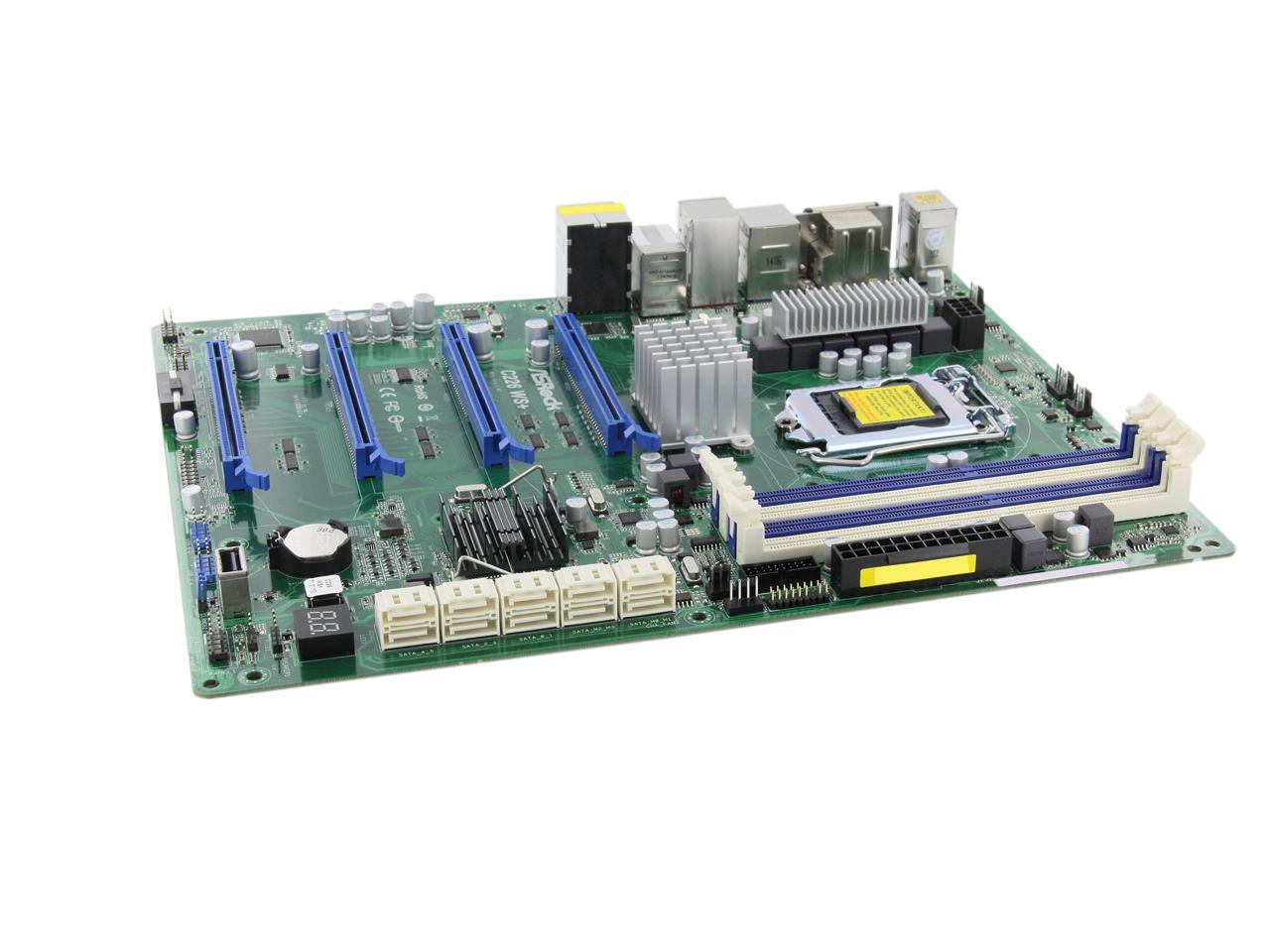

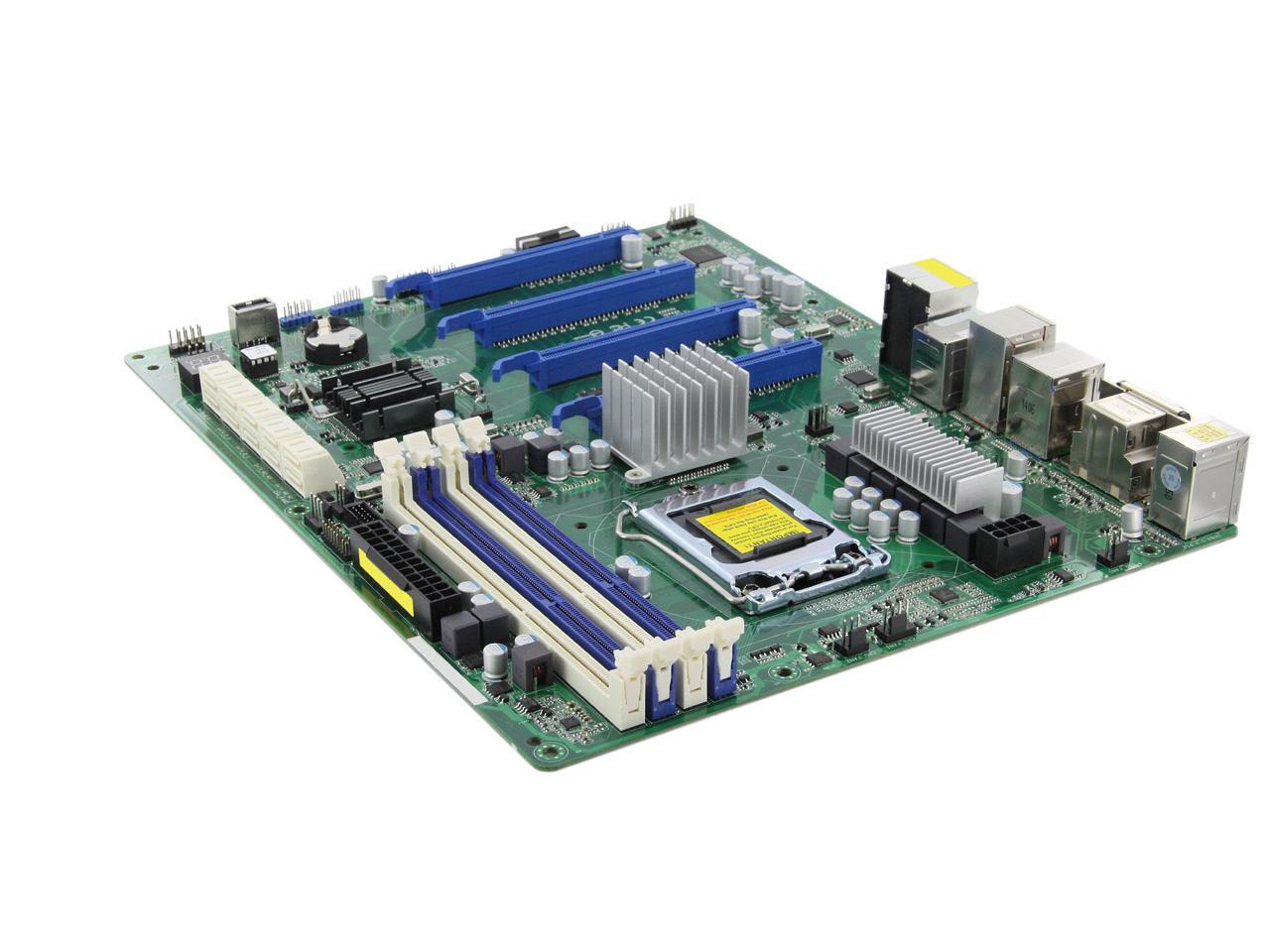

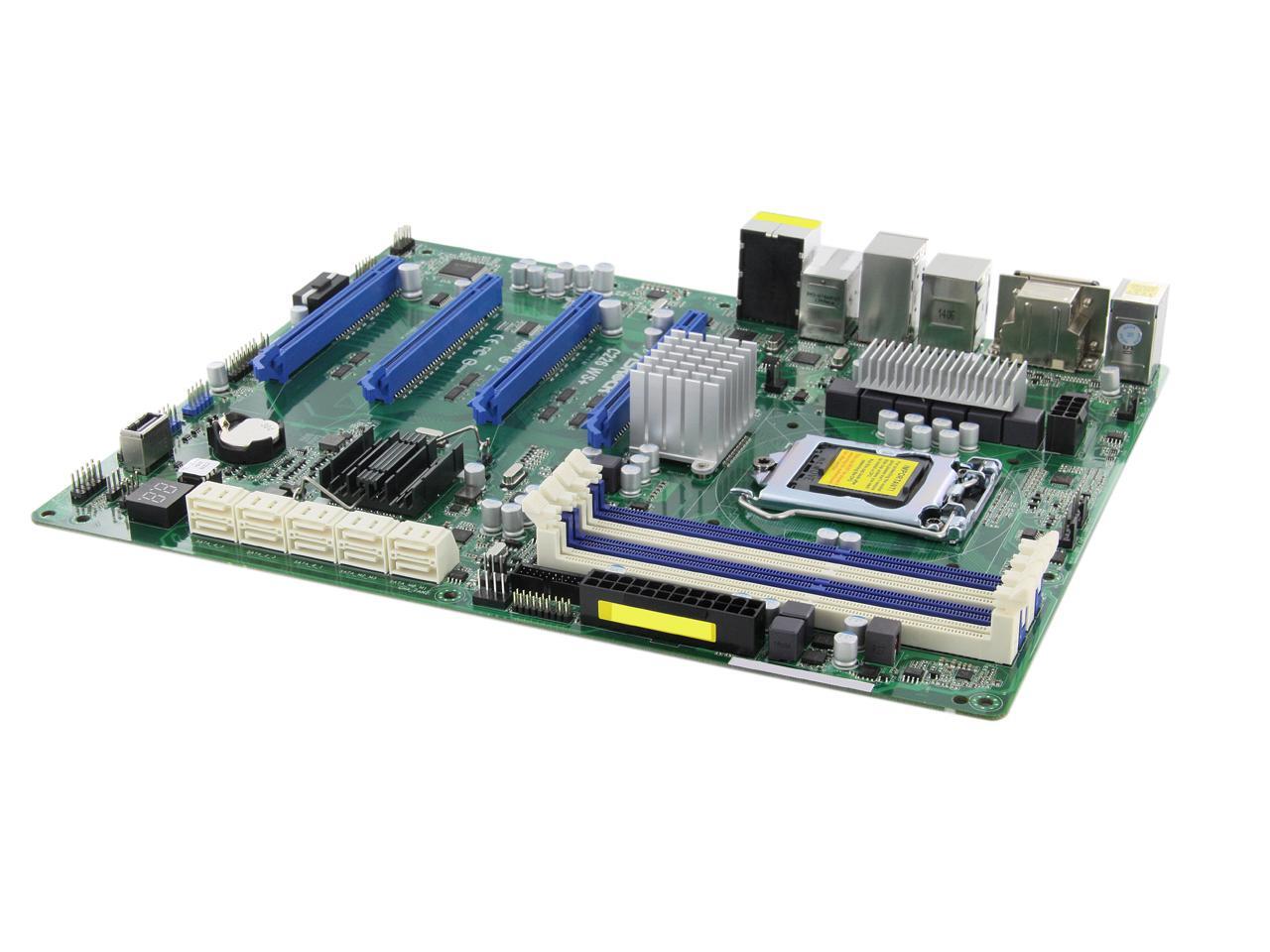

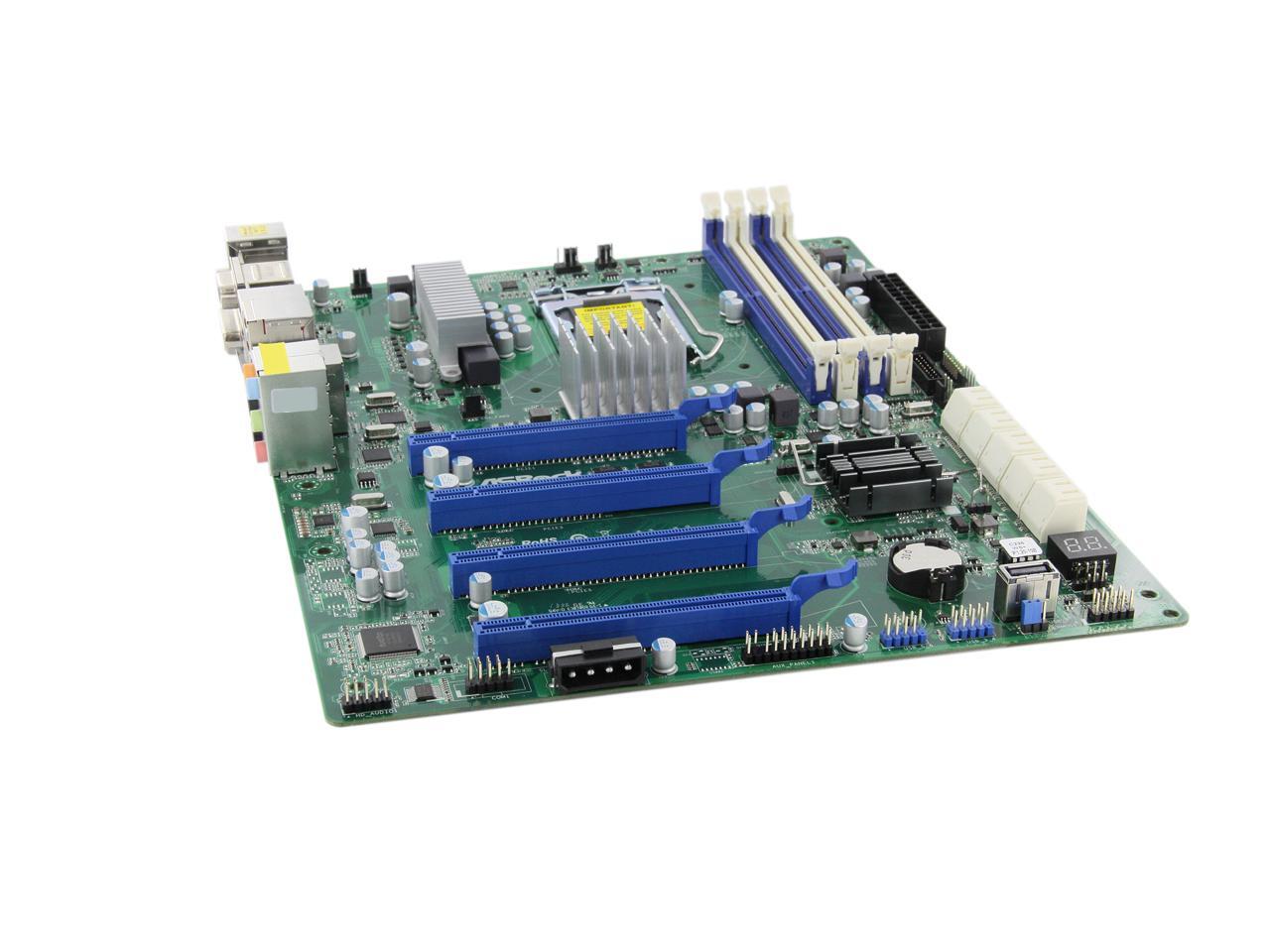

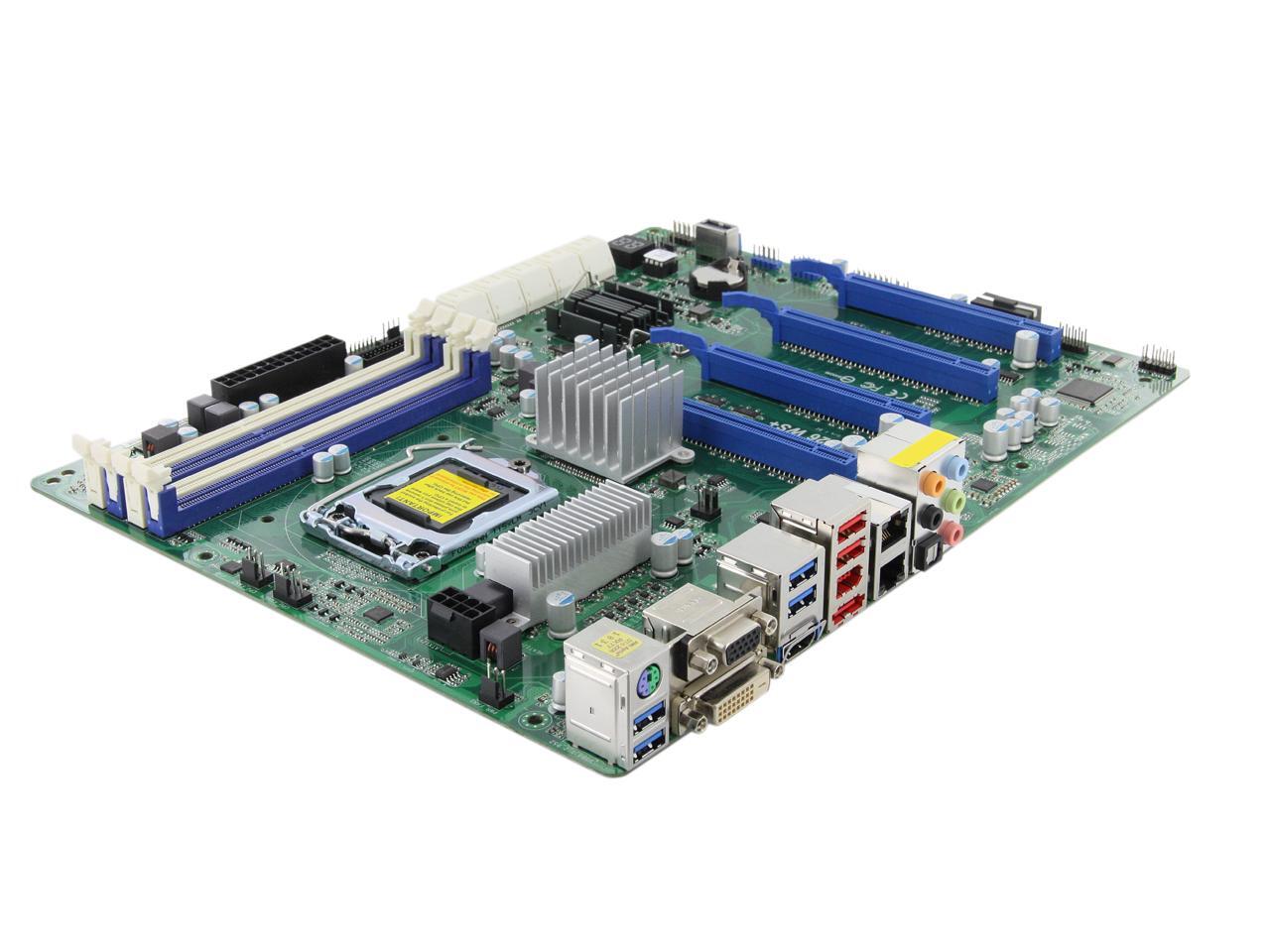

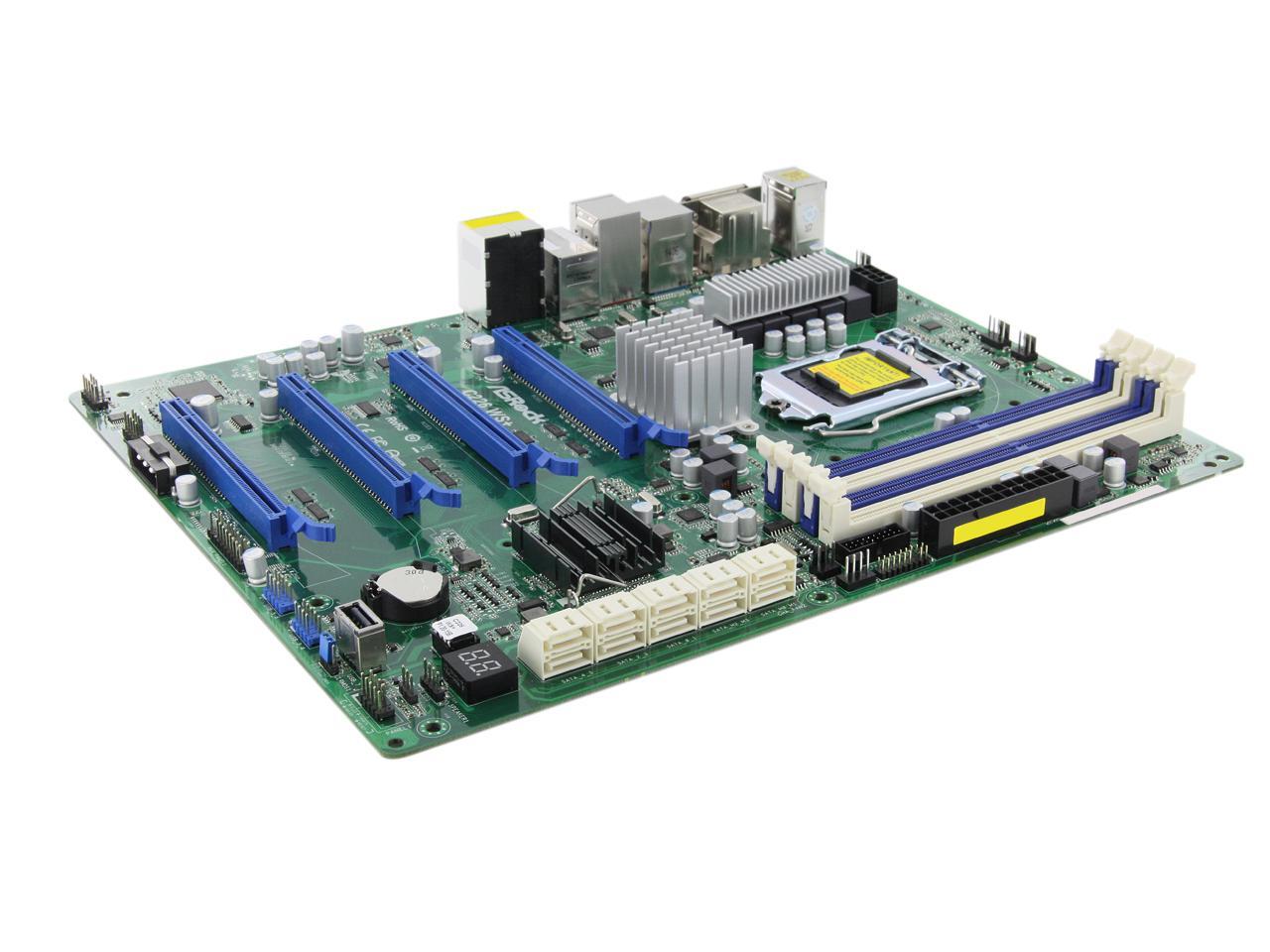

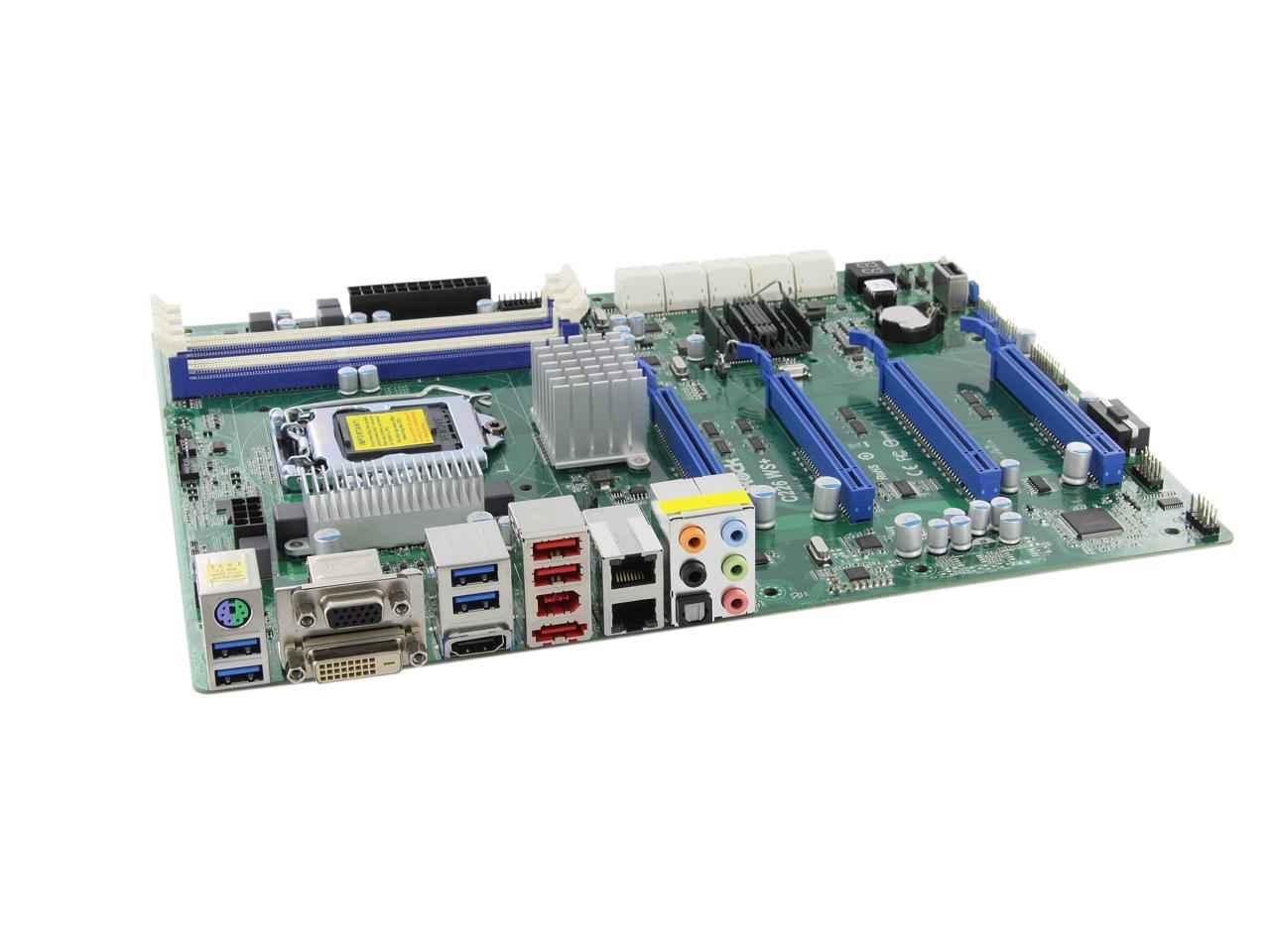

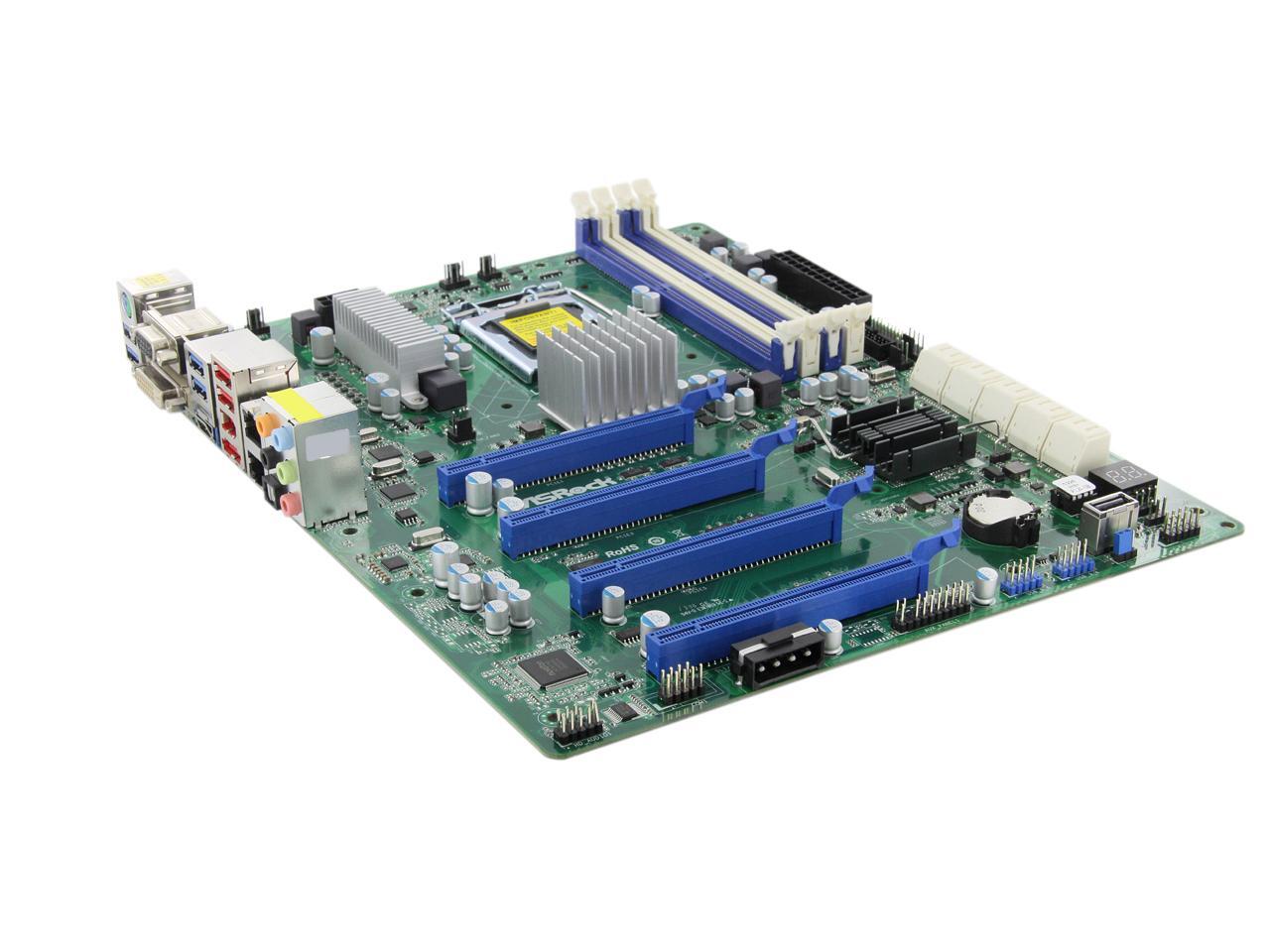

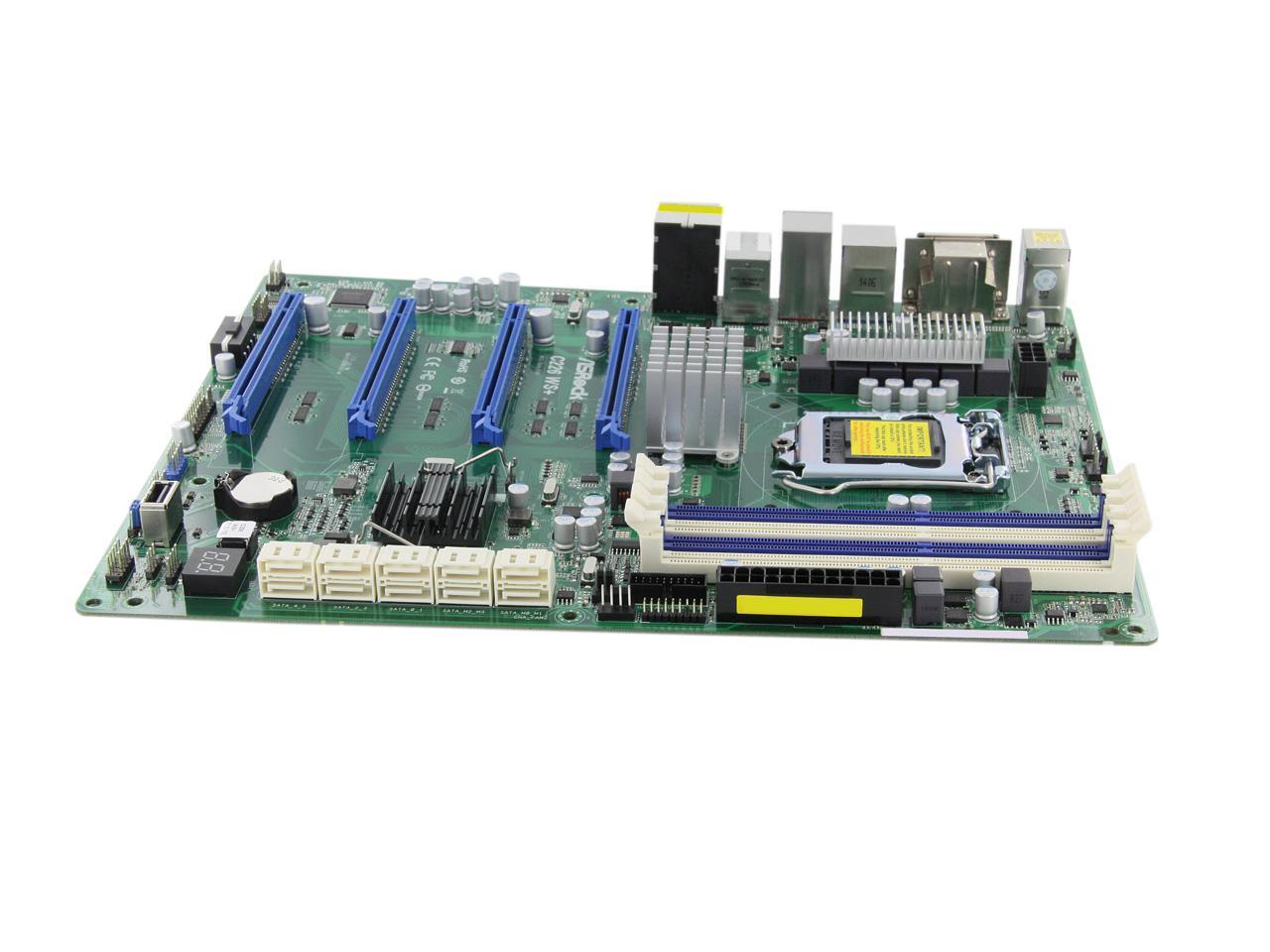

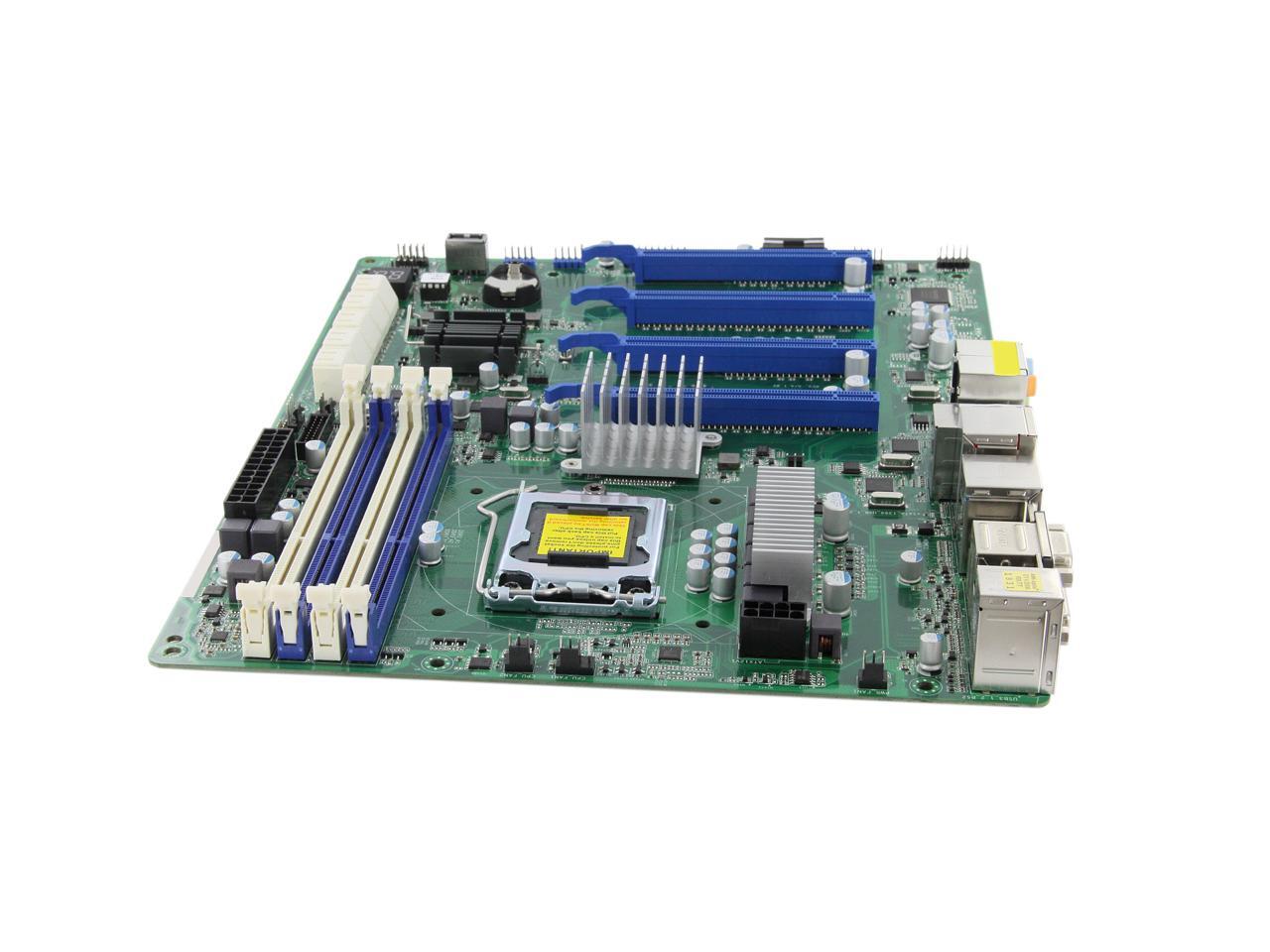

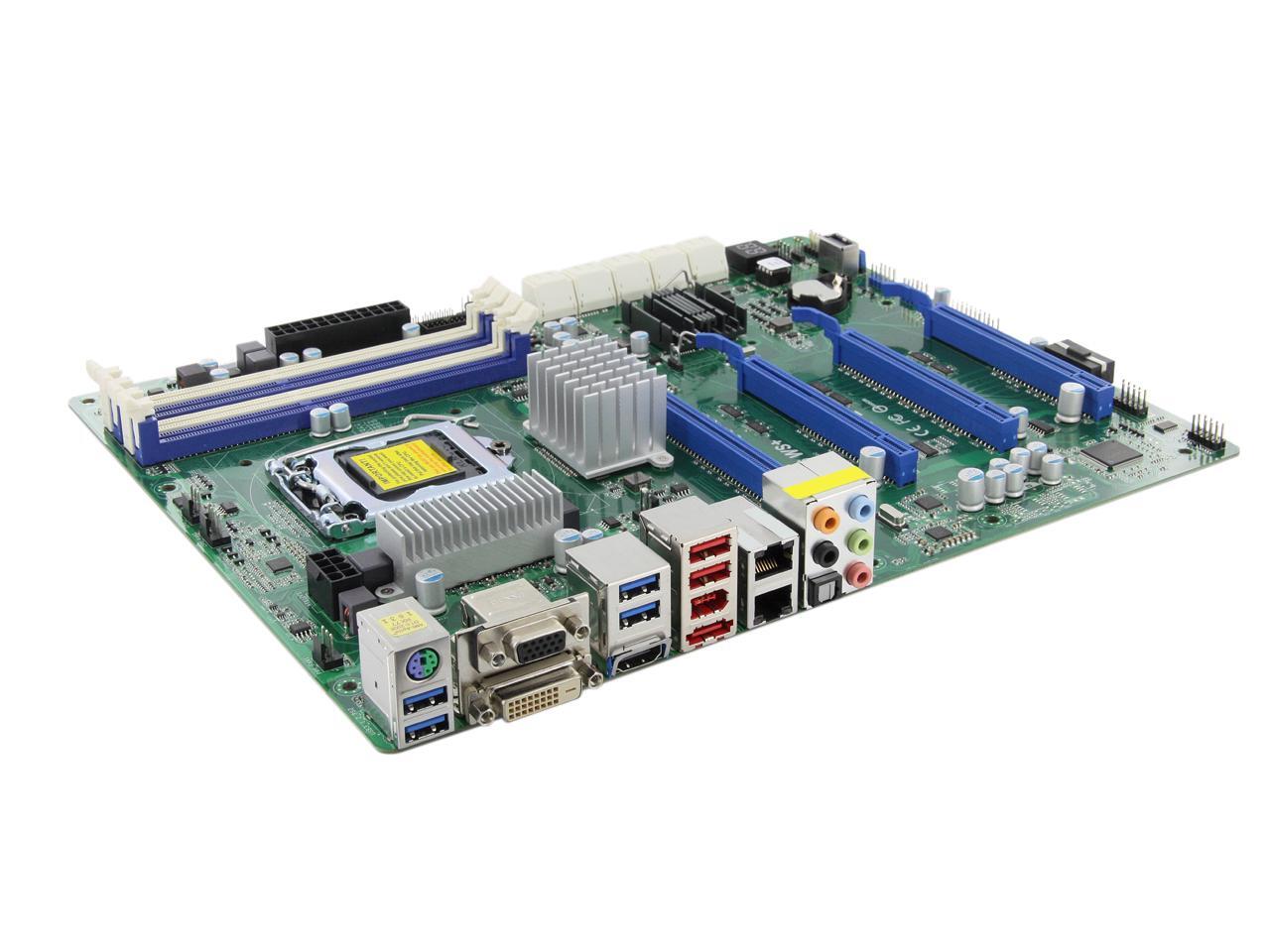

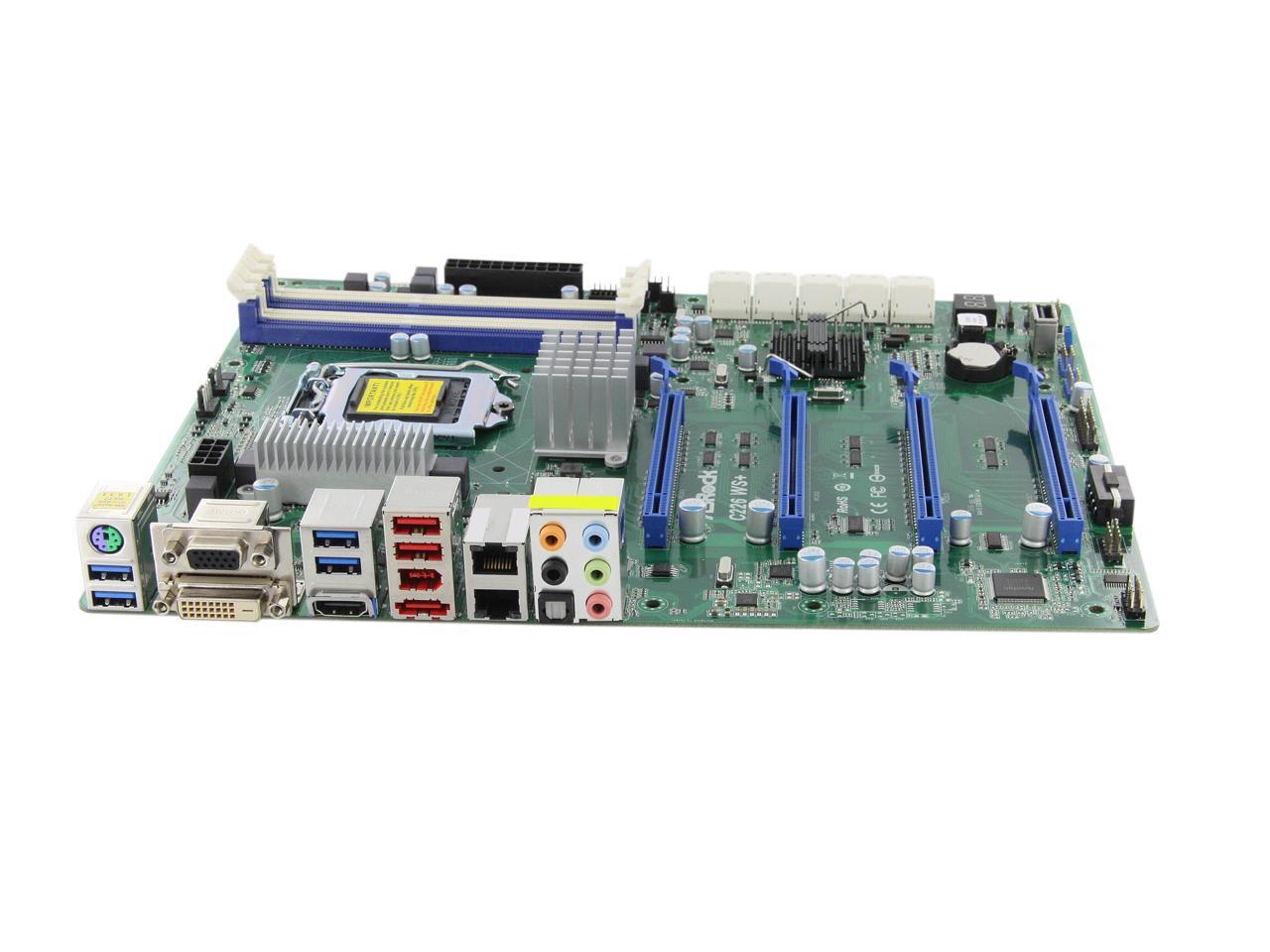

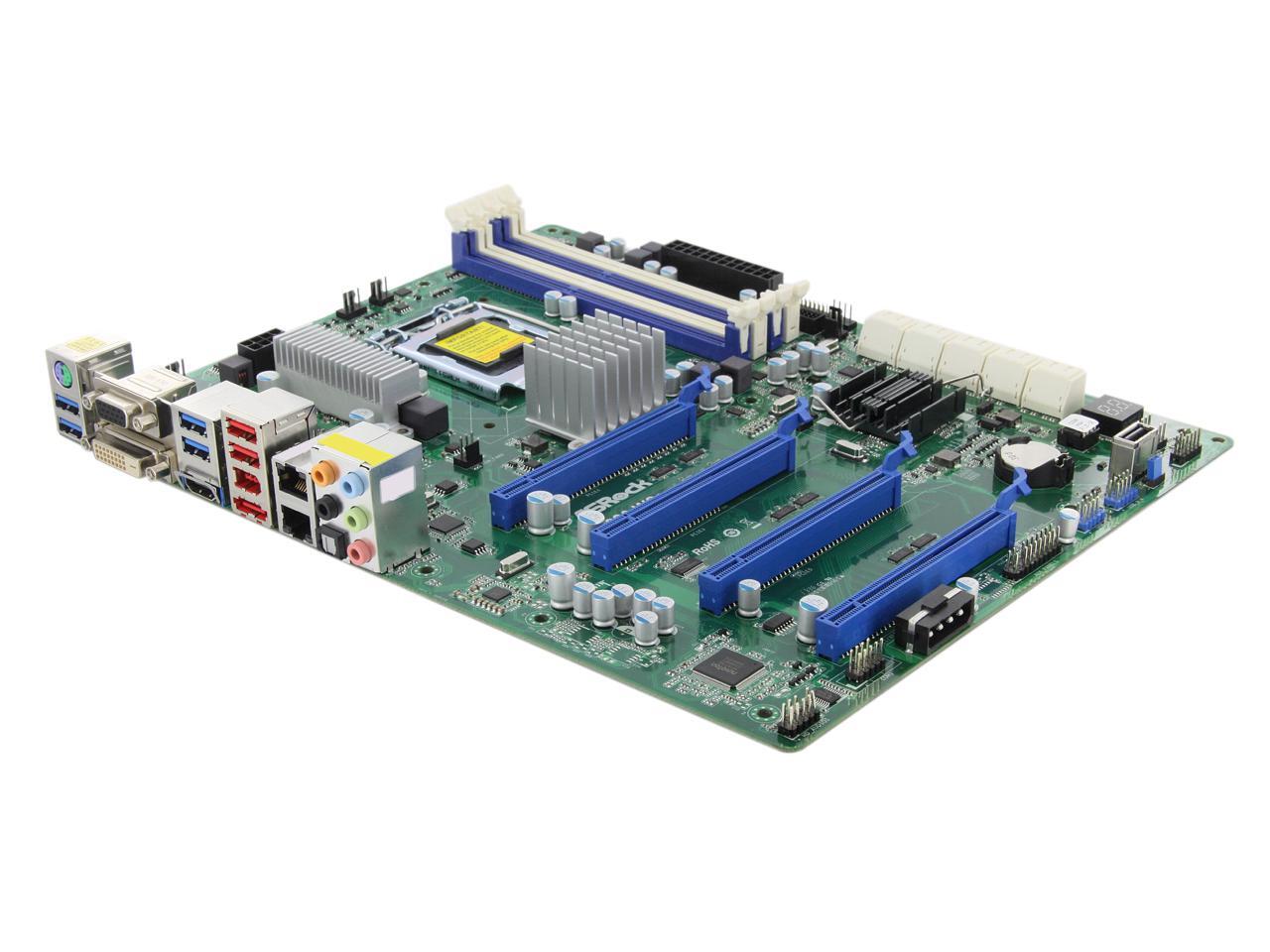

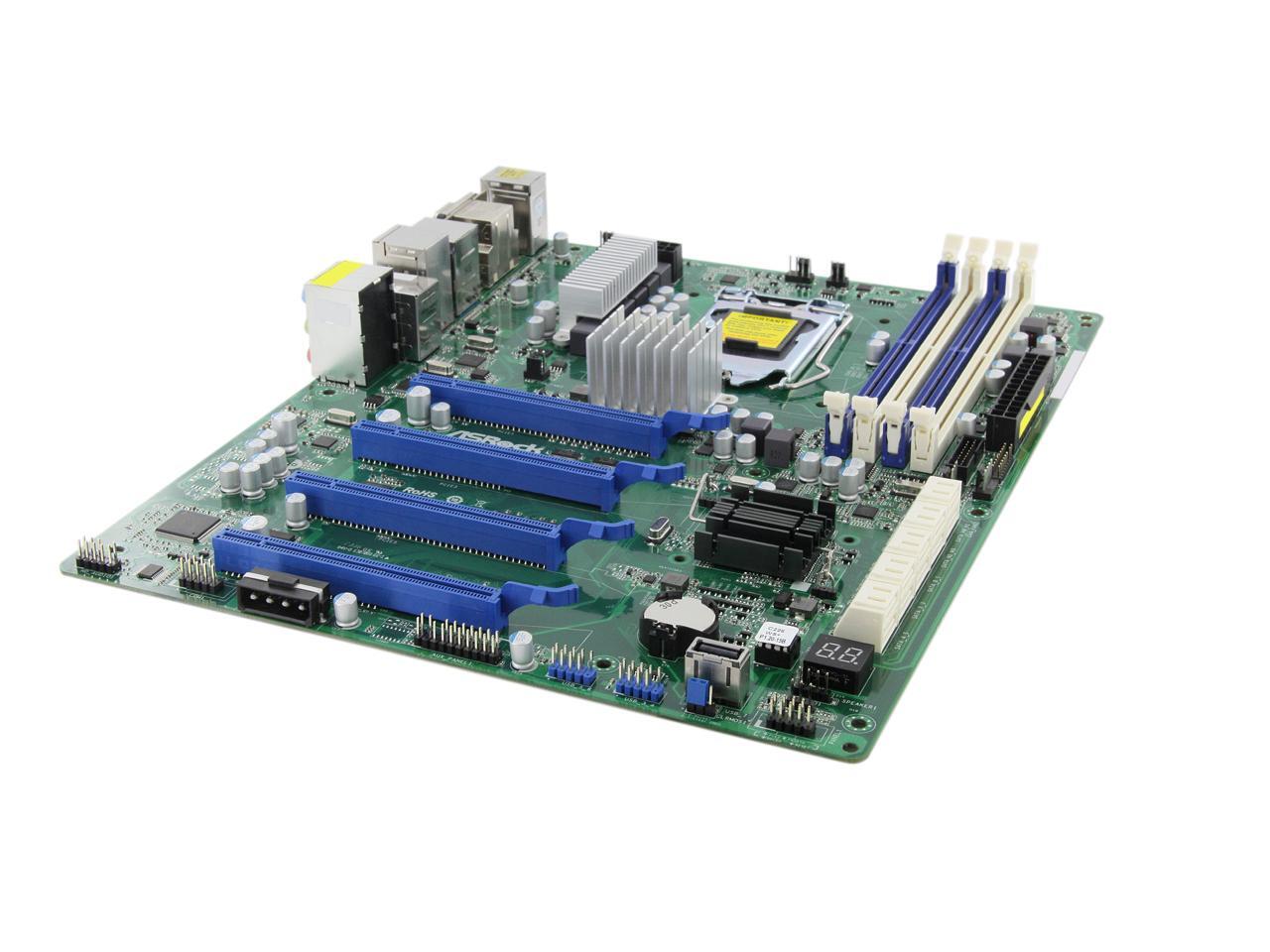

AsRock Rack C226WS+ ATX Server Motherboard LGA 1150 Intel C226 DDR3 1600/1333
- LGA 1150
- Intel C226
- 4 x 240pin
Specs
Reviews (6)
Learn more about the ASRock Rack C226WS+
| Brand | AsRock Rack |
|---|---|
| Model | C226WS+ |
| CPU Socket Type | LGA 1150 |
|---|---|
| CPU Type | Intel Xeon processor E3-1200 v3 product family, Haswell i3 processors |
| North Bridge | Intel C226 |
|---|
| Number of DDR3 Slots | 4 x 240pin |
|---|---|
| DDR3 Standard | DDR3 1600/1333 |
| Maximum Memory Supported | 32GB |
| Channel Supported | Dual Channel |
| ECC Supported | Yes |
| PCI Express 3.0 x16 | 4 slot (PCIE1,PCIE3,PCIE5,PCIE7: x8/x8/x8/x8 mode) |
|---|
| SATA | 6 x SATA 6.0Gb/s |
|---|---|
| Additional SATA | Marvell SE9230: 4 x SATA3 6.0 Gb/s |
| LAN Chipset | Intel I210 |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I210 |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |
| PS/2 | 1 |
|---|---|
| Video Ports | 1 x HDMI + 1 x DVI- I + 1 x Display port |
| USB 1.1/2.0 | 2 x USB 2.0 |
| USB 3.0 | 2 x USB 3.0 |
| Audio Ports | 5+1 Jack |
| Features | eSATA Port: 1 (eSATA3) Lan Port: 2 x RJ45 Gigabit Ethernet LAN ports |
|---|
| Form Factor | ATX |
|---|---|
| Dimensions (W x L) | 12.0" x 9.6" |
| First Listed on Newegg | March 07, 2014 |
|---|
