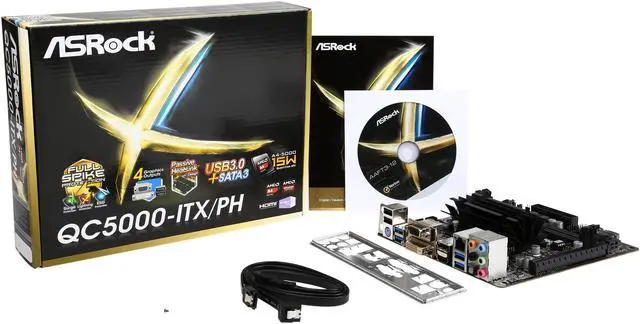

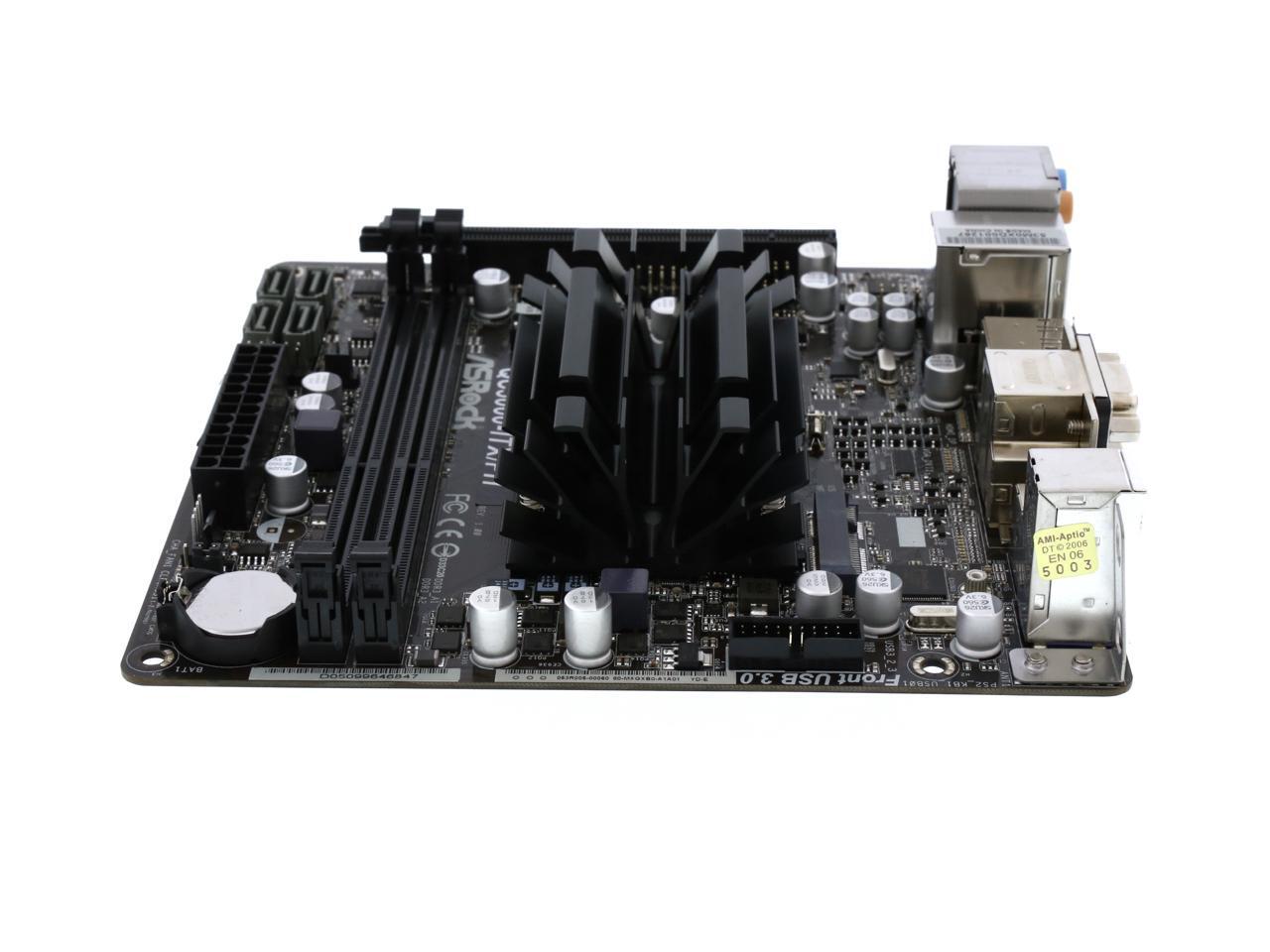

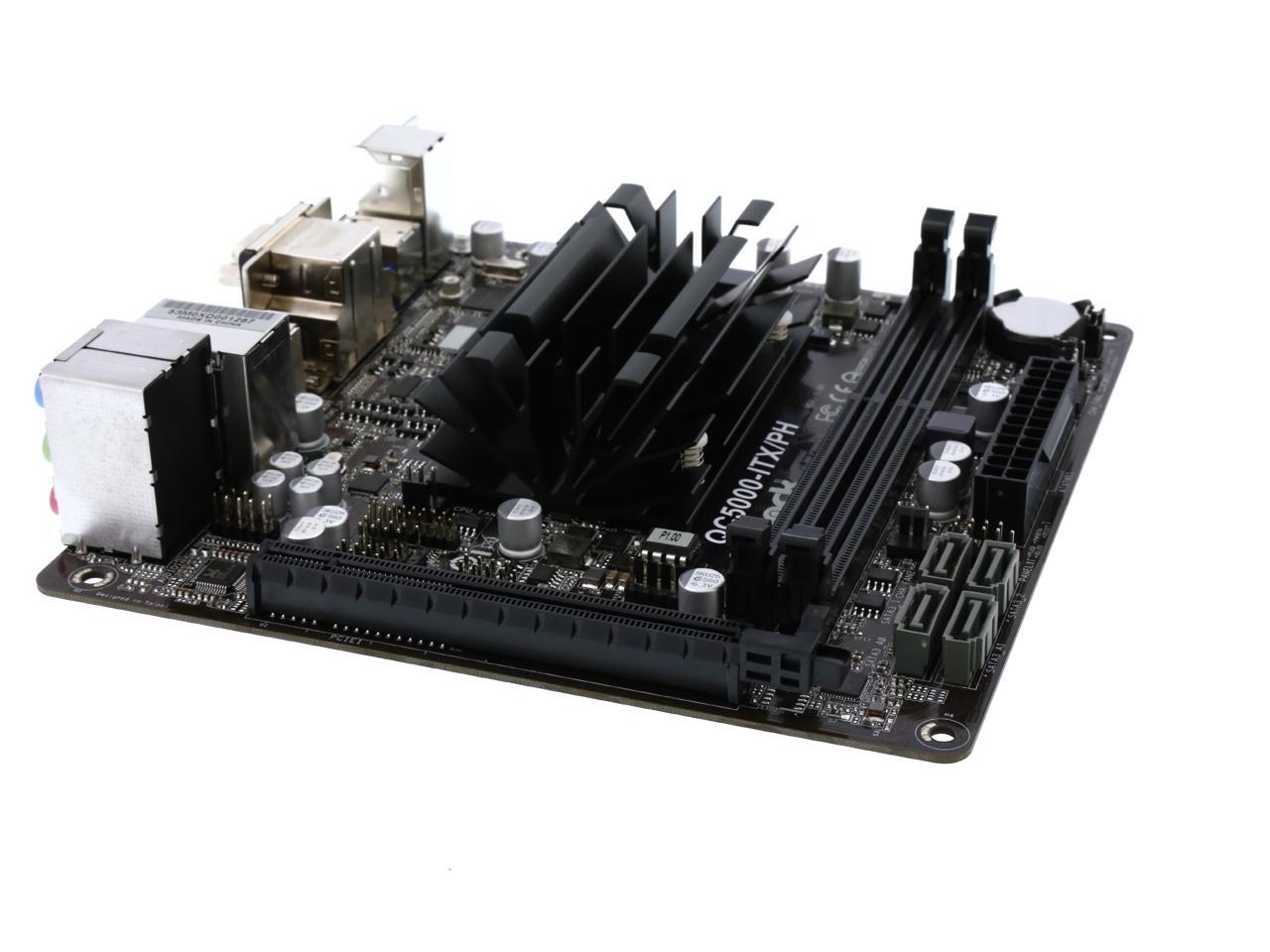

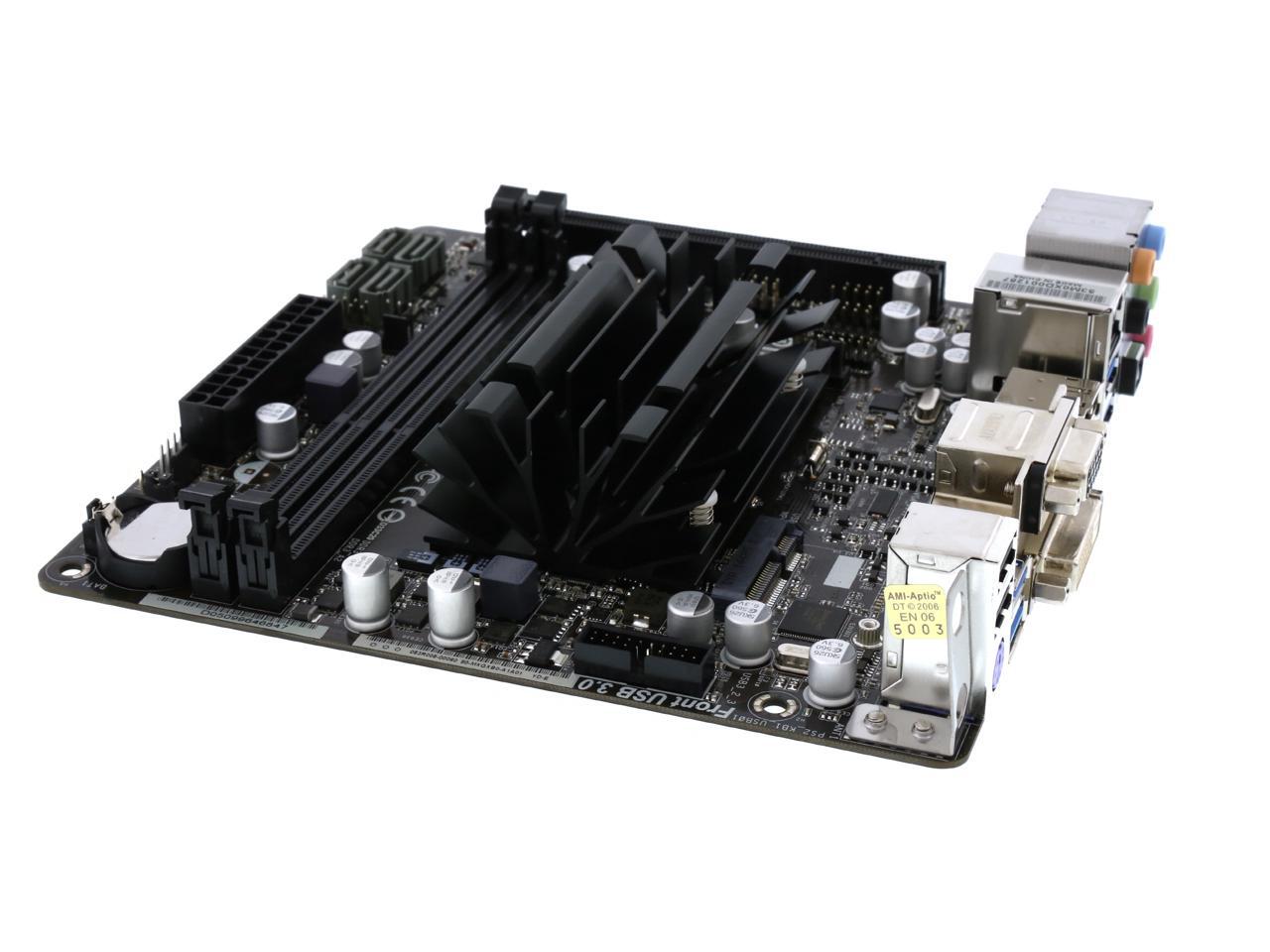

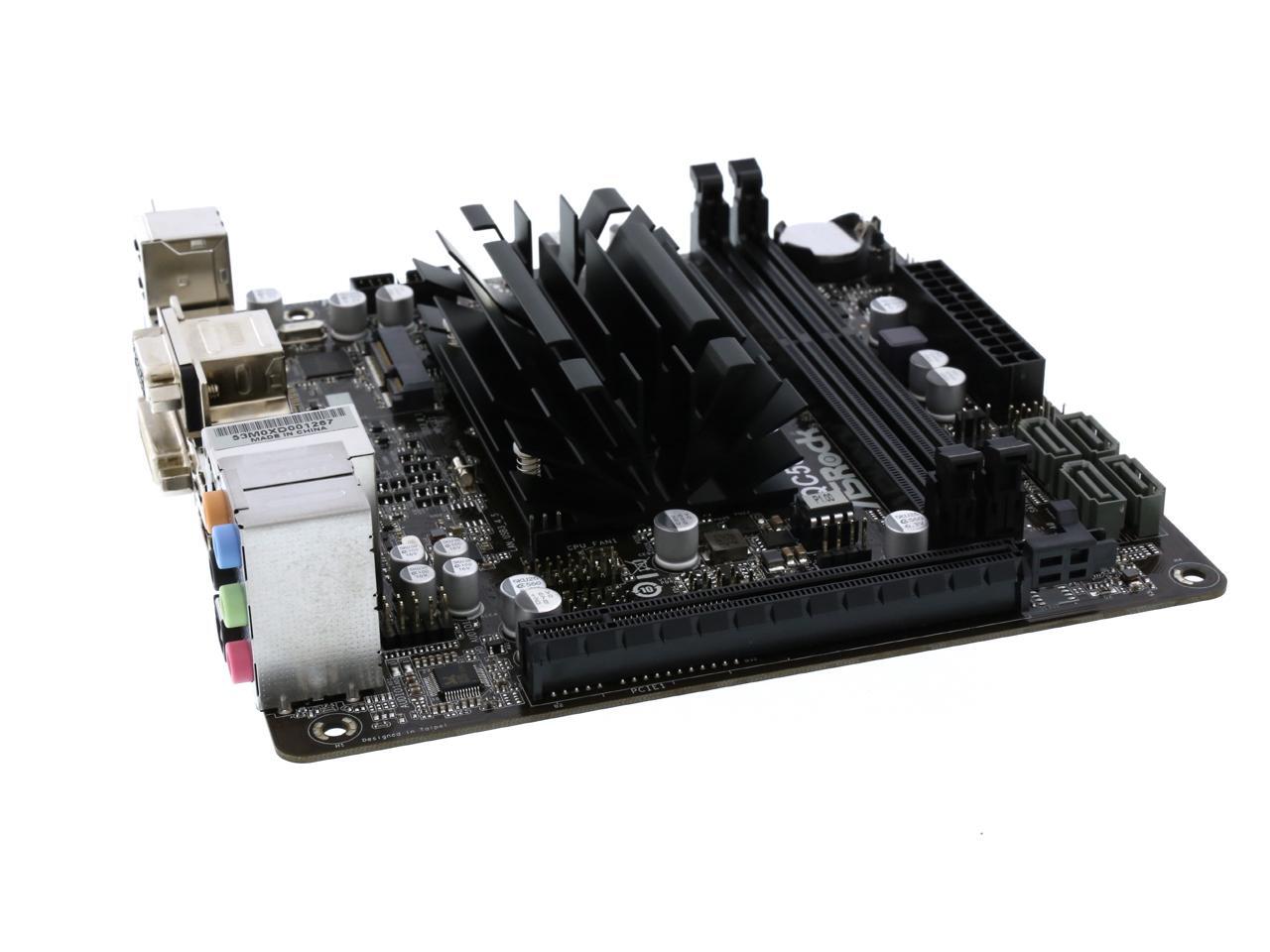

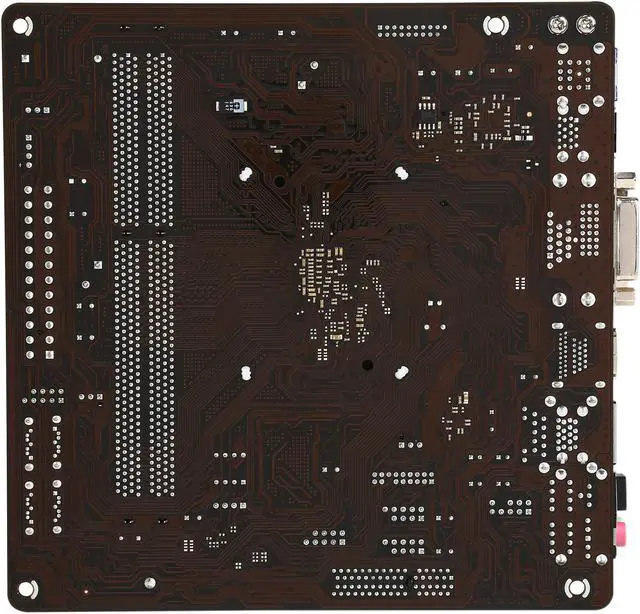

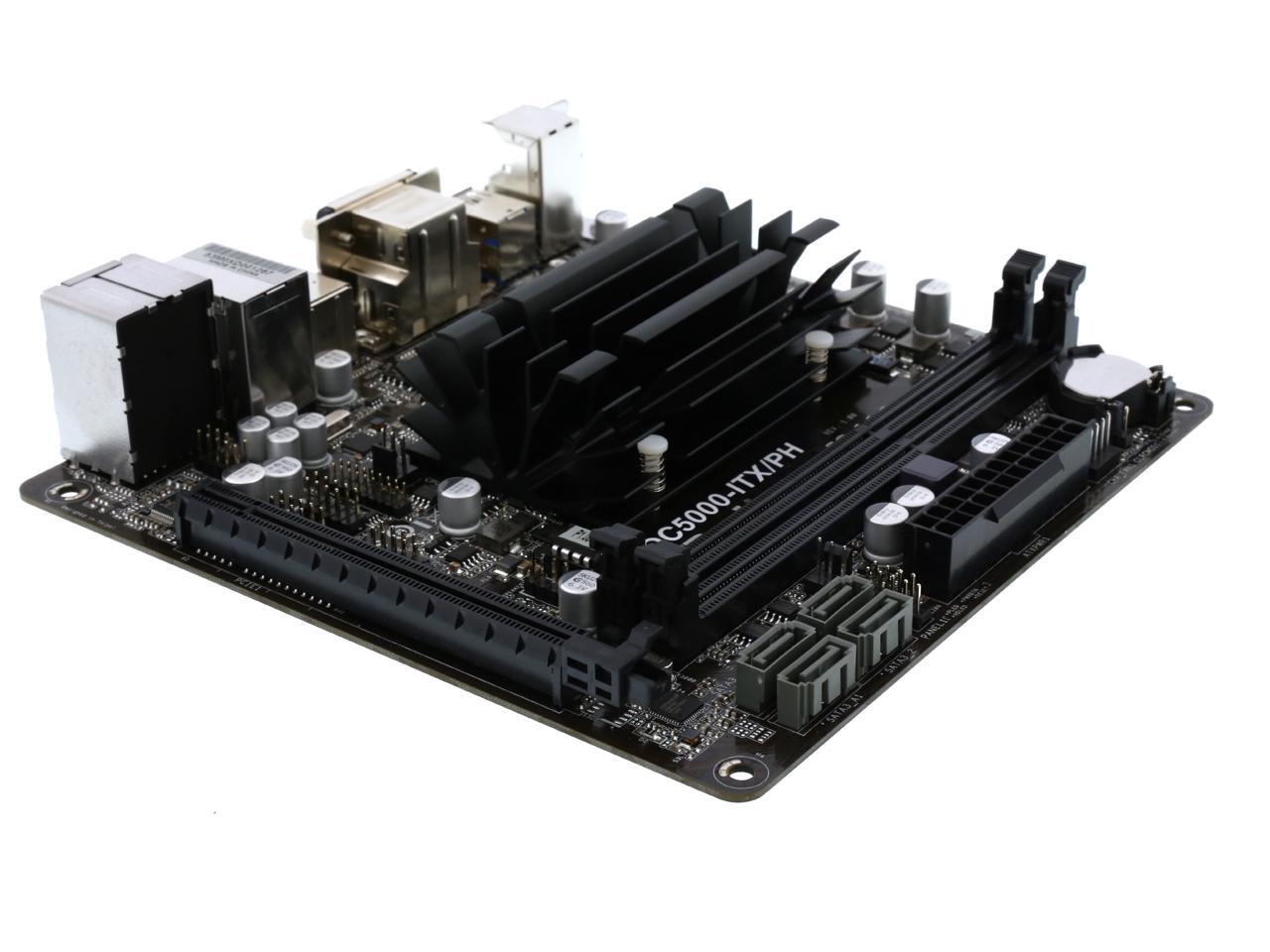

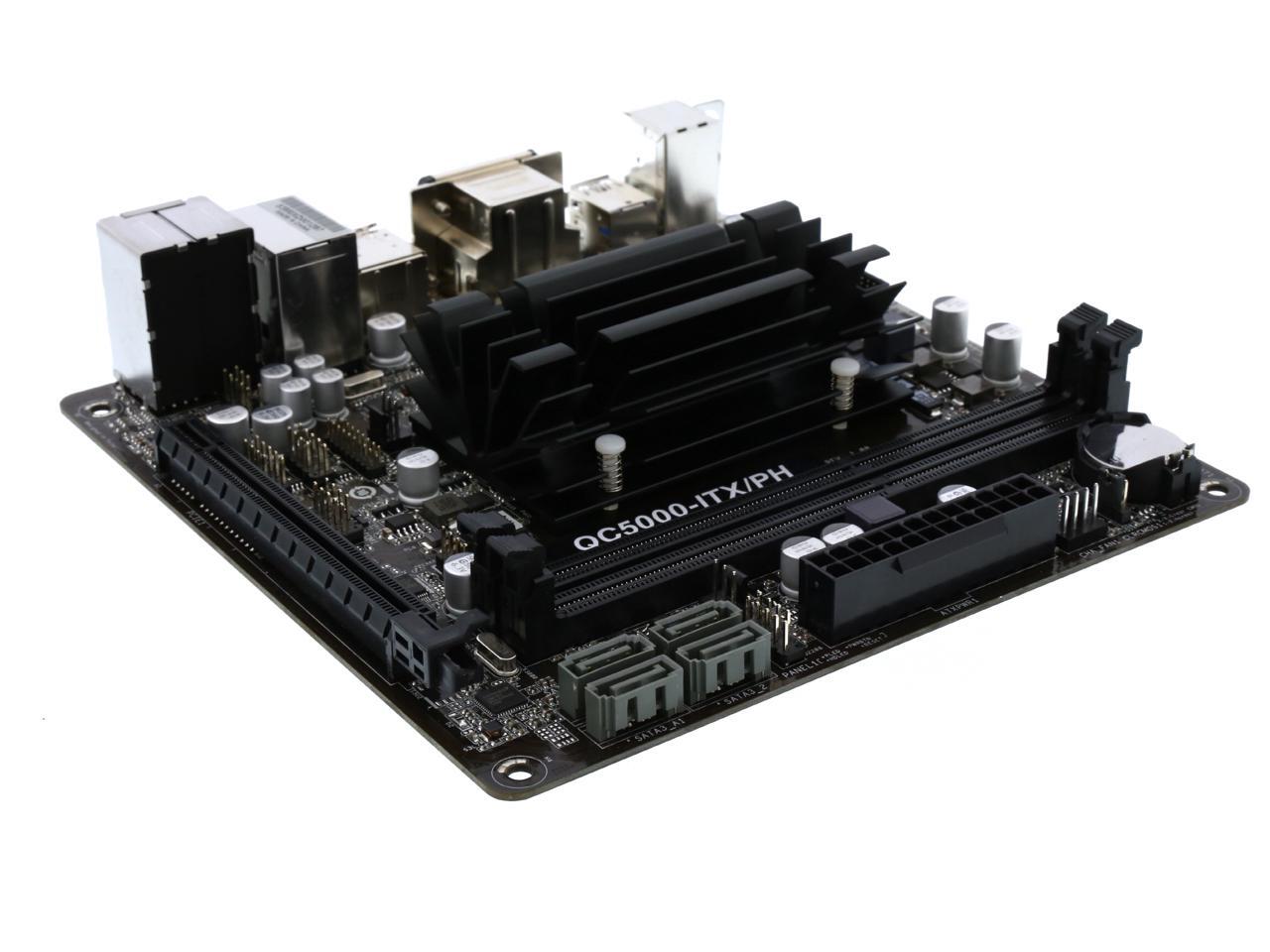

ASRock QC5000-ITX/PH AMD FT3 Kabini A4-5000 Quad-Core APU SOC Mini ITX Motherboard / CPU Combo
- AMD APU
- DDR3 1600/ 1333/ 1066 non-ECC, un-buffered
- Integrated AMD Radeon HD 8330 Graphics DirectX 11.1, Pixel Shader 5.0 Max. shared memory 2GB Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.2 Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz or 4K x 2K (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports
Specs
Reviews (16)
Learn more about the ASRock QC5000-ITX/PH
| Brand | ASRock |
|---|---|
| Model | QC5000-ITX/PH |
| Combo Type | Motherboard / CPU Combo |
| CPU | AMD FT3 Kabini A4-5000 Quad-Core APU |
|---|
| CPU Type | AMD APU |
|---|
| North Bridge | SOC |
|---|
| Number of Memory Slots | 2x240pin |
|---|---|
| Memory Standard | DDR3 1600/ 1333/ 1066 non-ECC, un-buffered |
| Maximum Memory Supported | 32GB |
| PCI Express x16 | 1 x PCI Express 2.0 x16 Slot (PCIE1 @ x4 mode) |
|---|---|
| Mini Card Slots | 1 x Mini PCIe |
| SATA | 2 x SATA3 6.0 Gb/s Connectors by AMD FT3 Kabini A4-5000 Quad-Core APU, support NCQ, AHCI and Hot Plug 2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug |
|---|
| Onboard Video Chipset | Integrated AMD Radeon HD 8330 Graphics DirectX 11.1, Pixel Shader 5.0 Max. shared memory 2GB Four graphics output options: D-Sub, DVI-D, HDMI and DisplayPort 1.2 Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz or 4K x 2K (3840x2160) @ 30Hz Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz Supports D-Sub with max. resolution up to 2048x1536 @ 60Hz Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 30Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with DVI-D, HDMI and DisplayPort 1.2 Ports Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.2 Ports |
|---|
| Audio Chipset | Realtek ALC892 |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Realtek 8111E |
|---|---|
| Max LAN Speed | 1Gbps |
| PS/2 | 1 x PS/2 keyboard/mouse port |
|---|---|

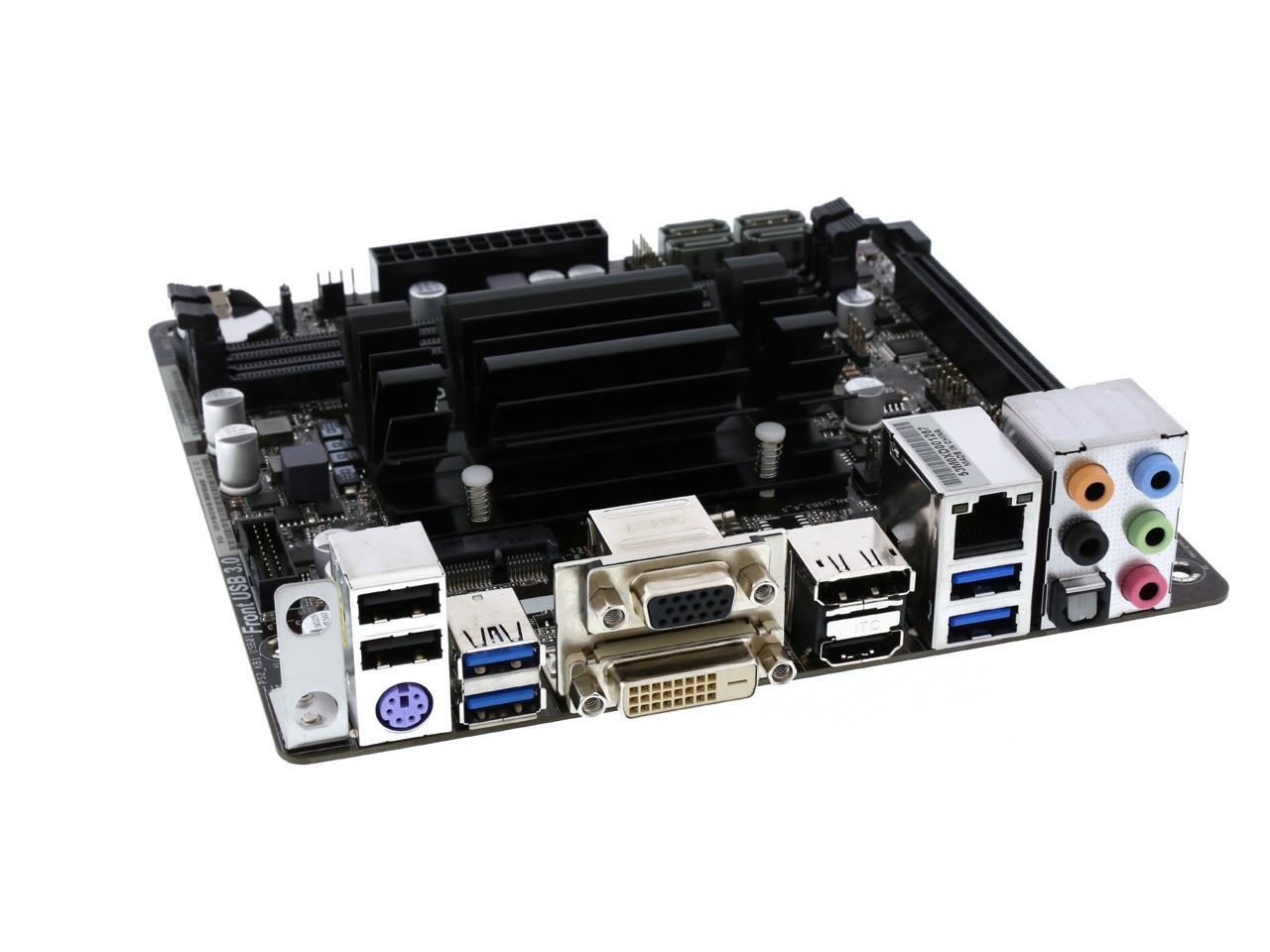

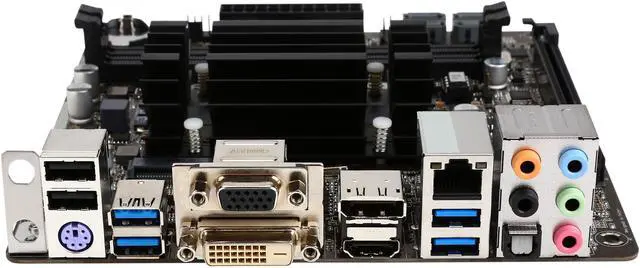

| Video Ports | 1 x D-Sub Port 1 x DVI-D Port 1 x DisplayPort 1.2 |
| HDMI | 1 x HDMI |
| USB 1.1/2.0 | 2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection)) |
| USB 3.0 | 2 x USB 3.0 Ports (AMD FT3 Kabini A4-5000 Quad-Core APU) (Supports ESD Protection (ASRock Full Spike Protection)) 2 x USB 3.0 Ports (Etron EJ188H) (Supports ESD Protection (ASRock Full Spike Protection)) |
| S/PDIF Out | 1 x Optical |
| Audio Ports | HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone |
| Onboard USB | 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) 1 x USB 3.0 Header by Etron EJ188H (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection)) |
|---|---|
| Other Connectors | 1 x COM Port Header 1 x TPM Header 1 x CPU Fan Connector (3-pin) 2 x Chassis Fan Connectors (1 x 4-pin, 1 x 3-pin) 1 x 24 pin ATX Power Connector 1 x Front Panel Audio Connector |
| Features | AMD FT3 Kabini A4-5000 Quad-Core APU All Solid Capacitor design Supports DDR3 1600 1 PCIe 2.0 x16, 1 mini-PCIe Graphics Output Options : D-Sub, DVI-D, HDMI, DisplayPort Integrated AMD Radeon HD 8330 Graphics, DX11.1, PS5.0 6 x USB 3.0 (2 Front, 4 Rear), 6 x USB 2.0 (4 Front, 2 Rear), 4 x SATA3,1 x COM Port Header Realtek Gigabit LAN 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec) Supports ASRock Full Spike Protection, A-Tuning, XFast LAN, XFast RAM, USB Key Unique Feature: ASRock Full Spike Protection BIOS: 32Mb AMI UEFI Legal BIOS with multilingual GUI support Supports "Plug and Play" ACPI 1.1 compliance wake up events SMBIOS 2.3.1 support DRAM Voltage multi-adjustment Software: ASRock A-Tuning ASRock USB Key ASRock APP Charger ASRock XFast LAN ASRock XFast RAM ASRock Restart to UEFI UEFI: ASRock Interactive UEFI ASRock Instant Boot ASRock Instant Flash ASRock Internet Flash ASRock Crashless BIOS ASRock OMG (Online Management Guard) ASRock UEFI Tech Service ASRock Dehumidifier Function ASRock Easy Driver Installer Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar, Start8 (30 days trial) Hardware Monitor: CPU temperature sensing Chassis temperature sensing CPU Fan Tachometer Chassis Fan Tachometer CPU/Chassis Quiet Fan CPU/Chassis Fan multi-speed control Voltage monitoring: +12V, +5V, +3.3V, Vcore OS: Microsoft Windows 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit / XP 32-bit / XP 64-bit *USB 3.0 is not supported by Windows XP Certifications: FCC, CE, WHQL ErP/EuP ready (ErP/EuP ready power supply is required) |
|---|
| Form Factor | Mini ITX |
|---|
| First Listed on Newegg | April 13, 2015 |
|---|
