ASRock NUC BOX-1165G7 Fanned BOX Barebone (Include Intel 11th CPU i7 )

OUT OF STOCK.
Fees for brokerage and duty included in price.
  • Intel Core i7-1165G7, QC, Max Speed up to 4.7 GHz
  • Intel Iris Xe Graphics
  • 2 x 260Pin SO-DIMM DDR4 3200
Specs
Reviews

Learn more about the ASRock NUC BOX-1165G7

General
Brand ASRock
Model NUC BOX-1165G7
CPU Supported
CPU Type Intel Core i7-1165G7, QC, Max Speed up to 4.7 GHz
Memory Supported
Memory installed No Memory
Memory slot 2 x 260Pin SO-DIMM
Memory Type Supported DDR4 3200
Max Memory Supported 64GB
Dual Channel Memory Supported Yes
Expansion Slots
Other 1 x M.2 (Key E, 2230) with PCIe x1, USB 2.0 for Wireless
Storage
Hard Drive Installed No Hard Drive
Serial ATA 1 x SATA 6.0Gb/s
M.2 1 x M.2 (KEY M, 2242/2260/2280) with PCIe x4 and SATA3 for SSD
* M.2 Key M 2280 (Supported by bracket)
Graphics
Onboard Video Intel Iris Xe Graphics
Audio
Onboard Audio Realtek ALC233
Communications
LAN LAN1: Intel I219V with 10/100/1000 Mbps
LAN2: Intel I225LM with 10/100/1000/2500 Mbps
Max LAN Speed 10/100/1000/2500Mbps + 10/100/1000Mbps
Wireless LAN 1 x Intel Wi-Fi 6 AX200 module
Bluetooth Bluetooth 5.2
Front Panel Ports
Front USB 1 x USB 3.2 Gen2 (Type A)
2 x USB 3.2 Gen2 (Type-C, Supports DP 1.4 display output)
* USB4 Compliance Test is pending for certification
Front Audio Ports 1 (headphone & microphone jack)

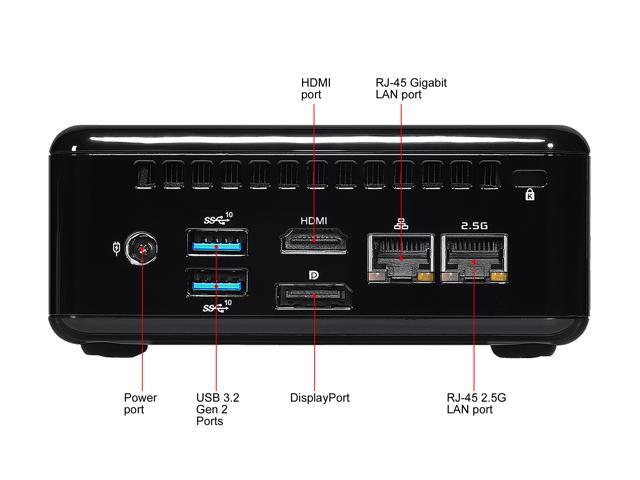

Back Panel Ports
HDMI 1 x HDMI 2.0a
Max resolution up to 4096x2160@60Hz
DisplayPort 1 x DisplayPort 1.4, DP++
Max resolution up to 4096x2160@60Hz
Rear USB 2 x USB 3.2 Gen2 (Type-A)
RJ45 1 x 1 Gigabit LAN, 1 x 2.5 Gigabit LAN
Other Rear Ports 1 x DC Jack
Power Supply
Power Supply 19V/90W Power Adapter
Physical SPEC

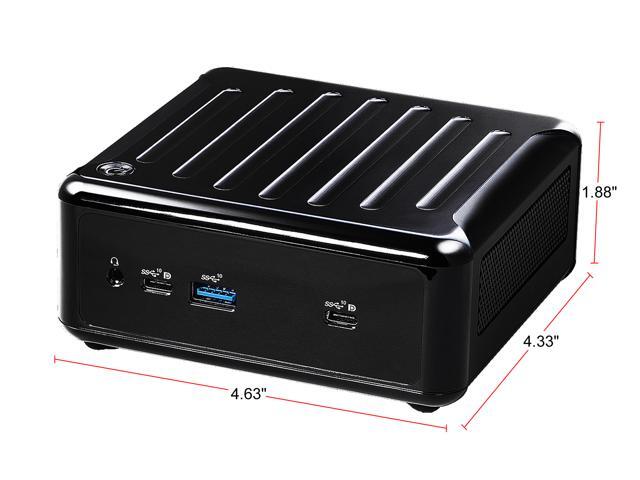

Dimensions 1.88" x 4.63" x 4.33"
Weight 2.20 lbs.
Features
Features Intel 11th Gen (Tiger Lake-UP3) Core Processors
2 x 260-pin SO-DIMM up to 64GB DDR4 3200 MHz
5 x USB 3.2 Gen2, 1 x M.2 Key M, 1 x M.2 Key E (WiFi-6 AX200), 1 x SATA3
1 x Intel 1 Gigabit LAN, 1 x Intel 2.5 Gigabit LAN
Supports Quad display, 1 x HDMI 2.0a, 3 x DP 1.4 (2 from Type C)
TPM onboard
19V/90W Power Adapter
110.0 x 117.5 x 47.85mm, Fanned Barebone
Packaging
Packaging Accessories:
1 x 19V/90W Power Adapter
1 x Screw Package
1 x VESA mounting bracket
Additional Information
Date First Available January 18, 2021
