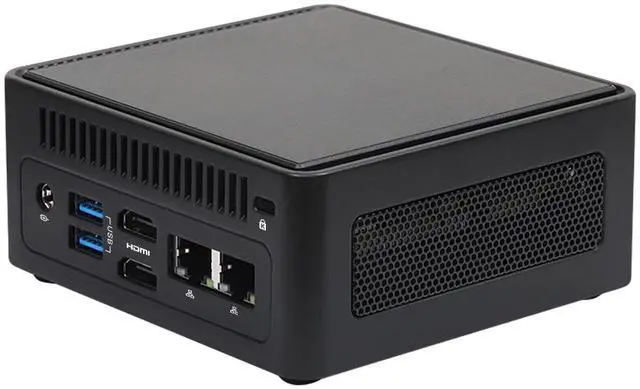

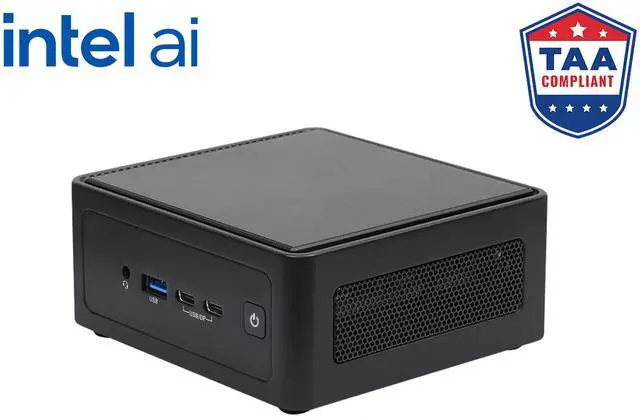

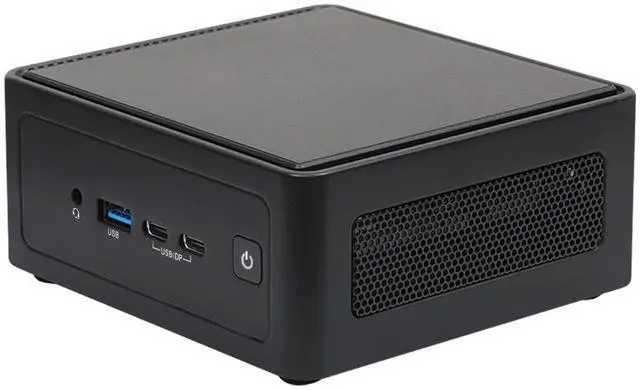

Learn more about the ASRock Industrial NUC BOX-358H
General| Brand | ASRock Industrial |
|---|
| Model | NUC BOX-358H |
|---|
| Color | Black |
|---|
| Form Factor | Tall |
|---|
CPU Supported| CPU Type | Intel Core Ultra X7 358H |
|---|
| CPU Cores | 16-Core (4P+8E+4LP) |
|---|
Memory Supported| Memory installed | No Memory |
|---|
| Memory slot | 2 x 262Pin SO-DIMM |
|---|
| Memory Type Supported | DDR5 7200 |
|---|
| Max Memory Supported | 128GB |
|---|
| Dual Channel Memory Supported | Yes |
|---|
Storage| M.2 | 1 x M.2 (KEY M, 2280) with PCIe Gen5 x4 for SSD 1 x M.2 (KEY M, 2242) with PCIe Gen4 x4 for SSD |
|---|
Graphics| Integrated Graphics | Intel Graphics |
|---|
Audio| Onboard Audio | Realtek ALC256 |
|---|
| Channel | 2 Channel |
|---|
Communications| LAN | LAN1: Intel I226LM with 10/100/1000/2500 Mbps LAN2: Intel I226V with 10/100/1000/2500 Mbps |
|---|
| Max LAN Speed | 2.5Gbps |
|---|
| Wireless LAN | 802.11be |
|---|
| WiFi Generation | Wi-Fi 7 |
|---|
| Bluetooth | Bluetooth 6.0 |
|---|

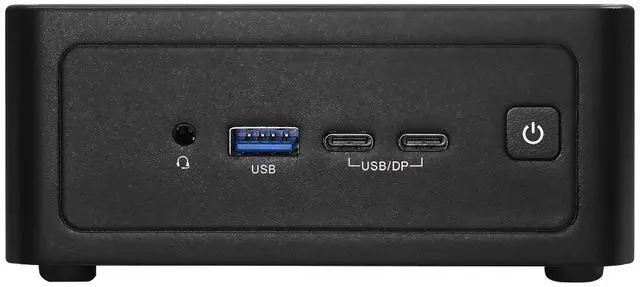

Front Panel Ports| Front USB | 1 x USB 3.2 Gen2 (Type-A) 1 x USB4/Thunderbolt 4 (Supports DP 2.1 display output) 1 x USB3.2 Gen2x2 (Type-C, Supports DP1.4a display output) |
|---|
| Front Audio Ports | 1 (headphone & microphone jack) |
|---|

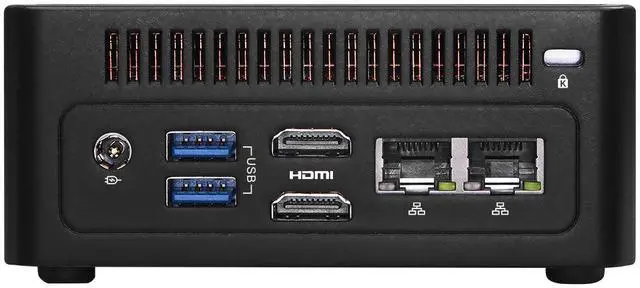

Back Panel Ports| HDMI | 2 x HDMI 2.1 |
|---|
| Rear USB | 2 x USB 3.2 Gen2 (Type-A) |
|---|
| RJ45 | 2 x 2.5 Gigabit LAN |
|---|
Power Supply| Power Supply | 12V~24V DC-In Jack |
|---|
Physical SPEC| Dimensions | 117.5 x 110.0 x 49mm (4.63" x 4.33" x 1.93") |
|---|
| Weight | 1.0Kg |
|---|
Packaging| Packaging | 1 x 19V/120W Power Adapter 1 x VESA mount bracket |
|---|
Additional Information| First Listed on Newegg | April 13, 2026 |
|---|
