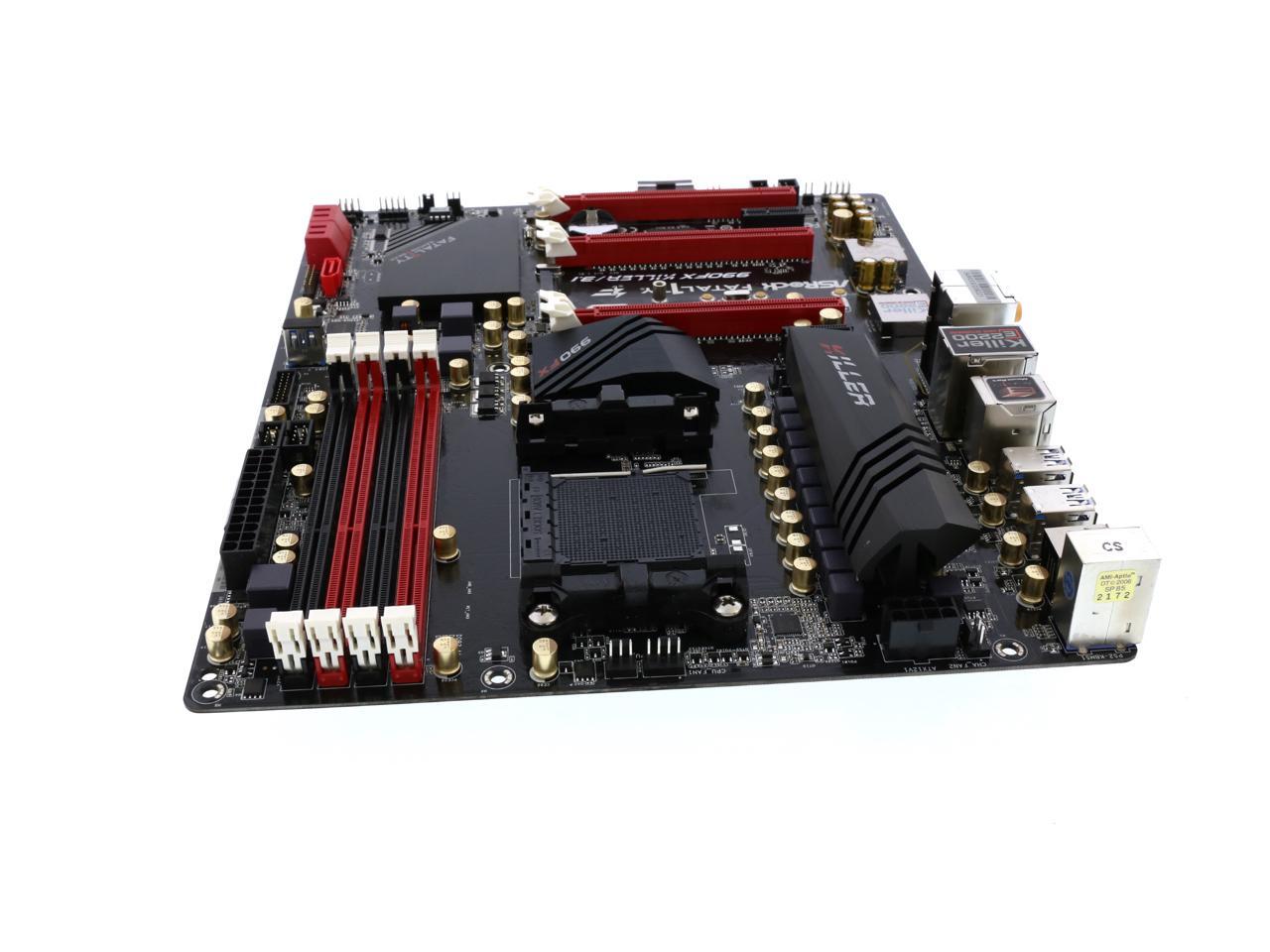

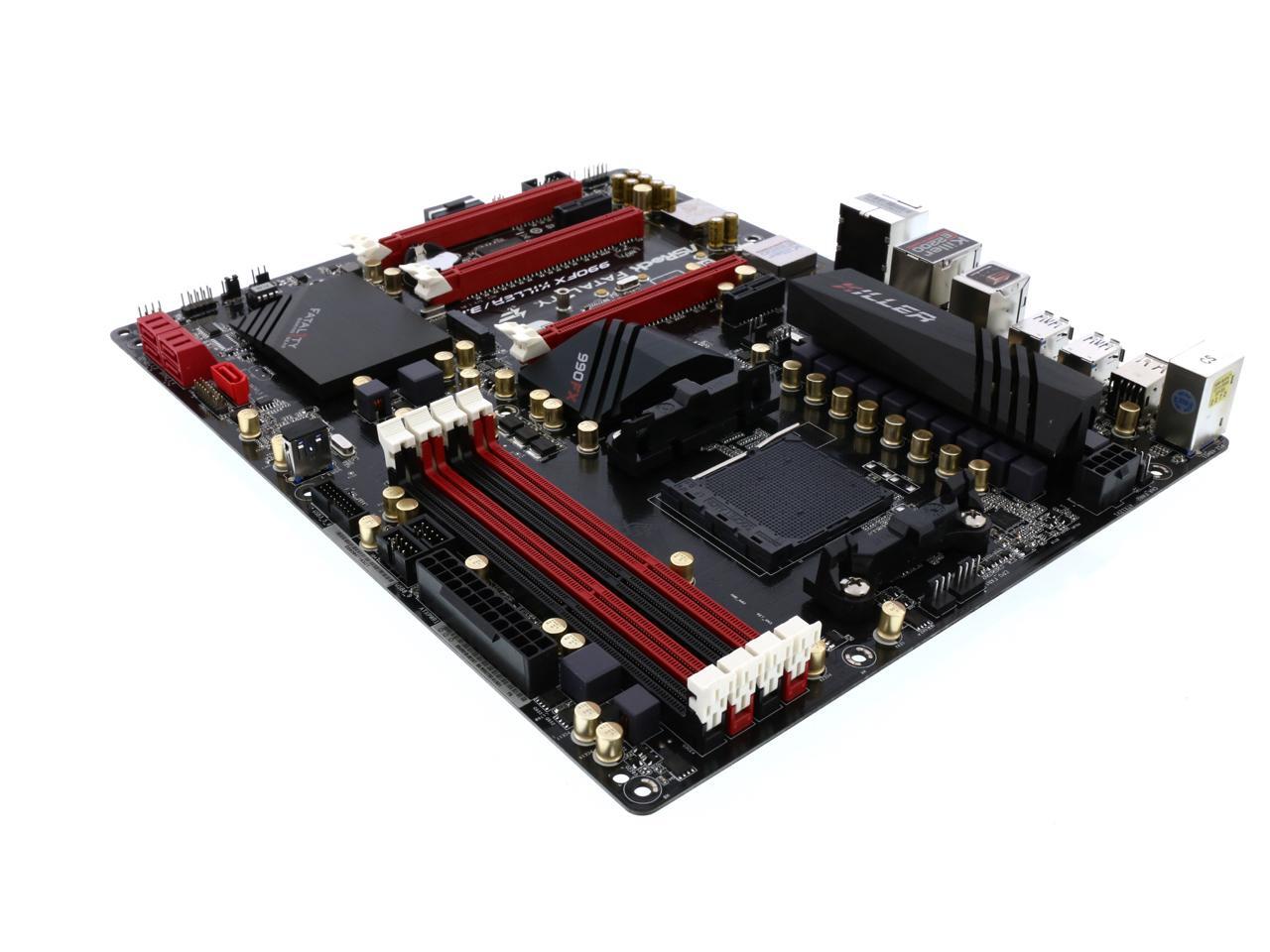

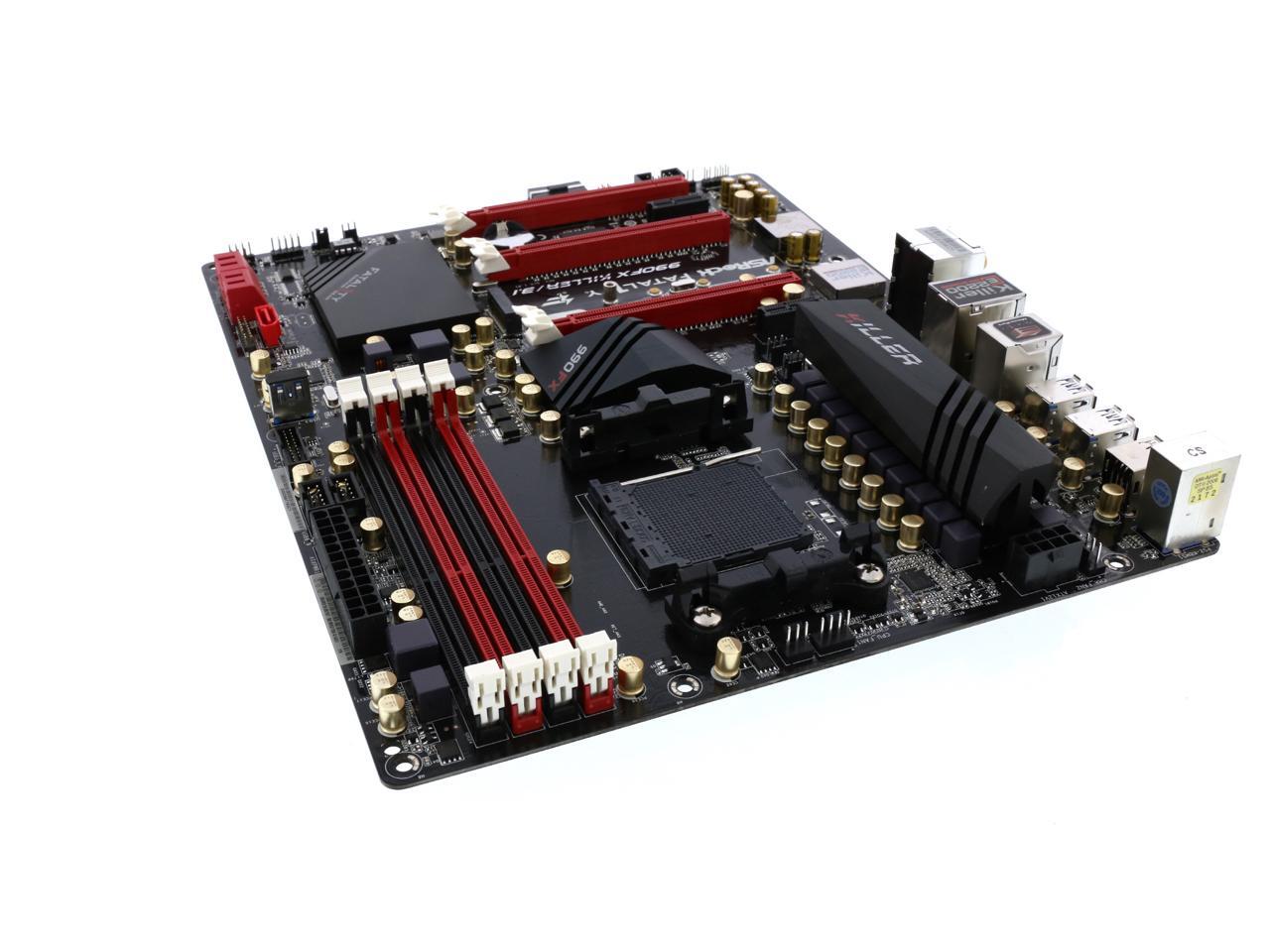

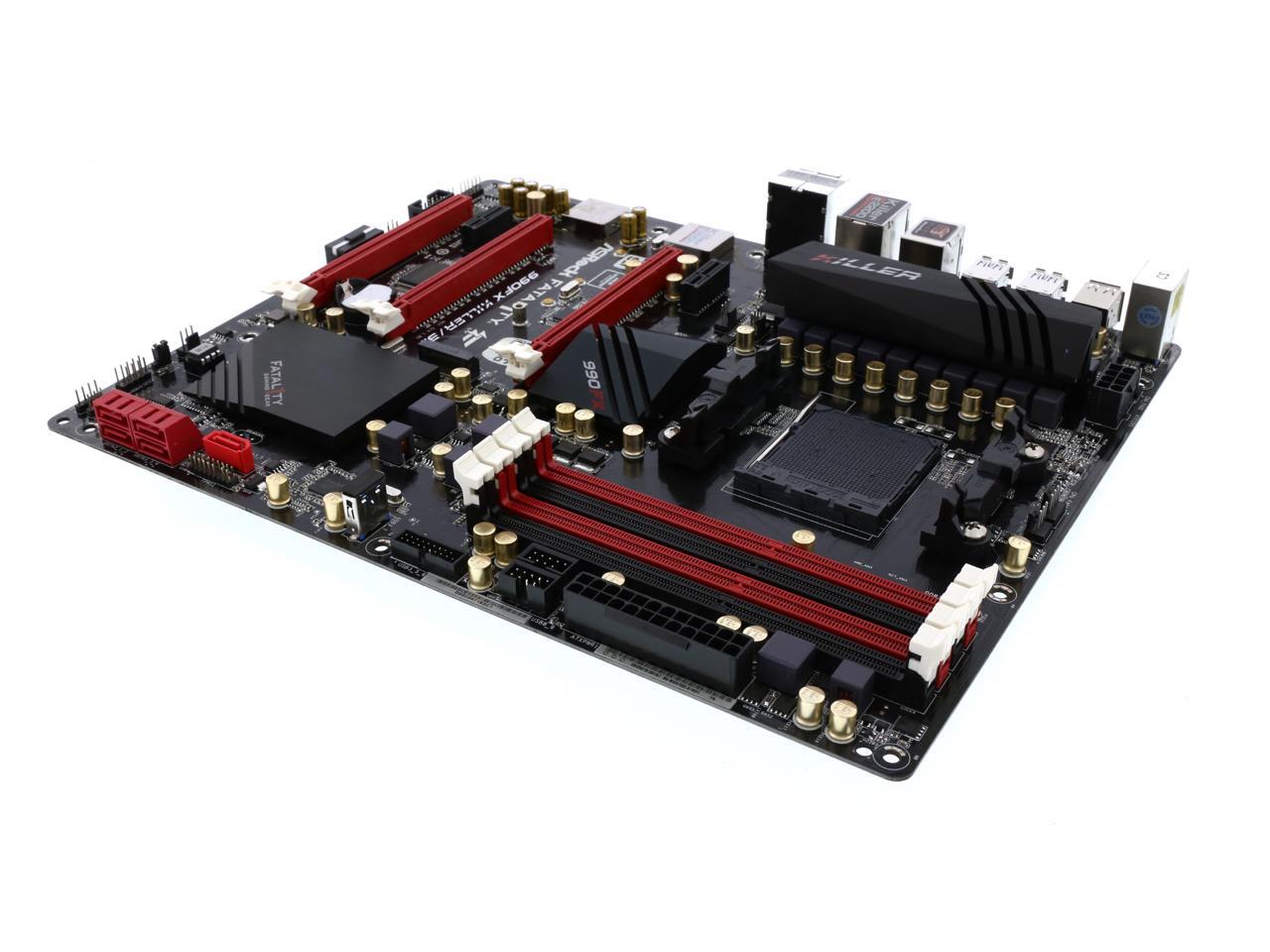

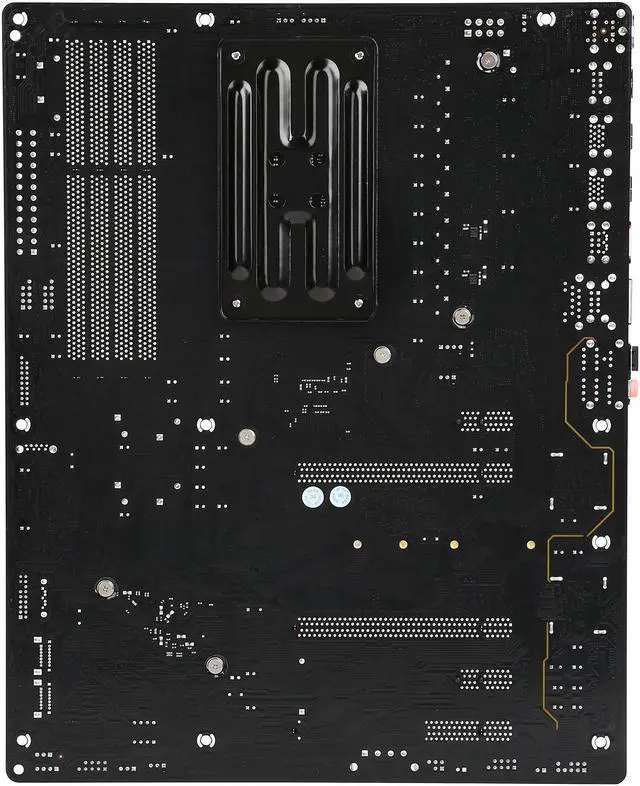

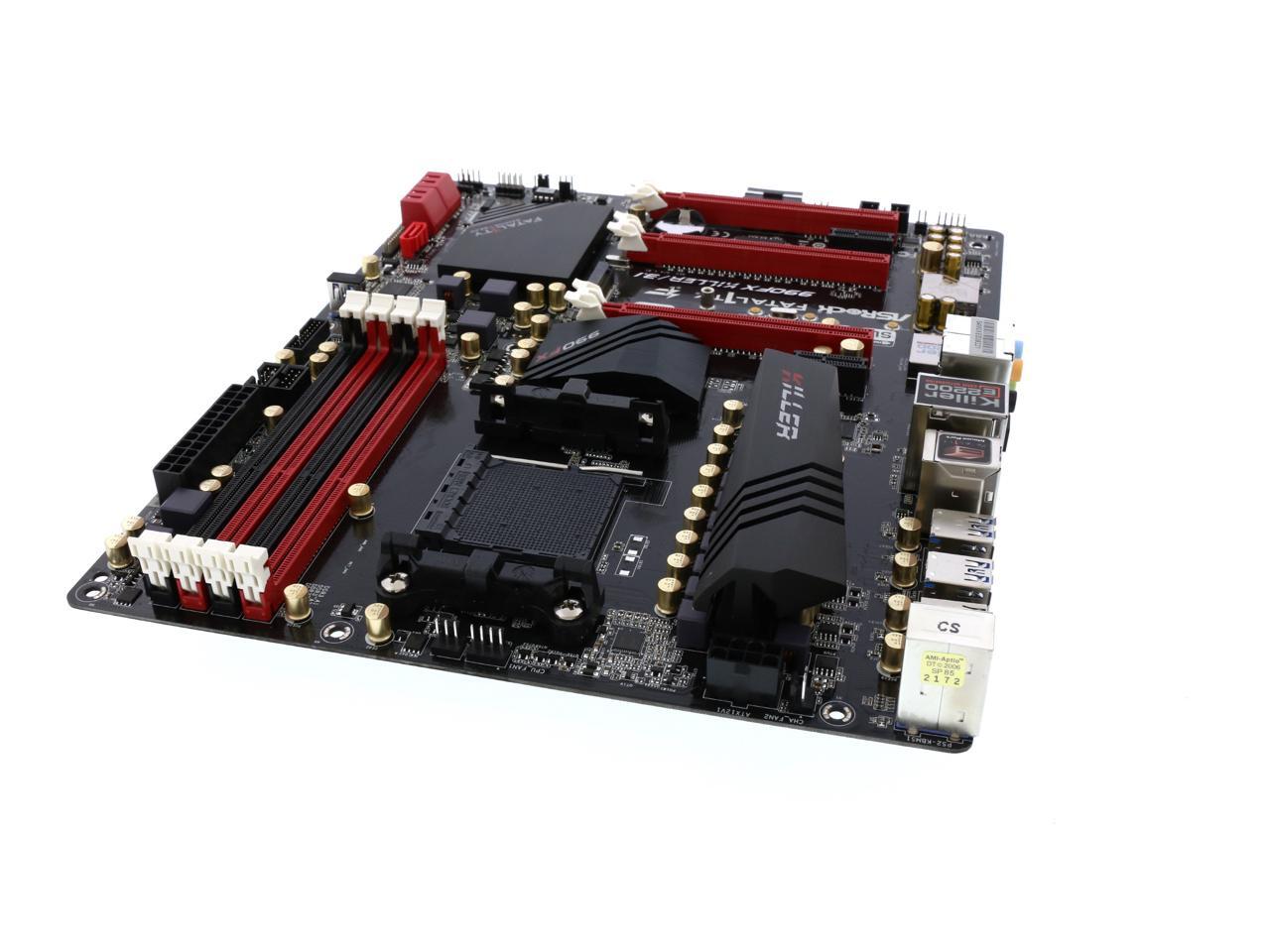

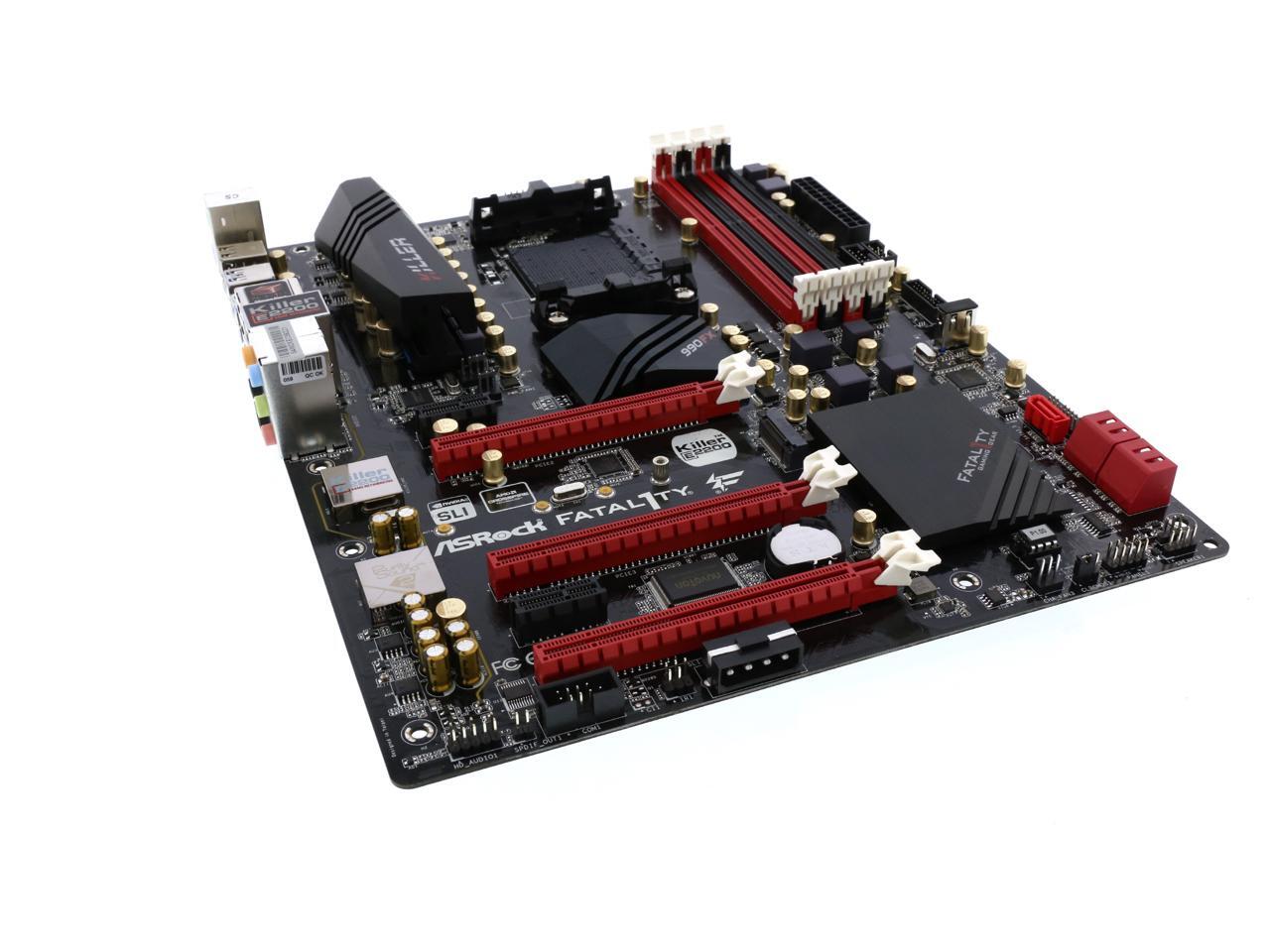

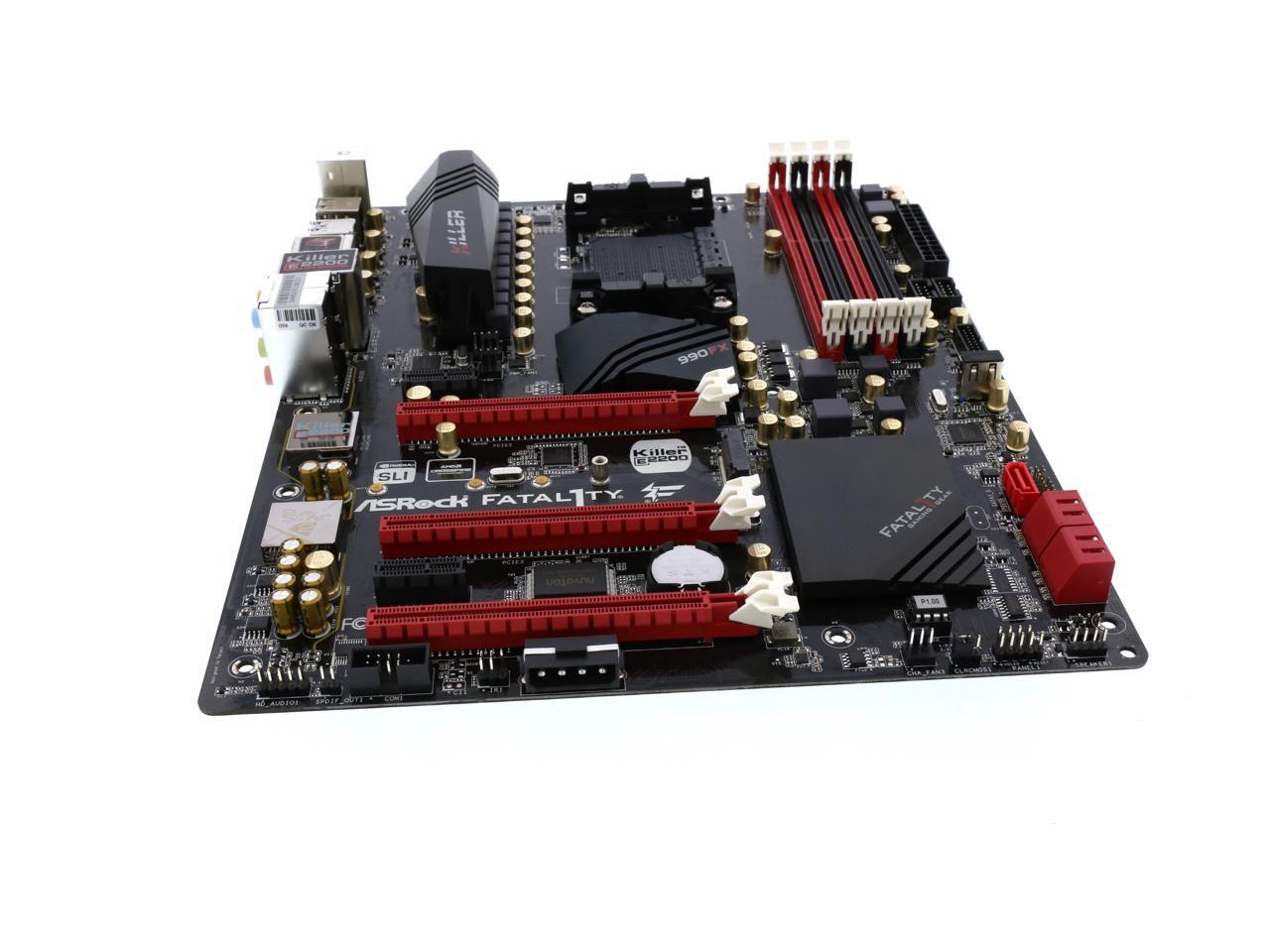

ASRock ASRock Fatal1ty Gaming 990FX Killer/3.1 AM3+/AM3 AMD 990FX USB 3.1 USB 3.0 ATX AMD Motherboard

(13) Write a Review
  • AMD 990FX
  • Phenom II X6/ X4/ X3/ X2 (except 920/ 940)/ Athlon II X4/ X3/ X2/ Sempron
  • DDR3 2450*(*OC)/ 2100*/ 1600/ 1333/ 1066
Specs
Reviews (13)

Learn more about the ASRock 990FX Killer/3.1

Model
Brand ASRock
Series ASRock Fatal1ty Gaming
Model 990FX Killer/3.1
Supported CPU
CPU Socket Type AM3+/AM3
CPU Type Phenom II X6/ X4/ X3/ X2 (except 920/ 940)/ Athlon II X4/ X3/ X2/ Sempron
FSB 2600 MHz
Chipsets
Chipset AMD 990FX
South Bridge AMD SB950
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR3 2450*(*OC)/ 2100*/ 1600/ 1333/ 1066
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 2.0 x16 3 x PCI Express 2.0 x16 Slots (PCIE2/PCIE3 @ x16 mode; PCIE5 @ x4 mode)
PCI Express x1 2 x PCI Express 2.0 x1 Slots
Storage Devices
Serial ATA (SATA) 5 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 0+1, JBOD and RAID 5), NCQ, AHCI
and Hot Plug
M.2 1 x M.2_SSD (NGFF) Socket 3, supports M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to
Gen2 x2 (10 Gb/s) (M.2_SSD (NGFF) Socket 3 is shared with the eSATA3 connector)
SATA RAID 0/1/0+1/5/JBOD
Onboard Audio
Audio Chipset Realtek ALC1150
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Qualcomm Atheros KillerTM E2200
Max LAN Speed 1Gbps

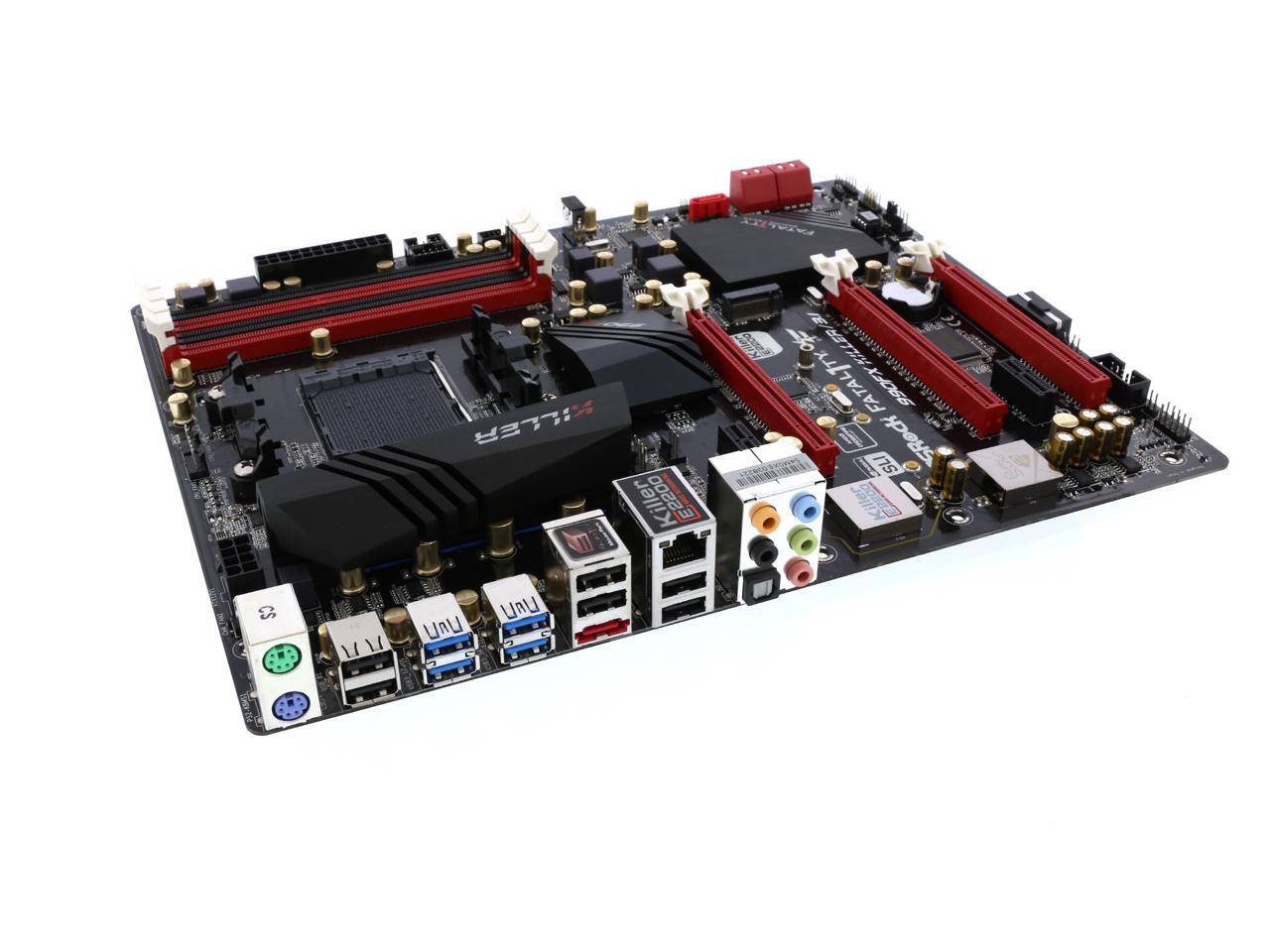

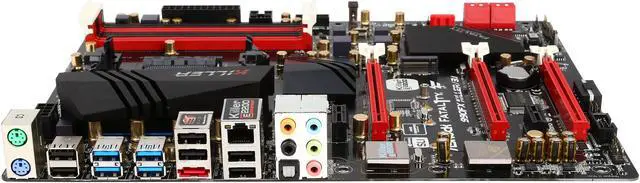

Rear Panel Ports
PS/2 1 x PS/2 Mouse Port
1 x PS/2 Keyboard Port
RJ45 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
USB 3.1 1 x USB 3.1 Type-A Port (10 Gb/s) (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.1 Type-C Port (10 Gb/s) (Supports ESD Protection (ASRock Full Spike Protection))
USB 3.0 4 x USB 3.0 Ports (ASMedia Hub) (Supports ESD Protection (ASRock Full Spike Protection))
USB 1.1/2.0 5 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))
1 x Fatal1ty Mouse Port (USB 2.0) (Supports ESD Protection (ASRock Full Spike Protection))
eSATA 1 x eSATA3 Connector
S/PDIF Out 1 x Optical
Audio Ports HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone
Internal I/O Connectors
Onboard USB 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
1 x Vertical Type A USB 3.0 (Supports ESD Protection (ASRock Full Spike Protection))
1 x USB 3.0 Header by Etron EJ188 (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))
Other Connectors 1 x IR Header
1 x COM Port Header
1 x TPM Header
1 x Power LED Header
2 x CPU Fan Connectors (1 x 4-pin, 1 x 3-pin)
3 x Chassis Fan Connectors (1 x 4-pin, 2 x 3-pin)
1 x Power Fan Connector (3-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x PCIe Power Connector
1 x Front Panel Audio Connector
1 x SPDIF Out Connector
Physical Spec
Form Factor ATX
Features
Features Gaming Armor
- CPU Power - Hi-Density Power Connector
- VGA Card - 15µ Gold Contact in VGA PCIe Slots + PCIe Power Connector
- Internet - Qualcomm Atheros Killer LAN
- Audio - Purity SoundTM 2
Supports Socket AM3+ / AM3 processors
Supports 8-Core CPUs
Premium Gold Capacitor Design, Digi Power, 8 + 2 Power Phase Design
Supports Dual Channel DDR3 2450(OC)
3 PCIe 2.0 x16, 2 PCIe 2.0 x1
Supports AMD 3-Way CrossFireX, NVIDIA Quad SLI
7.1 CH HD Audio (Realtek ALC1150 Audio Codec), Supports Purity SoundTM 2 & DTS Connect
Qualcomm Atheros Killer E2200 Series Gigabit LAN
5 SATA3, 1 M.2 (Gen2 x2 & SATA3), 1 eSATA3
2 USB 3.1 10Gb/s (1*Type-A + 1*Type-C) (Supported by the bundled ASRock USB 3.1/A+C)
7 USB 3.0 (2 Front, 4 Rear, 1 Vertical Type A), 10 USB 2.0 (4 Front, 5 Rear, 1 Fatal1ty Mouse Port)
Supports F-Stream, Key Master, X-Boost, XSplit, Full Spike Protection, APP Shop

Unique Feature
ASRock USB 3.1 - ASRock USB 3.1/A+C (10 Gb/s)
ASRock Full Spike Protection
ASRock APP Shop

Gaming Armor
CPU Power
- Hi-Density Power Connector
VGA Card
- 15µ Gold Contact in VGA PCIe Slots (PCIE2/PCIE3)
- PCIe Power Connector
Internet - Qualcomm Atheros KillerTM LAN
Audio - Purity SoundTM 2

BIOS Feature
- 32Mb AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 1.1 Compliant wake up events
- Supports jumperfree
- SMBIOS 2.3.1 support
- CPU, DRAM, NB, HT, CPU VDDA, PCIE VDDA, CPU NB Voltage multi-adjustment

Software
- ASRock F-Stream
- ASRock Key Master
- ASRock APP Charger
- ASRock XFast RAM
- ASRock Restart to UEFI
- ASRock X-Boost
UEFI
- ASRock Instant Boot
- ASRock Instant Flash
- ASRock Internet Flash
- ASRock Crashless BIOS
- ASRock OMG (Online Management Guard)
- ASRock UEFI System Browser
- ASRock UEFI Tech Service
- ASRock Dehumidifier Function
- ASRock Easy RAID Installer
- ASRock Easy Driver Installer
- Turbo 50 / Turbo 60 Overclocking
Packaging

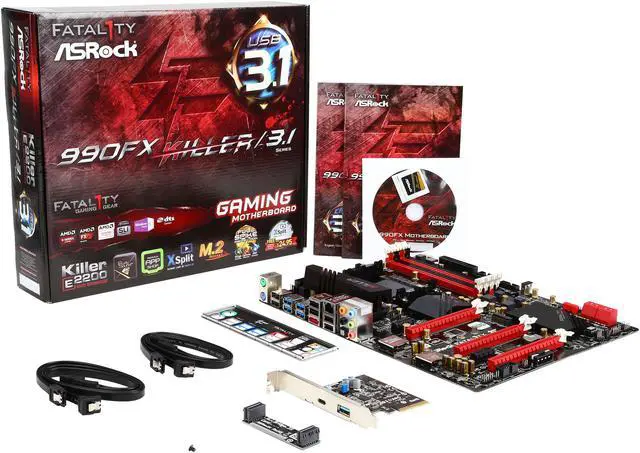

Package Contents Accessories:
1 x ASRock USB 3.1/A+C
Quick Installation Guide, Support CD, I/O Shield
2 x SATA Data Cables
1 x Screw for M.2_SSD (NGFF) Socket 3
Additional Information
First Listed on Newegg April 28, 2015
