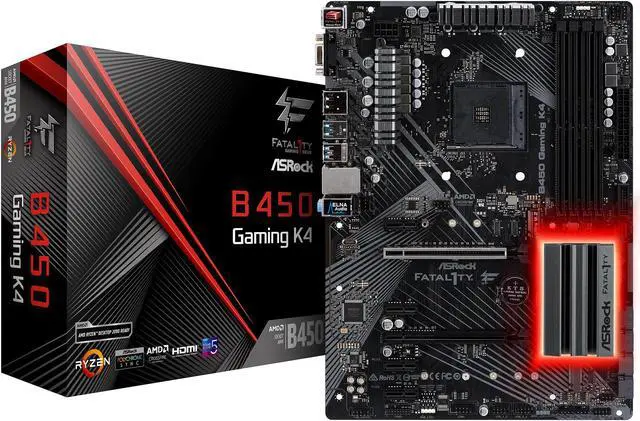

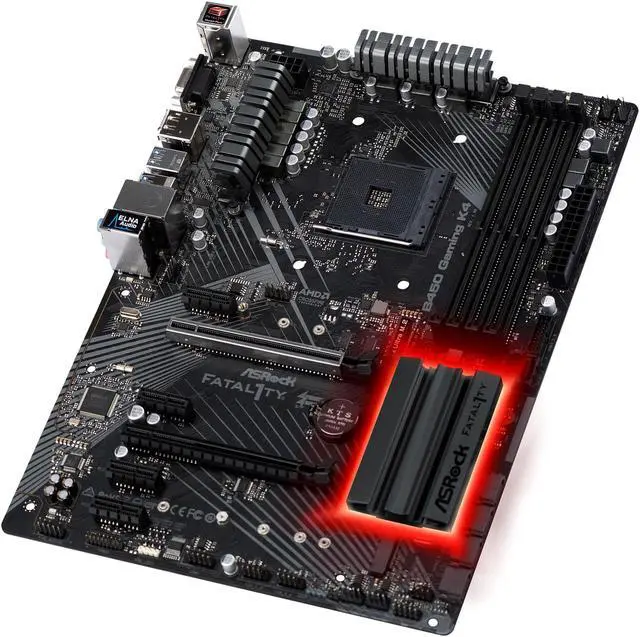

ASRock Fatal1ty B450 GAMING K4 AM4 AMD B450 USB 3.1 HDMI ATX AMD Motherboard

OPEN BOX

AMD B450
Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)
AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 non-ECC, un-buffered memory

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Learn more about the ASRock B450 GAMING K4

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports 105W Water Cooling (Pinnacle Ridge); Supports 95W Water Cooling (Summit Ridge); Supports 65W Water Cooling (Raven Ridge)

Chipsets
Chipset	AMD B450

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3200+(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Summit Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory* AMD Ryzen series CPUs (Raven Ridge) support DDR4 3200+(OC)/ 2933(OC)/ 2667/ 2400/ 2133 non-ECC, un-buffered memory* * For Ryzen Series CPUs (Raven Ridge), ECC is only supported with PRO CPUs. * Please refer to Memory Support List on ASRock's website for more information. (http://www.asrock.com/)
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	AMD Ryzen series CPUs (Summit Ridge and Pinnacle Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE2: x16 mode; PCIE4: x4 mode)* AMD Ryzen series CPUs (Raven Ridge) - 2 x PCI Express 3.0 x16 Slots (PCIE2: x8 mode; PCIE4: x4 mode)* * Supports NVMe SSD as boot disks * If M2_1 is occupied, PCIE4 will be disabled
PCI Express x1	4 x PCI Express 2.0 x1 Slots

Storage Devices
Serial ATA (SATA)	4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug* 2 x SATA3 6.0Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug * M2_2, SATA3_3 and SATA3_4 share lanes. If either one of them is in use, the others will be disabled.
M.2	1 x Ultra M.2 Socket (M2_1), supports M Key type 2242/2260/2280 M.2 PCI Express module up to Gen3 x4 (32Gb/s) (with Summit Ridge, Raven Ridge and Pinnacle Ridge) 1 x M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x2 (16Gb/s) If M2_1 is occupied, PCIE4 will be disabled Supports NVMe SSD as boot disks ** Supports ASRock U.2 Kit
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU* * Actual support may vary by CPU DirectX 12, Pixel Shader 5.0 Max. shared memory 2GB Three graphics output options: D-Sub, HDMI and DisplayPort 1.2 Supports Triple Monitor Supports HDMI with max. resolution up to 4K x 2K (4096x2160) @ 24Hz / (3840x2160) @ 30Hz Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required) Supports HDCP with HDMI and DisplayPort 1.2 Ports Supports 4K Ultra HD (UHD) playback with HDMI and DisplayPort 1.2 Ports

Onboard Audio
Audio Chipset	Realtek ALC892
Audio Channels	7.1 Channels * To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	1Gbps

Rear Panel Ports

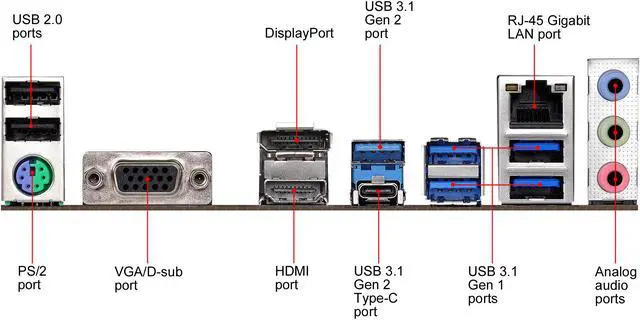

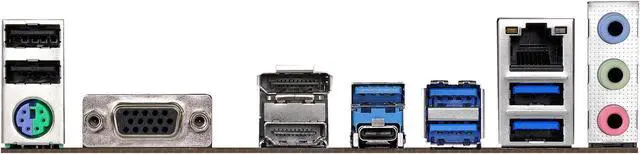

Back I/O Ports	1 x DisplayPort / 1 x D-Sub / 1 x HDMI / 1 x LAN (RJ45) / 1 x PS/2 Keyboard/Mouse Combo / 1 x USB 3.1 Gen 2 Type-A / 1 x USB 3.1 Gen 2 Type-C / 2 x USB 2.0/1.1 / 3 x Audio Jacks / 4 x USB 3.1 Gen 1 Type-A
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub
HDMI	1 x HDMI
RJ45	1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
DisplayPort	1 x DisplayPort 1.2
USB 3.1	1 x USB 3.1 Gen2 Type-A Port (10Gb/s) (Supports ESD Protection) 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
USB 1.1/2.0	2 x USB 2.0 Ports (Supports ESD Protection) * 1 x Fatal1ty Mouse Port (USB 2.0) is included
USB Type-C	1 x USB 3.1 Gen2 Type-C Port (10Gb/s) (Supports ESD Protection)
Audio Ports	HD Audio Jacks: Line in / Front Speaker / Microphone

Internal I/O Connectors
Onboard USB	2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)
Other Connectors	1 x COM Port Header 1 x TPM Header 1 x Power LED and Speaker Header 1 x RGB LED Header * Supports in total up to 12V/3A, 36W LED Strip. 1 x Addressable LED Header * Supports in total up to 5V/3A, 15W LED Strip. 1 x AMD Fan LED Header * The AMD Fan LED Header supports LED strips of maximum load of 3A (36W) and length up to 2.5M. 1 x CPU Fan Connector (4-pin) * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control) * The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP and CHA_FAN3/WP can auto detect if 3-pin or 4-pin fan is in use. 1 x Front Panel Audio Connector

Physical Spec
Form Factor	ATX
LED Lighting	RGB

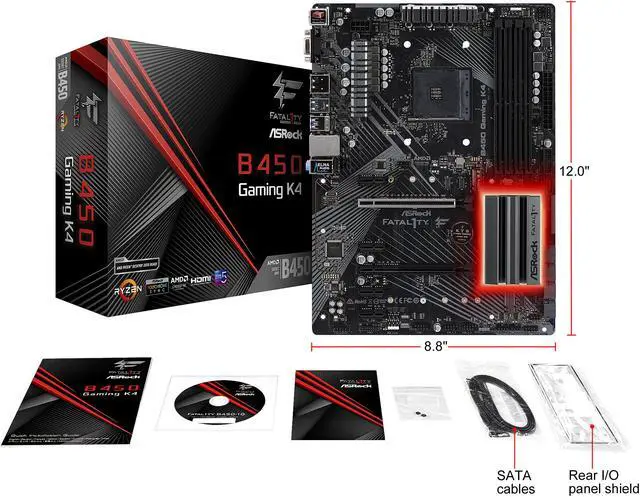

Dimensions (W x L)	12.0" x 8.8"
Power Pin	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector

Software Feature
Windows 11	Supported
