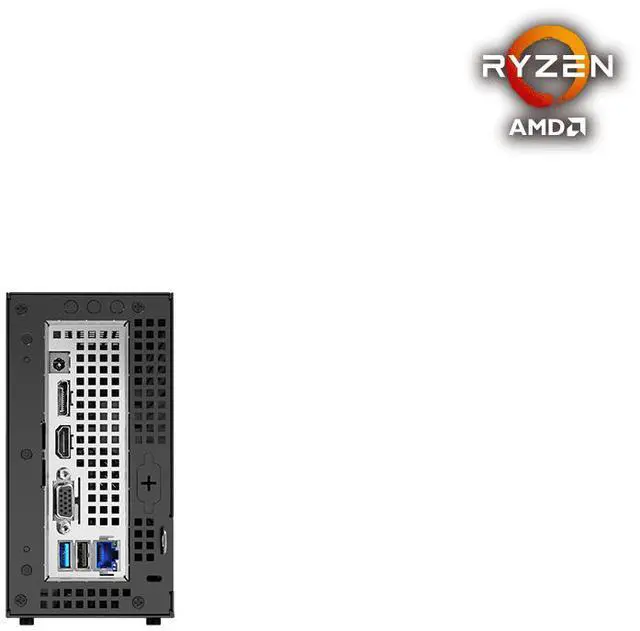

DeskMini X300/2.5G Series
1.92L Mini PC
Powerful 1.92L Mini PC for Versatile Applications
1.92L Mini PC designed for business, home, and education environments, combining AMD Ryzen™ performance with triple display output and ultra-fast 2.5G LAN. Ideal for compact workstations, digital signage, and multi-task productivity setups.
Powerful Processing Performance
ASRock DeskMini X300 supports the latest AMD Ryzen™ 5000 G-Series desktop processors. With up to 8 cores, 16 threads, these processors deliver ultimate performance for multitask computing compared with mobile processors. In addition, with AMD Ryzen™ 5000 G-Series desktop processors, you get the world's fastest integrated graphics.
* Test results are for reference only.
Overclocking Option in BIOS
ASRock DeskMini X300 supports overclocking options. Improve system performance by tuning the core clock and release the potential of the AM4 APU.
* Benchmark results are for reference only, ASRock does not guarantee to overclock margin.
Insane Memory Performance
ASRock DeskMini supports Dual Channel DDR4-4000+MHz (OC) memory, up to 128GB. Thanks to high speed memory and Radeon™ Graphics, DeskMini provides awesome 3D performance.
Heatsink on MOSFET
ASRock DeskMini features with Aluminum MOSFET Heatsink provides great heat dissipation to ensure excellent performance for overclocking and system stability in daily computing.
4X Storages
ASRock DeskMini supports up to 4 Storages
M2_1 M.2 (2280) –PCIe Gen3 x4
M2_2 M.2 (2280) –PCIe Gen3 x2/x4
2x 2.5” SATA 6Gb SSD/HDD Tray
Mini Home Data Center
DeskMini supports RAID 0/1 function! Build mini data center at home!
RAID 0 – offers superior I/O performance
RAID 1 – protects critical data in mirrored data
Upgraded 2.5G LAN Connectivity
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.
Triple Display
DeskMini supports 3 display output simultaneously
Expanding desktop by multiplying your screen area. With multiple monitors, games become more immersive, workstations become more useful and you become more productive.
USB Type-C
A Type-C USB 3.2 Gen1 connector for fast charging and delivering up to 5Gbps data transfer rates.
DeskMini Addressable LED (Optional)
Exclusive Addressable RGB LED Strip for ASRock DeskMini Series mini PC. Attach the magnetic strip inside the chassis to create cool personalized lighting for you.
* The availability of ARGB LED Strip may vary from model or region to another.
DeskMini USB Hub (Optional)
Attach the magnetic DeskMini USB Hub inside the chassis. Let you easy connect to the DeskMini Addressable LED and USB 2.0 Cable for fantastic personalized lighting as well as the accessibility to expand extra 2x USB 2.0 ports.
* The availability of DeskMini USB Hub may vary from model or region to another.
Rear Audio Cable (Optional)
Connect to external audio devices such as: 2.1 channel speaker, soundbar, headphone amplifier, and so on…
AMD APU Cooler (Optional)
New AMD AM4 Cooler enlarged 25% heatsink to provide superior thermal performance.
Dimension: 77 x 68 x 45 mm
Fan Speed: 1950 ~ 3500 R.P.M
* The availability of APU Cooler may vary for different models & regions.
VESA Mount Kit (Optional)
ASRock VESA Mount Kit of DeskMini lets you attach your DeskMini to any VESA-compatible wall mount, monitor or articulating arms to create your ideal space.
Intel® Wi-Fi Kit (Optional)
ASRock M.2 Wi-Fi Kit includes Intel® M.2 Wi-Fi module and two antennas; offering wireless connectivity for DeskMini.
USB 2.0 Cable (Optional)
Purchasing USB Cable for extra 2 x USB 2.0 ports on DeskMini.
