  6. Item#: N82E16813162239

  • $159.99
  • Limit 10 per customer.
    Add to PC build list
    Ships from United States.
    Sold by Newegg

    Shipped by Newegg

    Price alert
    Add to wish list
    Newegg PC Builder
    Shop it at NeweggBusiness.
    Shop All ASRock Products

    AMD B850 Rock WiFi 7 AM5 AMD B850 ATX Motherboards

    Be the first to review this product...
    • B850 Riptide WiFi
    • B850 Steel Legend WiFi
    • B850 Pro RS
    • B850 Pro RS WiFi
    • B850 Pro-A
    • B850 Pro-A WiFi
    • B850M Riptide WiFi
    • B850M Steel Legend WiFi
    • B850M Pro RS
    • B850M Pro RS WiFi
    • B850M Pro-A
    • B850M Pro-A WiFi
    • B850M-X WiFi
    • B850I Lightning WiFi
    • B850M Pro RS WiFi White
    • B850M-X WiFi R2.0
    • B850 Rock WiFi 7
    • Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors
    • 9+2+1 Power Phase, Dr.MOS for VCore+SOC+MISC
    • 4 x DDR5 DIMMs
    • Supports Dual Channel, up to 8000+ (OC)
    • 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 2 PCIe 4.0 x1
    • Graphics Output Options: 1 HDMI
    • Realtek ALC897 7.1 CH HD Audio Codec
    • 1 Blazing M.2 (PCIe Gen5x4)
    • 1 Hyper M.2 (PCIe Gen4x4)
    • 4 SATA3
    • 1 USB 3.2 Gen2 Type-C (Rear)
    • 1 USB 3.2 Gen2 (Rear)
    • 1 USB 3.2 Gen1 Type-C (Front)
    • 6 USB 3.2 Gen1 (2 Rear, 4 Front)
    • 8 USB 2.0 (4 Rear, 4 Front)
    • Realtek 2.5G LAN
    • 802.11be WiFi 7 + Bluetooth
    +
    +
    Specs
    Reviews

    Learn more about the ASRock B850 Rock WiFi 7

    Model
    Brand AMD
    Model B850 Rock WiFi 7
    Supported CPU
    CPU Socket Type AM5
    CPU Type Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
    Chipsets
    Chipset AMD B850
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Maximum Memory Supported 256GB
    Channel Supported Dual Channel
    ECC Supported Yes
    Buffer Supported Un-buffered
    Expansion Slots
    PCI Express 5.0 x16 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
    PCIE1 will run at Gen5x16 with 9000 and 7000 series processors, Gen4x8 with 8000 (Phoenix 1) series processors and Gen4x4 with 8000 (Phoenix 2) series processors.
    PCI Express 4.0 x16 1 x PCIe 4.0 x16 Slot (PCIE4), supports x4 mode
    PCIE4 will run at Gen4x4 with 9000 and 7000 series processors, Gen4x4 with 8000 (Phoenix 1) series processors and Gen4x2 with 8000 (Phoenix 2) series processors.
    PCI Express x4 2 x PCI Express x4
    Other Slots 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
    Storage Devices
    Serial ATA (SATA) 4 x SATA 6Gb/s
    M.2 CPU:
    - 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
    Chipset:
    - 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode

    Supports NVMe SSD as boot disks
    M2_1 is the first priority for M.2 installation.
    M2_1 will run at Gen5x4 with 9000 and 7000 series processors and Gen4x4 with 8000 (Phoenix 1 and Phoenix 2) series processors.
    SATA RAID - Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    - Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

    Requires additional M.2 NVMe expansion cards to support RAID 10
    Onboard Video
    Onboard Video Chipset AMD RDNA Integrated
    Onboard Audio
    Audio Chipset Realtek ALC897
    Audio Channels 7.1 Channels
    Onboard LAN
    LAN Chipset Dragon RTL8125BG
    Max LAN Speed 2.5Gbps
    Wireless LAN WiFi IEEE 802.11 a / b / g / n / ac / ax / be
    Bluetooth Bluetooth 5.4
    Rear Panel Ports

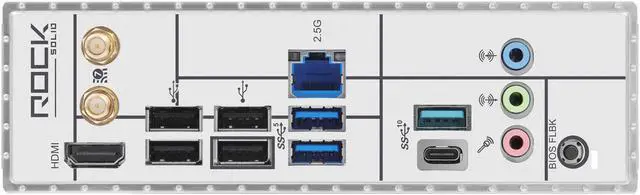

    Back I/O Ports - 2 x Antenna Ports
    - 1 x HDMI Port
    - 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
    - 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
    - 2 x USB 3.2 Gen1 Ports
    - 4 x USB 2.0 Ports
    - 1 x RJ-45 LAN Port
    - 1 x BIOS Flashback Button
    - HD Audio Jacks: Line in / Front Speaker / Microphone
    Internal I/O Connectors
    Onboard USB 2 x USB 3.2 Gen1 + 2 x USB 2.0
    Other Connectors - 1 x SPI TPM Header
    - 1 x Power LED and Speaker Header
    - 1 x RGB LED Header (Supports in total up to 12V/3A, 36W LED Strip)
    - 3 x Addressable LED Headers (Support in total up to 5V/3A, 15W LED Strip)
    - 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
    - 3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
    - 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
    - 1 x 24 pin ATX Power Connector
    - 2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)
    - 1 x Front Panel Audio Connector
    - 1 x Front Panel Type C USB 3.2 Gen1 Header

    CPU_FAN1 supports the fan power up to 1A (12W).
    CPU_FAN2, CHA_FAN1~3 and AIO_PUMP support the fan power up to 3A (36W).
    CPU_FAN2, CHA_FAN1~3 and AIO_PUMP can auto detect if 3-pin or 4-pin fan is in use.
    Physical Spec
    Form Factor ATX
    LED Lighting RGB
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 24 Pin
    Software Feature
    BIOS Feature 512Mb AMI UEFI Legal BIOS with GUI support
    Software - ASRock Motherboard Utility (A-Tuning)
    - ASRock Dragon 2.5G LAN Software
    - ASRock Polychrome SYNC*

    *These utilities can be downloaded from ASRock Live Update & APP Shop.
    Windows 11 Supported
    Packaging

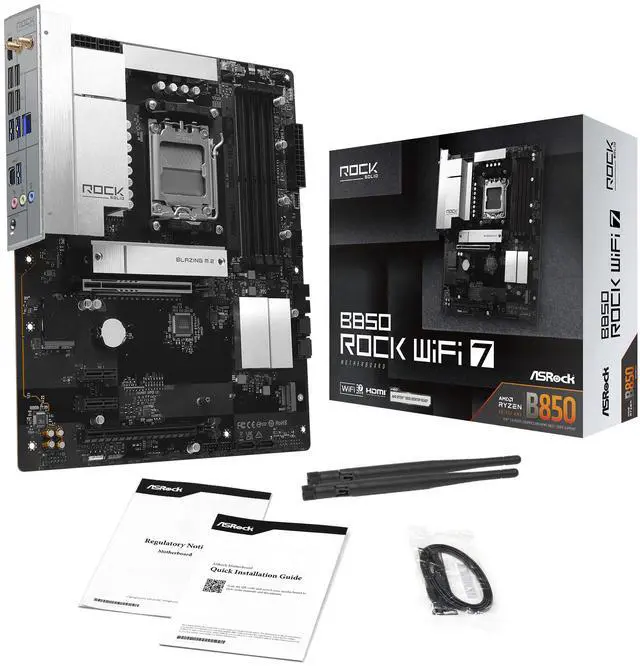

    Package Contents - 2 x SATA Data Cables
    - 2 x ASRock WiFi 2.4/5/6 GHz Antennas
